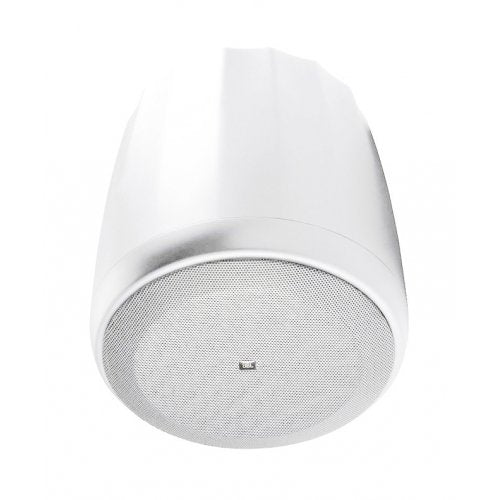

JBL Pro Control C64P/T-WH (Pair) White Pendant Speakers

The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.

FEATURES

• 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
• Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
• Stylish design, available in black or white (-WH).
• UL listed (speaker and hanging cable system).
• 8Ω and 70V/100V operation

SPECIFICATIONS Frequency Response (-10 dB)65 Hz - 15 kHz Frequency Response (+/-3 dB)85Hz - 14 kHz Power Rating100 W Continuous Program (2 hrs)
50 W (200W peak), Continuous Pink Noise (2 hrs)
40 W (160W peak) Continuous Pink Noise (100 hrs) Maximum Input Voltage18.2 V RMS (2 hrs), 36.4 V peak Nominal Sensitivity88 dB Nominal Coverage Angle120° (averaged 1 kHz to 4 kHz) Directivity (Q)6.2 Directivity Index (DI)7.3dB (averaged 1kHz – 16kHz) Rated Maximum SPL @ 1m105 dB continuous pink noise, 111 dB peak Rated Impedance8Ω Transformer Taps70V: 30W, 15W, 7.5W & 3.7W
100V: 30W, 15W, 7.5W Transformer Insertion Loss0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W Driver100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil Enclosure MaterialHigh impact polystyrene GrilleZinc-plated steel grille with powder-coat finish, foam backing (removable for painting) EnvironmentalExceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating. TerminationTwo removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included. SuspensionTwo identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb). Safety Agency RatingsSpeaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81. Dimensions (L x W x H)234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket. Net Weight (ea)2.35 kg (5.2 lbs) Shipping Weight (pair)6.07 kg (13.4 lbs) Included AccessoriesTwo suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors. Optional AccessoriesMTC-PC60 top panel / terminal cover ColorsAvailable in black or white (-WH). Paintable
