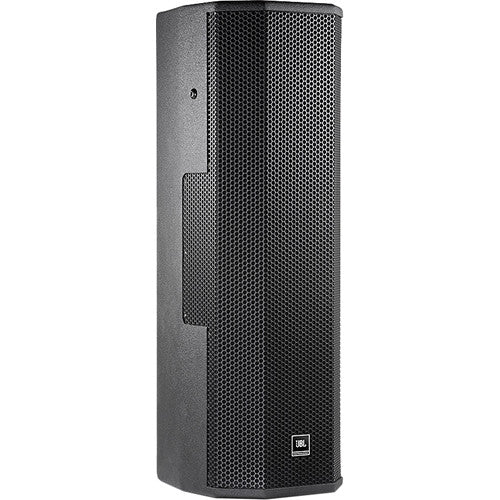

JBL Pro CWT128-WRX Dual 8" 2-Way Loudspeaker System

The JBL Crossfired Waveguide Technology CWT128 is a compact full-range 2-way system designed to provide extremely wide-angle coverage with maximum bandwidth and SPL in a single system package. The unique wide coverage pattern horn is designed to provide seamless coverage to 160-degrees horizontally. CWT128’s small footprint makes the system ideal for nearly all architecturally sensitive environments, taking up about a third of the footprint of two speakers splayed side by side.

Features:

• Seamless horizontal coverage across a full 160°
• Compact size and small footprint make it ideal for architecturally sensitive environments
• Dual 205 mm (8 in) LF transducers

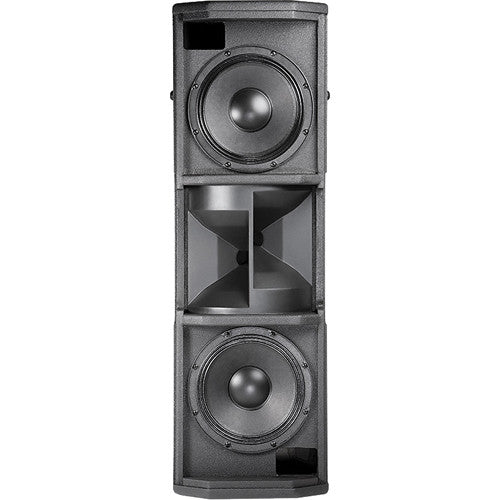

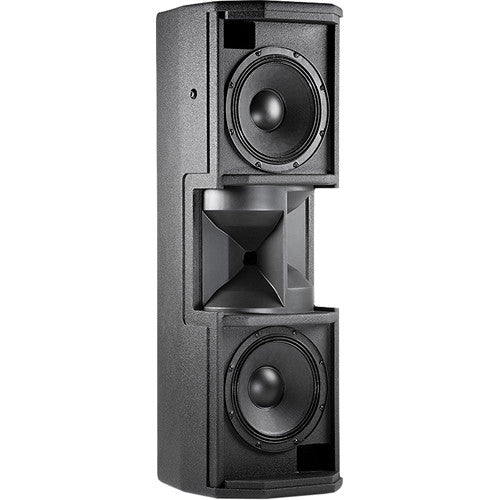

• Extremely wide-coverage 160° x 60° waveguide
• Dual 25 mm (1") exit, 38 mm (1.5") diaphragm compression driver
• Easy to install with 4 M10 attachment points built in across the top and sides
• 4 M8 points on the back panel accept OmniMount® wall mounting brackets

Applications:

• Transportation Facilities
• Cinema
• Sports Facilities
• Theme Parks

Specifications:

• Frequency Range (-10 dB): 71 Hz - 20 kHz
• Frequency Response (+/-3 dB): 96 Hz - 19 kHz
• Horizontal Coverage: 160°
• Vertical Coverage: 60°
• System Sensitivity: 94 dB SPL/1W/1m
• Rated Maximum SPL (1m): 129 dB
• System Nominal Impedance: 8 Ohms
• Long-Term System Power Rating: 450W (1800 Peak)
• System Power Rating: 850W/1700W/3400W
• Crossover: 1.5 kHz
• 70/100V Transformer Taps: 170V: 110W, 55W, *28W
• 100V: 110W & 55W
• Low Frequency Driver: 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge
• wound voice coil
• High Frequency Driver: 2 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm
• (1.5 in) voice coil
• High-Frequency Waveguide: Crossfired Waveguide based on Patented Technology
• Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
• Suspension Attachment: 4 x M10 (1 x M10 points, one top, one bottom, plus 1 x M10
• point on each side panel.)
• 4 x M8 rear for MultiMount® MM-120-BT
• Finish: Black DuraFlex™ finish

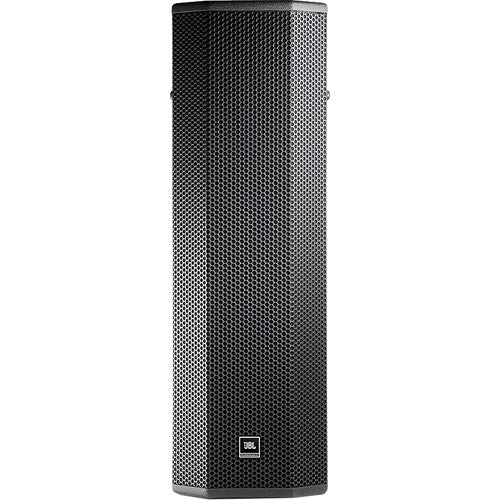

• Grille: Powder coated 16 gauge perforated steel, acoustically transparent foam backing (grille cloth backing on white units)
• Input Connectors: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs.`
• Environmental Specifications: Mil-Std 810; IPx3 per IEC529
• Dimensions (H x W x D): 811.28 x 259.59 x 300.74 mm (31.94 x 10.22 x 11.84 in)
• Weight: 18.6 kg (40.9 lb)
