Key Digital 4x1 4K/18G HDMI Switcher with Auto-Switching and Audio De-Embedding
KD-S4x1X-3
Payment plans from Affirm, learn more
- Key Digital
- Shipping Calculated at checkout, most in stock products ship same day

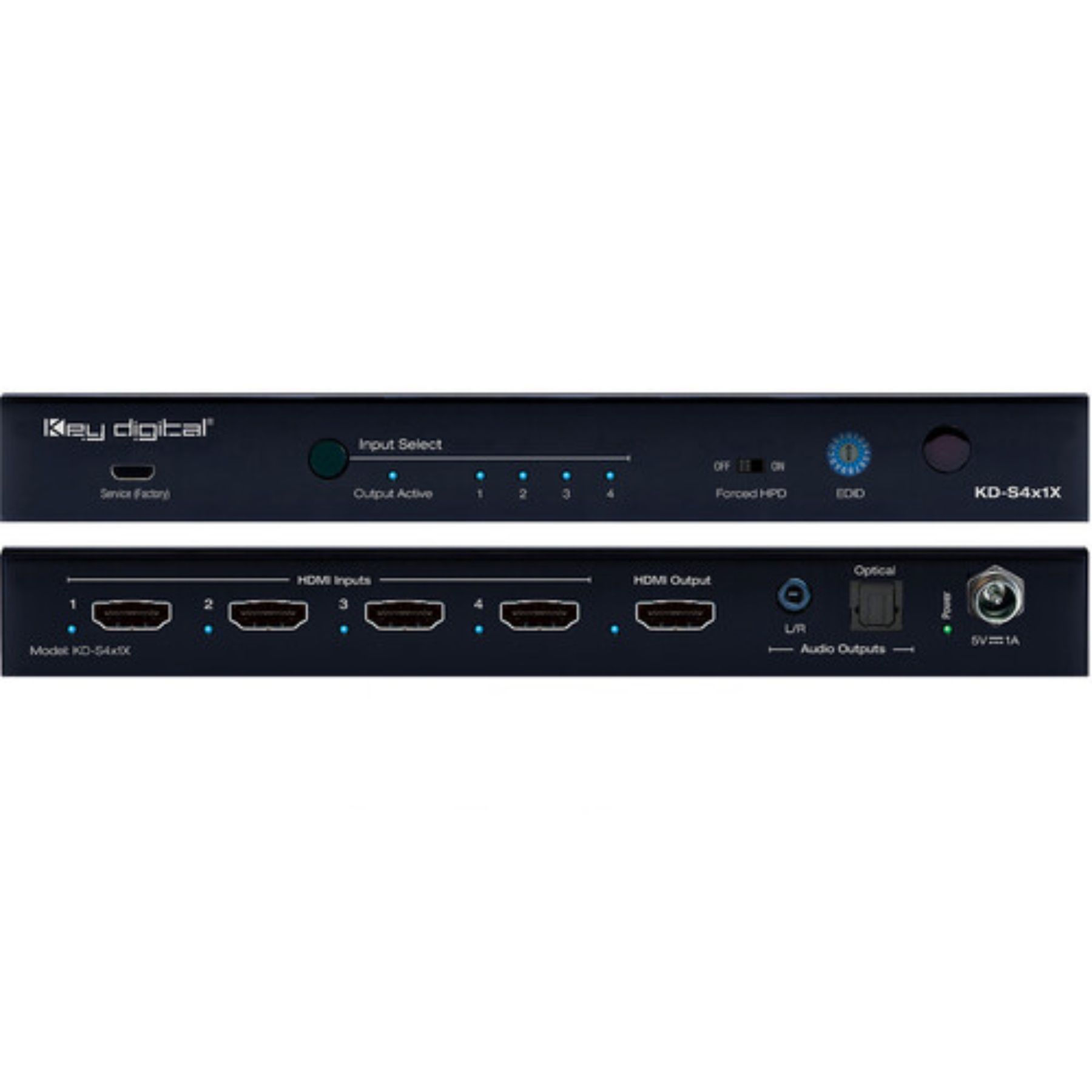

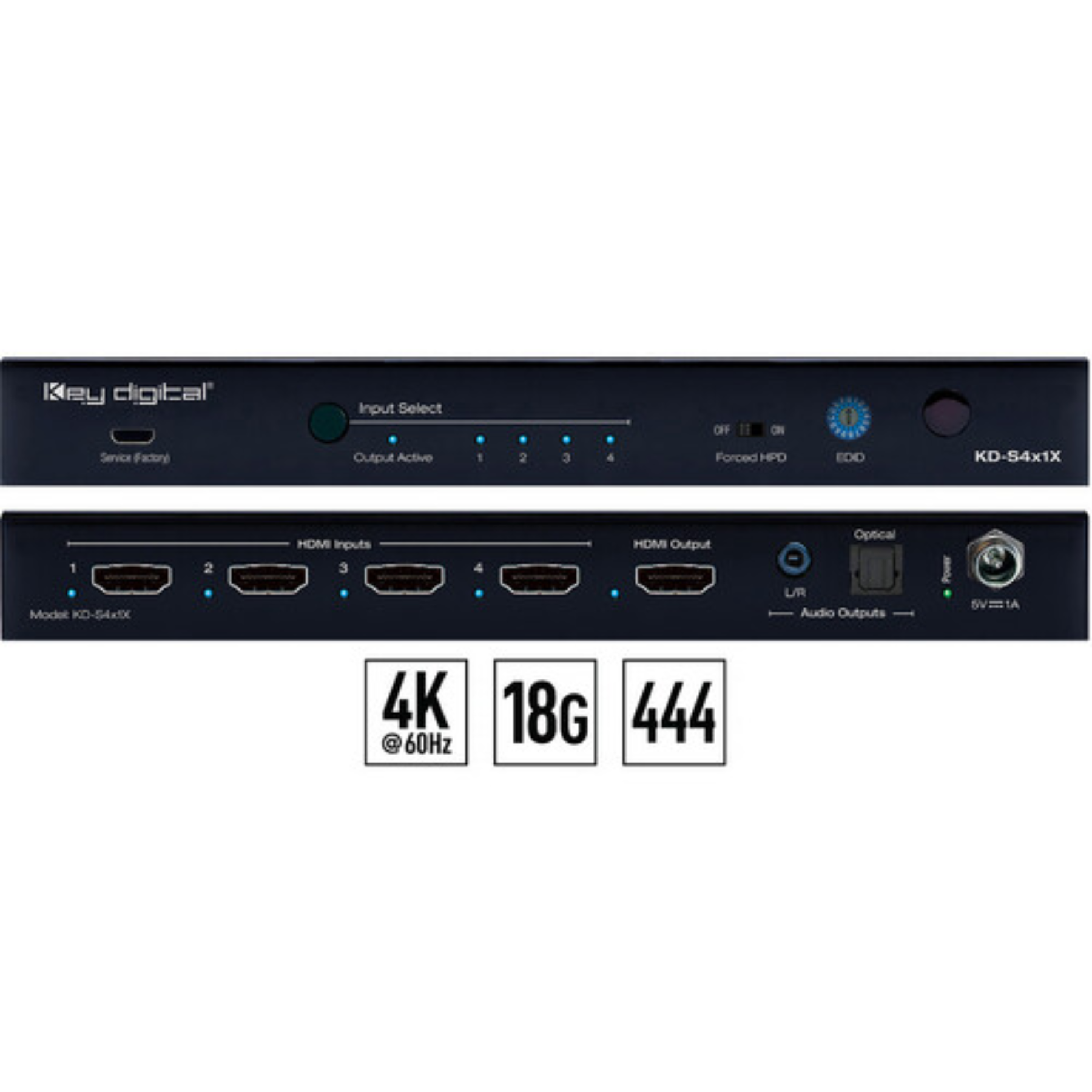

This 4x1 4K HDMI Switcher with Auto-Switching and Audio De-Embedding from Key Digital is a high-performance, four-input HDMI switcher that supports up to DCI 4K30 12-bit 4:4:4 video or up to DCI 4K60 8-bit video. It also accepts SD and HD video over HDMI as well as VESA resolutions such as VGA, SVGA, XGA, WXGA, SXGA, and UXGA while supporting a maximum data transfer rate of 18 Gb/s. It supports HDR10 (High Dynamic Range), which allows the unit to pass signals with a greater range of luminance values than an SDR signal.
The KD-S4X1X-3 features front-panel control, CEC-passthrough as well as IR control using the included IR remote control unit. It is HDCP 2.2 compliant and features 15 selectable EDID handshakes available in addition to the native EDID data that the switcher copies from the connected output display. The full buffer system manages TMDS reclocking/signal regeneration, HDCP authentication to source and display, and EDID control handshake. The switcher supports a variety of lossless compressed digital audio formats, including Dolby and DTS. Auto-switching with hot plug detection enabled (Forced HPD) allows the switcher to automatically switch to a new input when it is connected to a hot video signal.
Features
HDMI Switching
Switch four HDMI sources to one HDMI output
4K Support
Support for up to DCI 4K (4096 x 2160) or UHD 4K (3840 x 2160) at 24/25/30/60 Hz and 4:4:4 (signals up to 18 Gb/s bandwidth)
HDCP Support
Fully licensed and compatible with HDCP 2.2
High Dynamic Range
Supports HDR10 (High Dynamic Range) levels for more life-like images through a greater range of luminance levels
Resolution Support
Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, and UXGA) up to 4096 x 2160
Deep Color Support
Support for up to UHD 4K30 Hz 4:4:4 12-bit or UHD 4K60 4:4:4 8-bit
Audio De-Embedding
Audio of the selected HDMI input is output at the digital optical and analog 3.5mm stereo connectors
Auto-Sensing
Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
Full Buffer System
Manages TMDS re-clocking/signal regeneration, HDCP authentication to source and display, and EDID Control handshake
EDID Management
Internal library with 15 internal EDID handshakes, including 4K with HDR are selectable via a front rotary knob. These selections are in addition to native EDID data copied from the output/display
Lossless Compressed Digital Audio
Supports Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, and Dolby Atmos
CEC Passthrough
Passthrough is supported from a connected display to a selected HDMI source
Control
Front-panel buttons/LEDs or Optical IR Control System
Power
The included power supply features a locking-type power connector to the switcher
