Key Digital KD-IP1022DEC-II 4K AV-over-IP Decoder w/ KVM/USB & Audio De-Embedding
KD-IP1022DEC-II
Regular price$1,639.00
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- Key Digital
- Shipping Calculated at checkout, most in stock products ship same day
The KD-IP1022DEC-II 4K AV-over-IP Decoder with KVM/USB & Audio De-Embedding from Key Digital features PoE (power over Ethernet), low latency, scaling, support for up to DCI 4K30 video, and audio de-embedding. Designed for use with a verified network switch, this app-ready decoder can be mixed and matched with KD-IP822 and KD-IP922 encoders and decoders to create up to 16x16 video walls with a maximum total of 256 displays.

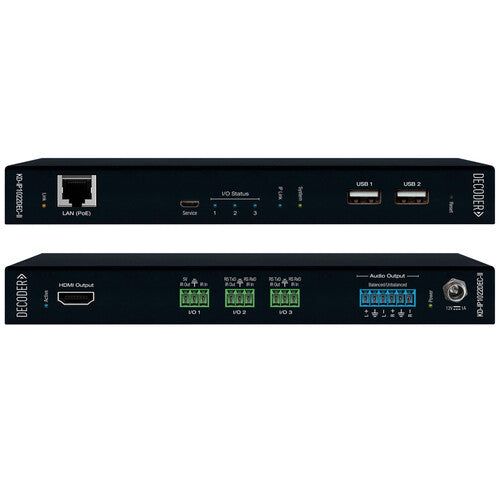

Interfaces include one GbE LAN input port, one HDMI output, one 6-pin block audio output, two USB-A ports for routing KVM devices, and three 3-pin block control ports.
Features
- 4K Video Distribution for Video Walls
- LAN Input, HDMI Output, 330' Range
- 6-Pin Block Analog Audio De-Embedding
- USB Source Routing for Keyboard/Mouse
- Open API Control Ports, Audio Pre-Amp
- Up to 8-Bit, 4:4:4 DCI 4K30 Video
- 10.2 Gb/s Maximum Bandwidth
- DCI/UHD 4K Downscaling to 1080p or 720p
- Dolby & DTS Audio Format Support
- 3 x 3-Pin Block Control Ports
Specifications
| Video Inputs | 1x RJ45 |
| Audio Inputs | No |
| Video Outputs | 1x HDMI |
| Audio Outputs | 1x Block 6-Pin |
| Other I/O | 2x USB-A 2.0 1x Micro-USB Service 1x Block 3-Pin IR 1x Block 3-Pin RS-232 Input/Output 1x Block 3-Pin Remote |
| Expansion Slots | No |
| Latency | 40 ms |
Format Support
| Input Video Format | RJ45 (8-Bit 4:4:4/4:2:2) DCI 4K at 24/25/30 fps UHD 4K at 24/25/30 fps 1080p 1080i 720p |
| Output Video Format | HDMI (8-Bit 4:4:4/4:2:2) DCI 4K at 24/25/30 fps UHD 4K at 24/25/30 fps 1080p 1080i 576p |
| Embedded Audio | LAN (RJ45) Input HDMI Output |
Standards
| HDCP Support | Yes, Version 2.2 |
| HDR Support | Not Specified by Manufacturer |
| DTS Compatibility | DTS-HD Master Audio |
| Dolby Compatibility | Dolby Atmos, Dolby Digital Plus, Dolby TrueHD |
IP Streaming
| Video IP Decoding | Proprietary: 1280 x 720 to 4096 x 2160 |
Hardware
| Tally Light | Yes |
| Wireless | No |
Power
| Power I/O | 1x Barrel (12 VDC at 1 A) Input |
| PoE Support | PoE 802.3af |
| Power Consumption | Power Supply: 20 W |
Environmental
| Operating Temperature | 149°F / 65°C (Recommended) |
General
| Certifications | CE, RoHS, WEEE |
| Dimensions | 6.25 x 3.1 x 1.1" / 15.88 x 7.9 x 2.8 cm |
| Weight | 14.4 oz / 408 g |
