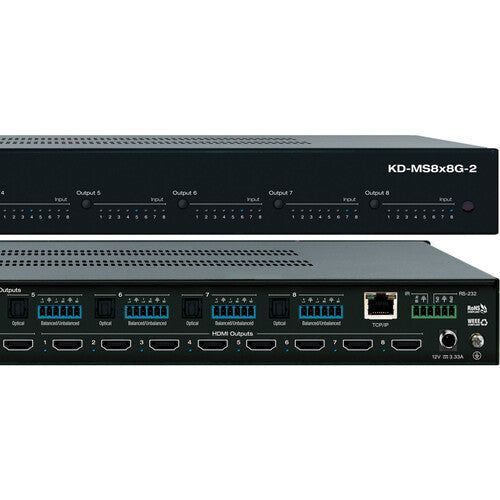

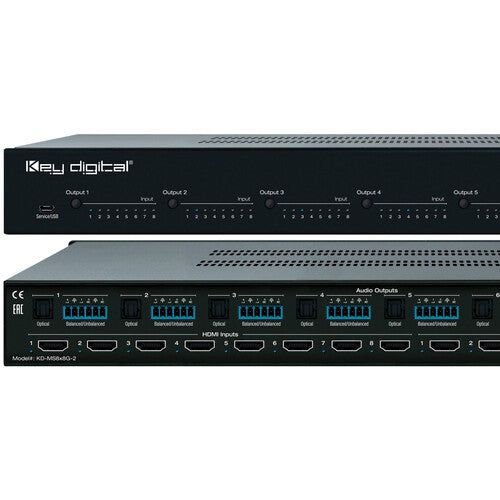

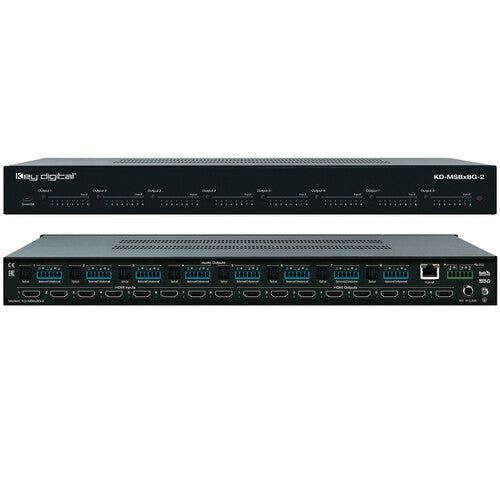

Key Digital KD-MS8x8G-2 8x8 4K HDMI Matrix Switcher w/ Audio Switching & Audio De-Embedding
KD-MS8x8G-2
Payment plans from Affirm, learn more
- Key Digital
- Shipping Calculated at checkout, most in stock products ship same day
Route up to eight HDMI inputs to eight HDMI outputs with full DCI 4K support and in any combination with this 8x8 4K HDMI Matrix Switcher from Key Digital. Boasting a video bandwidth of 18 Gb/s, 4:4:4 chroma subsampling, and audio de-embedding, this HDCP 2.2 compliant matrix switcher is ideal for AV system installations in bars, restaurants, and other commercial venues that provide audio and video entertainment content to their patrons as well as higher end industry applications. The switcher features native EDID data and support for HDR, including HDR10 and Dolby Vision. It manages TMDS (Transition Minimized Differential Signaling) re-clocking/signal regeneration, with HDCP authentication to source and display.
Features
- Routes 8 HDMI Signals to 8 Destinations
- DCI 4K60 with 4:4:4 Chroma Subsampling
- Supports Audio De-Embedding
- 18 Gb/s Video Bandwidth with HDR Support
- HDCP 2.2 Compliance & Native EDID Data
Specifications
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | DCI 4K at 60 |
| Color Processing | 12-Bit 4:4:4 12-Bit 4:2:2 12-Bit 4:2:0 |
| Video Inputs | 8x HDMI Female 8x HDMI Female |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K up to 60 fps |
| Embedded Audio Input | HDMI |
| Video Outputs | 8x HDMI Female |
| Output Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K up to 60 fps |
| Audio Outputs | 8x Block 6-Pin Stereo Analog Female 8x TOSLINK 8-Channel S/PDIF Female |
| Output Audio Format | Analog: 192 kHz |
| Embedded Audio Output | HDMI: 8-Channel (per Output) |
| Other I/O | 1x RJ45 Control Input 1x Block 6-Pin RS-232 |
| HDCP Support | Yes, Version 2.2 |
| HDR Support | Yes, HDR10/Dolby Vision |
| DTS Compatibility | DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby TrueHD |
| OS Compatibility | iOS Only |
| Mobile App Compatible | Yes: iOS Only App Name: Key Digital App Functionality: Remote Control |
| Wi-Fi | No |
| Bluetooth | No |
| Power I/O | 1x Barrel (12 VDC ) Input |
| Power Consumption | Power Supply: 1.66 A 20 W |
| Certifications | CE, RoHS, WEEE, EAC |
| Dimensions | 17.2 x 7.5 x 1.7" / 438 x 190 x 44 mm |
| Weight | 5.62 lb / 2.55 kg |
| Package Weight | 10.07 lb |
| Box Dimensions (LxWxH) | 19.5 x 14.4 x 3.3" |
