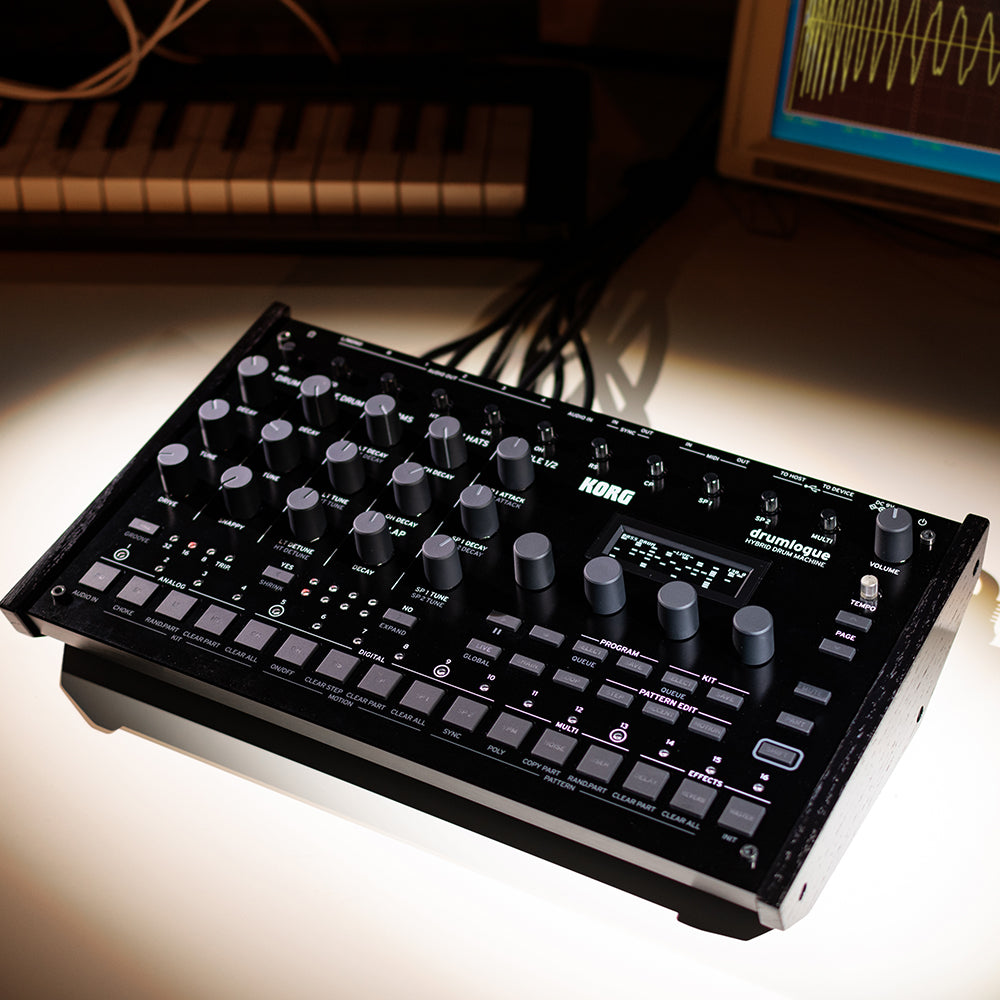

KORG Drumlogue Analog Drum Machine

Overview of KORG Drumlogue Analog Drum Machine

Custom Synths

drumlogue’s synth voices are not simply static waveforms. Custom synths can be built to not only generate sound, even implementing built in filters, LFOs, MIDI controlled polyphony or other parameters is now possible  The only restriction for third party developers is their creativity (and CPU usage!), giving you unbound sound exploration.

Specifications

• Polyphony

• 11 voices (*)

(*) User synths may be played polyphonically via MIDI, the actual voice count will depend on the synth's implementation

• Sound Engine

• Analog x 4
• PCM / User samples x 6
• Multi-engine（NOISE、VPM、User Synthesizer）x 1

• Number of Programs (including rhythm patterns):

• 128 (64 preset programs by factory default)
• Number of drum kits:
• 128 (64 preset kits by factory default)

• Effects

• REVERB、DELAY、MASTER

• Inputs / Outputs

• Headphones
• OUTPUT（L/MONO、R、AUDIO、OUT 1-4）
• SYNC IN/OUT
• AUDIO  IN、MIDI  IN/OUT
• USB  A（TO  DEVICE）(Only for MIDI controllers)
• USB  B（TO  HOST）
• Power supply: AC adapter (DC9V, )

• Dimensions (W × D × H):
• 317 × 189 × 73 mm/12.48” × 7.44” × 2.87”

• Weight: 1.4 kg/3.09 lbs.

• Included items: AC adapter, Precautions, Quick Start Guide
