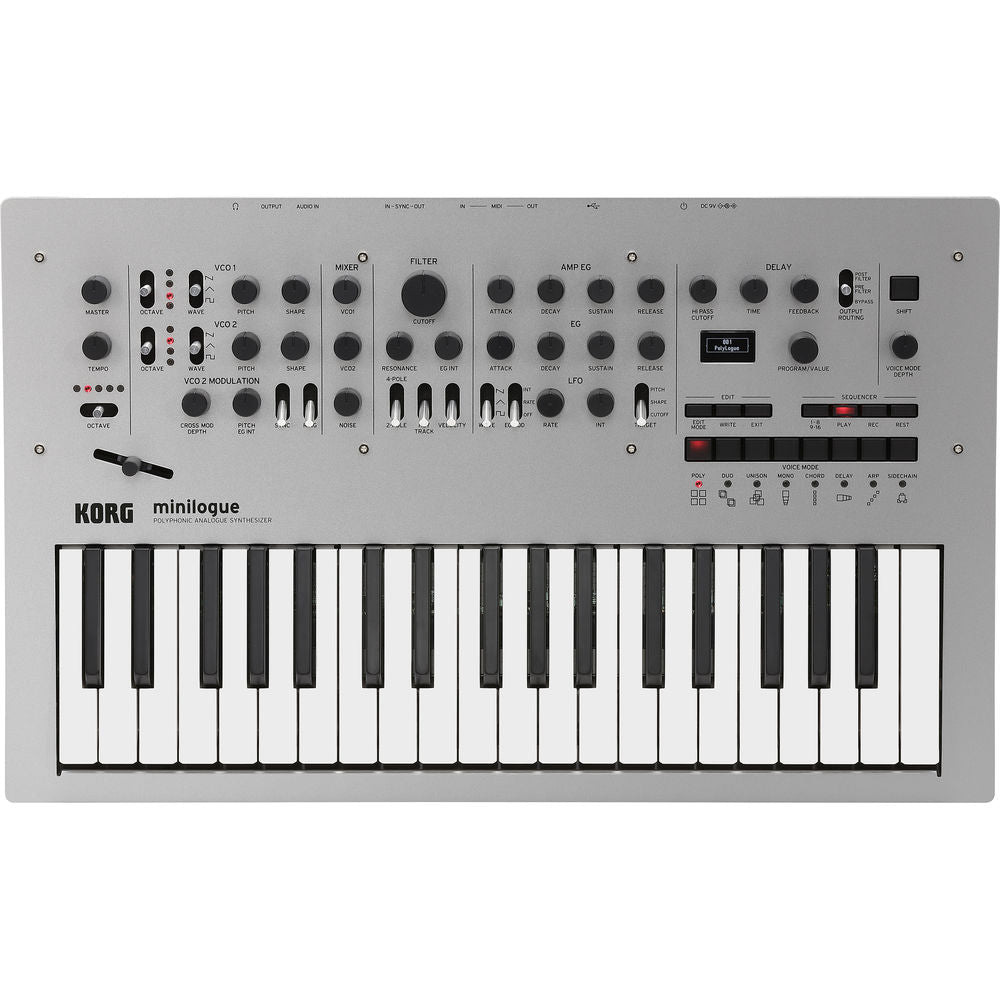

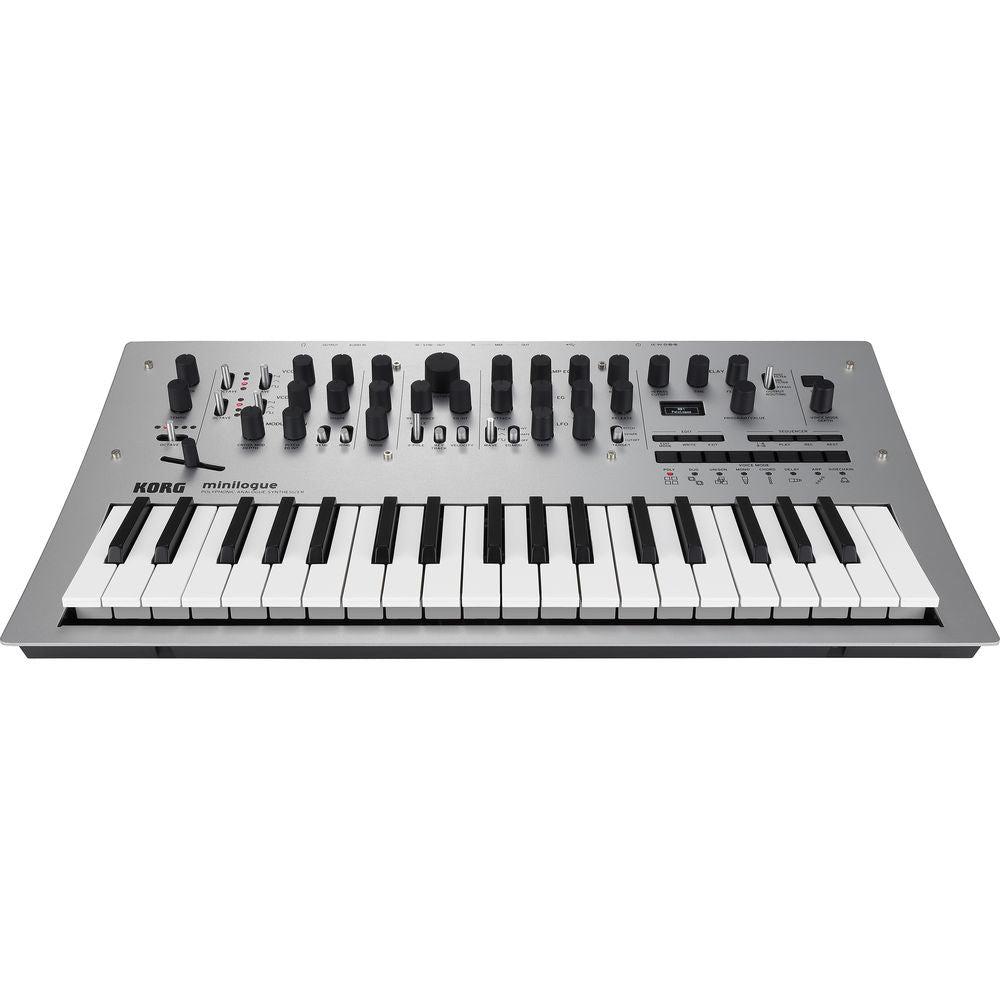

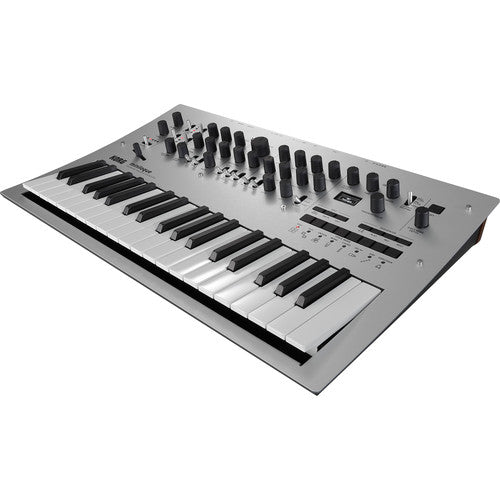

Overview of Korg Minilogue Polyphonic Analog Synthesizer
Korg's new Minilogue is a fully programmable 4-voice analog synthesizer with a 16-step note and motion sequencer, 8 voice modes, on board tape-style delay, multiple sound shaping and filter options, and an oscilloscope display. The stylish and innovative Minilogue is 'the' next-generation analog synthesizer - great for any musician looking for a powerful and fun-to-use synth.
The uniquely curved, sand-blasted 2mm aluminum front panel, metal shaft potentiometers, solid, chassis-mounted metal shaft potentiometers and rubber-coated knobs give the roadworthy minilogue a standout look and feel to complement its powerful and dynamic sound creation capabilities.
Features:
• Flexible, powerful four-voice analog synthesizer
• Fully programmable, with 200 program memories (100 sounds included)
• Voice Mode lets you flexibly configure the four voices
• Automatable 16-step polyphonic note and motion sequencer
• Oscilloscope function shows the waveform visually
• Rugged and stylish with aluminum top panel, chassis-mounted pots, rubber-coated knobs, and real wood back panel
• MIDI, USB MIDI, and Audio Sync for all types of in-studio and live connectivity, including direct sync with SQ1, volca, electribe, and more
Specifications:
Keyboard: 37-keys (Slim-key, velocity sensitive)
Sound Generation: Analog synthesis
Maximum Polyphony: 4 voices
Program: 200 programs (100 Presets / 100 Users)
Each program includes voice mode and sequence data settings
Up to eight favorite programs can be registered
Voice Modes: 8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain)
VOICE MODE DEPTH can vary different parameters in each mode
Main Synthesis Parameter
VCO1 - Octave, Wave (Saw, Triangle, Square), Pitch, Shape
VCO2 - Octave, Wave (Saw, Triangle, Square), Pitch, Shape
VCO2 MODULATION - Cross Mod Depth, Pitch EG Int, Sync, Ring
MIXER - VCO1, VCO2, Noise
FILTER - Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity
AMP EG - Attack, Decay, Sustain, Release
EG - Attack, Decay, Sustain, Release
LFO - Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)
DELAY - Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)
Sequencer: 16-step polyphonic sequencer
Motion sequence can be used on up to four parameters
Controls: 41 dedicated panel controls deliver immediate parameter access
A slider can control different parameters for each program
Display: Real-time OLED oscilloscope provides visual feedback of parameter changes

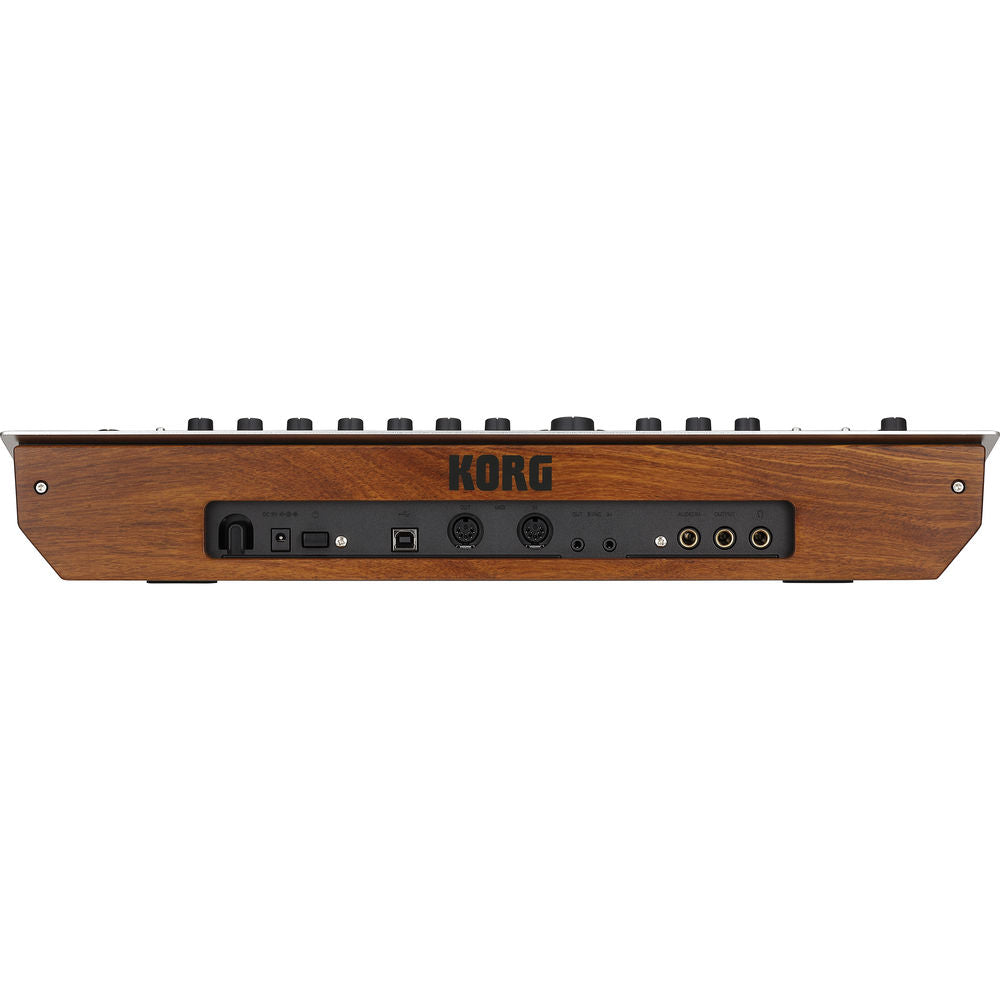

Connectors:
Headphones (6.3mm stereo phone jack)
Output (6.3mm monaural phone jack)
Audio In (6.3mm monaural phone jack)
SYNC IN jack (3.5 mm stereo mini-phone jack, 20V maximum input level)
SYNC OUT jack (3.5 mm stereo mini-phone jack, 5V output level)
MIDI In
MIDI Out
USB Type B
Power Supply: AC adapter (DC9V) KA350
Power Consumption: 8 W
Dimensions (W x D x H): 500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"
Weight: 2.8 kg / 6.17 lbs.
Included Items: AC adapter
