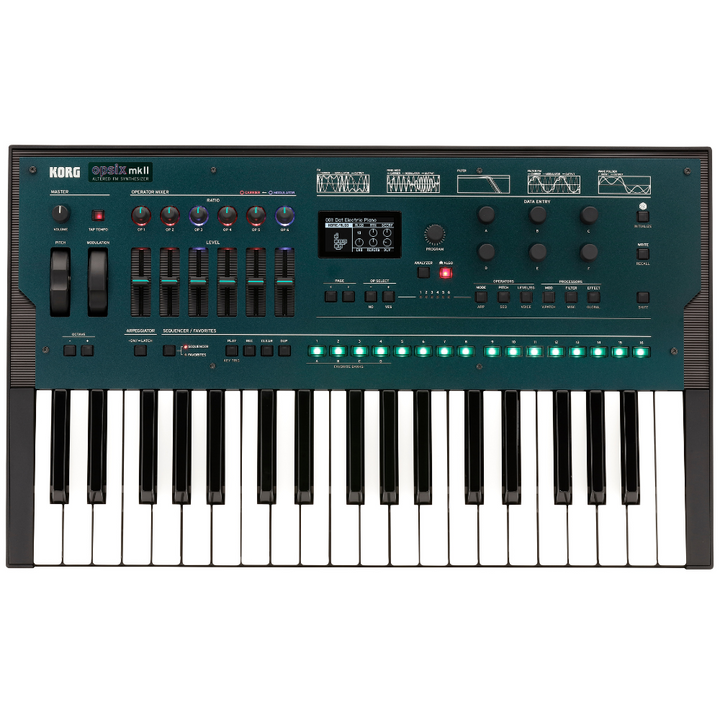

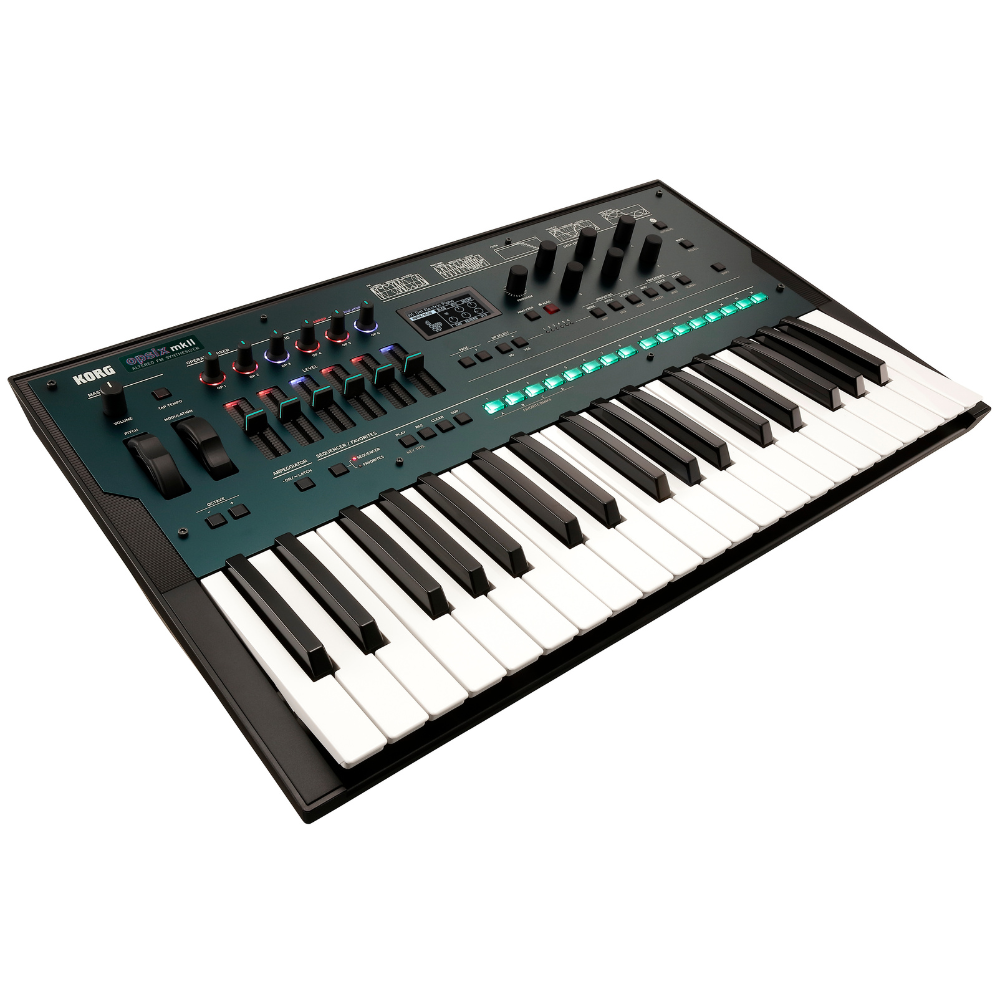

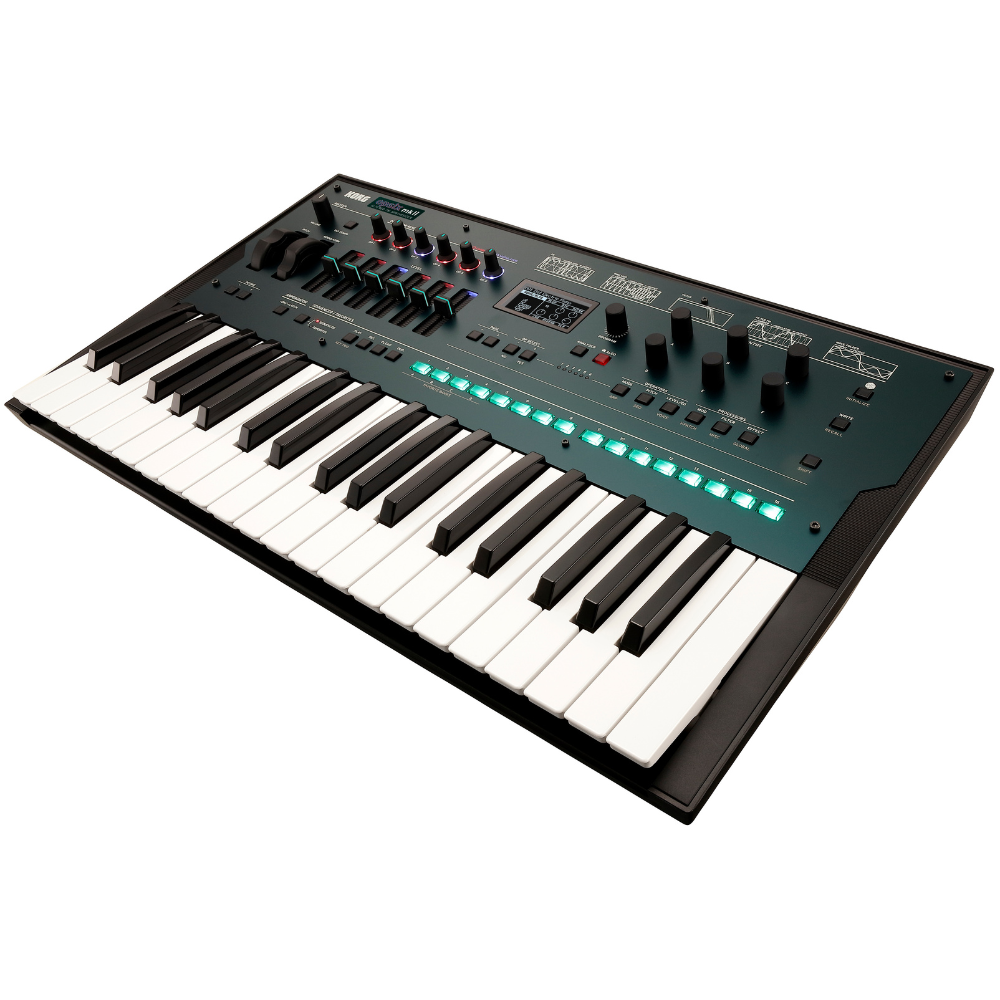

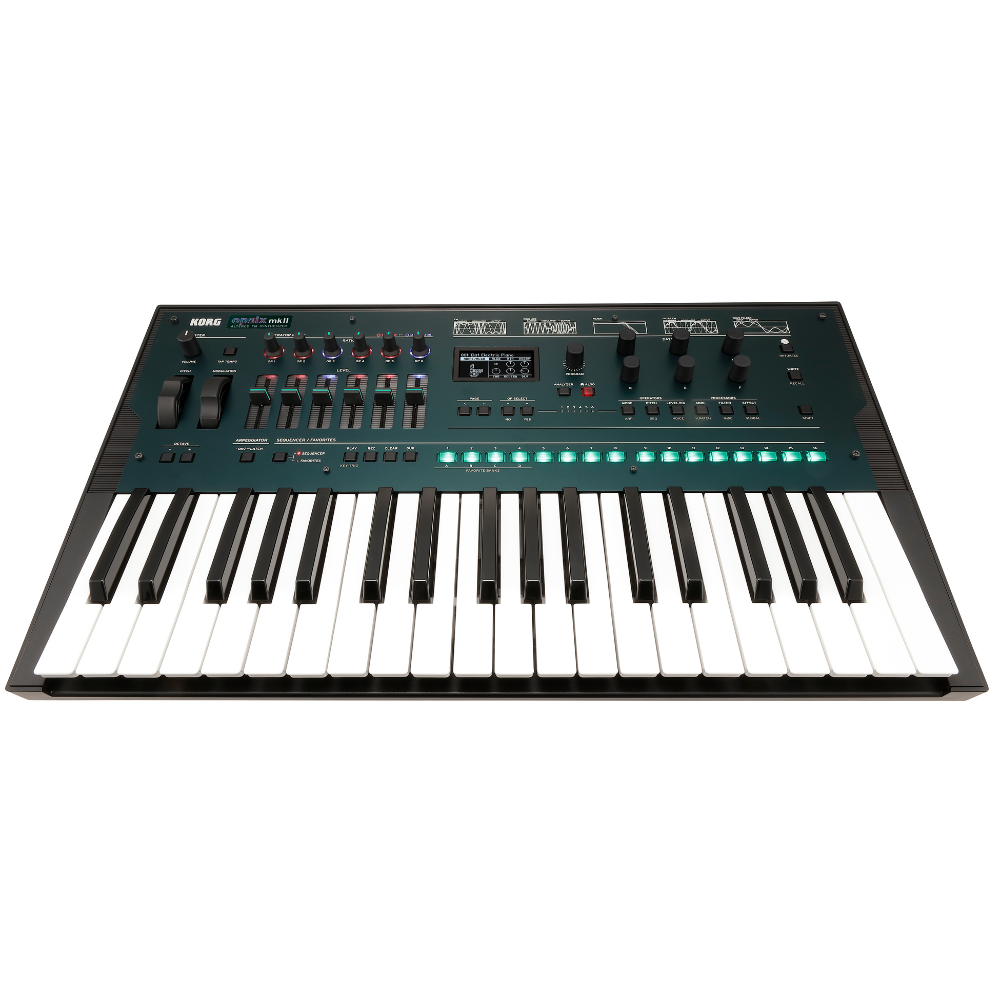

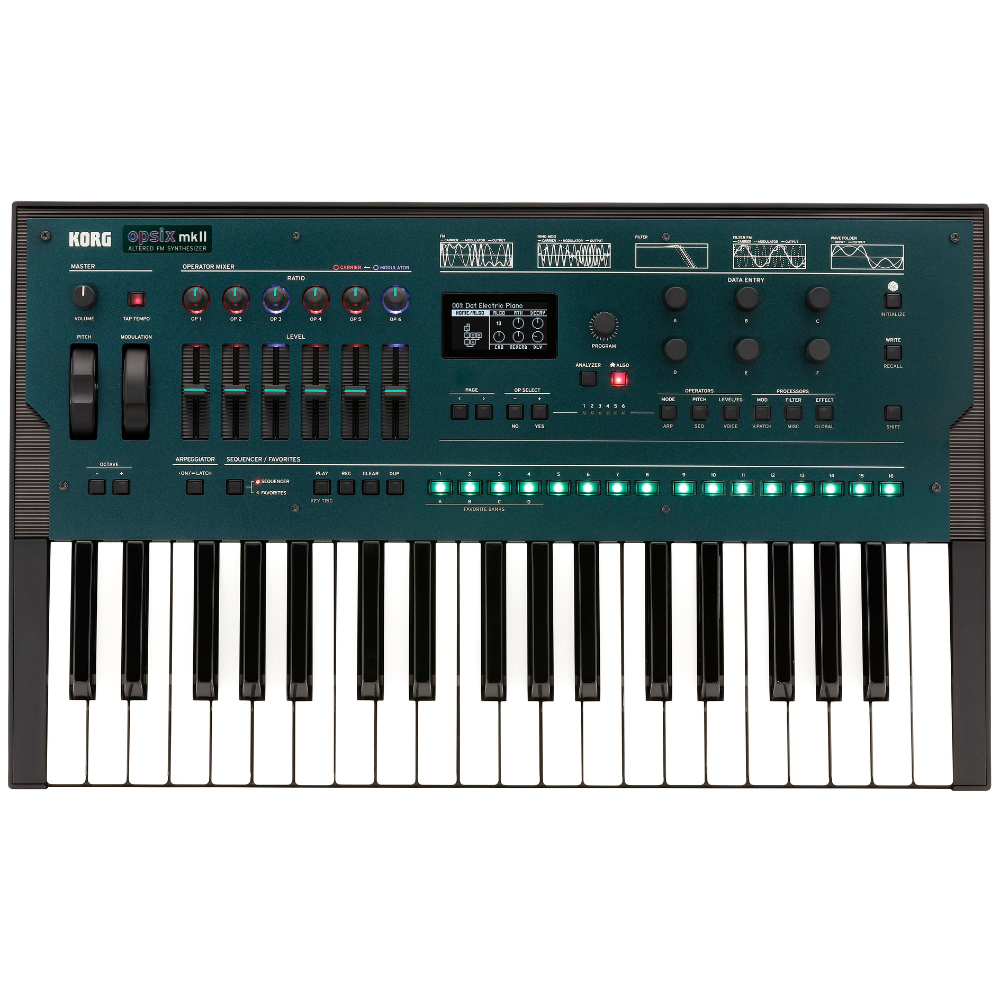

Korg OPSIXMK2 Opsix MK2 Synthesizer

Overview of Korg OPSIXMK2 Opsix MK2 Synthesizer

opsix mk II
ALTERED FM SYNTHESIZER

A Full-Spectrum Sound Experience

opsix mk II is a digital synth like no other. Based on the sound engine of the original opsix, the number of simultaneous voices and voicings has been expanded to an astounding 64 voices. The result is superior performance and precise control.

The opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.

And, it is fully compatible with the sounds and samples from both the original opsix and the opsix Native software, including numerous high-quality libraries.

- Evolved to an astounding 64 voices
- Get Illuminated with the Operator Mixer
- Direct Hands-on Control
- Six in One Synthesis
- Altered FM architecture delivers sounds across a vast spectrum
- Powerful Effects Processing
- Automatable 16-step sequencer
- Monster Modulation Matrix
- Dice to generate new, unique sounds
- Free Librarian Software
- Many ready-to-go sound packs are now available at KORG Shop
 (https://korg.shop/sound-libraries/opsix.html)
- Special crossgrade to opsix native (software)

Special crossgrade to opsix native (software)
We have prepared a package for those who have the opsix series hardware to crossgrade to opsix native (software) at a special price. They can obtain a coupon code via opsix librarian software, which allows them to purchase it at a special price of $49.99 from the KORG Shop. Users will become able to use opsix series hardware on stage and opsix native in a DAW, making it usable in various environments.
* Requires opsix Sound Librarian v1.0.1 or later.

1. opsix and opsix SE owners: Download and install the latest version of the opsix Editor/Librarian.
2. Open the file menu of the Editor/Librarian and select "Get Plug-in Coupon...".
3. A dialog will appear and a coupon code will be displayed. Follow the instructions on the screen and redeem the coupon at the KORG Shop.

opsix native
opsix mk II is a digital synth unlike any other, with sounds to match. Instantly explore hundreds of fresh, cutting-edge sounds to inspire your next musical project! Go even further with the power of customization right at your fingertips.

The operator mixer, which dramatically changes the characteristics of the sound, and the flexible sound engine that goes far beyond the realm of FM instruments, as symbolized by the word "Altered," are retained, as is the software's unique ability to provide a bird's eye view of all parameters. The user interface further expands the potential of this synthesizer.

opsix native is a plug-in version of opsix / opsix SE with the exact same sound engine as opsix / opsix SE for production use on a DAW.

Specifications

Keyboard
37 keys (velocity and release-velocity sensitive)

Sound generating system
Altered FM sound generator

Maximum Polyphony
64 voices (varies depending on the setting)

Structure
6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
Algorithm: 40 presets + user algorithm (unique to each program)
Operator: 5 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder)
Oscillator waveform: 21 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White)
Filter: 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
EG: ADSR
LFO: 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
V.Patch: 12 routings
Effect: 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
Sequencer: Step Sequencer (up to 16 steps, up to 6 notes per step)
Motion Sequencer (up to 6 lanes)
Arpeggiator: 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)

Number of programs
500 (250 preset programs and 250 user programs as the factory-set default)
FAVORITE: 64 (16 Slots × 4 Banks)

Controllers
MODULATION wheel, PITCH wheel, RATIO OP 1–6 knobs, LEVEL OP 1–6 sliders, DATA ENTRY A–F knobs

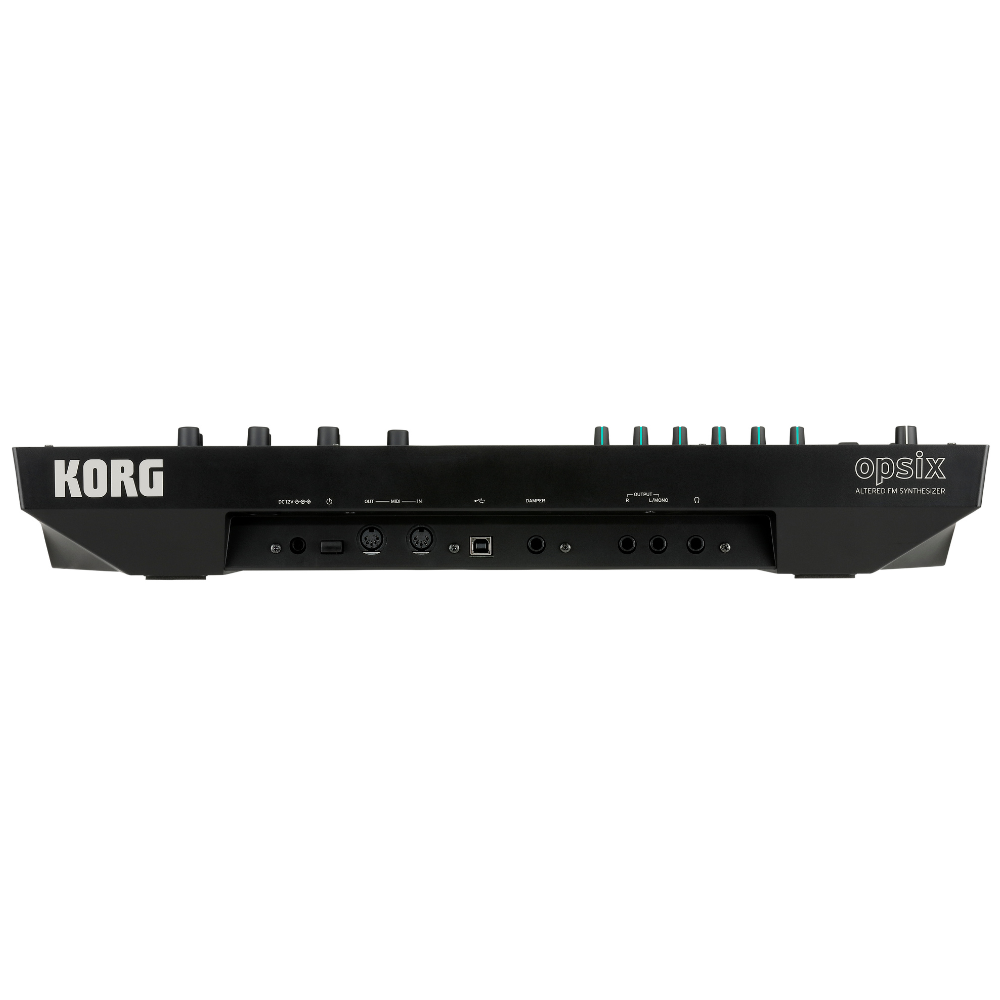

Inputs/outputs
Headphone (6.3 mm stereo phone jack)
OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks)
DAMPER (6.3 mm phone jack, half-damper not supported)
MIDI IN and OUT connectors
USB B port

Power supply
AC adapter (DC12V)

Power consumption
5 W

Dimensions (W × D × H)
565 × 338 × 90 mm / 22.24" × 13.31" × 3.54"

Weight
2.9 kg / 6.93 lbs.

Included items
AC adapter

Accessories (sold separately)
DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
