KORG PBXPRO Pitchblack X Pro Rackmount Tuner

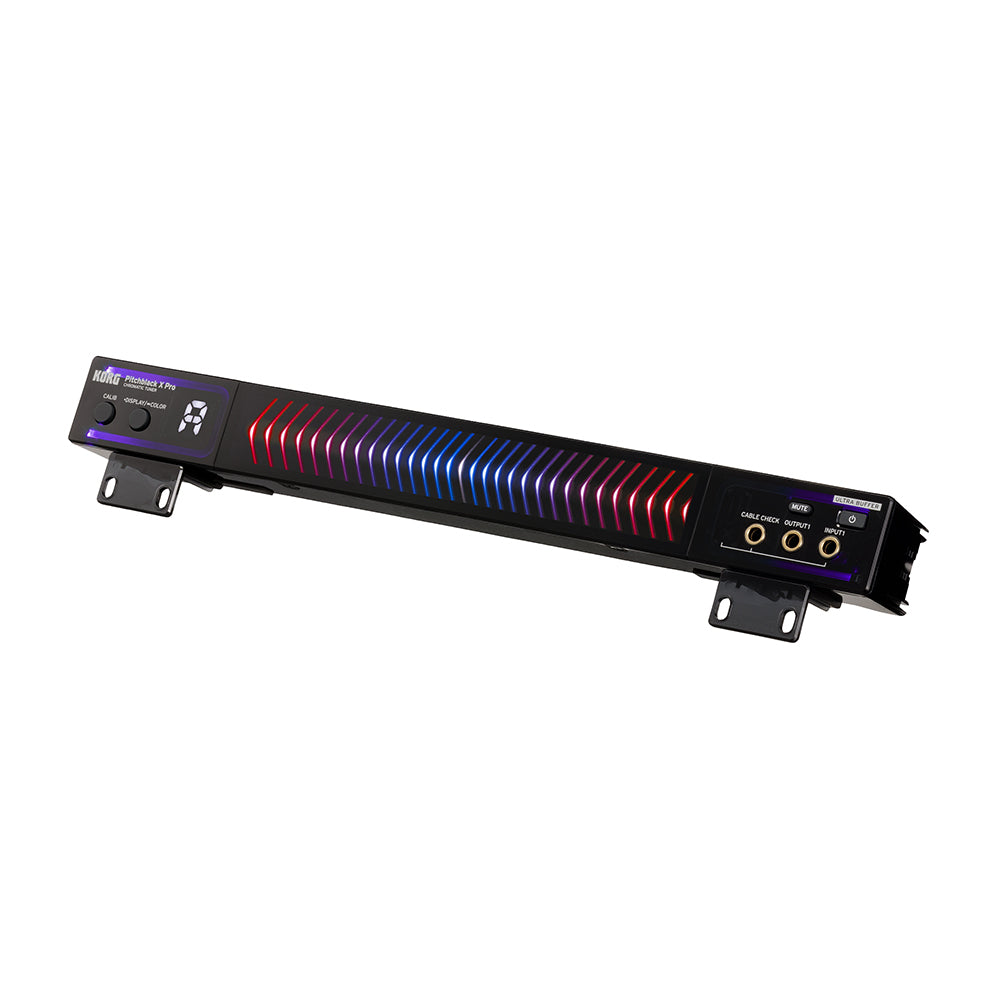

An ultra-lightweight, thin rack-mount tuner with the highest visibility of any“3D” tuning meter

Since producing the world's first rackmounted tuner, the DT-1pro which appeared in 1987, Korg has continued to produce classic models that define the era, including the DTR-1/DTR-2 in 1994 and the DTR-1000/DTR-2000 in 2002. Now in 2013, Korg unveils its latest rackmount model. The pitchblack Pro features a new 3D visual meter that's so beautiful you'll think of it as an aspect of your stage performance. The three-dimensional expression of light delivers an unprecedentedly visual element. Although it's in a rackmount form factor, the body is ultra-lightweight and slim, allowing it to be used anywhere. This is a new generation of rackmount tuner that every guitarist/bassist with professional aspirations should experience.

There are three display modes available for the large meter.

• 1. Regular Meter mode
  As when using a needle-type meter tuner, tune the string so that the LED in the center of the meter is lit up. The illuminated LED will move to the right if the string is sharp, or toward the left if the string is flat. This process is intuitively easy to grasp.
• 2. Strobe Meter mode
  Tune the string so that the LED meter illumination stops flowing. The meter illumination will flow from left to right if the string is sharp or from right to left if the string is flat.
• 3. Half Strobe Meter mode
  Tune the string so that the LED meter illumination stops flowing and only the center LED is lit up. The right side of the LED meter strobes if the string is sharp; the left side strobes if the string is flat. When the pitch is correct, only the center LED will be lit up.

Specifications:

Tuning: 12 Note Equal Temperament
Detection Range: E0 (20.60 Hz) ~ C8 (4186 Hz), Sine Wave
Calibration Range: A4 = 436-445 Hz (1 Hz steps)
Detection Accuracy: +/- 1 cent
Display Mode: Regular / Strobe / Half Strobe
Input impedance: 1 M Ω (when tuner is on)
Connectors:

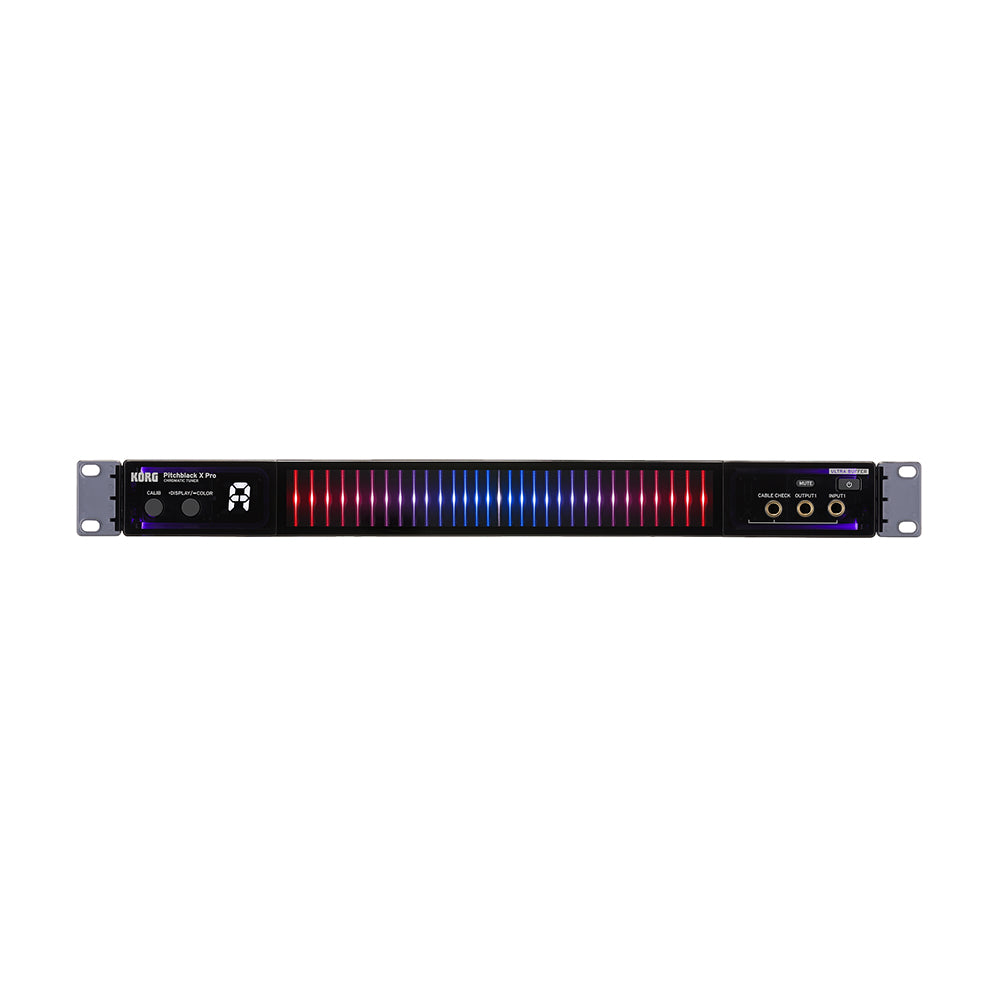

Front Side: Input 1 (mono 1/4" jack) for Guitar / Bass
Mute (mono 1/4" jack)
Cable Check (mono 1/4" jack)

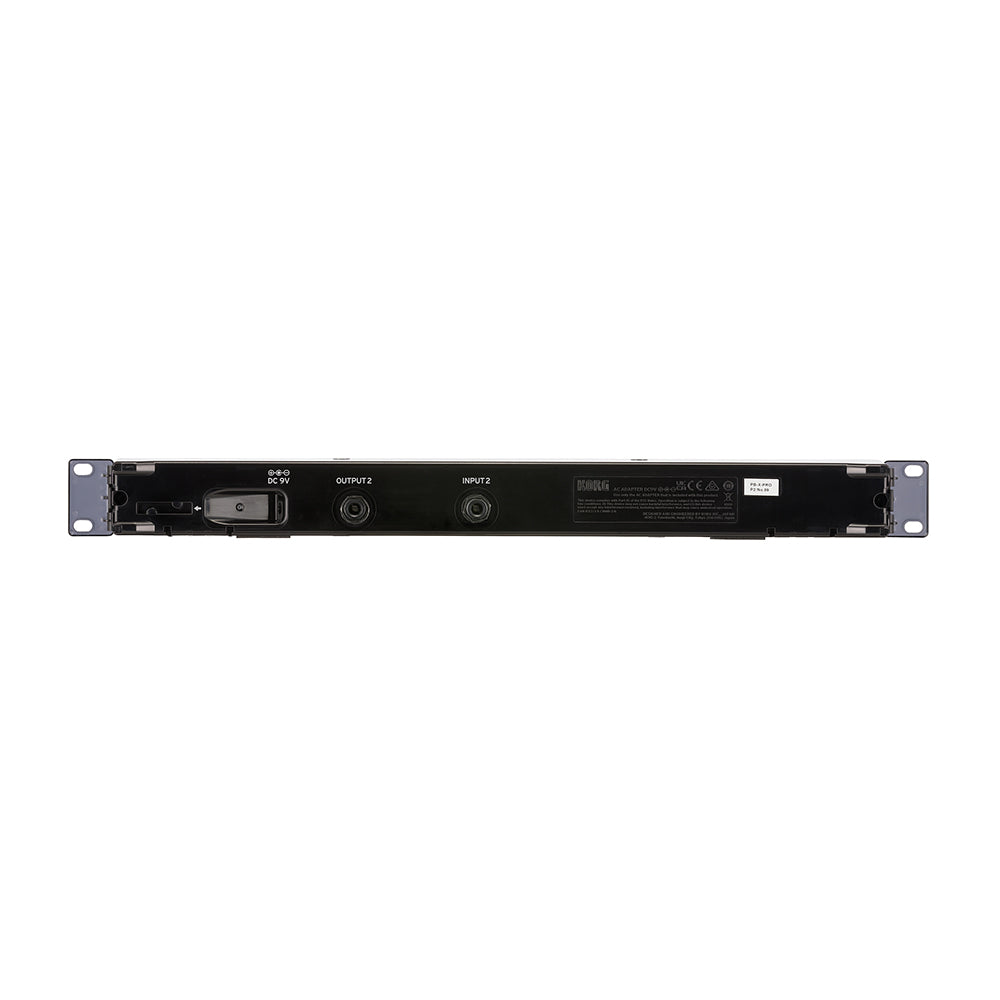

Rear Side:
Input 2* (mono 1/4" jack)
*This jack is intended for use with the line output from an effect unit or keyboard; this cannot be used simultaneously with the INPUT 1 jack Output (mono 1/4" jack) DC IN (9V)Power supply:DC 9V, AC adapter(KA350）Dimensions:
(W x D x H)Tuner Only: 430 x 49 x 44 mm / 16.93 x 1.93 x 1.73 inches (including protrusions)
When used with the rackmount adapters: 482 x 49 x 44 mm / 18.98 x 1.93 x 1.73 inches (including protrusions)Weight:363 g / 12.80 Oz. (Tuner Only)Accessories:AC adapter, Screw x 4, Washer x 4, Rack mounting adapter x 2
