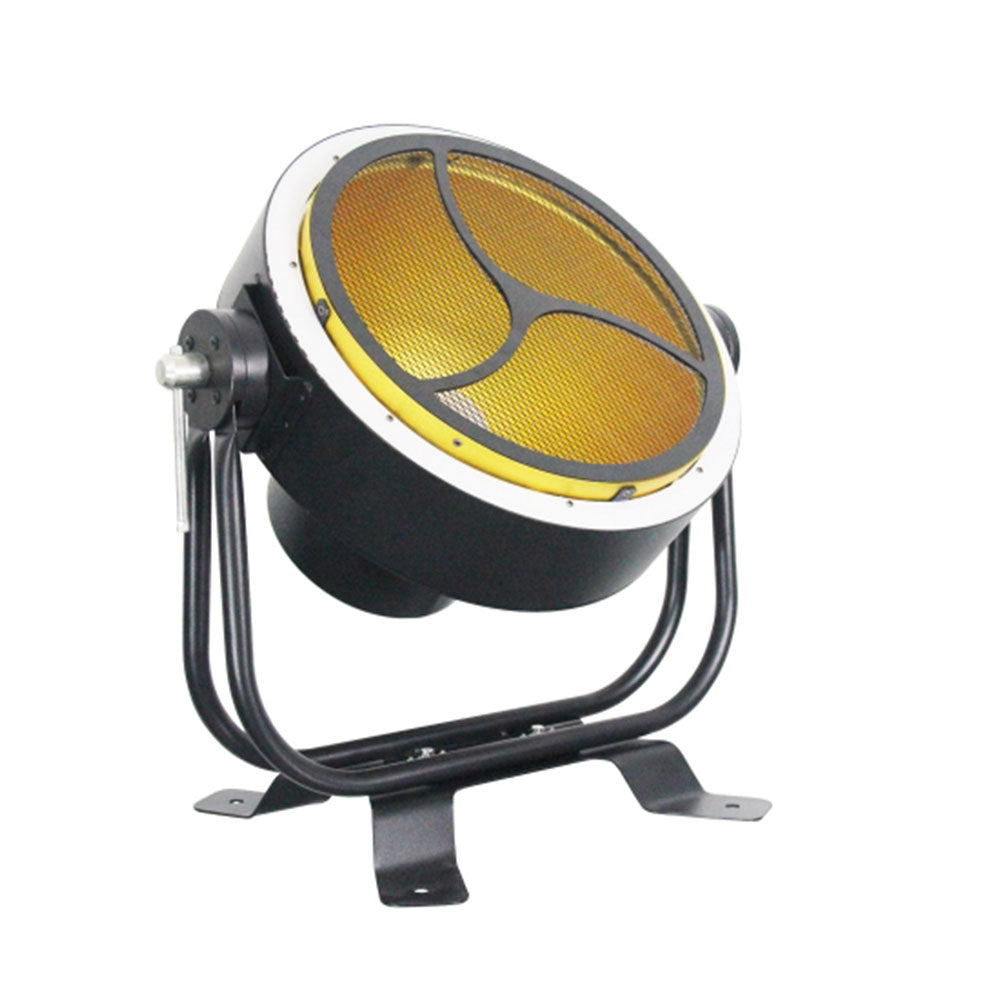

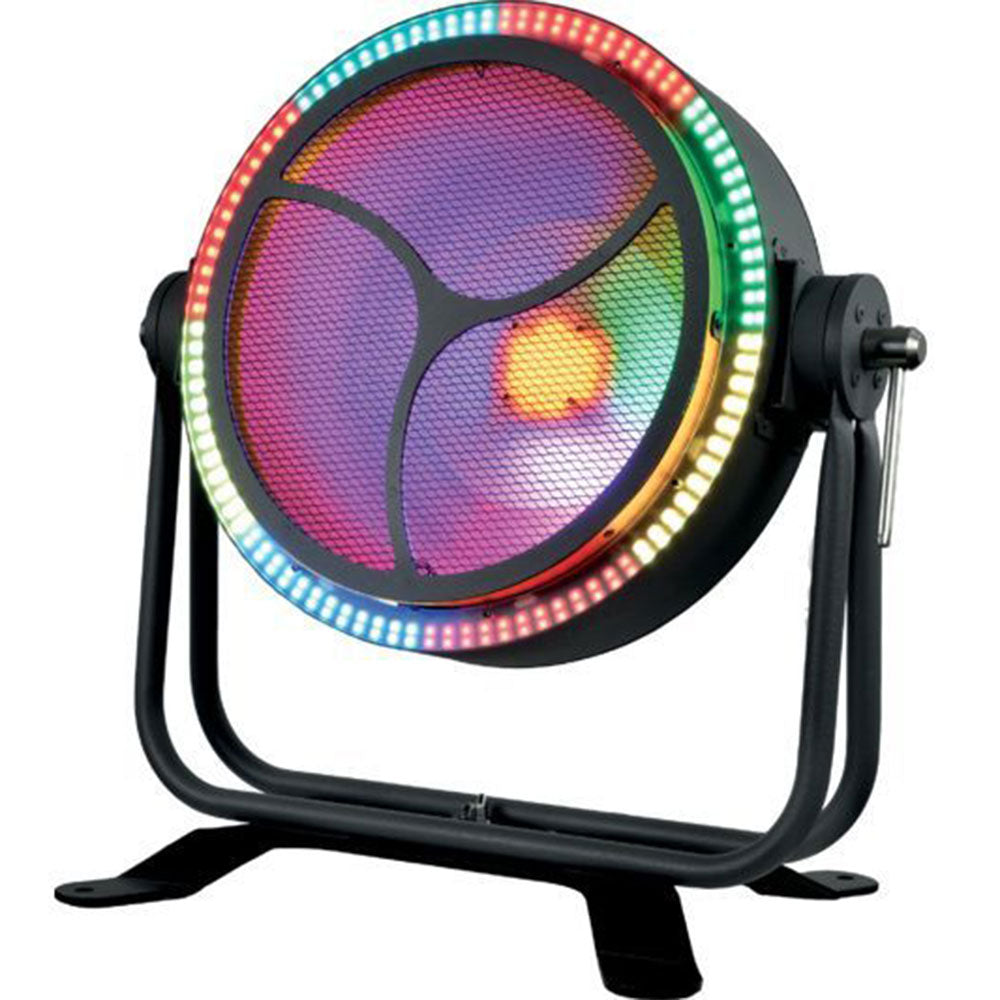

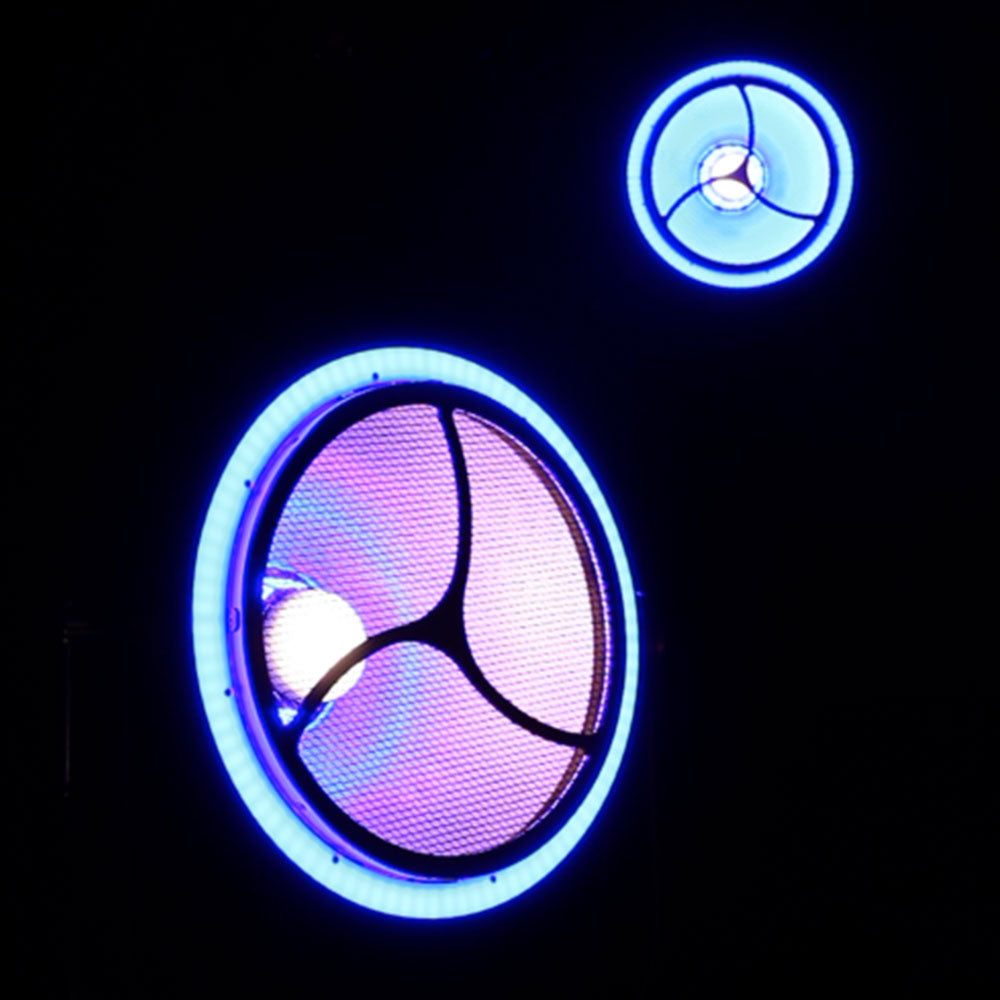

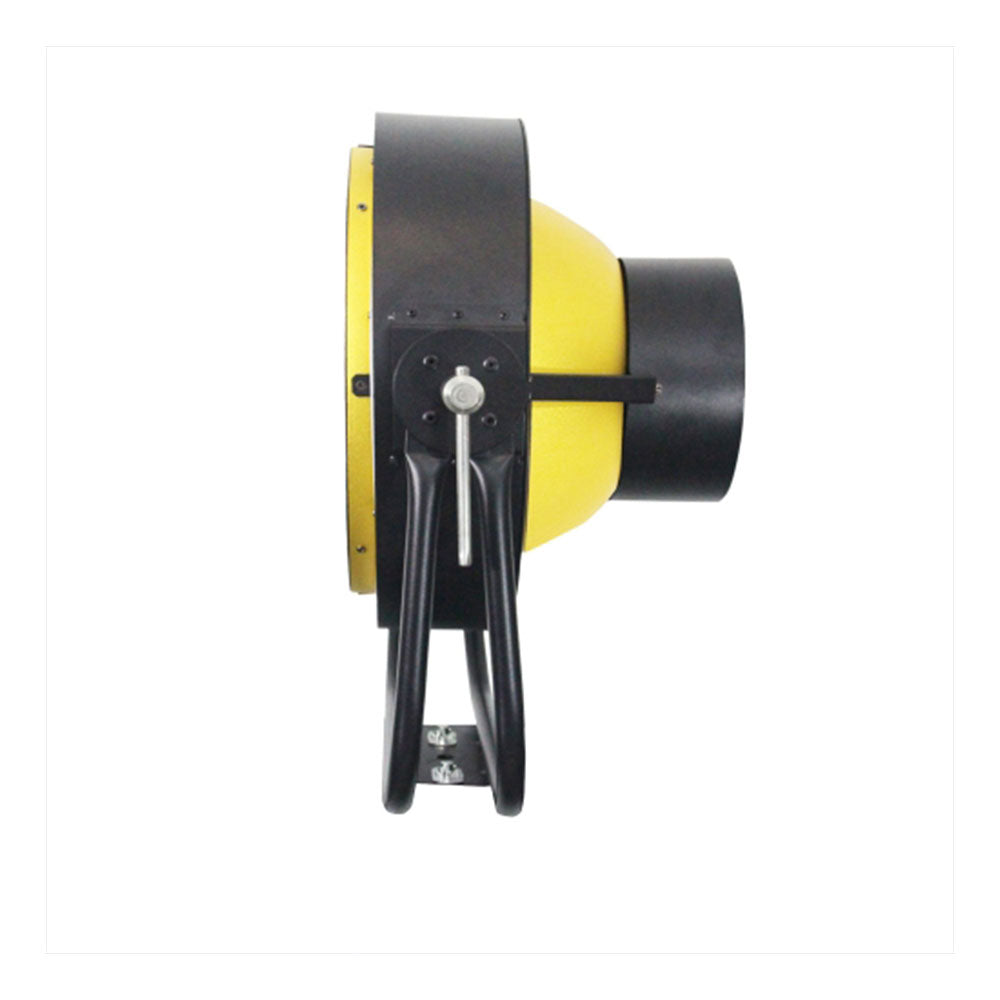

Overview of LCG Cyclo Scoop LED Light
CYCLO SCOOP LED built with a lightweight housing, the Cyclo features a variety of technological components that add a one of a kind look to any concert, church, theater or club.
Features:
- 400 W in 19 controlled sections
- Led: 336 RGB + 87 WW + 45 WW & AMBER 0.8W SMD Each
- Inner Ring: 8 RGB segments
- Center Ring 2WW + A segments
- Back ring: 1WW segment
- Outer ring: 8 RGB segments
- Led scan rate: 7000Hz
- Beam angle: 120°
- DMX-512: 2/7/16/51/55/64 Channels
- Operating mode: DMX, MASTER/SLAVE, Stand Alone, Auto mode
- Separate Strobe, Dimmer & Macro control fo each LED section ( couter, inner, center )
- Built in over heat protection temperature sensor to extend the lamp life
- LCD control panel menu
- Aluminum & Iron housing-materials
- Super silence fans
- IP 20
- DMX input / output 3 or 5 -pin XLR
- Power connector: PowerCon in / out
- Floor base optional
- Dual Road case optional
Specifications:
- Power supply: 110-240VAC, 50/60Hz
- Power consumption: 428W Max, 3.7 A
- Fuse: 5 x 20 F5AL250V
- Size: 493.5 ( 19.43'') x 525 ( 20.68'') x 271 (10.8'') mm
- Weight: 8 kg ( 18.3lbs)
Music City Canada is an authorized reseller for LCG products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
