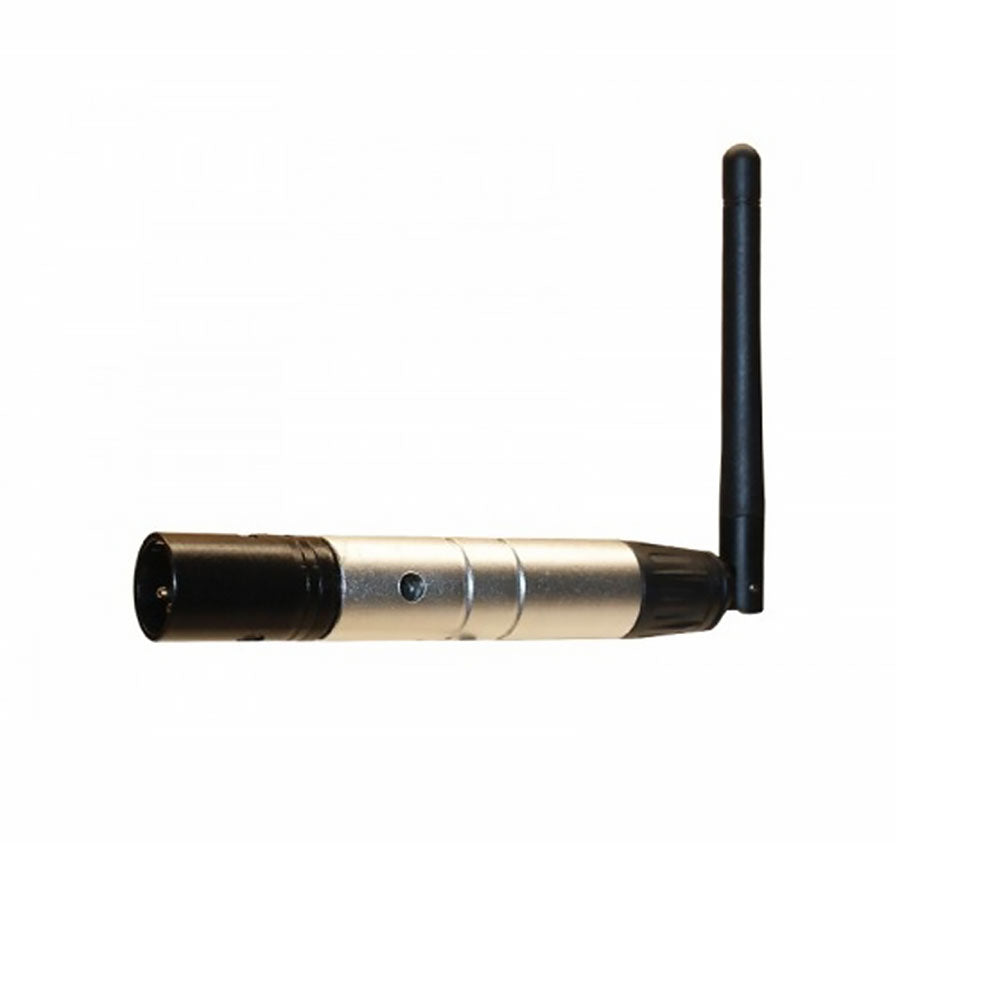

LCG WIDMX Transmitter (DMX512 3-pin)
LCG WIDMX Transmitter (DMX512 3-pin)
LCG WIDMX Transmitter (DMX512 3-pin)
LCG WIDMX Transmitter (DMX512 3-pin)

Scroll for more images and video!

LCG WIDMX Transmitter (DMX512 3-pin)

SKU: LCG-WIDMX-TR | UPC:

Your Price: $170.00 Save $0.00


This product is NOT IN STOCK! For availability, click here to chat with us, or email sales@musiccitycanada.com for any inquiries!


Music City Canada is an Authorized Dealer for LCG Products.


Overview of LCG WIDMX Transmitter (DMX512 3-pin)

LCG-WF-WIDMX  is a user-friendly operation that simplifies all the complex communication protocols making it possible for the users to plug and play.  2.4GHz ISM Band, license-free worldwide,  FHSS with 79 Channels, interference-free operation, 32-bit ARM processor, DMA transfer without delay,  Built-in Wireless Solution compatibility mode, Group Mode, easy plug-and-play operation; Pairing Mode, supports more transmitter universes.

Features:

  • Five modes to choose from, as bellow:
    1. Red mode; Custom signal compatible such as WIDMX.
    2. Green mode; Sweden compatibility (Wireless
    Solution) receiver
    3. Blue mode; Sweden compatible (Wireless Solution )
    transmitter
    4. Yellow mode; Standard 2.4G compatible
    5. Purple mode; W-DMX G4 Transmit
    • Band: 2.402GHz – 2.480GHz, ISM, 79 channels
    • pread spectrum: FHSS, 1100 hops / sec
    • Modulation: GFSK
    • Maximum Transmit Power: 23dBm
    • Receiver Sensitivity: -94dBm

Specifications:

  • Power: DC 5V ± 10%
  • IP20
  • Size：212 x 18 x 18 mm

Music City Canada is an authorized reseller for LCG products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
