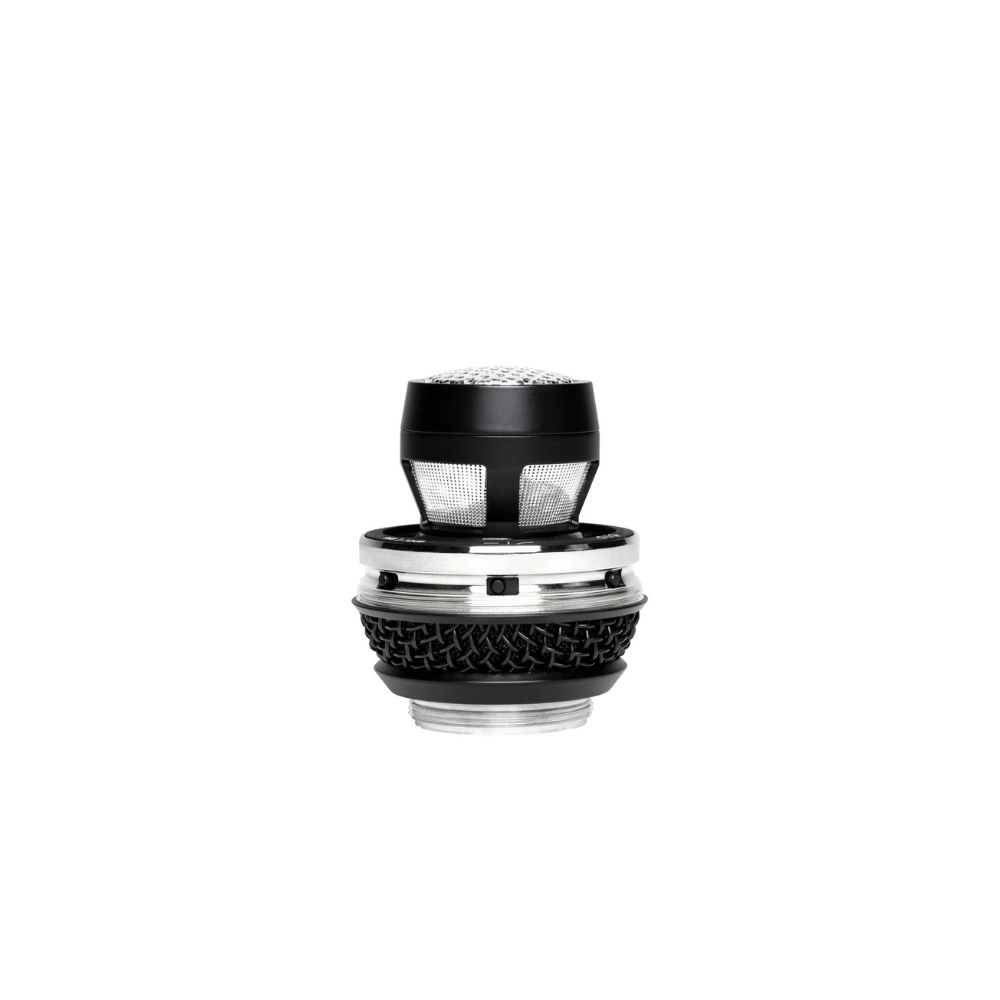

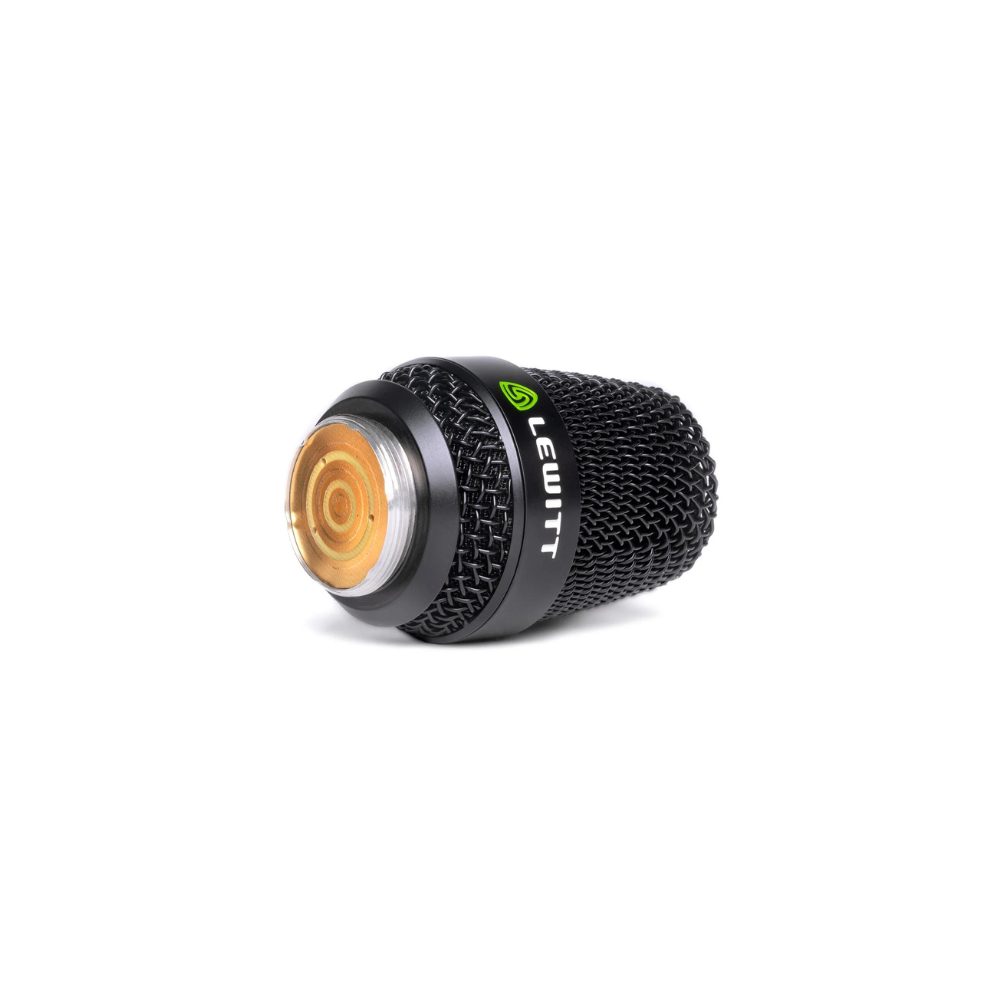

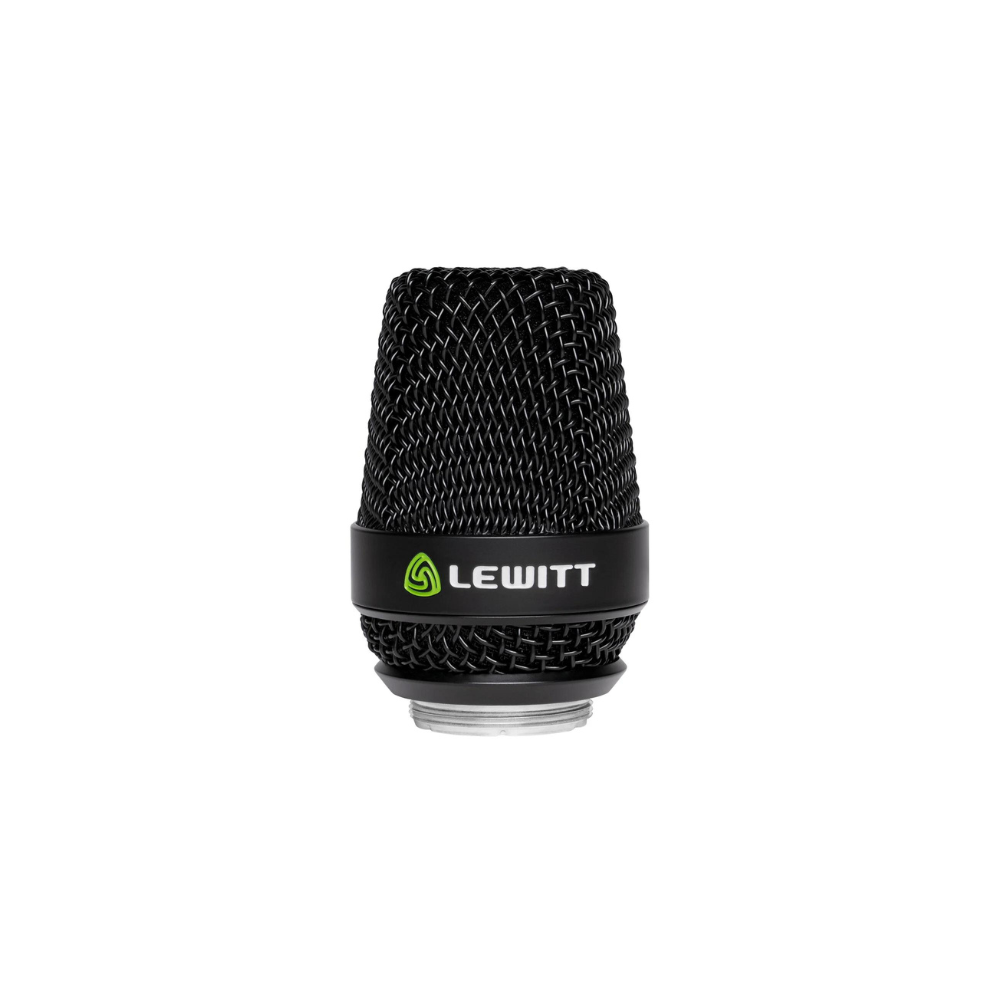

Overview of Lewitt MTPW9 Hand-Held Condenser Vocal Mic Capsule Only (Compatible With Shure Wireless)
Studio sound unleashed on stage.W9 capsule
- Premium 1" true condenser capsule
- Crystal-clear live mixes in studio quality
- Directly compatible with industry-standard wireless systems
- High tone integrity with cupping safe design
- Optimized against plosives & moisture
- Tested & approved by pro live sound engineers and artists
Wireless systems fully compatible with LEWITT W9
These systems don't need an adapter and you can mount the W9 capsule directly onto the following wireless transmitters:
- all Shure handheld wireless microphone transmitters except BLX and GLX-D Series
- all Lectrosonics handheld wireless microphone transmitters
- all Sony handheld wireless microphone transmitters
- Line6: XD-V75 and XD-V55
- Mipro ACT series with interchangeable heads
Wireless systems that need an adapter for LEWITT W9
- all Sennheiser handheld wireless microphone transmitters with interchangeable microphone heads - compatible via Adapter Ambient HHA
Specifications
Type
Condenser, externally polarized
Acoustical operating principle
Pressure gradient transducer
Transducer Ø
25.4 mm, 1 in
Polar pattern
Cardioid, supercardioid
Sensitivity
8.1 mV/Pa, -41 dBV/Pa
Self-noise
21 dB (A)
Max. SPL for 0.5 % THD
140 dBSPL
Signal / noise ratio
73 dB (A)
Attenuation
0 dB
-12 dB
Low-cut filter
lin, 120 Hz
Internal impedance
217 Ω
Supply voltage (capsule)
min. 5V V
Current consumption
7.5 mA
Connector
Capsule thread: 1¼-28UN-2A
Microphone dimensions
51 dia x 183 mm
Microphone net weight
230 g
Music City Canada is an authorized reseller for Lewitt products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
