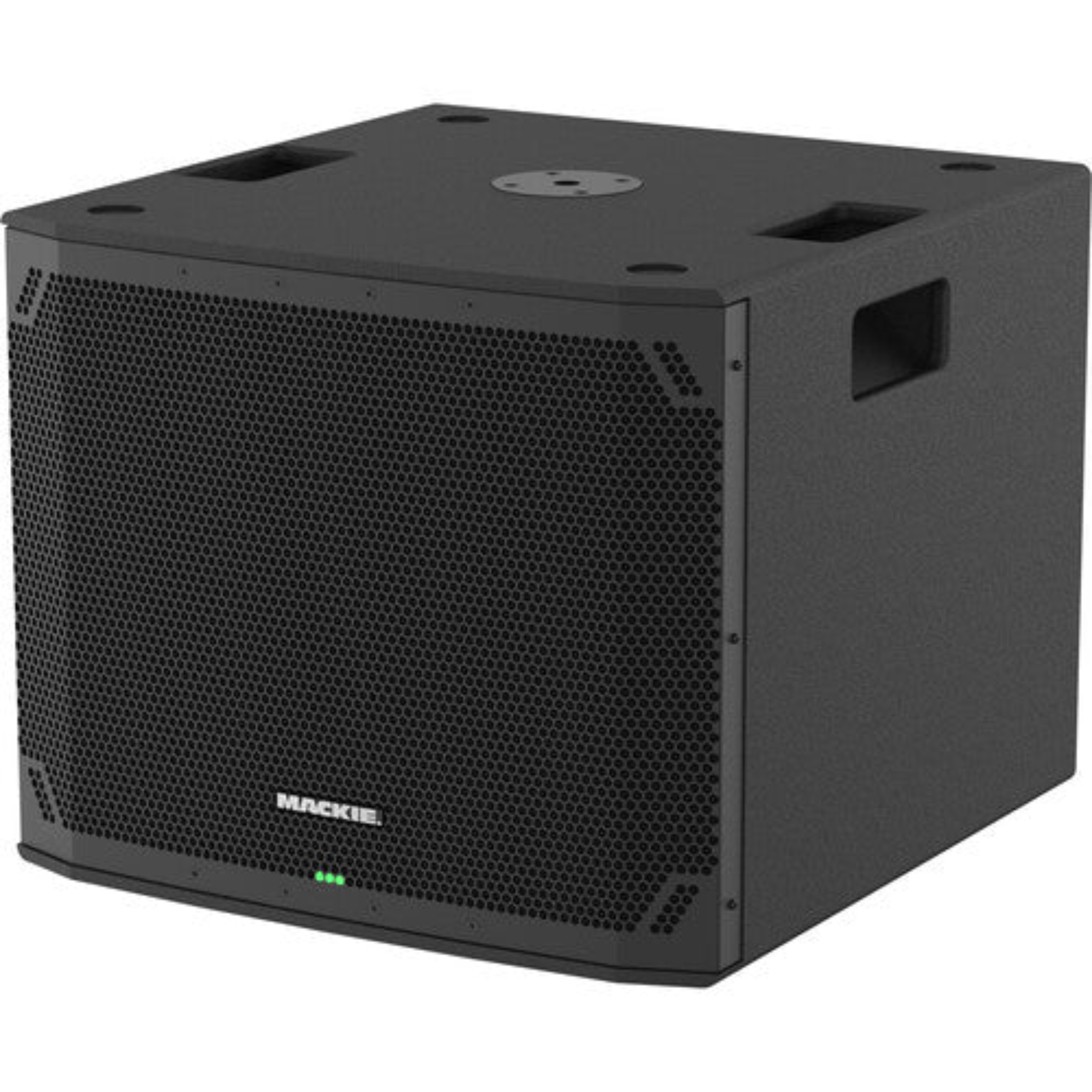

Mackie THUMP15SV4 Professional 1400W Powered Subwoofer - 15in

Shake the floorboards while generating massive bass with the Mackie Thump15Sv4, a professional 15" powered subwoofer well suited for any sound application requiring deep, full-range sound with visceral low end. Feel the difference of a professional subwoofer that brings music alive with complex bass lines and punchy kicks.

Thump15Sv4 integrates perfectly with Thump loudspeakers, with high-pass modes that tailor the sound to match the size of your speakers. You can also set the crossover manually for more control over your sound. Built-in carrying handles make Thump15Sv4 portable enough to add to your touring rig or gigging setup.

Benefits

• 1400W ultra-efficient Class-D amplifier
• 15” high-performance woofer
• High-pass modes tailor the bass to your speakers
• Fully mutable level control
• Stereo XLR inputs for your audio source
• Stereo high-pass XLR outputs for loudspeakers
• Stereo full-range XLR outputs with mono button for chaining more subs
• Built-in ergonomic carry handles
• M20 mounting thread for SPM400 speaker pole (sold separately)

High-Pass ModesConnect loudspeakers to high-pass outputs and select from four modes

All modes include 1.4 ms alignment delay

• Thump 12: Thump12v4 loudspeakers (140 Hz crossover)
• Thump 15: Thump15v4 loudspeakers (110 Hz crossover)
• Thump GO: Thump GO loudspeakers (150 Hz crossover)
• Variable: Set crossover manually to match any loudspeakers

Additional Detials

• Phase invert switch
• Defeatable front LED
• Stereo or mono summing for single or dual subwoofer deployment
• Variable level control (Muted to +6 dB)
• Front LED On/Off

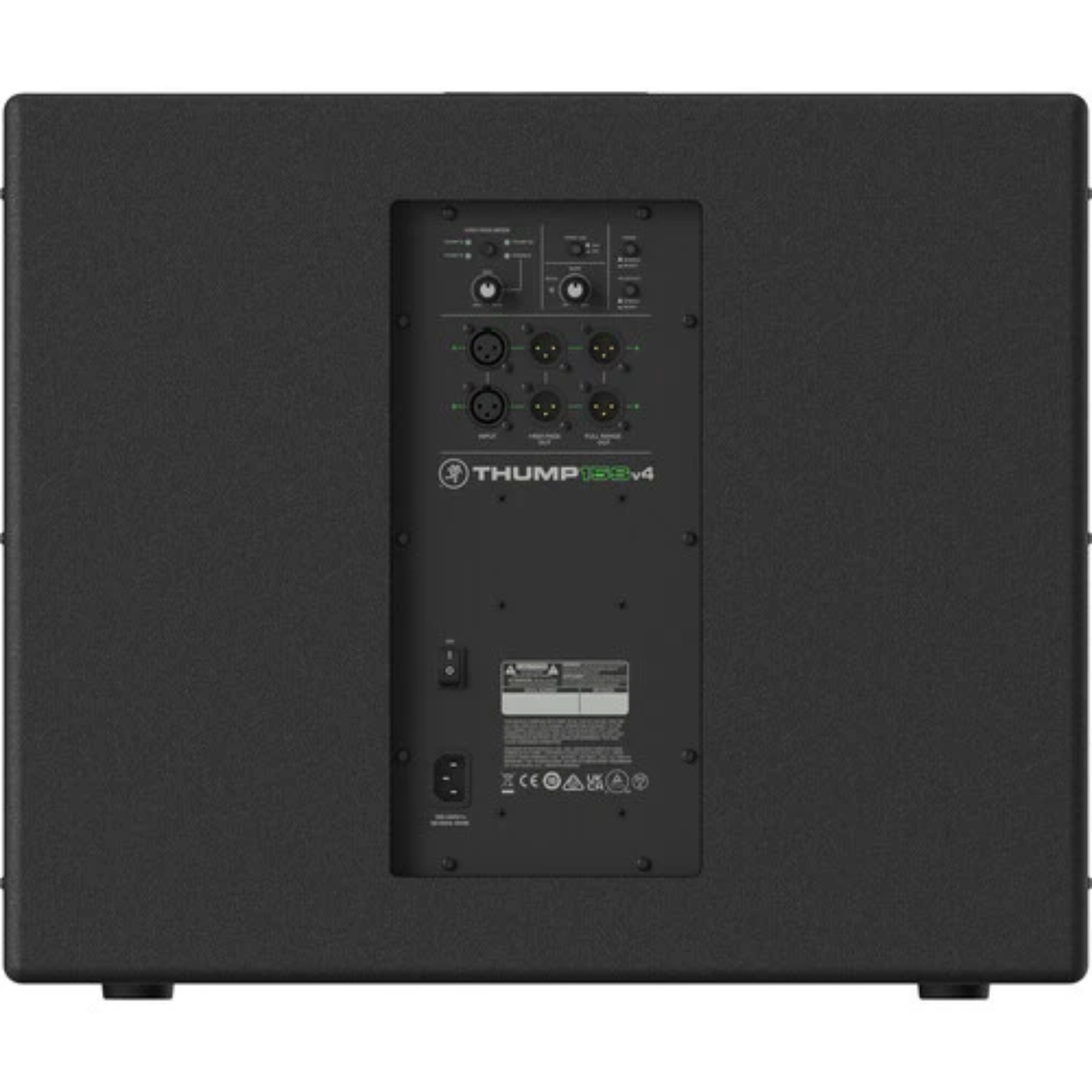

Versatile Inputs and Outputs

• Stereo XLR inputs: Connect to DJ controller, mixer or other source
• Stereo XLR high-pass outputs: Connect to loudspeakers and select your high-pass mode
• Stereo XLR full-range outputs: Chain the full, unaltered signal to the next subwoofer

Versatile Configuration OptionsIntegrated M20-threaded pole mount (works with optional SPM400 speaker pole)
Features

• Portable Subwoofer
• Two XLR Inputs
• Two High-Pass XLR Outputs
• Two Full-Range XLR Outputs
• High-Pass Modes for Any Speaker
• Front-Panel LED On/Off Button
• Phase Invert: 0 or 180°
• Stereo or Mono Summing for 1 or 2 Subs
• Integrated M20-Threaded Pole Mount
• Includes Power Cord

Specifications

Speaker Type: Active Subwoofer

Enclosure Type: Bass-Reflex

Total Output Power: 1400 W Peak

Amplifier Class: Class-D

Drivers:

• LF Driver: 1x 15" / 38 cm Woofer

Performance:

• Frequency Range/Response:
  • 27 Hz to 160 Hz (-10 dB)
  • 34 Hz to 160 Hz (-3 dB)
• Maximum SPL: 132 dB SPL
• Protections: Output Limiter, RMS, Signal Limiter, Thermal

Signal Processing:

• Crossover Frequency: 80 to 160 Hz
• EQ & Filters: No
• Dynamic Processing: Peak Limiter
• Alignment Delay: No
• Digital Signal Processing: User Settings

Connectivity:

• Audio I/O:
  • 2x XLR 3-Pin Line Input
  • 4x XLR 3-Pin Line Output
• Network I/O: No
• USB I/O: No
• Wireless: No
• Mobile App Compatible: No

Power:

• AC Input Power: 100 to 120 VAC, 50 / 60 Hz
• AC Power I/O: 1x IEC Input
• Power Consumption: 400 W

Physical:

• Color: Black
• Mounting: 1 x M20-Threaded Pole Socket (Top)
• Handles: 1x Each Side
• Environmental Resistance: No
• Dimensions: 23 x 22.1 x 18.5" / 584.2 x 561.3 x 469.9 mm
• Weight: 57.4 lb / 26 kg
