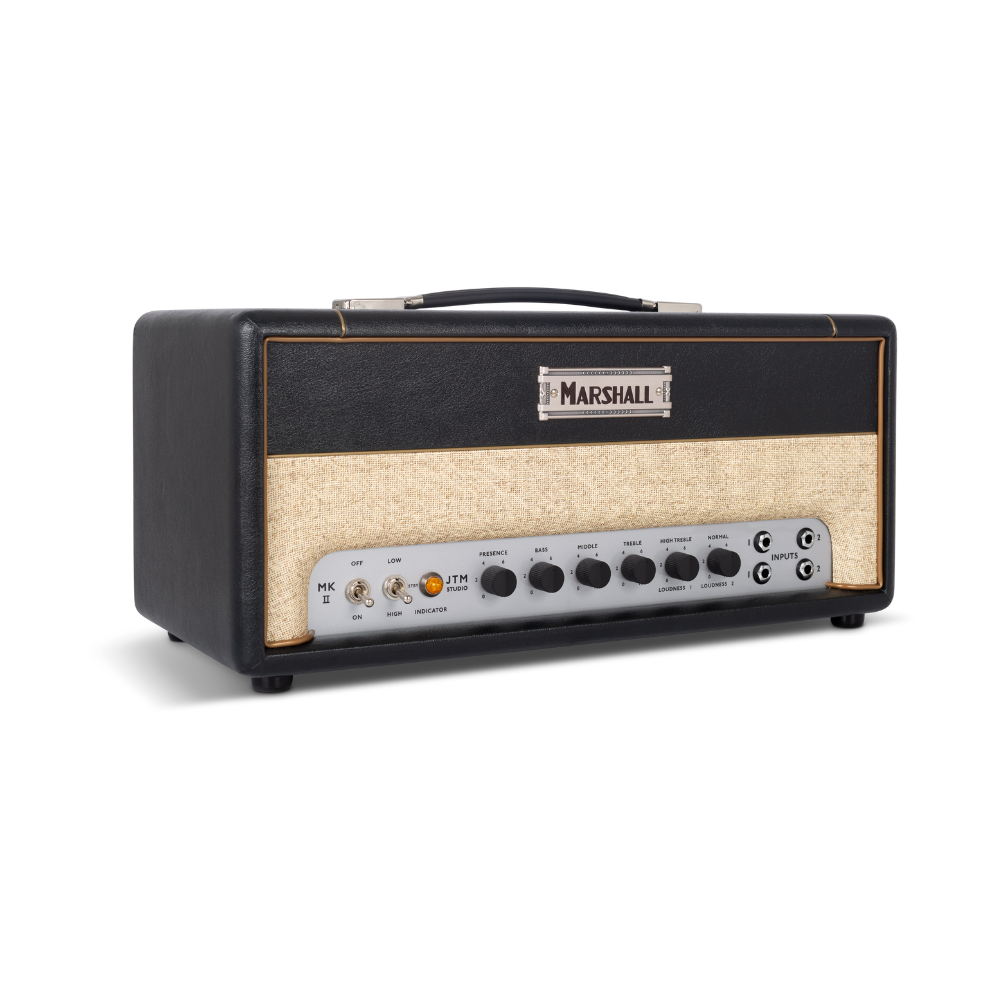

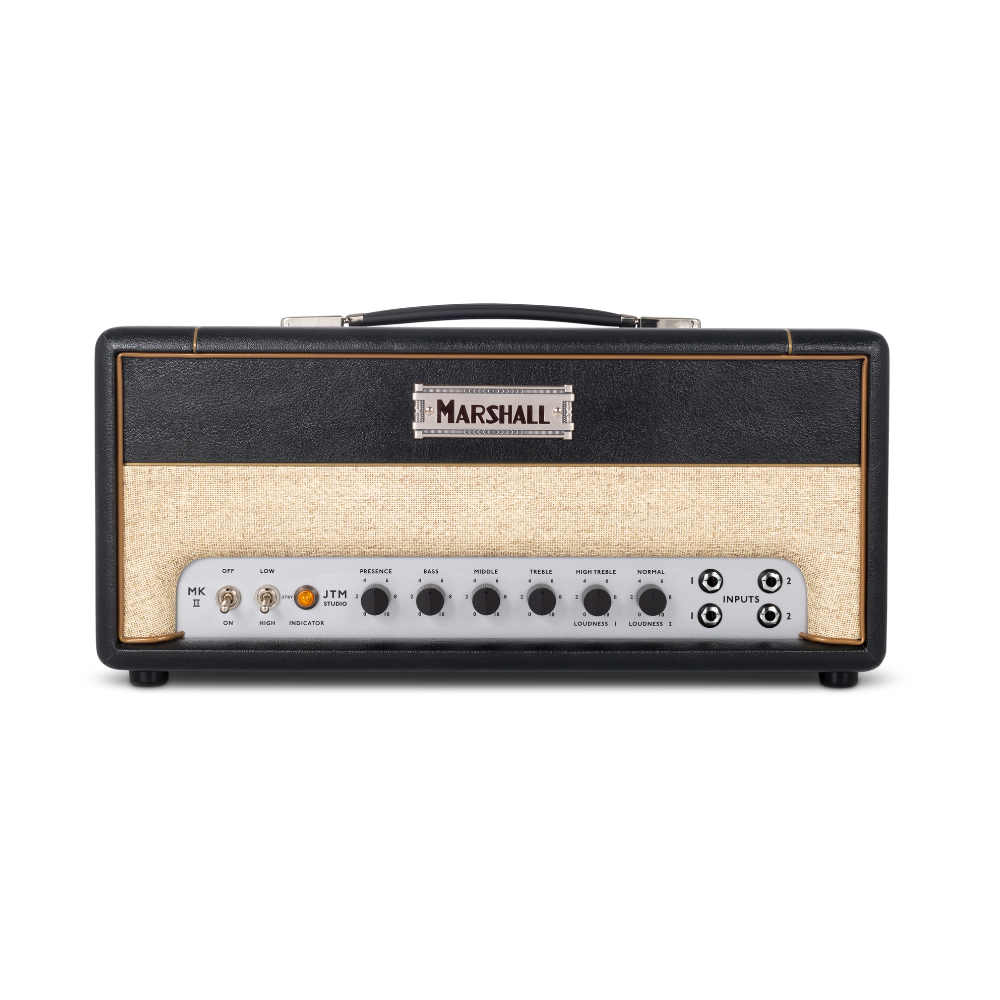

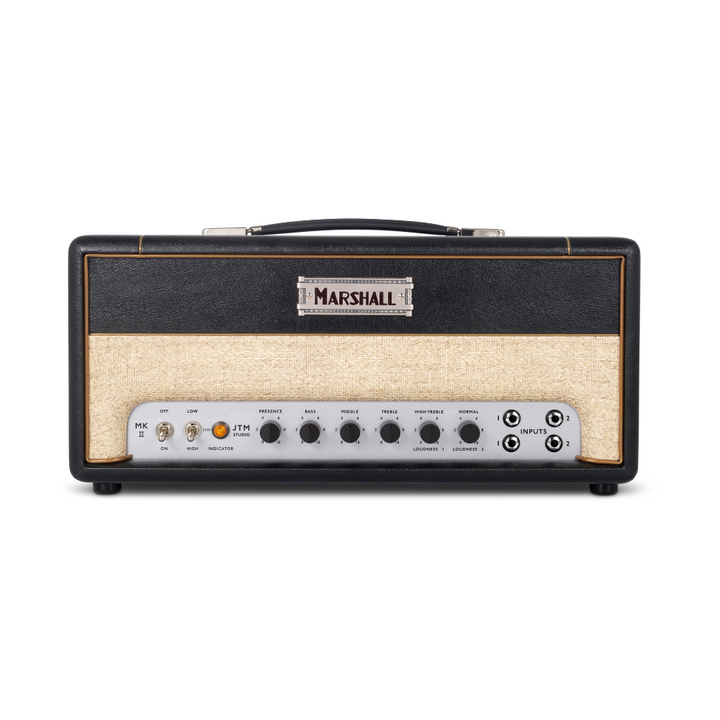

Overview of Marshall ST20H Studio JTM 20W Valve Head
20W head with power reduction to 5W.
2 x ECC83 preamp valves, 1 x
ECC83 phase splitter and 2 x
5881 power valves.
SPECIFICATION
The amp that started it all is back. The JTM is a welcome addition to the Studio range, offering players authentic, smooth, and valve-driven break-up at lower volumes – perfect for home or studio use. Creating a sound that defined a generation, the JTM delivers the legendary loud blend of crunch and clean recognized the world over.
Power
20W or 5W
Valves
2 x ECC83, 1 x ECC83
(phase splitter) and 2 x 5881
Channels
Single channel with four
separate inputs
High treble and normal
loudness controls
Equalization
Treble, middle, bass and presence

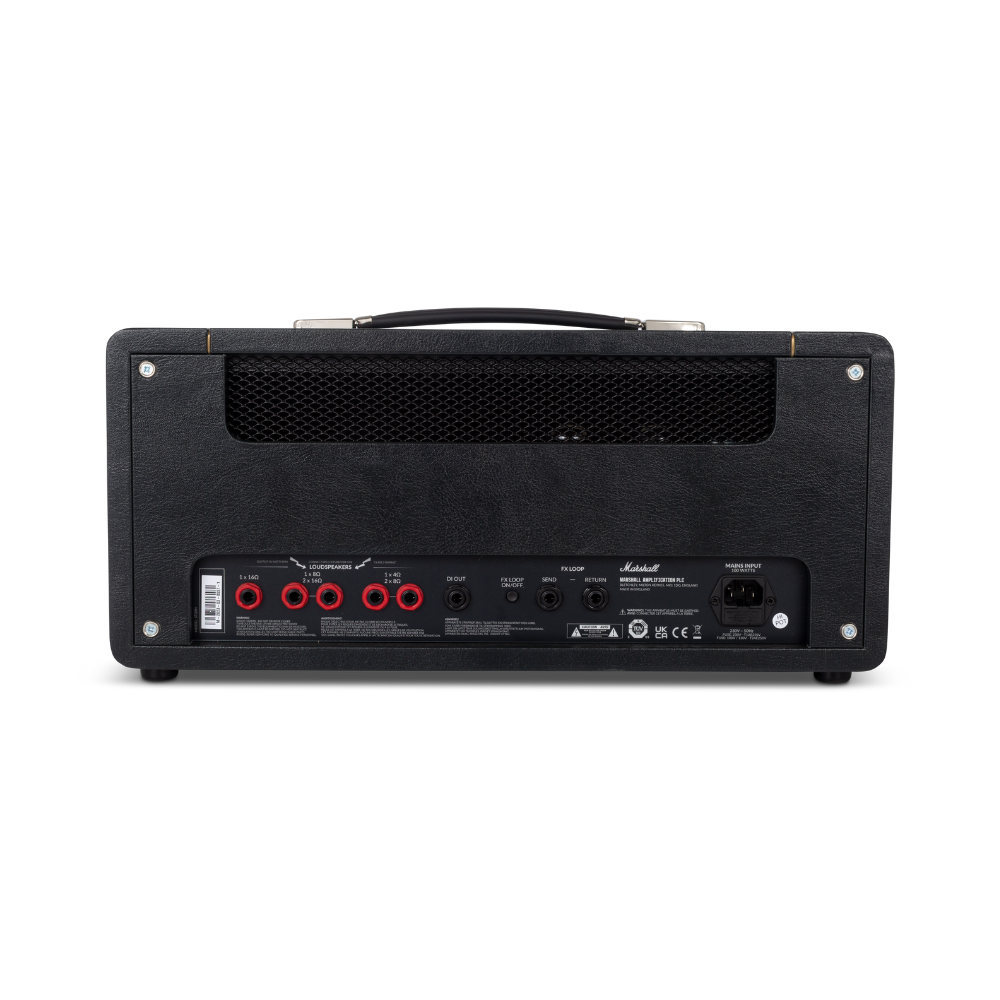

Speaker Outputs
5 x 1/4” jack sockets
(16Ω load / 8Ω load / 4Ω
load)
Outputs
DI output
Unit weight
9.25kg
Unit width
500mm
Unit height
240mm
Unit depth
230mm
