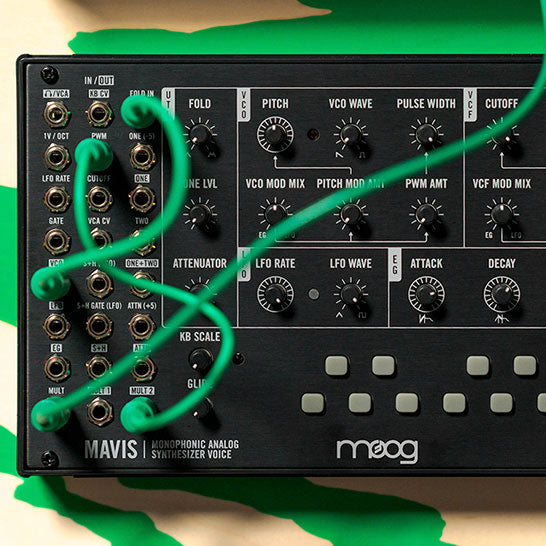

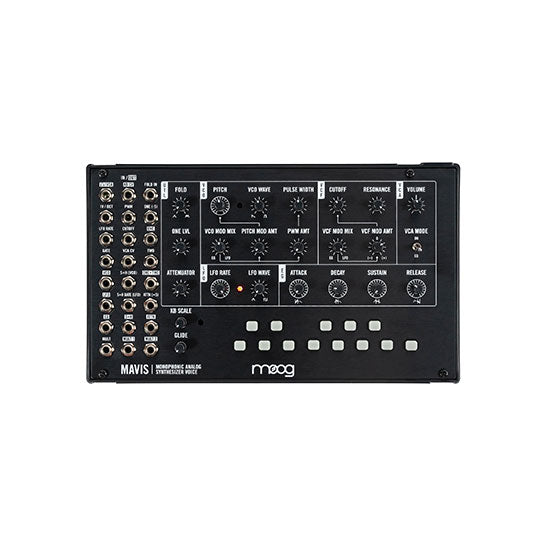

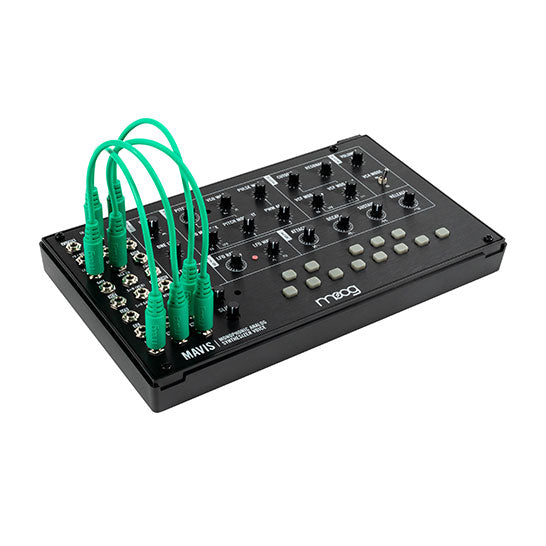

Overview of Moog Mavis DIY analog synth kit
Mavis? Yeah, a new build-it-yourself analog synthesizer kit that delivers the huge depth of sound Moog is known for in a compact and feature-packed instrument.
Assembly is extremely simple; users of any skill level can quickly assemble their own analog synthesizer with minimal tools and experience. Perfect for first-time users and established synthesists alike, Mavis’ semi-modular design and 1-octave keyboard will get players started making sound immediately without the need for additional equipment (except for a speaker or headphones).SPECS:

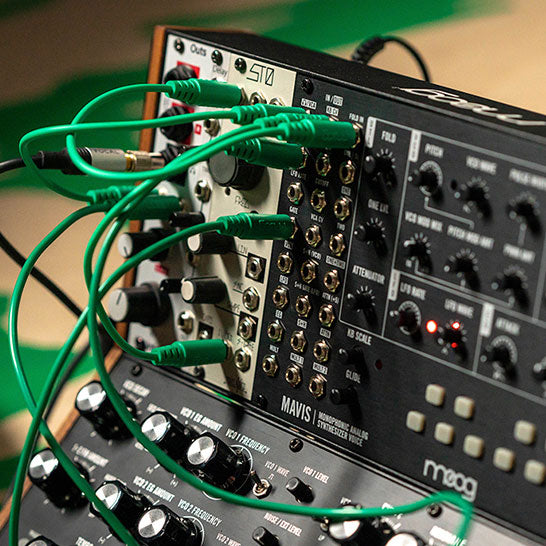

- Operate standalone or as 44hp Eurorack module
- Analog voltage-controlled oscillator (mixable Saw/Square)
- Analog -24dB Moog low pass ladder filter
- 4-stage analog EG (envelope generator)
- Diode Wavefolder
- Analog LFO (mixable Triangle/Square)
- Pulse width modulation
- Modular utilities (attenuators, offsets, mults, and a flexible DC-coupled mixer)
- Sample & Hold
- Analog voltage-controlled amplifier
- 24-point patch bay (3.5 mm)
- 1-octave keyboard with glide and scaling
- Includes protective cover and patch cables
- 3.5 mm output

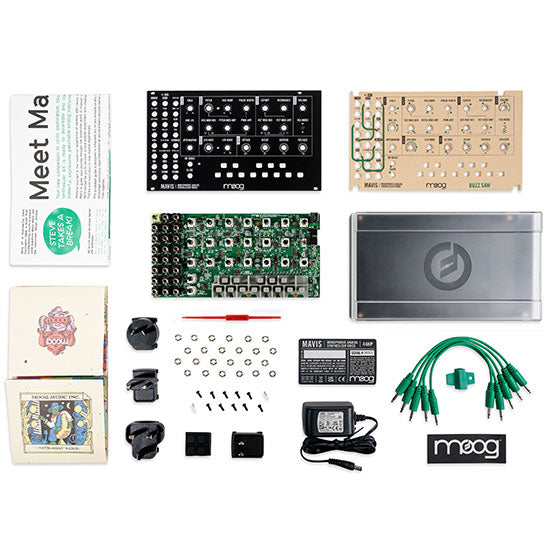

Included in Box:
- Mavis PCB
- Front panel
- Bottom enclosure
- Protective cover
- Calibration tool
- Nut driver
- Fastener kit
- Power supply
- Package of 3.5 mm cables (6" × 5)
- Assembly instructions / Quickstart guide
- Patch overlays
- Product catalogue
- Registration card
