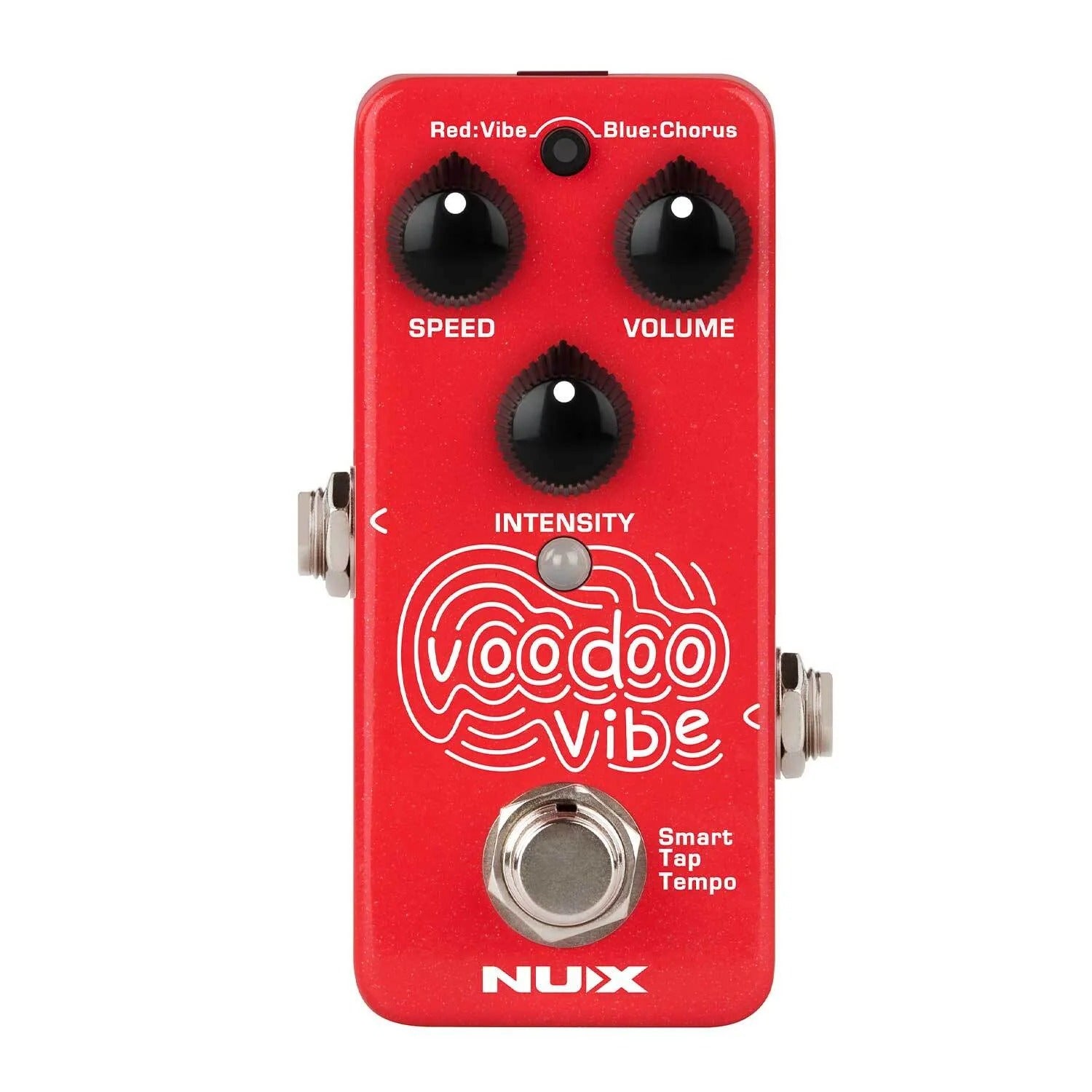

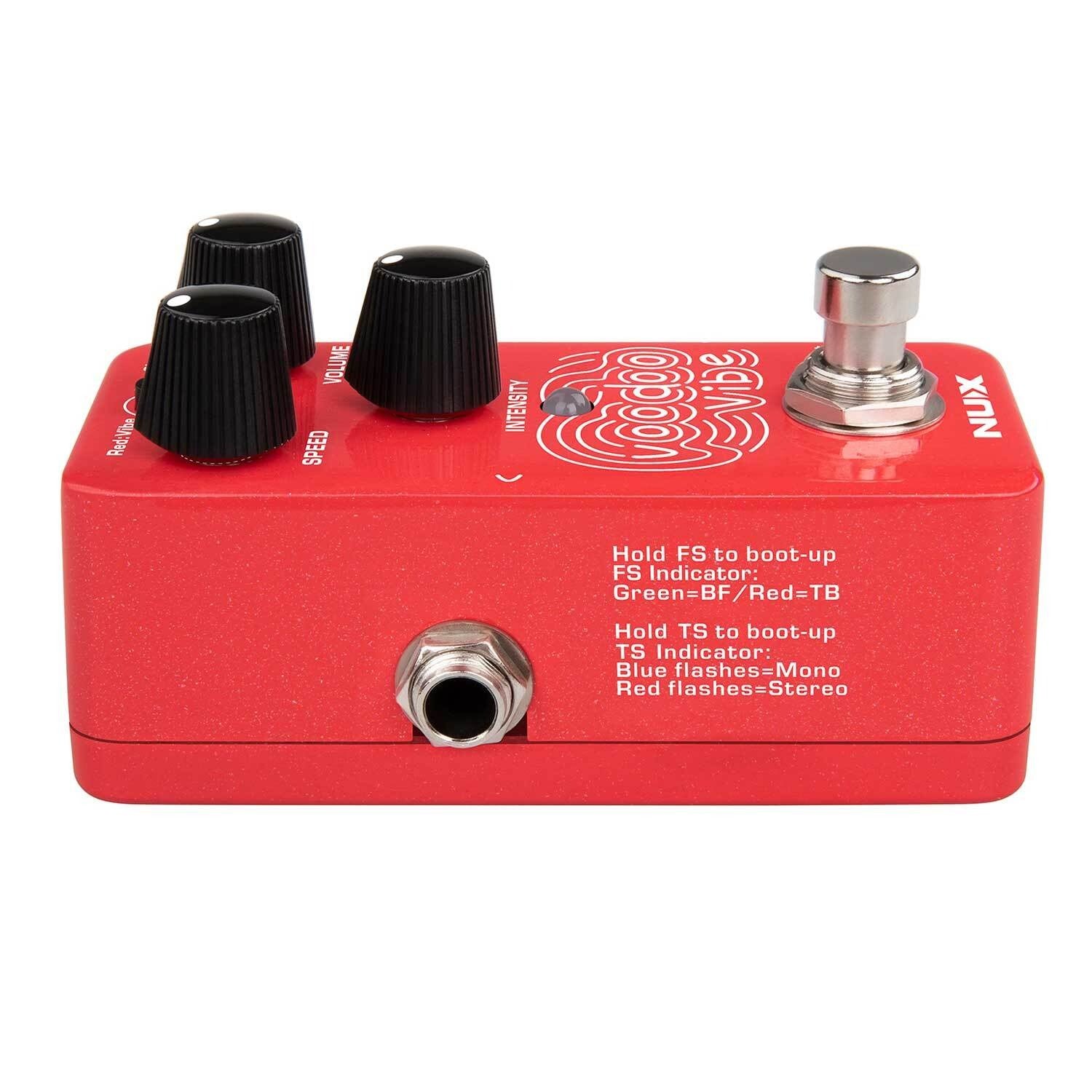

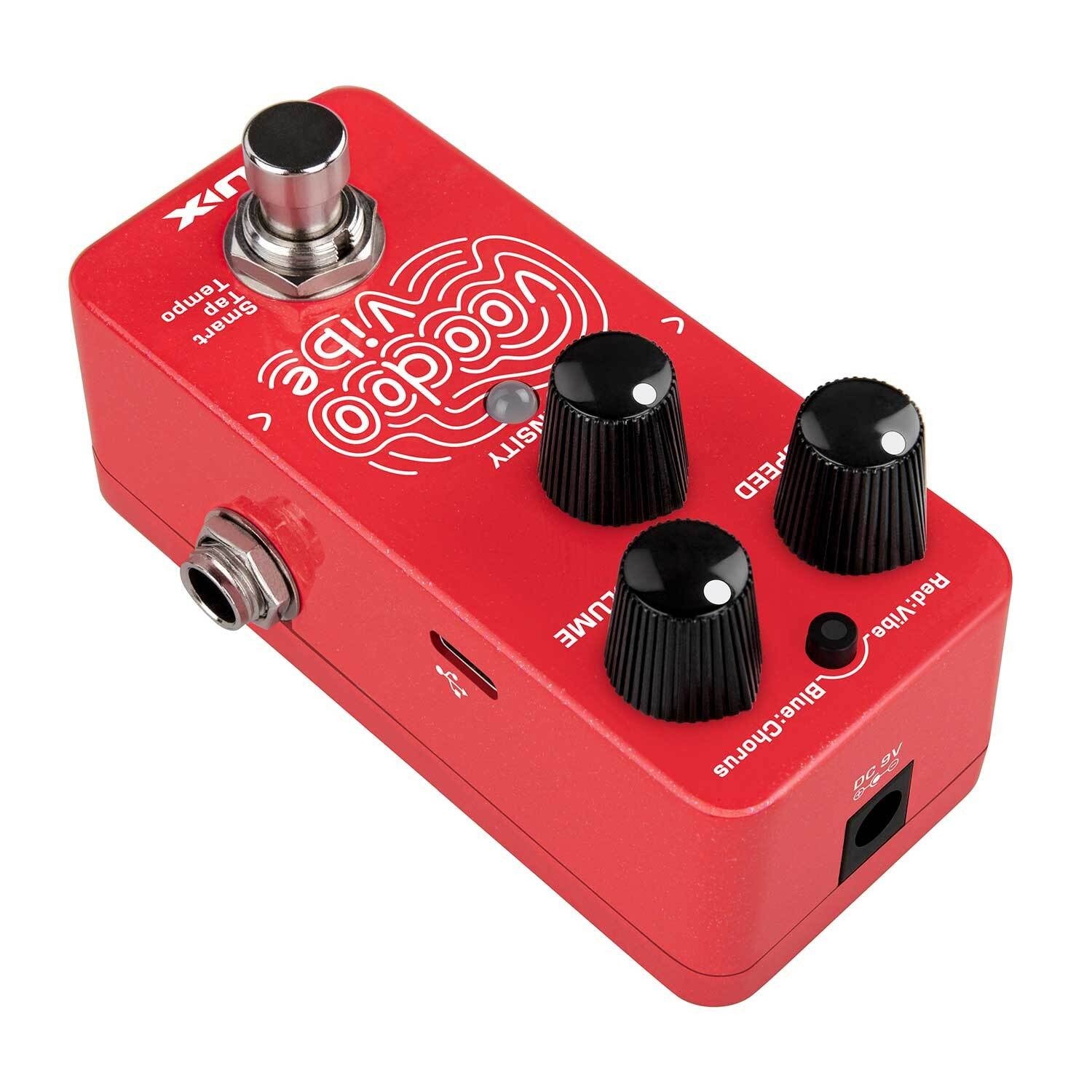

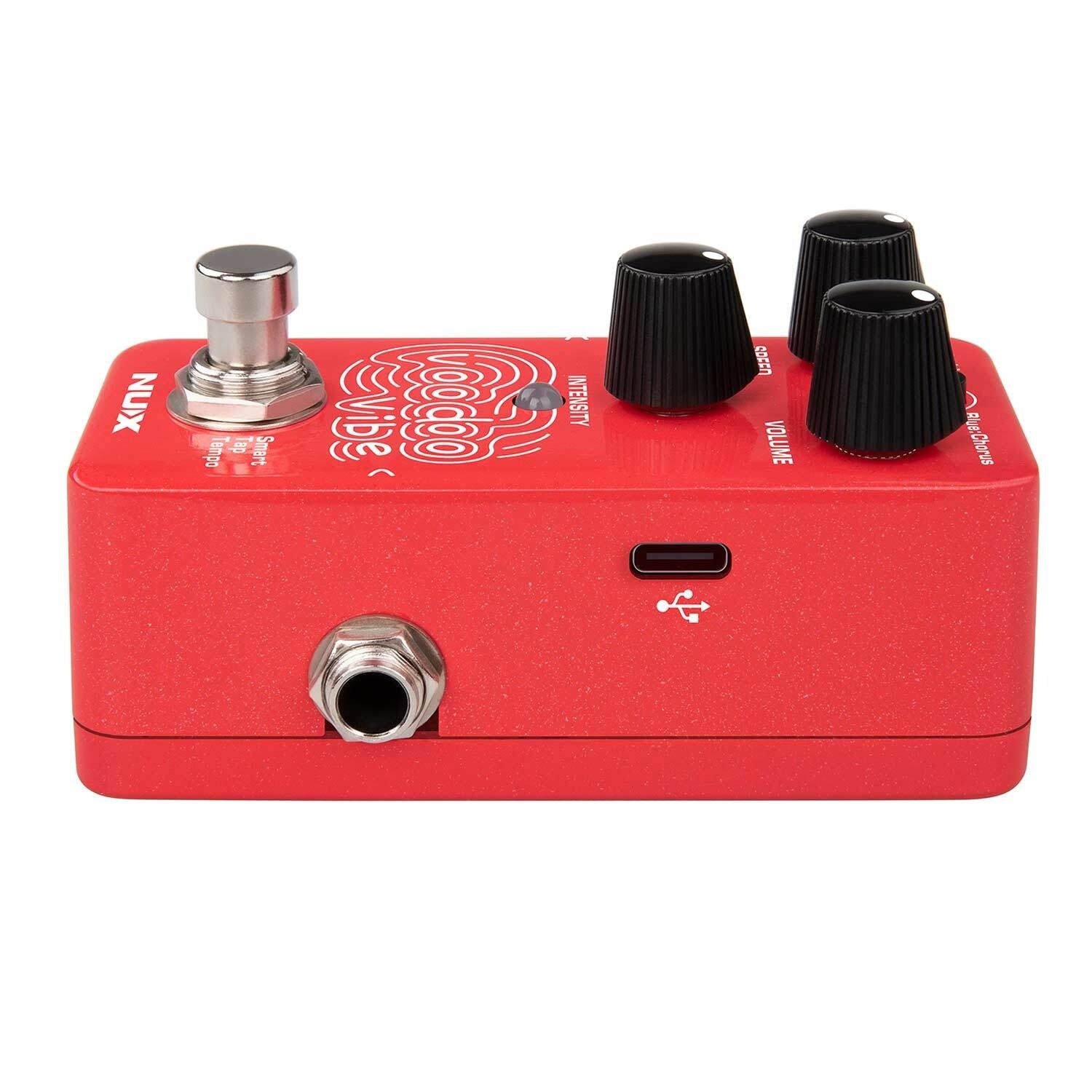

NuX NCH-3 Voodoo Vibe Mini Chorus/Vibrato Guitar Effects Pedal

NUX NCH3 Voodoo Vibe Mini Chorus/Vibrato Guitar Effects Pedal

The NUX Voodoo Vibe combines two classic Uni-Vibe style effects into a single robust and pedalboard-friendly mini enclosure.

Switchable between Chorus and Vibrato mode, the Voodoo Vibe captures all the afro-tingling sounds of Woodstock and pairs perfectly with a vintage fuzz! The easy-to-use Speed and Volume controls can dial in your effect level while the Intensity control will change the depth of the sweep in Chorus Mode, and the degree of pitch modulation when in Vibrato Mode. With smart Tap-Tempo you can also adjust your Vibe on-the-fly, plus the True-Bypass Stereo output won’t colour your tone and has zero latency.

This mini-pedal uses a standard centre-negative pin 9V DC power supply.

Features

• 2 models in a mini enclosure.
• Chorus mode, Intensity will change the depth of the sweeping effect.
• Vibrato mode, Intensity will change the degree of pitch modulation.
• Smart Tap Tempo.
• True-bypass or Buffer-bypass(Tails).
• Supports Stereo I/O with TRS Cable.
• Low power consumption. (Less than 100mA).
• Analog dry signal for low noise and zero latency.

Specifications

• Input Impedance：1MΩ
• Output Impedance：10kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit

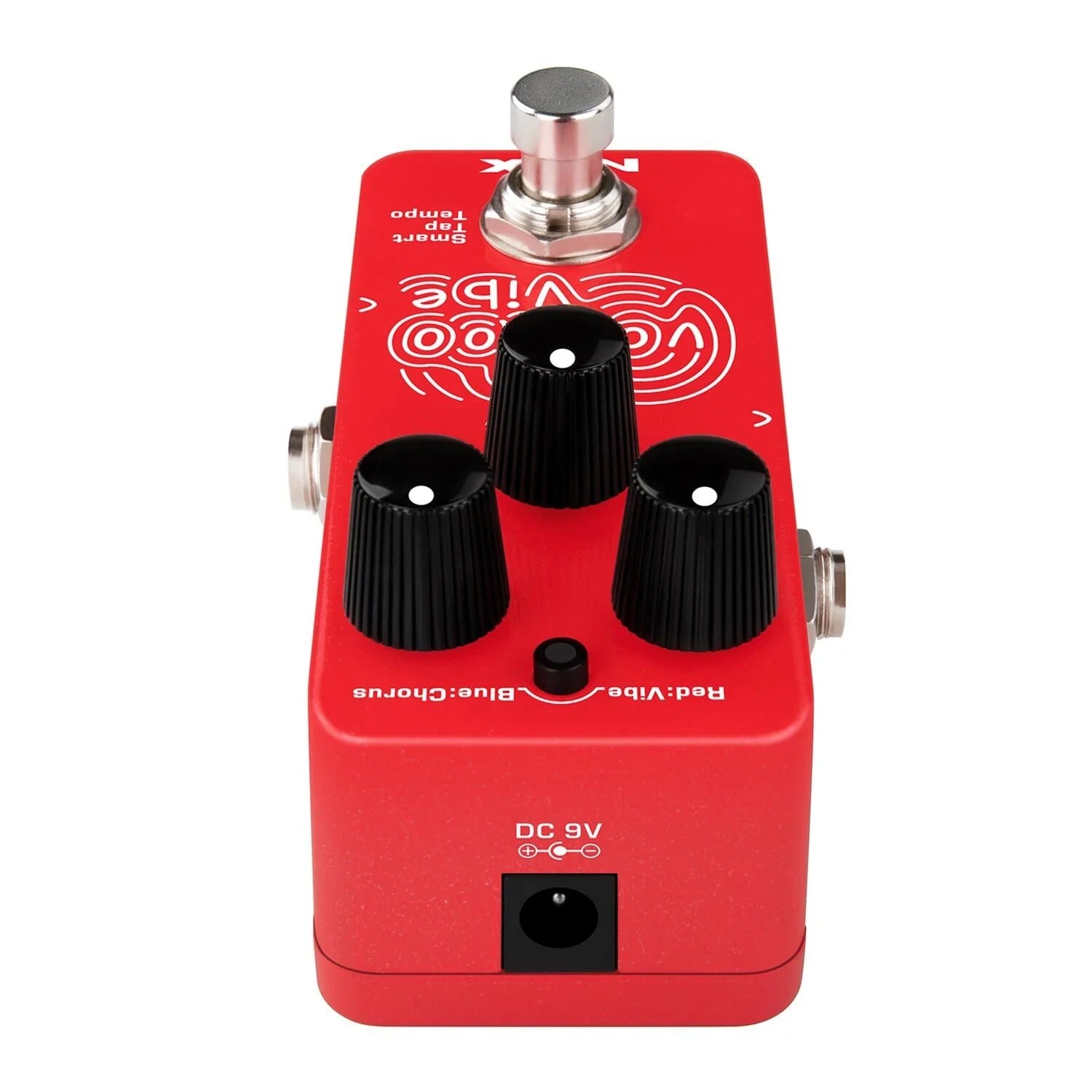

• Power：9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw：less than 100mA
• Dimensions：94(L)X51(W)X53(H)mm
• Weight：175g
