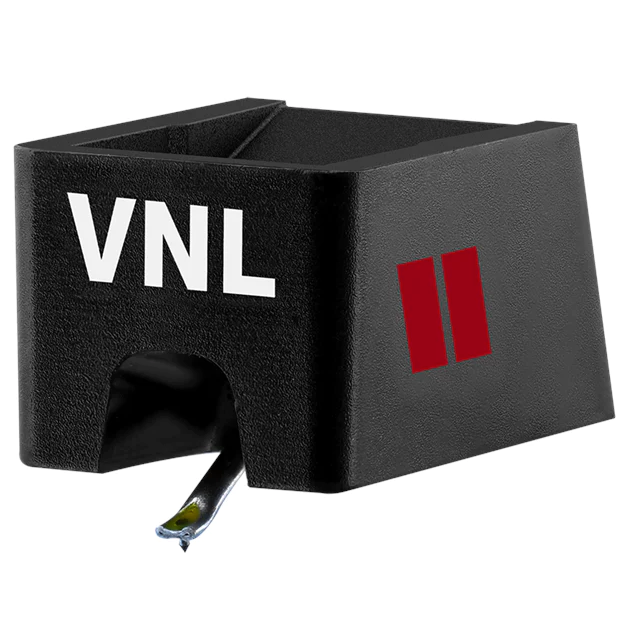

Ortofon VNL II Replacement Stylus

Specifications:

• Output voltage at 1000 Hz, 5 cm/sec. - 6 mV.
• Channel separation at 1 kHz - 20 dB.
• Frequency response 20 Hz - 20 kHz  -2/+4 dB.
• Tracking ability at 315 Hz at recommended tracking force - 90 μm.
• Compliance, dynamic lateral - 15 μm/m N.
• Tracking force range - 3 - 5 g.
• Tracking force recommended - 4 g.

Ortofon-branded products are warranted against defects in materials and workmanship for a period of 2 years from the date of original retail purchase when used in accordance with Ortofon’s user manuals. If a defect arises during the warranty period, Ortofon, at its option, will (1) repair the product at no charge or (2) exchange the product with one of equivalent functionality or one that is at least functionally equivalent to the product it replaces. This warranty excludes damage resulting from abuse, accident, modifications, unauthorized repairs, improper installation, or other causes that are not defects in materials and workmanship, as well as normal depletion of consumable parts such as styli unless failure has occurred due to a defect in materials or workmanship.
