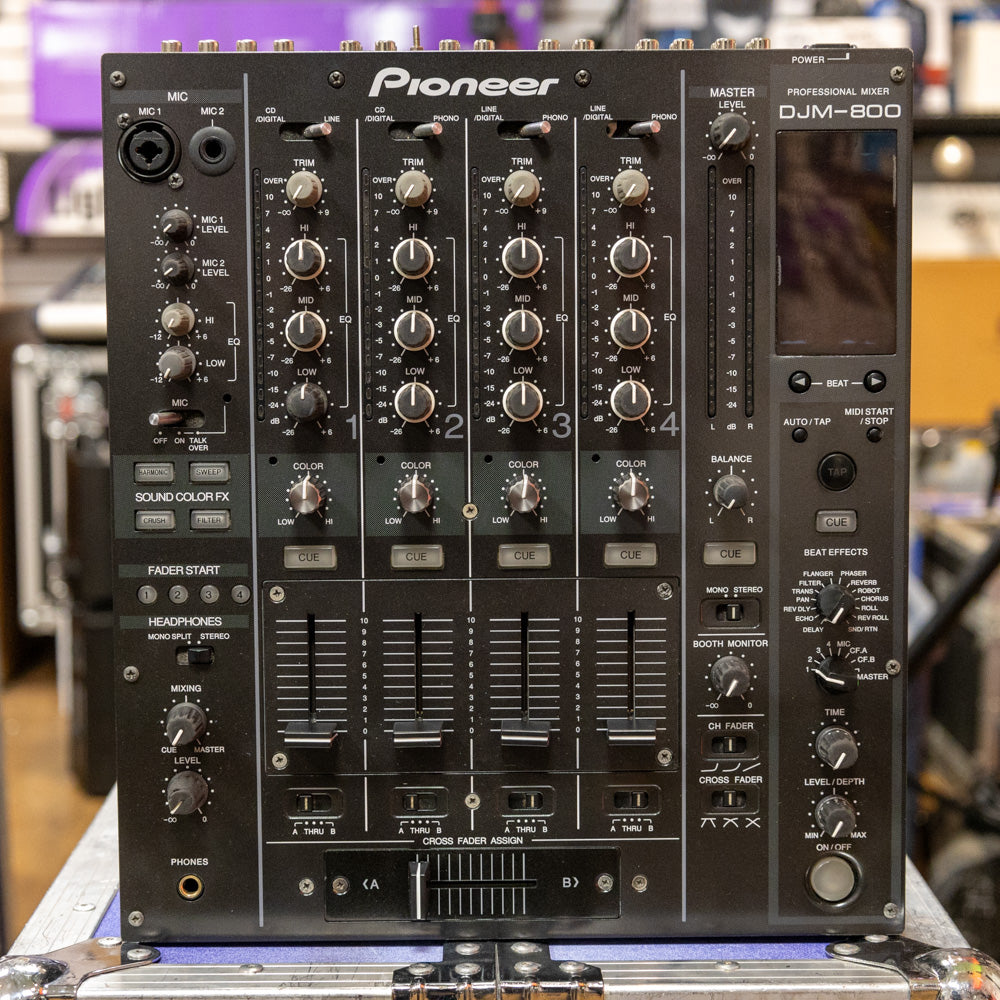

Pioneer DJ DJM-800 DJ Mixer - Used

Loaded with an amazing array of features and jawdropping effects, the DJM-800 gives you freedom of creativity and digital control at your fingertips.

The DJM-800 is a powerful 4 channel 96kHz / 24 bit digital mixer that’s complemented by 61 assignable MIDI control channels. It features 'Harmonic Mixing’, a landmark innovation that detects a track’s key and automatically aligns it to the closest true key, removing inaccuracies created when adjusting the pitch.

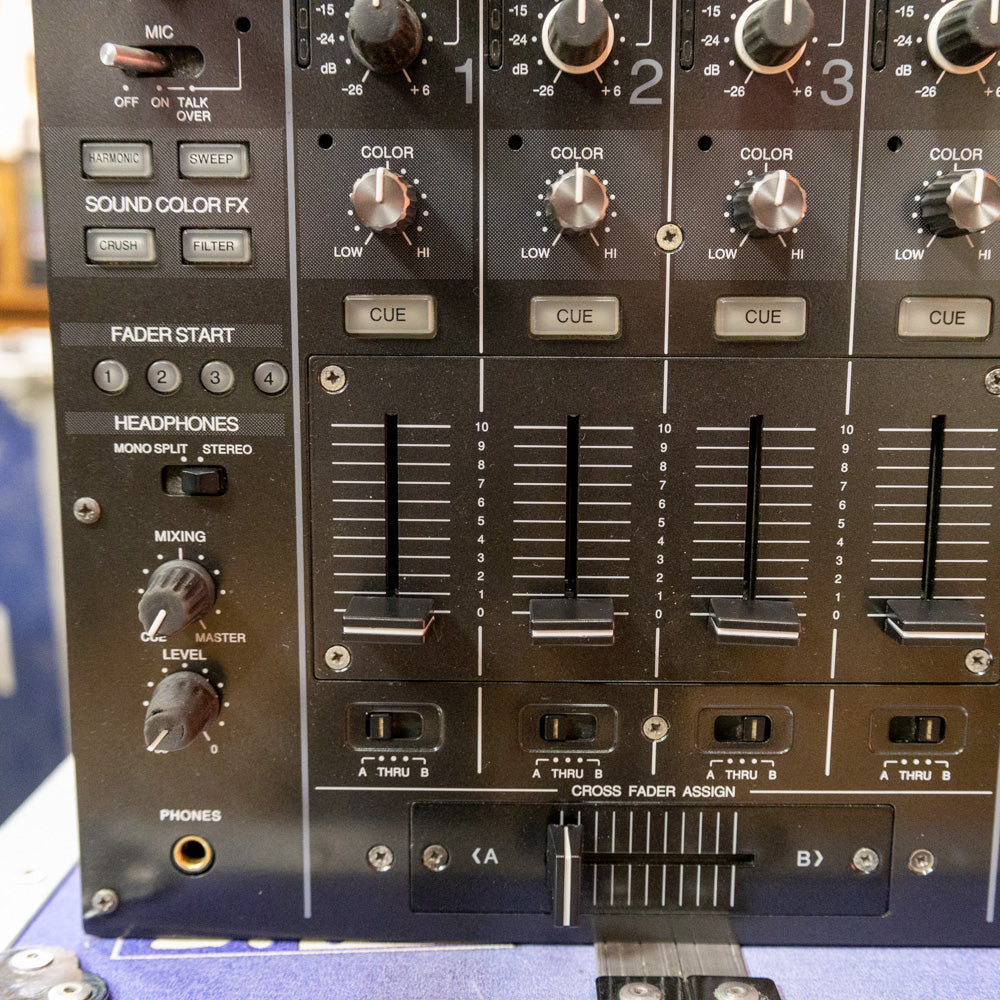

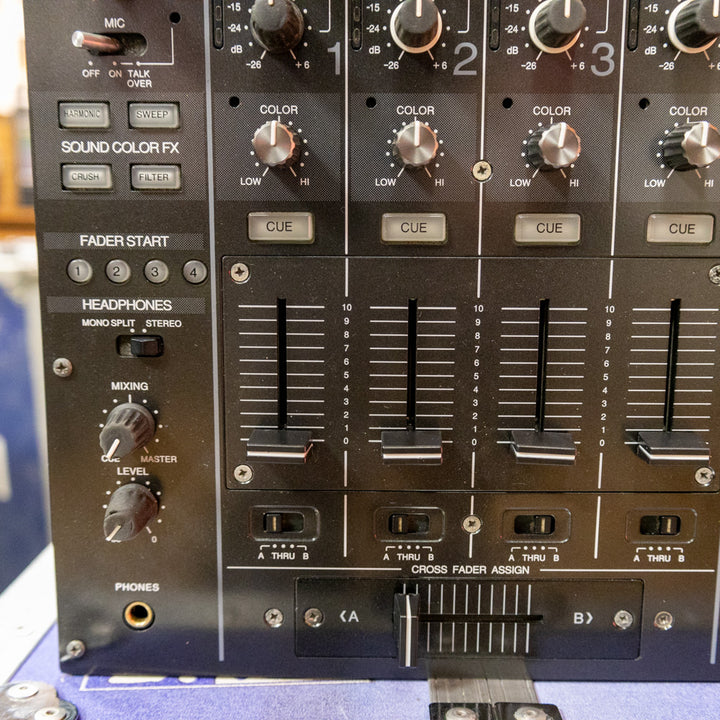

The DJM-800 displays a wide variety of effects, such as ‘filter’, ‘sweep’ and ‘crush’ effects through a highpass/lowpass filter, notch filter and bit crusher effect for all line channels.

The effects automatically detect the BPM of the music and sync to the beats. In conjunction with the additional Digital Beat Effects, 50 combinations of effects are possible.

The DJM-800 has a high rigid chassis for minimizing unnecessary vibration that could adversely affect sound quality. It also incorporates a dual-shield structure for eliminating entry of digital noise and a high performance power supply.

SpecificationsWidth12.6 inHeight4.25 inDepth15 inWeight17.64 lbS/N Ratio Line105 dBS/N Ratio Phono88 dBS/N Ratio Mic84 dBCrosstalk Line82 dBDistortion< 0.005 %MasterMaster BalanceYesStereo/Mono SwitchYesLevel Meter Size15 segmentMaster Out AttenuatorYesChannelsEQ/ISO3 bandEQ/ISO Range–26 dB ~ +6 dBRotary FadersOptionalLevel Meter TypeIndividualLevel Meter Size15 segmentPerformance ControlChannels4Sound Color FX

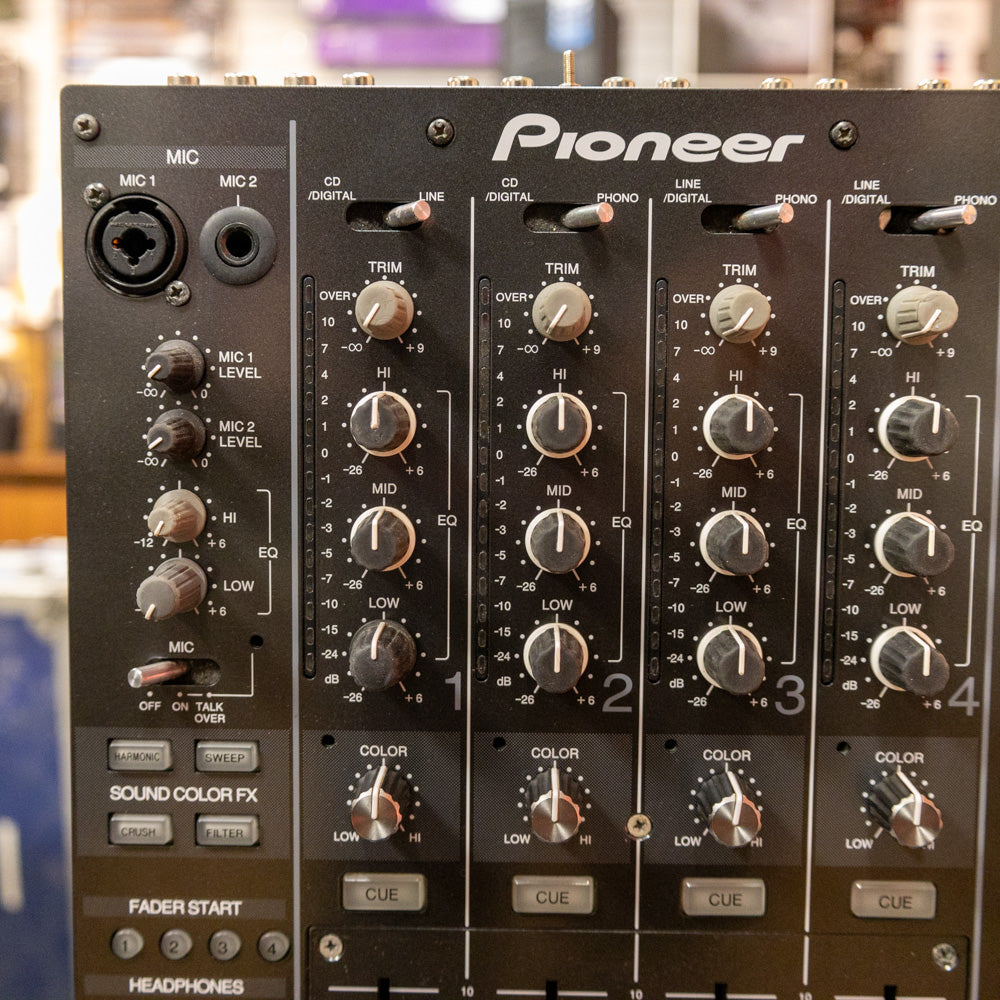

• Crush
• Filter
• Harmonic
• Sweep

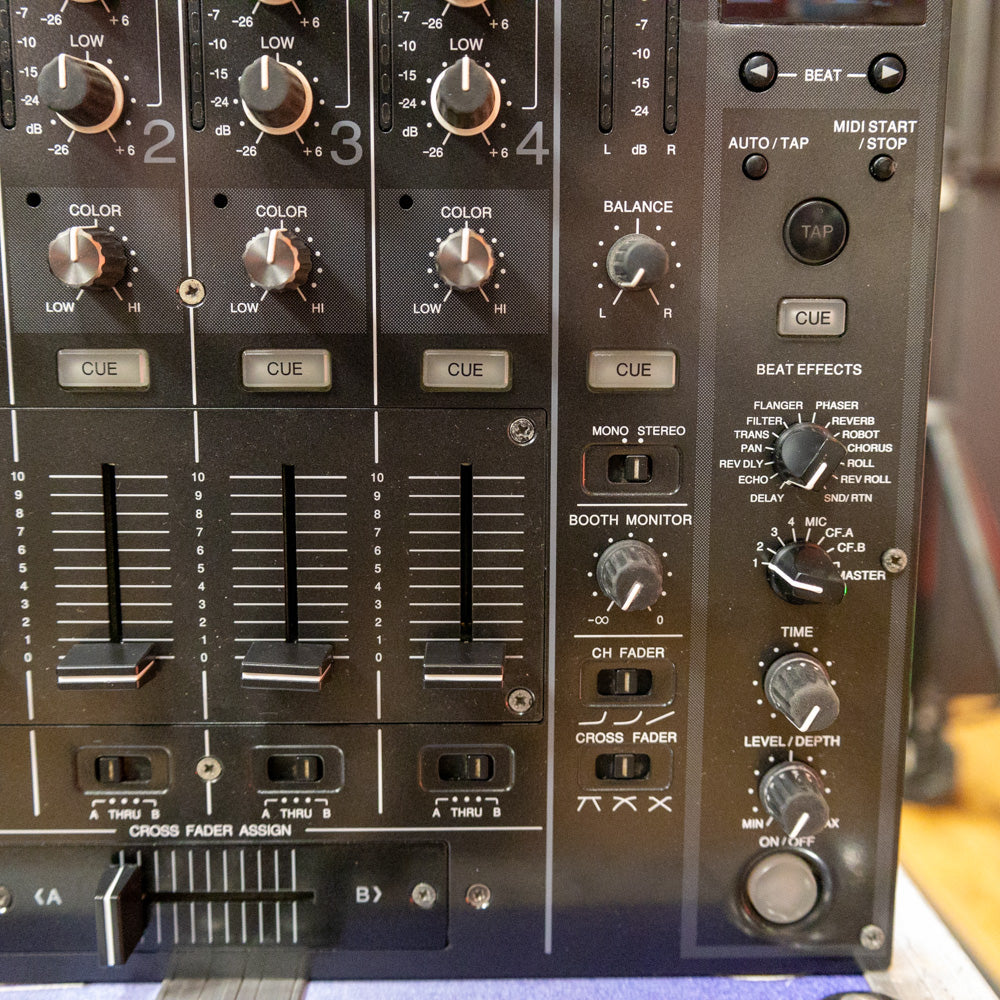

Beat FX

• Chorus
• Delay
• Echo
• Filter
• Flanger
• Pan
• Phaser
• Reverb
• Reverse Delay
• Reverse Roll
• Robot
• Roll
• Trans

Effect SamplerAuto BPM CounterYesEffect Level & Depth VolumeYesMIDI Global ClockYesRoll Sampler (Fwd)YesRoll Sampler (Reverse)YesSound Processor32CrossfaderCrossfader TypeCarbon RailCURVE AssignableYesField ReplaceableYesMicMic Connection

• Jack
• Neutrik Combo

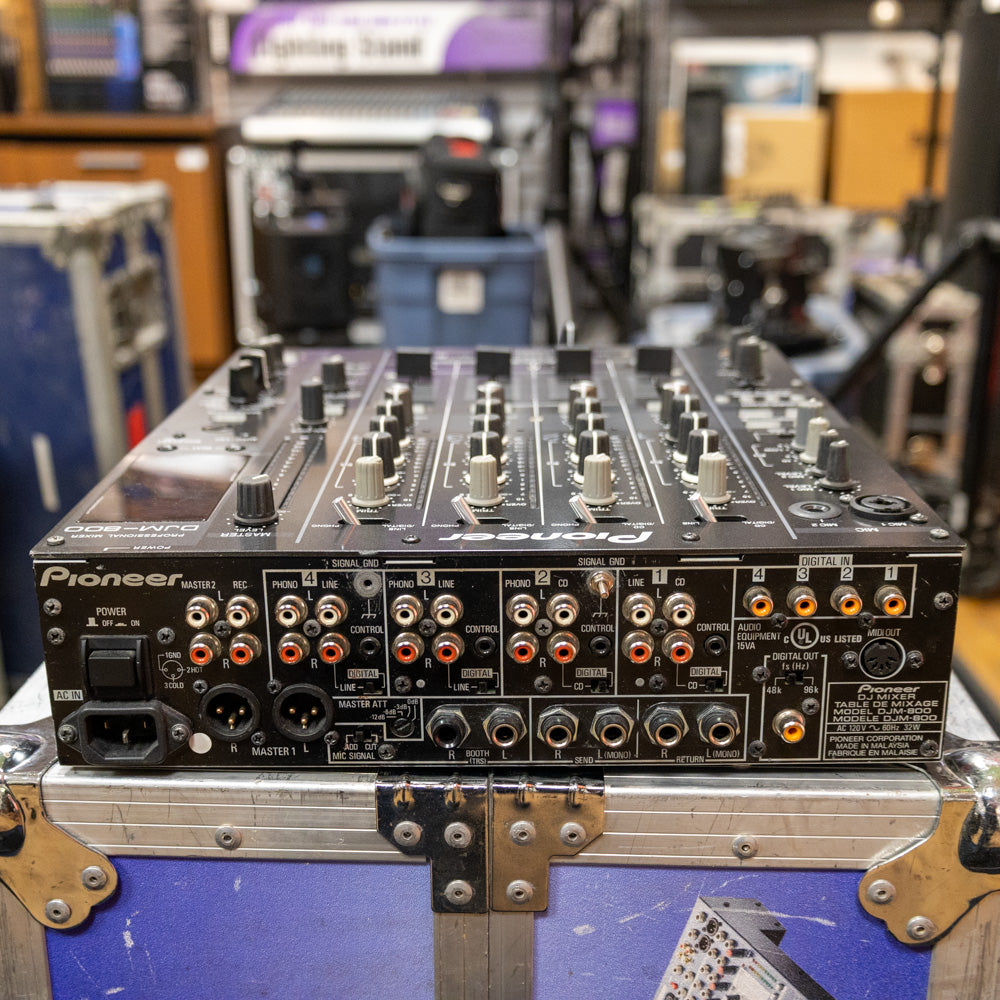

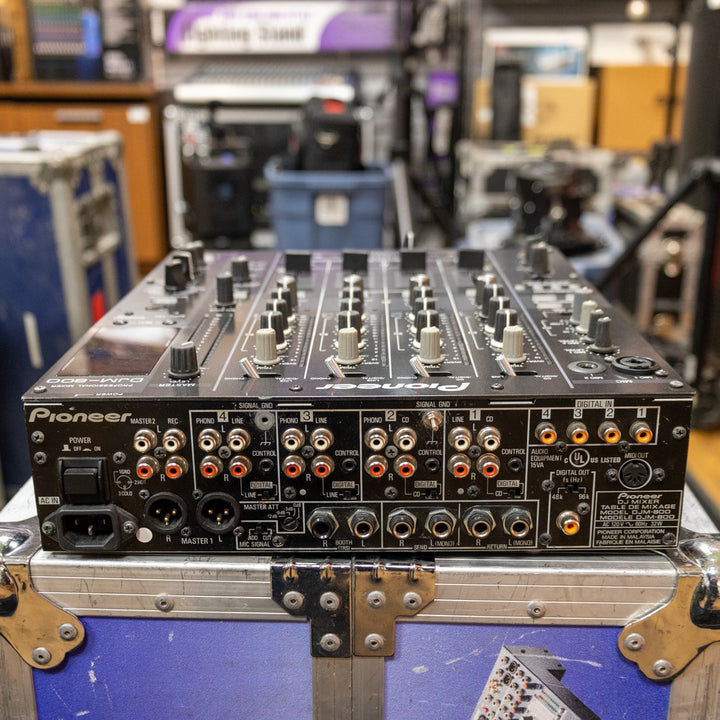

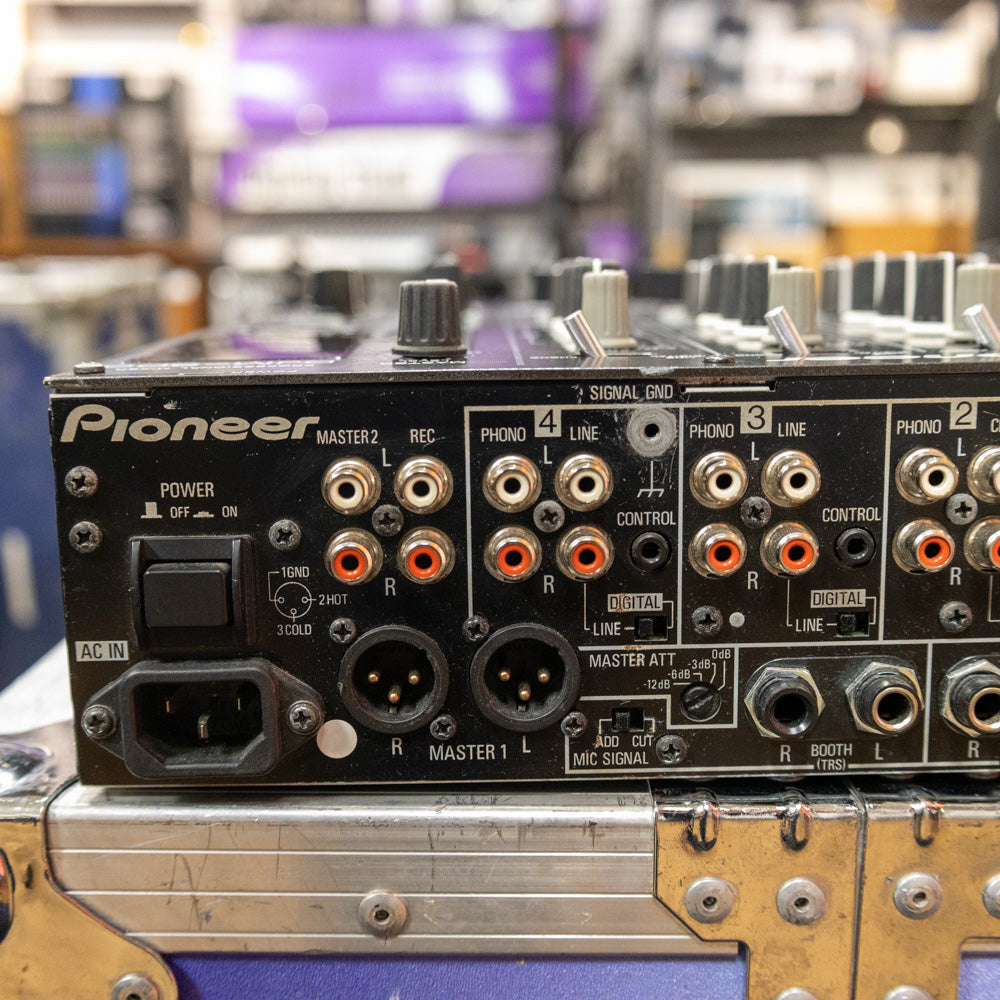

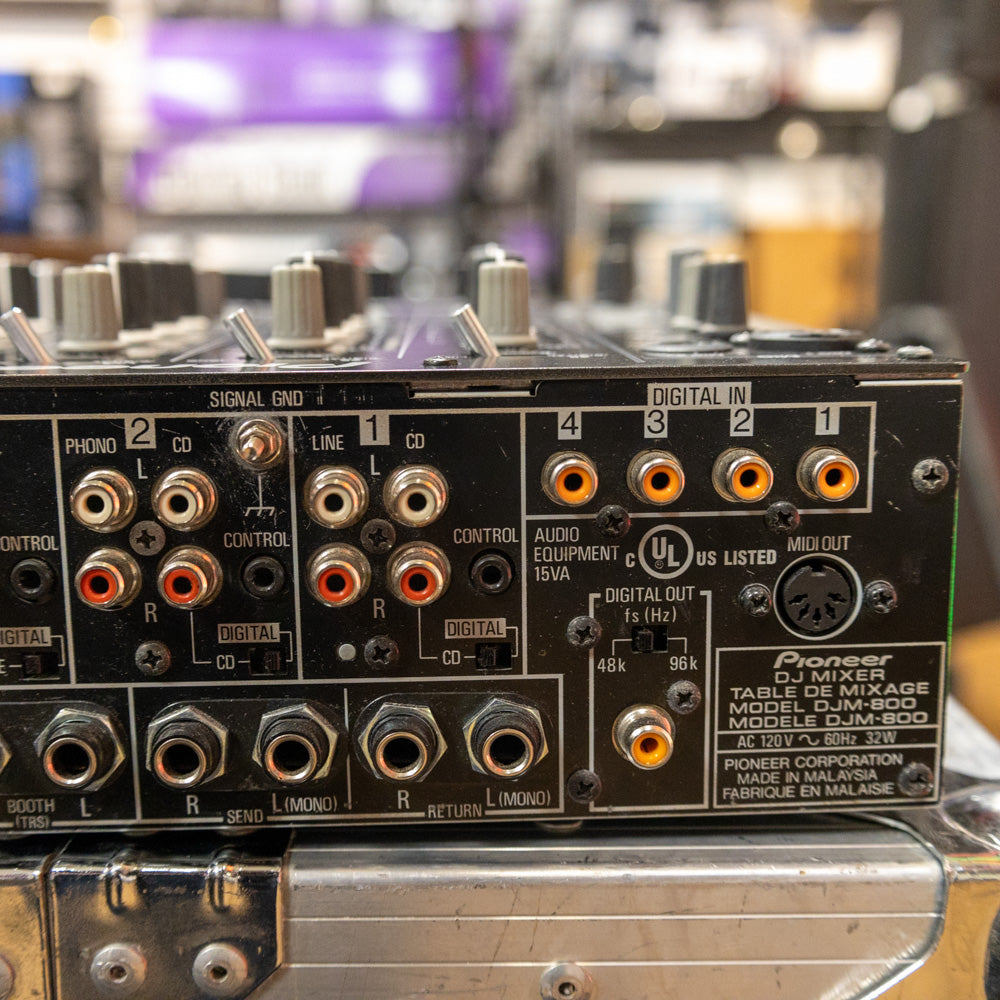

Mic EQ2 bandMic EQ Range-6 dB ~ +6 dBTalkover3 Position SwitchTalkover AttenuatorYesMIDI InfoAssignable Controls61MIDI Out (DIN)1 (5P DIN)MIDI Start/StopYesTerminalsInputs

• 1 MIC (1/4 inch Jack)
• 1 MIC (XLR)
• 1 RETURN (1/4 inch Jack)
• 3 PHONO (RCA)
• 4 S/PDIF Digital (RCA)
• 5 CD/LINE (RCA)

Outputs

• 1 BOOTH (1/4 inch Jack)
• 1 MASTER (RCA)
• 1 MASTER (XLR)
• 1 REC OUT (RCA)
• 1 S/PDIF Digital (RCA)
• 1 SEND (1/4 inch Jack)
