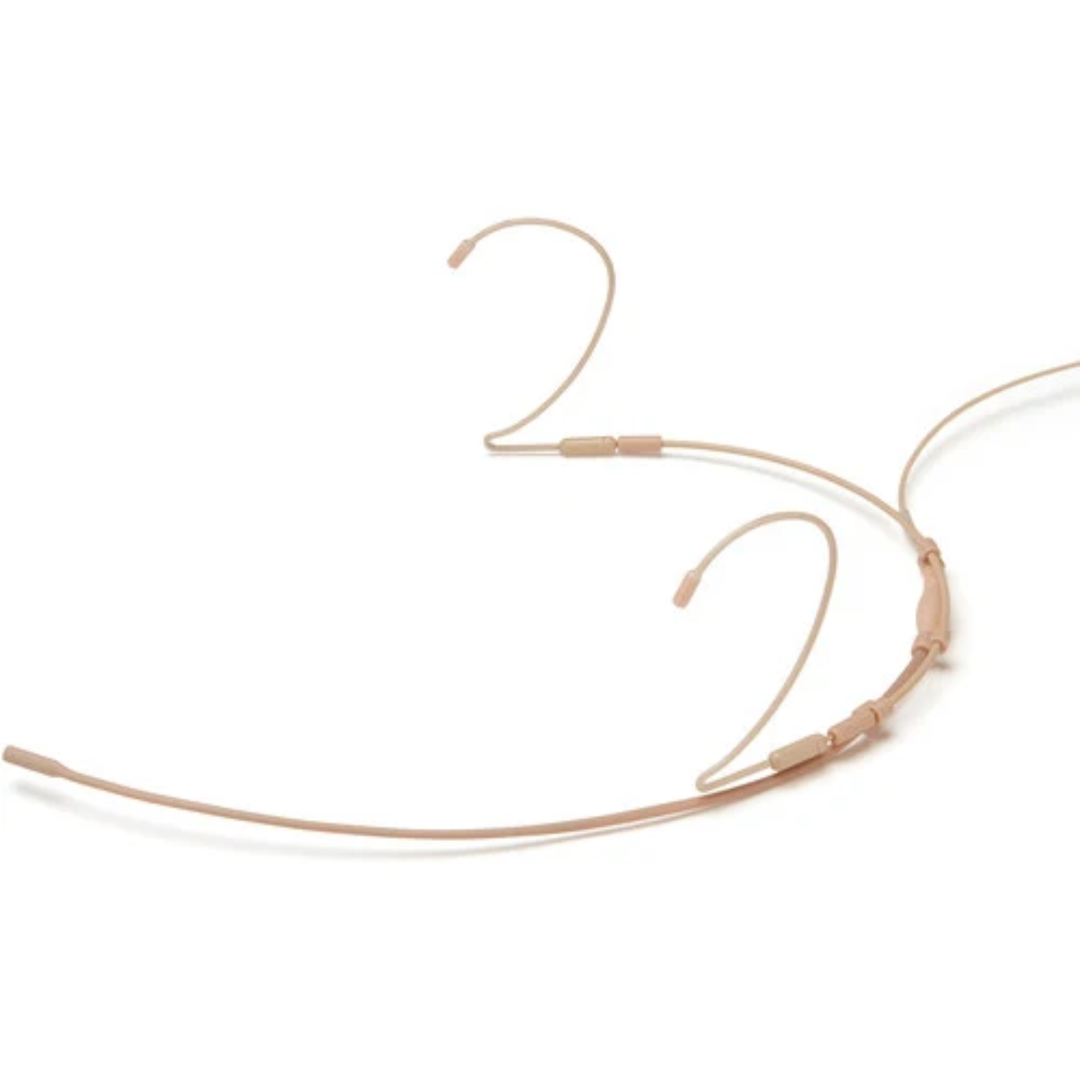

Point Source Audio GO-9WD-SK-BE Series9 Omni Headset Microphone With 3-Pin LEMO-Type Connector For Select Transmitters (Beige)

The beige Series9 Omni Headset Microphone from Point Source Audio is designed to deliver clear speech and vocals in a miniature form factor with flexible mounting options. Dual earhooks can be freely adjusted to suit your talent, while a cable clip keeps the wiring concealed. Ideal for both live stage events and small studio setups, the microphone features an omnidirectional pickup pattern with IP57 rated electret condenser resistant to water, sweat, and makeup.

This Series9 microphone features a 20 Hz to 20 kHz frequency response and 142 dB SPL. A 3-pin LEMO-type connector is hardwired for select transmitters and other compatible devices. The 5.6' integrated cable bends 360° and allows for direct integration with compatible bodypack transmitters. A foam windscreen and storage box are also included.

LEMO-Style 3-Pin Connector

Compatible Wireless Transmitters

• Transmitter Compatibility: hardwired to work with Sennheiser SK, Lectrosonics SSM, Wisycom, and select Shure transmitters
• Also works with many third-party wireless transmitters and portable audio recorders that are equipped to supply 1 to 10 VDC through a 3-pin LEMO-type connector

Broadcast-Quality Sound and Dependable Performance

Subminiature Microphone

The subminiature, electret condenser captures audio in both live event and studio applications while remaining inconspicuous and easily disguised in clothing. Integrated dual earhooks are adjustable, collapsible, reversible, and rotate 360° to configure the microphone in the most comfortable position for your talent.

Optimized for Speech

The microphone features a maximum SPL of 142 dB to offer headroom for most speech and vocal applications.

Omnidirectional Polar Pattern

Pick up audio from any direction thanks to the single element's omnidirectional polar pattern and consistent frequency response for off-axis sound. This ensures speech and vocals are clear and intelligible, even when the talent isn't speaking directly toward the microphone.

IP57 Rated for Indoor and Outdoor Use

The microphone's single elements is designed with an IP57 rating for use in both indoor and outdoor applications. The rugged 5.6' cable can withstand 12,000 bends for long-lasting durability.

Features

• For Broadcast, Film/Video & Presentation
• Omnidirectional for Consistent Levels
• For Select Transmitters with 3-Pin LEMO
• Headroom for Strong Vocals / 142 dB SPL
• Dual Earhook Headset
• Rugged 5.6' Cable Stays Pliable
• IP57 Rated
• Requires 1 to 10 VDC
• Includes Windscreen and Clip

Specifications

Microphone

Compatible Transmitters: Not Specified by Manufacturer
Polar Pattern: Omnidirectional
Included Tone/Pattern Caps: No

Performance

Frequency Response: 20 Hz to 20 kHz
Maximum SPL: 142 dB
Sensitivity: -39 dBV/Pa (at 1 kHz)
Dynamic Range: 104 dB

Connectivity

Analog Output Connector: 1x LEMO 3-Pin Male
Cable Length: 5.6' / 1.7 m

Power

Power Sources: Plug-In Power
Operating Voltage: 1 to 10 V

Physical

Color: Beige
Environmental Resistance: Dust/Water-Resistant (IP57)
Weight: 0.6 oz / 17 g

Packaging Info

Package Weight: 0.39 lb
Box Dimensions (LxWxH): 6.95 x 5.7 x 1.15"
