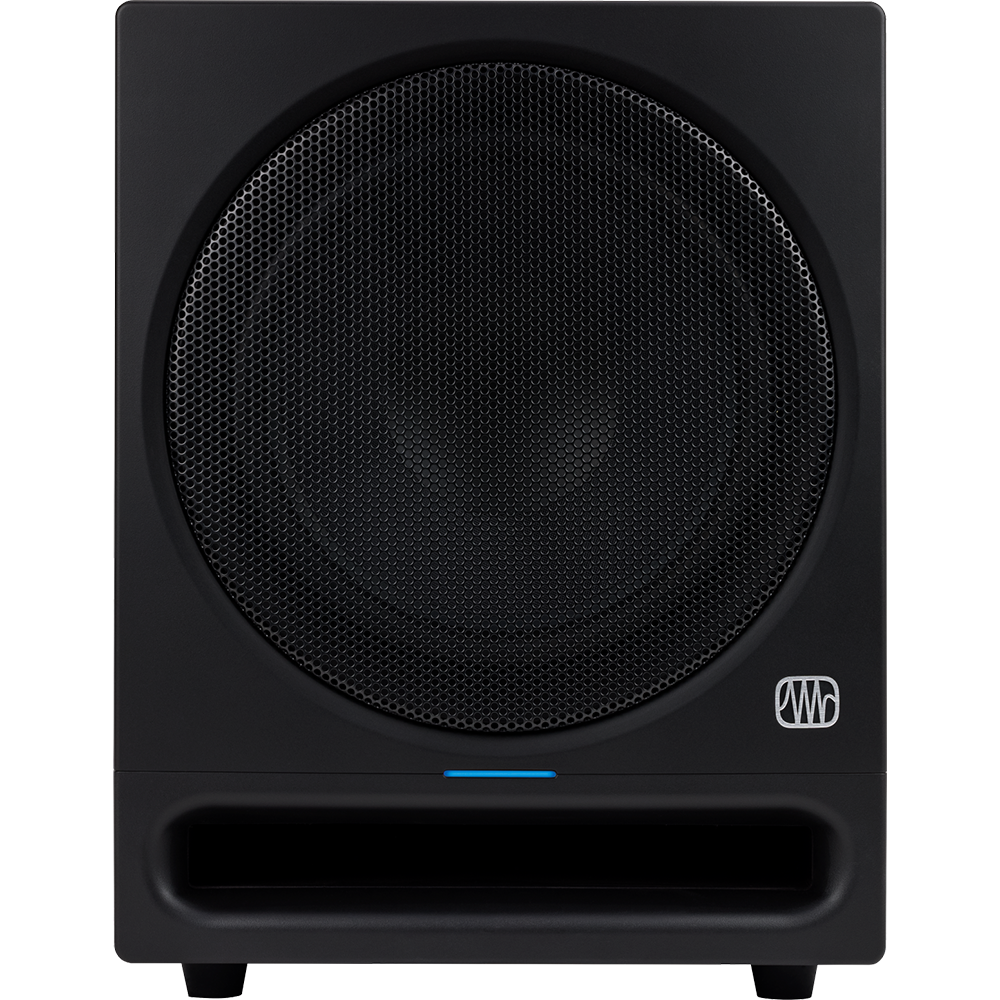

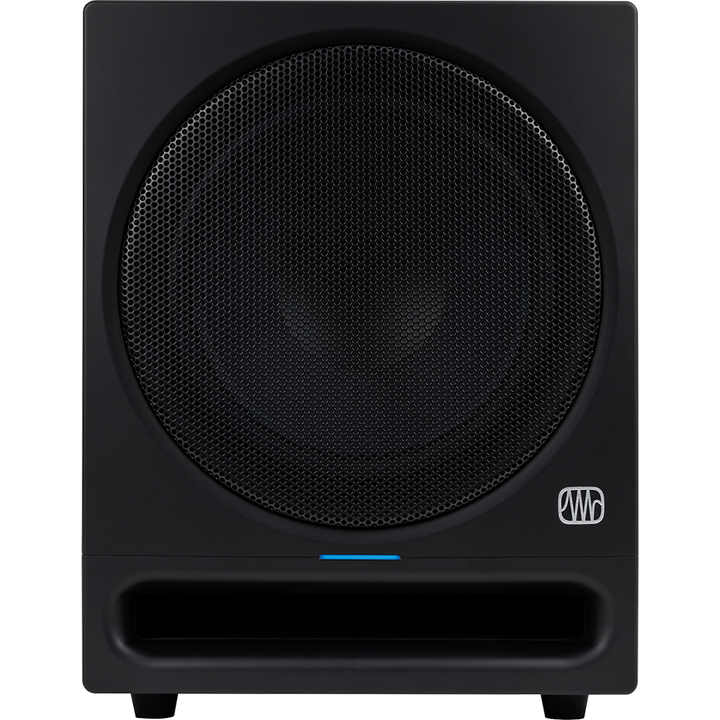

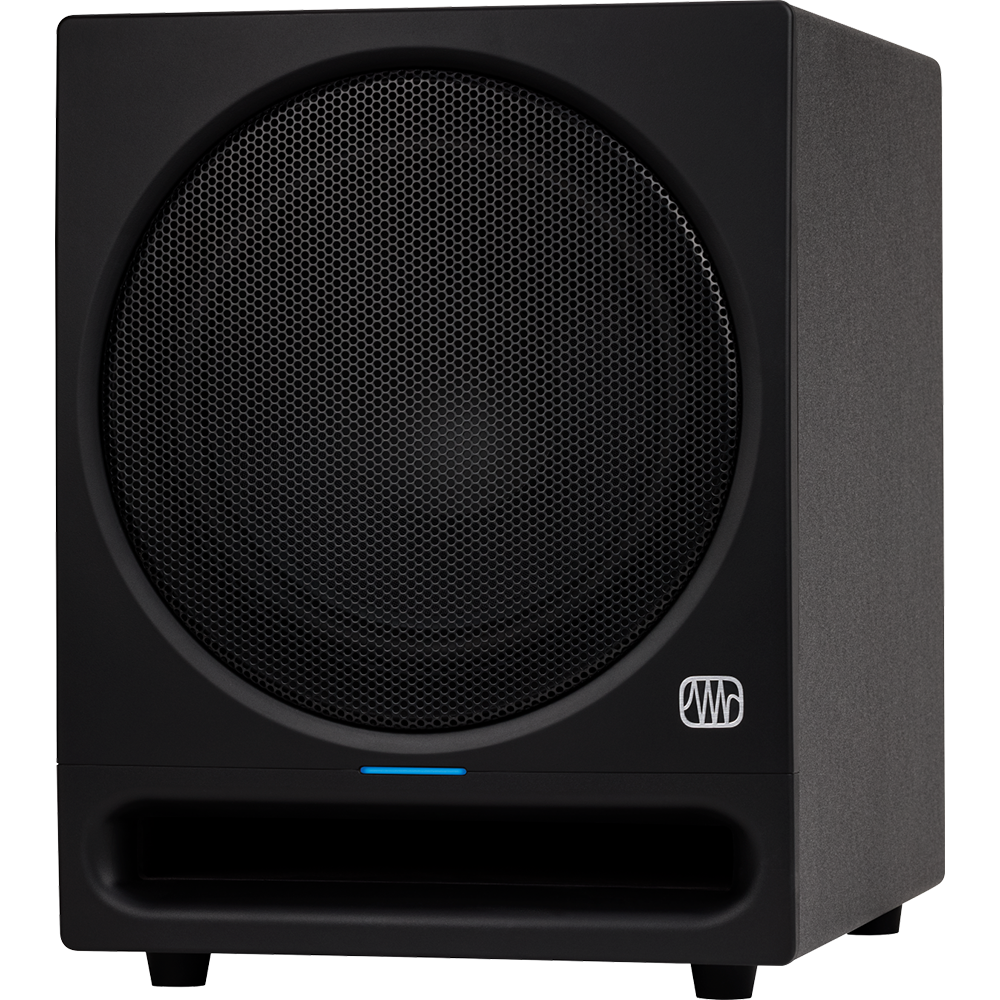

PreSonus 2777500132 Eris Pro Sub 10, 10-inch Subwoofer

Intended for serious personal studios and professional music-production environments, the Eris® Pro Sub 10 helps you take charge of the low-frequency foundation of your mix, complementing full-range monitors without overshadowing them and extending the reach of your full-range system's low end with a more musical and natural approach.

The Eris® Pro Sub 10 features a 10-inch, glass-composite woofer, 250W of Class AB power, a built-in crossover, and a front-firing, bass-reflex acoustic port. Extensive user controls include input gain, a variable lowpass filter for creating a seamless crossover transition, and a switchable highpass filter that removes content below 80 Hz from the full-range signal sent to the main monitors. A momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out.

Take charge of the low-frequency foundation of your mix with the Eris® Pro Sub 10. Designed to meet the demanding needs of serious home studios and professional music-production environments, the Eris Pro Sub 10 complements full-range monitors without overshadowing them and extends the reach of your full-range system's low end with a natural sound.

Powerful and musical, the PreSonus® Eris Pro Sub 10 active, front-firing studio subwoofer is designed to deliver fast and accurate transient response, extending low frequencies down to 20 Hz, allowing you to hear the full-spectrum range of your mix. Driven by 170W (RMS) Class AB amplification, the Eris Pro Sub 10's 10-inch, glass-composite, low-frequency driver delivers tight, responsive sub-bass, thanks to its lightweight and rigid cone.

Extensive user controls include a continuously variable lowpass filter for creating a seamless crossover transition between the full-range studio monitors and subwoofer for the most accurate listening environment possible. An onboard footswitch control lets you quickly A/B your mix with and without the subwoofer for easy referencing.

FEATURES:

• 10-inch, front-firing, glass-composite, low-frequency transducer
• Front-firing, bass-reflex acoustic port
• Continuously variable lowpass filter (50 Hz to 130 Hz) sets the upper frequency reproduced by the subwoofer
• Switchable highpass filter removes frequency content below 80 Hz from the full-range subwoofer outputs to the main monitors
• Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
• Input gain control (-30 dB to +6 dB, continuously variable), polarity invert switch, and ground-lift switch
• 170 watt (RMS), Class AB amplification for up to 113 dB SPL, with a frequency response of 20 to 200 Hz

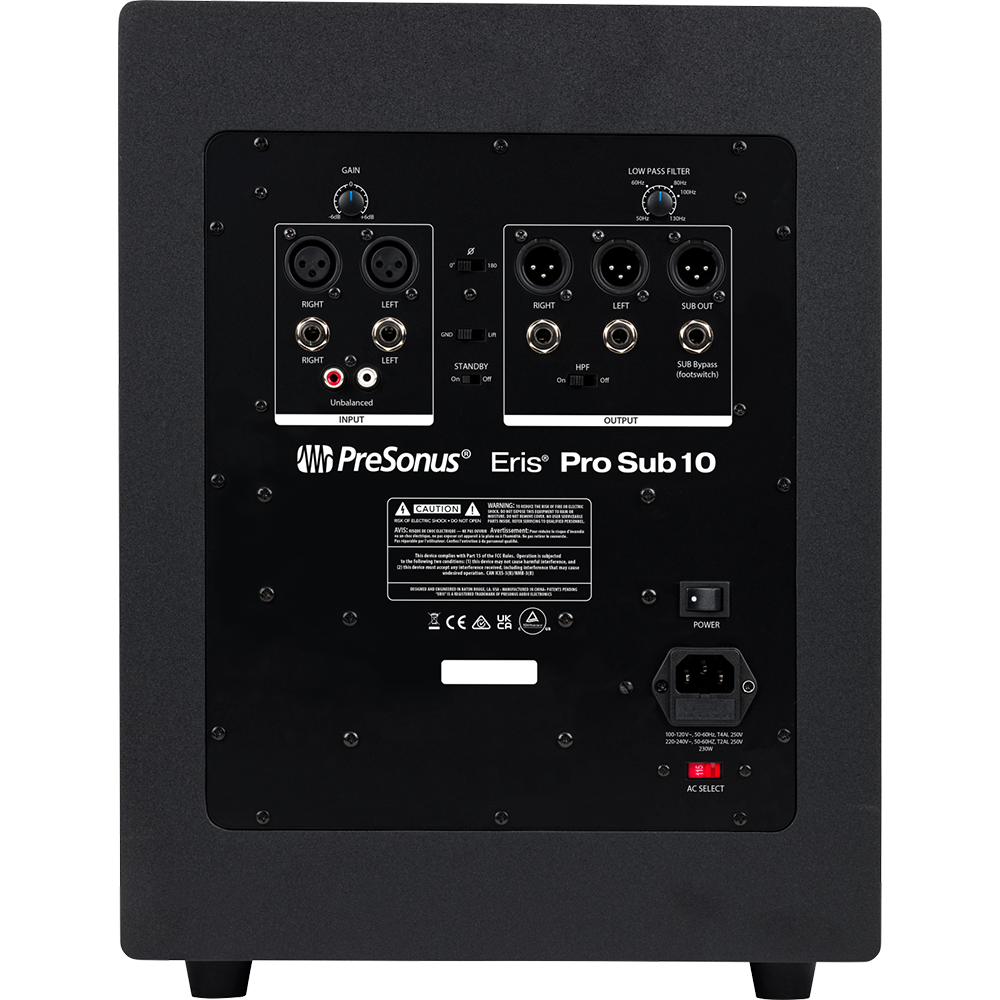

• Left and right, balanced XLR and ¼-inch TRS and unbalanced RCA main inputs
• Left and right balanced XLR and ¼-inch TRS outputs and XLR subwoofer output for connecting a second Eris® Pro Sub 10

Electronics
VOLTAGE: 120V
WATTAGE: 250W Peak, 170W RMS

Hardware
CABINET MATERIAL: Vinyl-Laminated, Medium-Density Fiberboard
AUDIO CONTROLS: Input Gain Range: -30 to +6 dB Low Pass Filter Control: 50 Hz to 130 Hz
AUDIO SWITCHES: Polarity Switch: 0 degrees or 180 degrees Ground Lift Switch: On/Off High Pass Filter Switch: On/Off Bypass Footswitch: On/Off
MONITOR INPUTS: 2- Balanced XLR, 2- Balanced 1/4" TRS, 2- Unbalanced RCA
POWER AMPLIFIER TYPE: Class AB

Measurements
DIMENSIONS: 17.00 x 20.20 x 21.30 IN
SHIPPING WEIGHT: 37.00 LB
PRODUCT DEPTH: 16" (40.6 cm)
PRODUCT HEIGHT: 15.75" (40 cm)
PRODUCT WIDTH: 12.6" (32 cm)
SHIPPING LENGTH: 21.30 IN
SHIPPING HEIGHT: 17.00 IN
SHIPPING WIDTH: 20.20 IN
