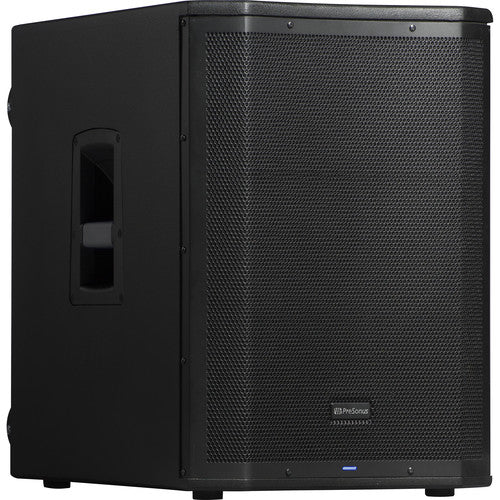

PreSonus AIR15S Active Sound-Reinforcement Subwoofer

Overview of PreSonus AIR15S Active Sound-Reinforcement Subwoofer

Designed to complement any full-range PA loudspeaker and a perfect companion for the PreSonus® AIR10, AIR12, and AIR15, the AIR15s subwoofer delivers a powerful, clear, and accurate low-end punch. With its 15-inch low-frequency transducer, driven by 1,200 watts (dynamic) of Class D power, it provides plenty of detailed bottom end—all the way down to 35 Hz. Yet it is portable and well suited for mobile applications, as well as installed systems.

Since each venue has unique acoustics and each application makes different demands on a sound system, we’ve equipped AIR-series subwoofers with easy-to-use controls and signal-processing presets. Set your subwoofers for normal front-of-house use or get an even bigger low-end with the Mo’ Bass preset. Set them to perform in an array. Reverse polarity, use the lowpass filter to set a crossover frequency, adjust the master output level of the power amplifier, even turn the grille LED off for install applications or set it to illuminate only when the protection limiter is engaged—all at the touch of a button.

Although it has a rugged, tour-grade birch enclosure, the PreSonus AIR15s is much more compact and lightweight than you’d expect from a subwoofer that can deliver this much power. With integrated provisions for the included castor kit, ground-stacking provisions, and ergonomic handles on both sides, it’s easy to transport for mobile applications, while offering the features and performance needed for demanding installs. The AIR15s sports two combo XLR and ¼” TRS line-level inputs with level control, and throughputs are provided to connect full-range systems or multiple subwoofers in larger systems. You can even defeat the front power-indicator LED for low-visibility installs.

Although we recommend AIR-series full-range loudspeakers, AIR15s subwoofers can be used with virtually any full-range loudspeaker. Whatever full-range speaker you choose, aligning the subwoofer to its full-range companion will yield tighter bass response. AIR15s subwoofers make it easy, with a variable alignment delay that properly aligns your three-way system, whether the full-range loudspeaker is placed atop the subwoofer, using the sub pole, or is placed a few feet away. AIR-series subwoofers also are equipped with a variable lowpass filter that allows you to dial in the best crossover point for your system. Optimized settings are provided for the AIR10, AIR12, and AIR15 full-range loudspeakers.

Features:

• 1,200W (dynamic) Class D power amp
• 15-inch woofer with a 3-inch voice coil
• Frequency Response: 35 to 160 Hz
• Max SPL: 126 dB
• 2 combo XLR-¼” line inputs and two XLR direct outputs
• Easy-to-use DSP performance presets:
  • Normal—typical FOH use
  • Mo’ Bass—extended low-end performance
• Locate—adjusts performance for arrayed and non-arrayed applications
  • Normal – non-arrayed applications
  • Cardioid—create a ground-stacked cardioid subwoofer array (using two of the same model subwoofer)
  • Endfire – create an endfire cardioid subwoofer array (using two of the same model subwoofer)
• Fully variable lowpass filter (sets the upper frequency limit/crossover point) LP filter presets for use with AIR15, AIR12, and AIR10
  • LP filter presets for use with AIR15, AIR12, and AIR10
• Alignment delay—adds delay time relative to full-range speaker
• Polarity—invert the polarity of the summed input signal
• 2 comfortable ergonomic side handles
• Ground stack provisions
• Castor provisions (castor kit included)
• Defeatable front-panel LED
• Rugged, texture-painted, birch enclosure
• Tour-grade, 17 gauge steel grille

Specifications:

• Configuration: Active vented design
• Frequency Range (-3 dB): 35 Hz to 160 Hz
• Maximum Output: 126 dB SPL
• LF Driver: 15” (3” voice coil)
• Amplifier Type: Class D
• Total System Power: 1,200W dynamic (600W continuous)
• Inputs: 2 x XLR/TRS line combo
• Outputs: 2 x XLR Link Out
• DSP Features: LCD screen with EQ and multiple presets
• Cabinet: 15 mm plywood
• Grille: 1.5 mm steel
• Handles: 2 side
• Mounting: Groundstack provisions
• Dimensions (H x W x D): 24" x 16.7" x 23.9" (612 mm x 425 mm x 606 mm)
• Weight: 70.5 lbs (32 kg)
• Power Input: 115V / 230V ~50/60 switchable
• Maximum Current: 3.5A (230V-50 Hz), 7A (120V)
