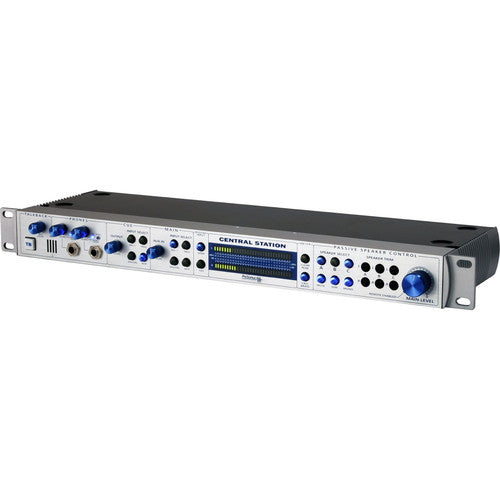

PreSonus Central Station PLUS with Desktop Remote

Overview of PreSonus Central Station PLUS with Desktop Remote

You need to be able to switch between multiple sets of monitors and hear what your mix sounds like with and without a subwoofer. You want to be able to switch between multiple analog and digital sources. And you want to do it without sacrificing clarity and transparency. Meet the Central Station PLUS, the professional’s choice for monitor control.

With Central Station, you can easily switch between three sets of stereo, analog input sources and one stereo digital input source. The digital inputs provide up to 24-bit, 192 kHz digital-to-analog conversion, and the converters deliver more than 115 dB of dynamic range. The Central Station will automatically detect and lock to the sampling rate of the source device.

You can audition these sources with up to three pairs of speakers, with individual trim pots for each speaker. You also get two screaming-loud headphone amplifiers with individual level controls. If two sets of cans aren’t enough, simply connect the line-level cue outputs to a headphone distribution system—say, a PreSonus® HP2, HP4, or HP60. And because Central Station is a 1U rack-mount device, with only one multi-conductor cable running to the remote control on your desktop, all of the cabling is in the back of your rack, where it belongs.

Features:

• 3 sets of stereo analog inputs let you switch between sources
• 2 sets of S/PDIF digital inputs (coax and optical)
• 3 sets of stereo speaker outputs with:
  • Speaker Select switches
  • Recessed trim pot for each speaker output
• Input-select switch
• Aux-input level control
• Output-level control
• Mute, Dim (-20 dB), and Mono switches
• Dual-function volume controls
• Main-Cue input switches
• Passive audio path: no op amps or IC's in main audio path
• Onboard talkback microphone
• Talkback microphone input w/level control (feeds headphone and cue outputs)
• Dual 30-segment, fast-acting, peak-hold LED metering (dBu and dBfs) with:
  • Clear Peak switch
  • Calibrate to match DAW or other audio device
• Footswitch jack for hands-free talkback operation
• Included Control Station Remote (CSR-1) provides remote control of:
  • Main Volume
  • Input select
  • Output select
  • Talkback
  • Mute
  • Dim
  • Mono
• 4 balanced ¼" analog line inputs (2 L/R pairs)
• 2 unbalanced RCA analog line inputs (L/R pair)
• 1 stereo S/PDIF optical (TOSLINK) digital input
• 1 stereo S/PDIF coax (RCA) digital input
• 1 balanced XLR talkback-microphone input
• 6 balanced ¼", line-level speaker outputs (3 L/R pairs) w/separate, passive volume controls
• 2 balanced ¼", line-level Main outputs (1 L/R pair) with source selection
• 2 balanced ¼", line-level Cue outputs (1 L/R pair) with volume control and source selection
• 2 stereo ¼" headphone jacks w/dual-function volume controls and Main-Cue input switches
• 1 DB15 port for optional Control Station Remote (CSR-1)
• S/PDIF coax and optical digital inputs
• High-definition, 24-bit, 192 kHz D/A converters (115 dBu dynamic range)
• 1U 19" rack-mountable, rugged steel chassis
• External AC power supply
• Remote-control all functions of Central Station, including:
  • Input switching
  • Speaker selection
  • Main volume
  • Talkback system
• Onboard electret condenser talkback microphone
• Talk button (momentary switch) for talkback system
• Active light shows when CSR-1 is controlling main volume
• Connects with a proprietary DB15 cable (included)
• Keep desktop neat and clutter-free

Specifications:

• TRS 1 & 2:
  • Type: ¼" TRS Passive-Balanced
  • Input Impedance: 2-5 kΩ (Speaker load and Trim level dependent)
  • S/N Ratio: > 140 dB
  • THD+N: < 0.0005% (1 kHz @ 0 dBu)
  • Frequency Response: > 1 MHz
• AUX:
  • Type: RCA Active-Unbalanced
  • Input Impedance: 8 kΩ
  • S/N Ratio: > 115 dB (1 kHz @ 0 dBu, Unity gain)
  • THD+N: < 0.002% (1 kHz @ 0 dBu, Unity gain)
  • Frequency Response: 10 Hz-50 kHz, -0.5 dB
  • Gain Range: -90 dB to +20 dB
• S/PDIF:
  • Types: RCA 75Ω coax and Toslink optical
  • Dynamic Range: 117 dB
  • THD+N: 0.0025% (1 kHz @ -1 dBfs)
  • Maximum output: +18 dBu (Active-Balanced)
  • Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Main Chassis:
  • Package Type: 1U steel chassis
  • Dimensions: 19 (W) x 1.75 (H) x 6.25 (D) inches
  • Weight: 5.0 lbs
• External Power Supply:
  • Package Type: Molded Plastic
  • Dimensions: 2.5 (W) X 2.3 (H) X 4.0 (D) inches
  • Weight: 2.5 lbs
• Input Meters:
  • Type: Dual 30 segment LED w/ Peak Hold
  • Range: -48 dB to +18 dB (-66 dBfs to 0 dBfs)
  • Accuracy: > 0.25 dB
  • Frequency Range: 10 Hz-22 kHz
  • Calibrate Range: ±18 dB
• Speakers:
  • Type: ¼" TRS Passive-Balanced
  • Type-Mono Activated: ¼" TRS Active-Impedance Balanced
  • Trim Range: -90 dB to 0 dB
  • Main Level Range: -90 dB to 0 dB
  • Dim Attenuation: -30 dB
• Main:
  • Type: ¼" TRS Active-Balanced
  • Output Impedance: 51Ω
  • THD+N: < 0.0025%
  • Frequency Response: 10 Hz-50 kHz, -0.5dB
• Cue:
  • Type: ¼" TRS Active-Impedance Balanced
  • Output Impedance: 51Ω
  • THD+N: Less than 0.003% (1 kHz @ 0 dBu)
  • Frequency Response: 10 Hz-50 kHz, -0.5 dB
  • Gain Range: -90 dB to 0 dB
  • Dim Attenuation: -30 dB (Talkback activated)
• Headphones:
  • Type: ¼" TRS Active Stereo
  • Maximum Output: 150 mW/channel @ 60Ω load
  • THD+N: 0.015% (150 mW/channel @ 60Ω load)
  • Frequency Response: 10 Hz-50 kHz, +1 dB
• Dynamic Microphone Input:
  • Type: XLR Female Balanced
  • Input Impedance: 2400Ω
• Internal Microphone:
  • Type: Electret Condenser
  • Sensitivity: -42 dB
• Mic Preamp:
  • Gain Range: 15-55 dB
• Power Supply:
  • Type: External A.C. Transformer/Internal Linear
  • Power Consumption: 40 VA
• CSR-1 Control Station Remote:
  • Dimensions: 5.25 (W) x 5.75 (H) x 2.38 (D) inches
  • Weight: 1.25 lbs.
  • Cable: 12-foot DB15M to DB15M (male-male)
