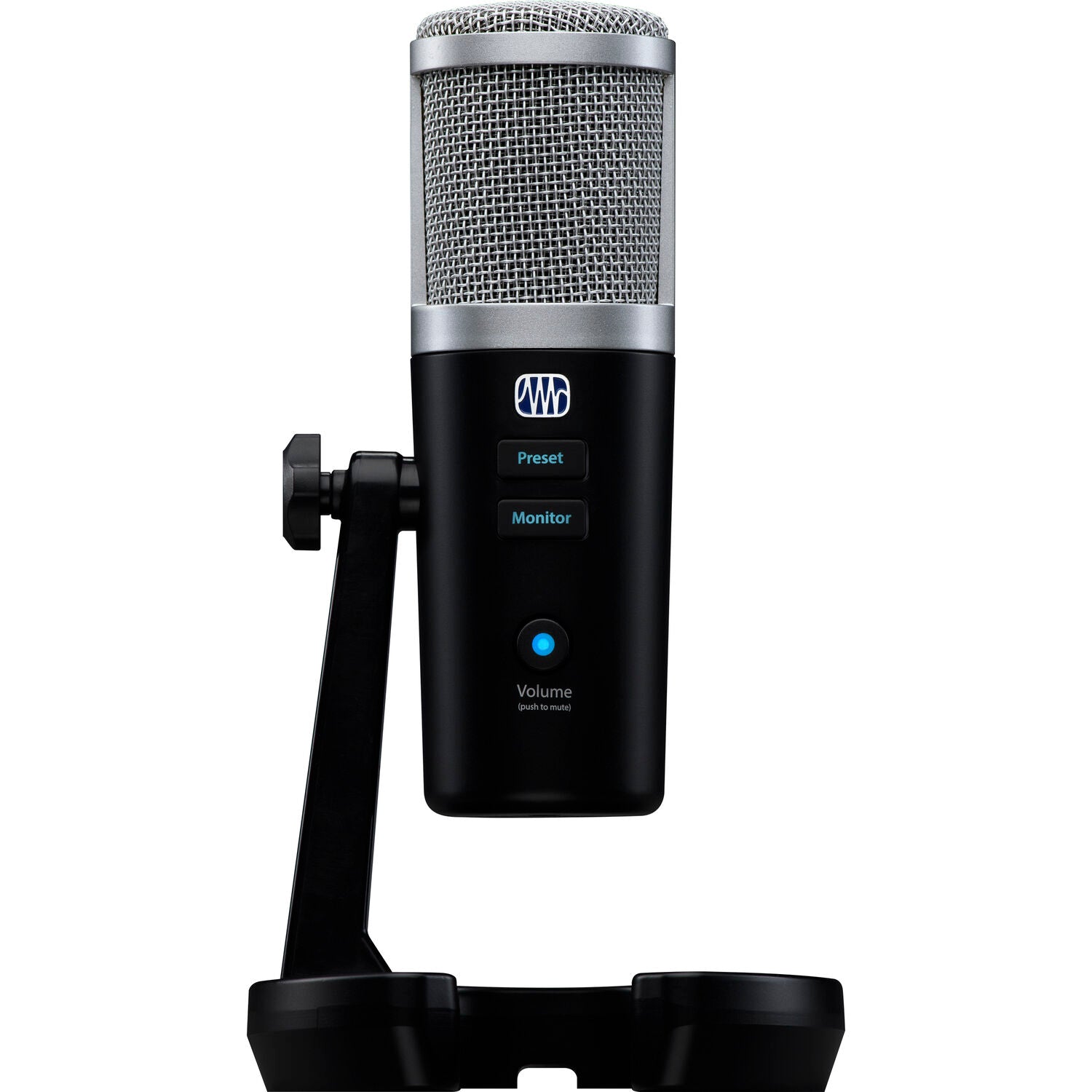

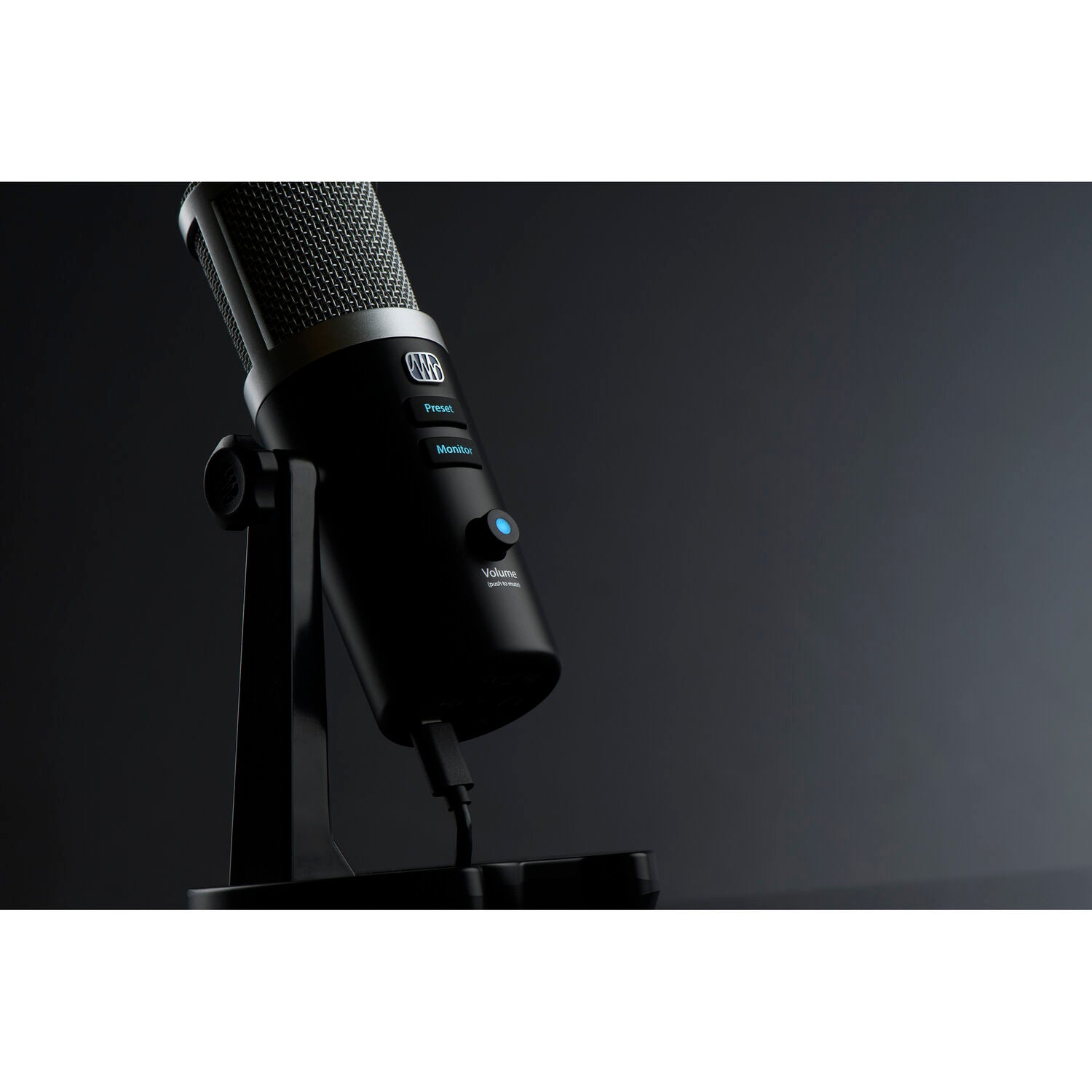

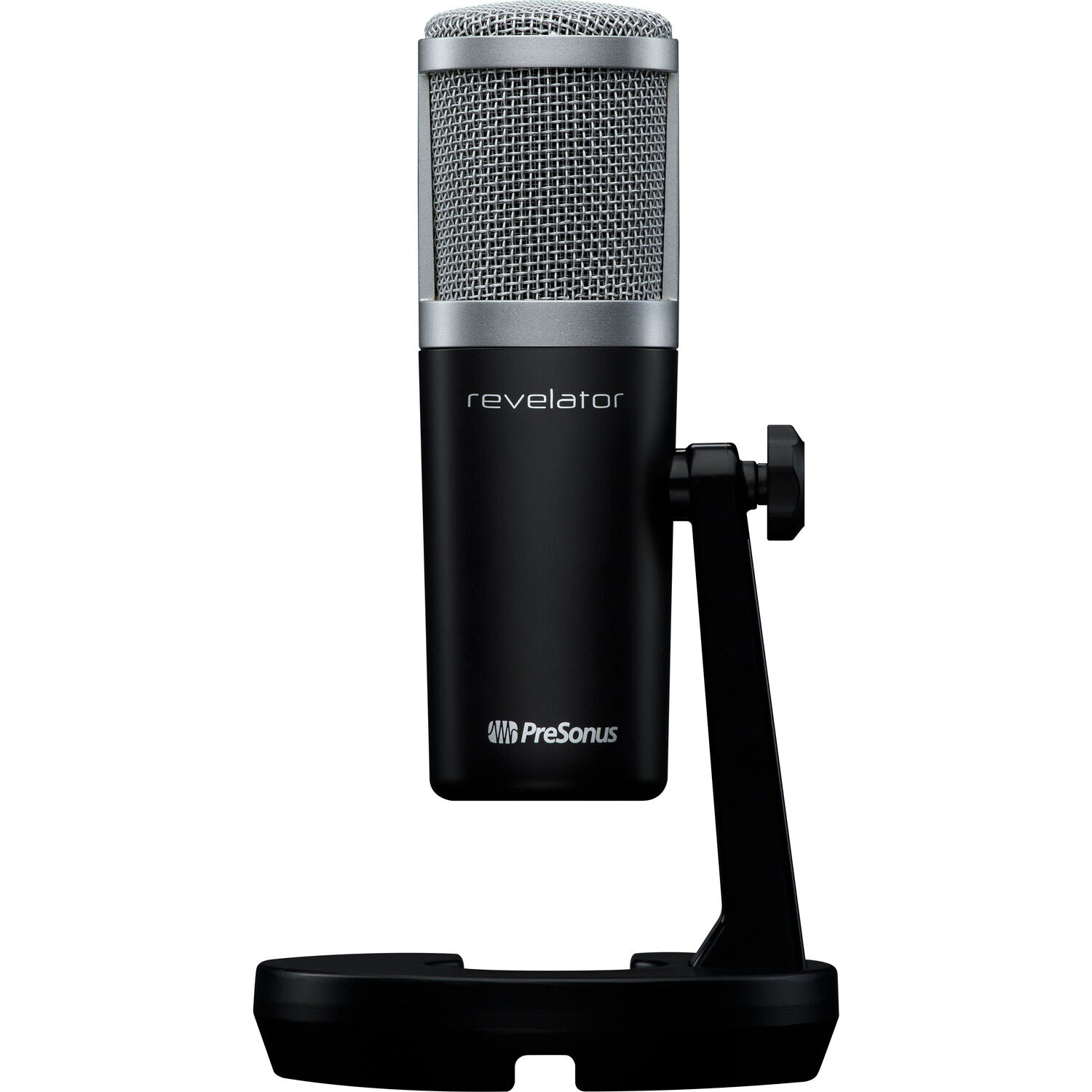

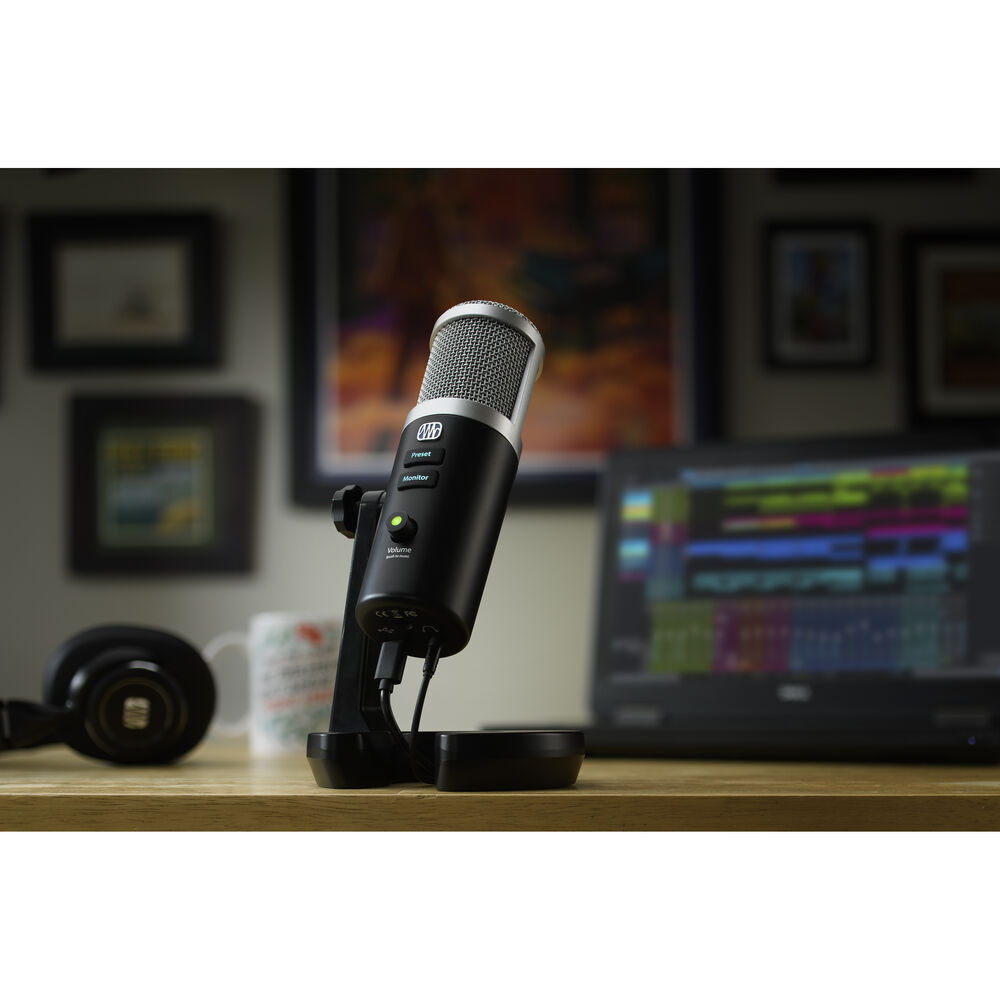

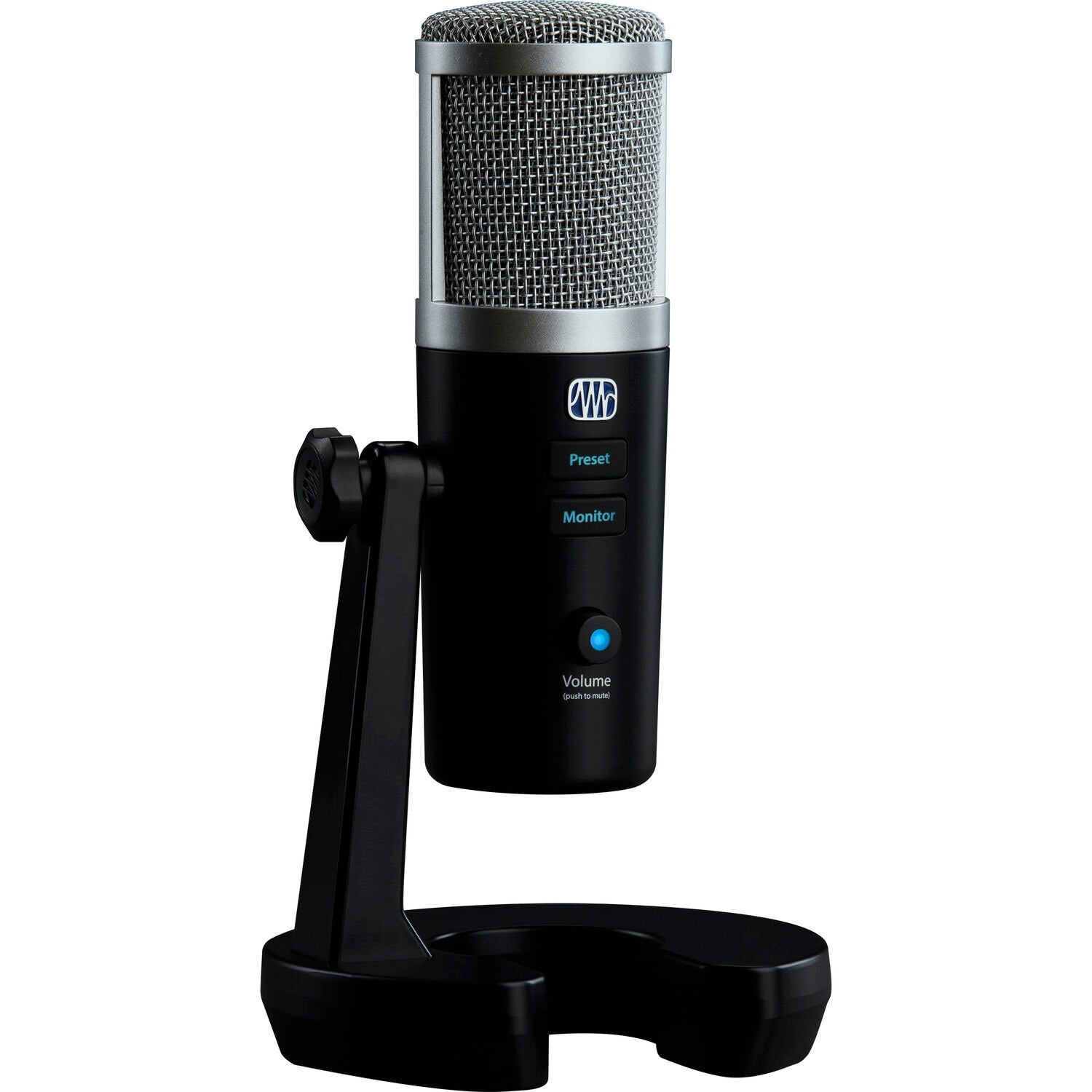

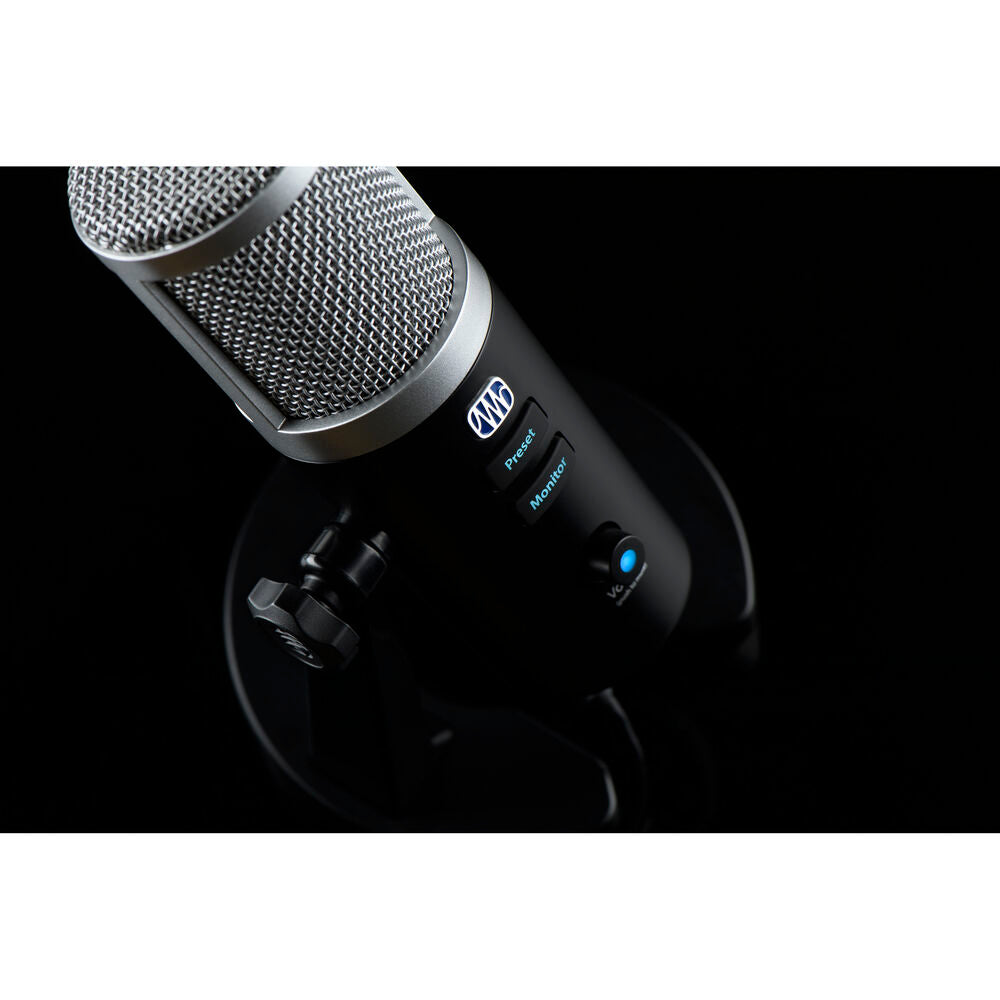

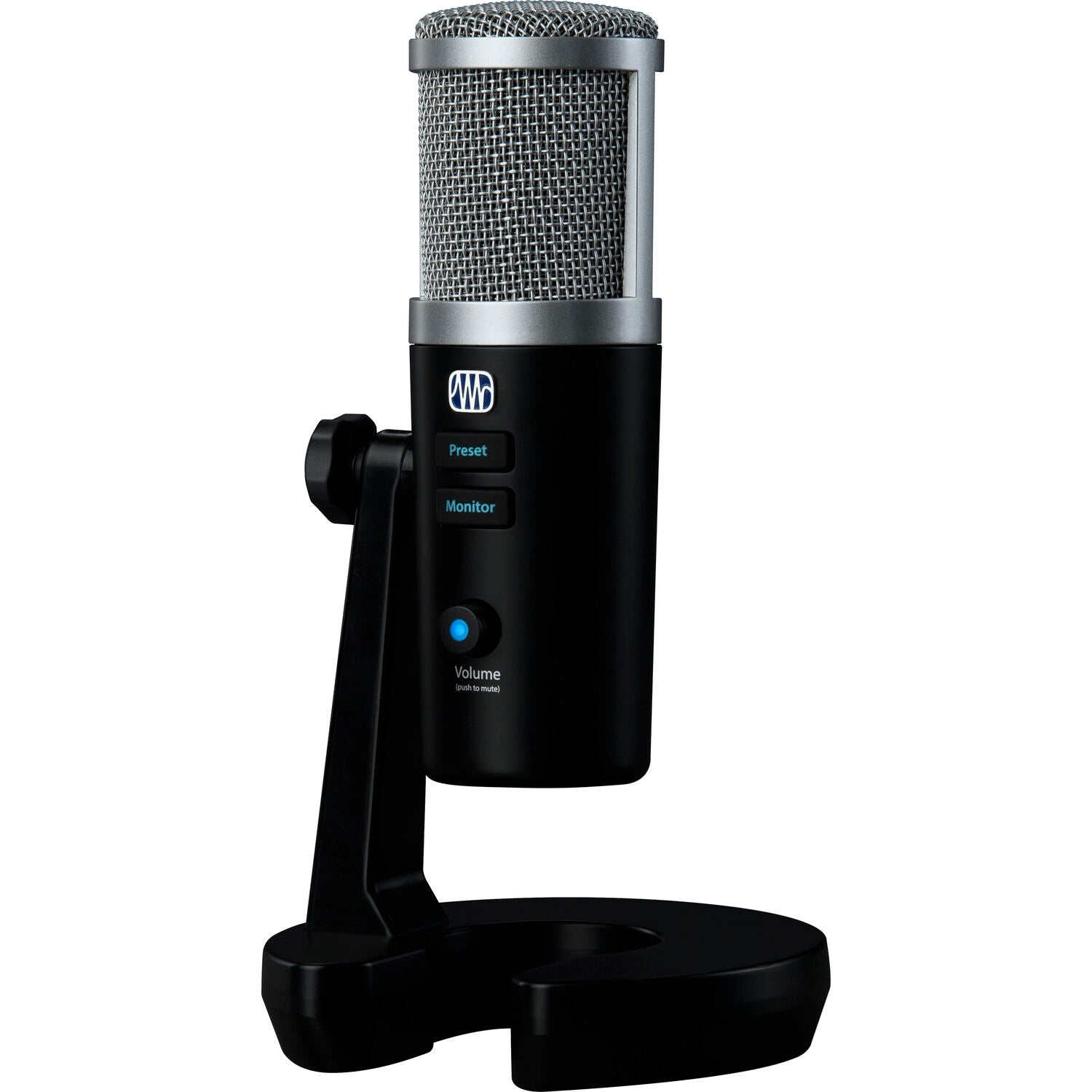

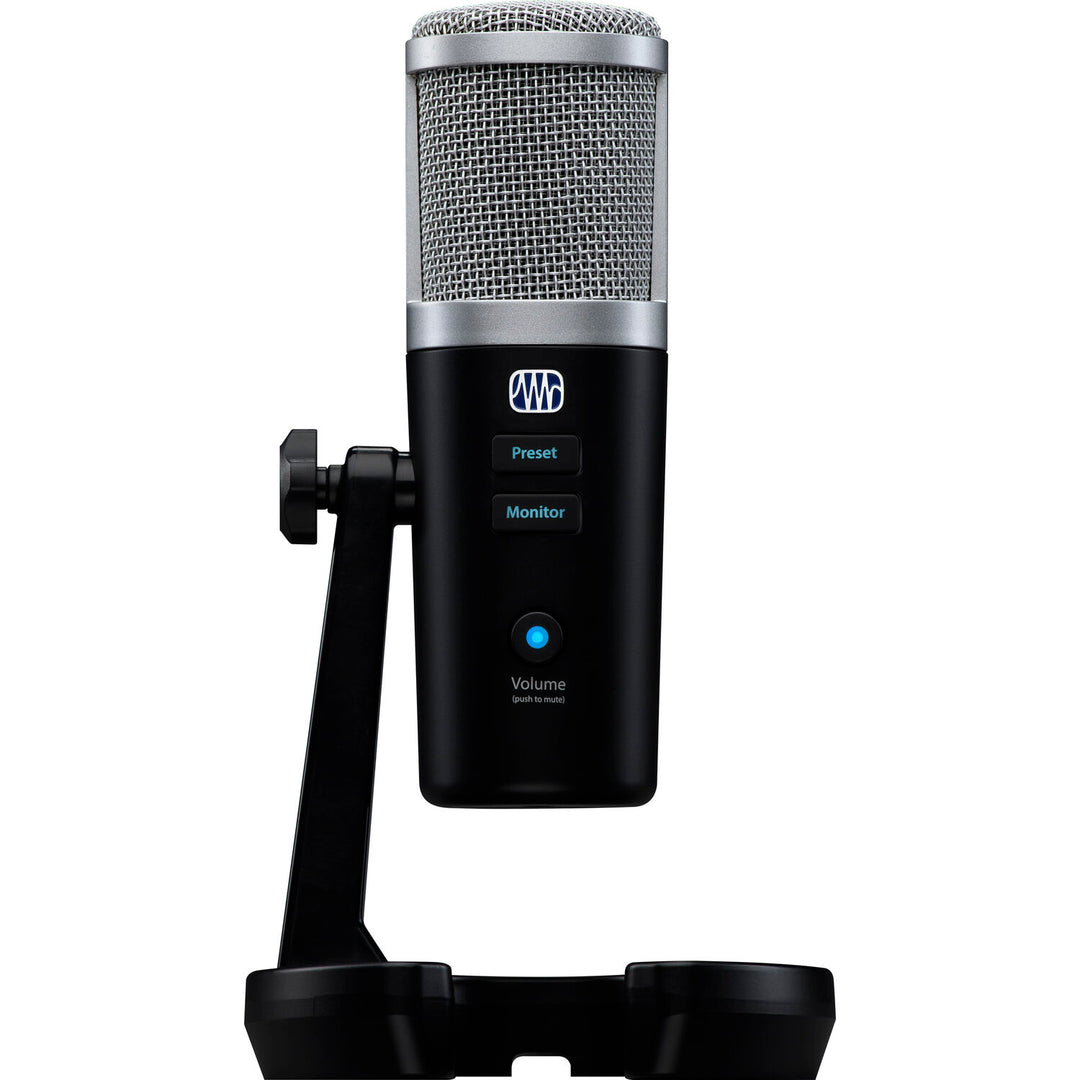

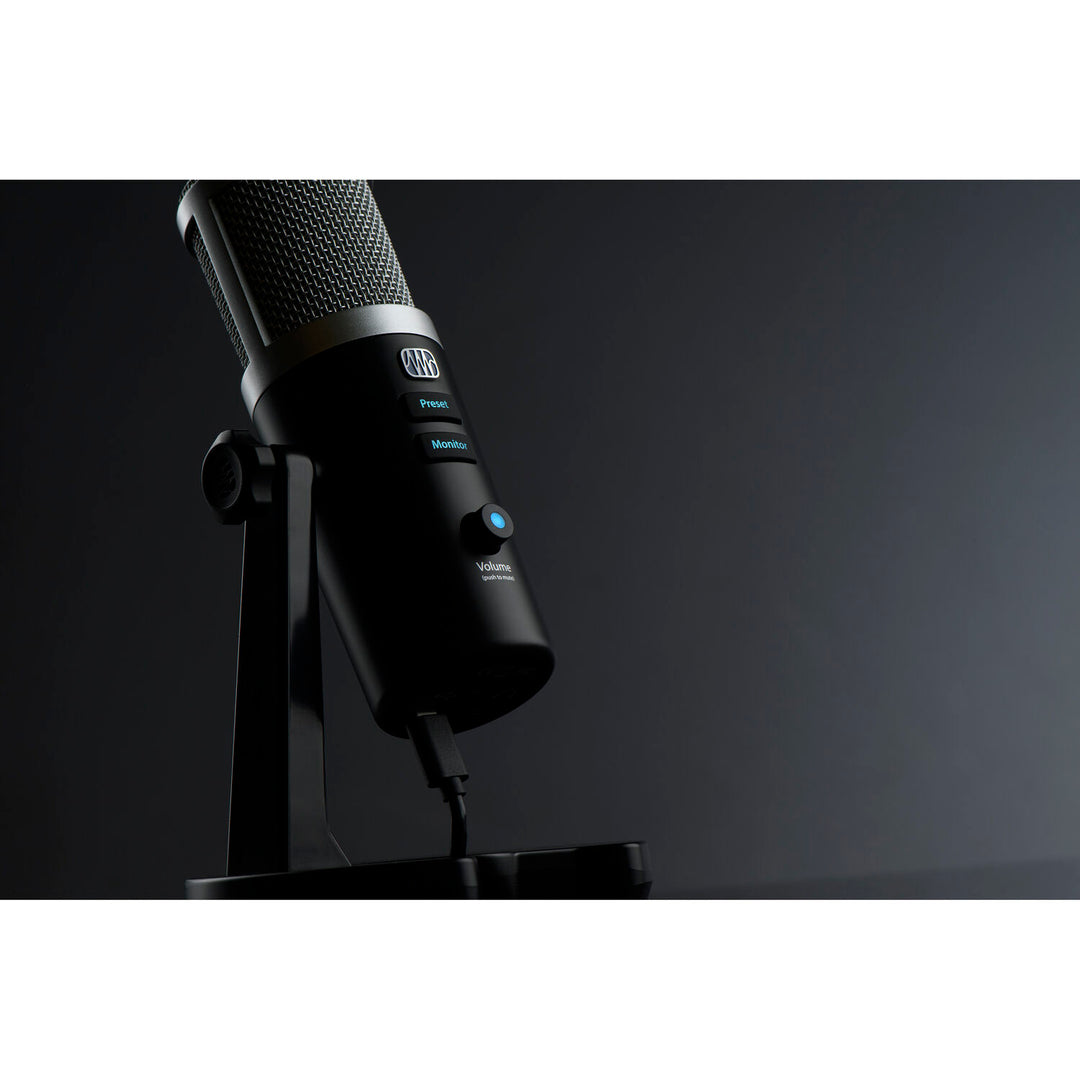

PreSonus Revelator USB Microphone for Streaming Podcasting and Gaming

The PreSonus Revelator is more than a USB microphone, it’s a virtual mixer for your software applications. Two stereo loopback streams let you record the output of Skype or Zoom calls in Studio One with ease. One analog recording stream lets you record a two-person interview in stereo. 24-bit / 96 kHz recording delivers studio-quality sound. A complete production kit, Revelator comes with PreSonus’ award-winning recording software, Studio One, and you also get the Studio Magic Software Suite, a robust collection of world-class software for use in nearly any recording software.

Features:

• Professional bus-powered USB-C compatible microphone for podcasts, streaming, vlogging, home recording, and more
• StudioLive voice effects processing onboard with 16 easy-to-use presets
• Two stereo loopback channels to record and stream Skype or Zoom calls, gaming audio, and more
• Pristine microphone with 3 polar patterns for maximum flexibility
• 96 kHz / 24-bit operation for pristine audio recording
• Includes elegant desktop stand with built-in cable management
• Includes UC Surface software mixer
• Studio One Artist and Studio Magic software bundle included

Specifications (Microphone):

• Type: Mono Condenser
• Polar Patter: Cardioid, Bi-directional (Figure 8), Omnidirectional
• Frequency Response (±3.0 dB): 20 Hz to 20 kHz
• Sensitivity: 1mV/Pa
• Max SPL: 110 dB <3% THD
• Dimensions (HxWxD): 8.875" x 5.125" x 5.125" (225 x 130 x 130 mm)
• Weight: 1.6 lbs. (0.73 kg)

Specifications (Headphone Output):

• Type: 1/8” TRS active stereo
• Power Output (RMS): 22.6 mW (16Ω)
• THD: 0.008%
• Frequency Response; 20 Hz to 20 kHz
• Impedance: 16Ω
• Dynamic Range: 77.5 dB

Specifications (Audio Interface):

• Type: USB-C™ compatible USB 2.0
• Sample Rate: 44.1, 48, 88.2, and 96 kHz (​Note: 44.1 and 48 kHz only on macOS while in Multi Mode)
• Bit Depth: 24-bit
• Power: USB Bus Power
• Hardware Controls: Direct Monitor, Mic Gain, Headphone Level, Mute, Preset Select
• Software Controls: Mic Gain, Pattern Select, Monitor Mix, Preset Management
• Onboard DSP: PreSonus Fat Channel: High Pass Filter, Noise Gate, 3 Compressor models, 3 EQ models, and Limiter / Voice Effects: Comb Filter, Delay, Doubler, Ring Modulator, Vocoder / Reverb

What’s In The Box:

• USB Revelator Microphone
• Desktop Stand
• Studio One Artist Software
• Studio Magic Software Suite & UC Surface Software Mixer

System Requirements (Windows):

• Windows® 10 (64-bit only)
• Intel i3 / AMD A10 processor or better
• 4 GB RAM (8 GB or more recommended)
• USB-C™ or USB-A 2.0 port compatibility
• 32 GB hard disk space
• PreSonus Universal Control 3.4 or higher
• Monitor with 1366x768 resolution (high-dpi monitor recommended)
• ​Multitouch-enabled monitor required for touch operation

System Requirements (Mac):

• macOS® 10.13 or higher (64-bit only)
• Intel® i3 or better
• ​4 GB RAM (8 GB or more recommended)
• USB-C™ or USB-A 2.0 port compatibility
• 32 GB hard disk space
• PreSonus Universal Control 3.4 or higher
• Monitor with 1366x768 resolution (high-dpi monitor recommended)
• ​Multitouch-enabled monitor required for touch operation
