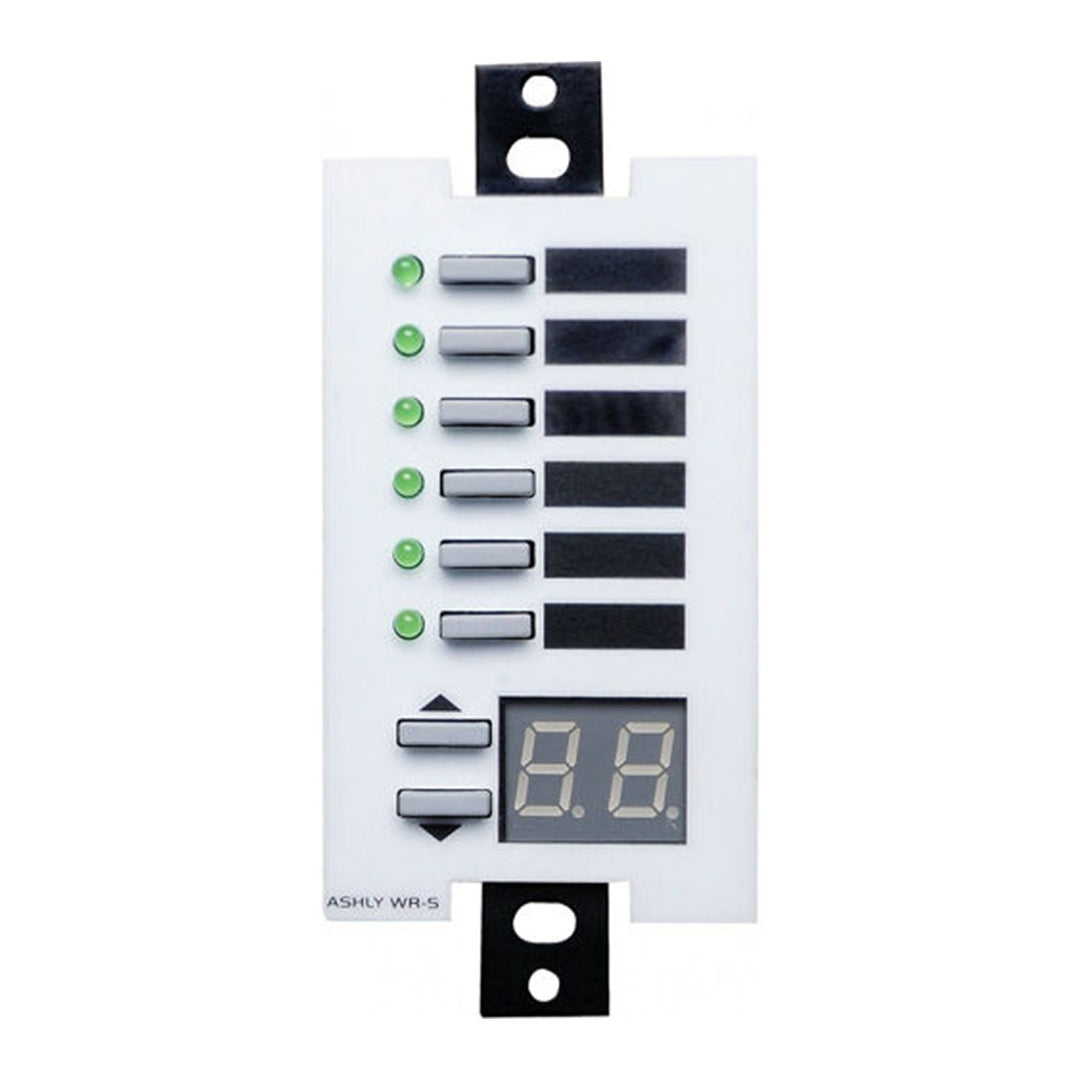

Ashly Programmable Mulit-Function wall plate remote
WR-5
Payment plans from Affirm, learn more
- Ashly
- Shipping Calculated at checkout, most in stock products ship same day
Control your system from any location with our remote controls. These devices fit in standard wall boxes and use low gauge wire for hook-up.† WR-5 is a programmable remote button controller for Ashly amps and processors that have a serial data connector. Multiple WR-5 remotes can control several channels on the same host unit. All button programming is done using Ashly Protea NE Software.
WR-5 Features:
• Six programmable function buttons w LED
• Two Up/Down buttons w LED display adjust parameters
• Preset recall and preset scroll
• Input, Output, and matrix mix gain control
• Zone source select
• Channel mute
• Logic high/low output (ne24.24M w/ GPO option, ne8800, 4800, 4400)
• Connect directly to host unit, no network required
• Up to four WR-5 remotes per host unit
• RPS-18 Inline Power Booster available when more than four WR-5 remotes used
• Window for user-defined labels
• Shipping weight: 1lbs (1kg)
• Safety/compliance: CE, FCC, RoHS
Compatible Ashly Products include:
• nXe*, nXp amplifiers
• Pema amplifiers
• NE multi-channel amplifiers*
• NE two-channel amplifiers*
• ne24.24M matrix processor
• NE8800/4800/4400 network processors
