Overview of Quest PR-130A 130W Commercial Mixer Amplifier 4Ω or 70V/100V6
Quest PR-130A 130W Commercial Mixer Amplifier 4Ω or 70V/100V6
Commercial Mixer-Amplifier
All-in-one mixer amplifiers for use in all types of commercial applications; restaurants, schools,
courtrooms, health clubs, retail stores, coffee shops, medical/dental offices, warehouses, and more.
The Quest PR-130A 130W Commercial Mixer Amplifier is a versatile audio device designed for professional applications such as commercial venues, public spaces, and large-scale events. It combines the functionality of a mixer and an amplifier, providing a comprehensive solution for audio distribution and control.
With a power output of 130W, this amplifier delivers robust and clear sound reproduction, ensuring that your audio is heard with excellent fidelity and sufficient volume. It is compatible with both 4Ω speakers and 70V/100V speaker systems, offering flexibility in connecting various types of speakers based on your specific requirements.
The mixer section of the PR-130A allows you to connect multiple audio sources such as microphones, instruments, media players, and more. It features multiple input channels, each with individual volume control, allowing you to mix different audio signals and adjust their levels to achieve the desired sound balance. Additionally, the mixer offers tone control options, including bass and treble adjustments, enabling you to fine-tune the audio output according to your preferences.
The PR-130A includes built-in protection mechanisms to safeguard your speakers and the amplifier itself. These protective features help prevent damage from overloading, short circuits, and excessive heat, ensuring the longevity and reliability of the device.

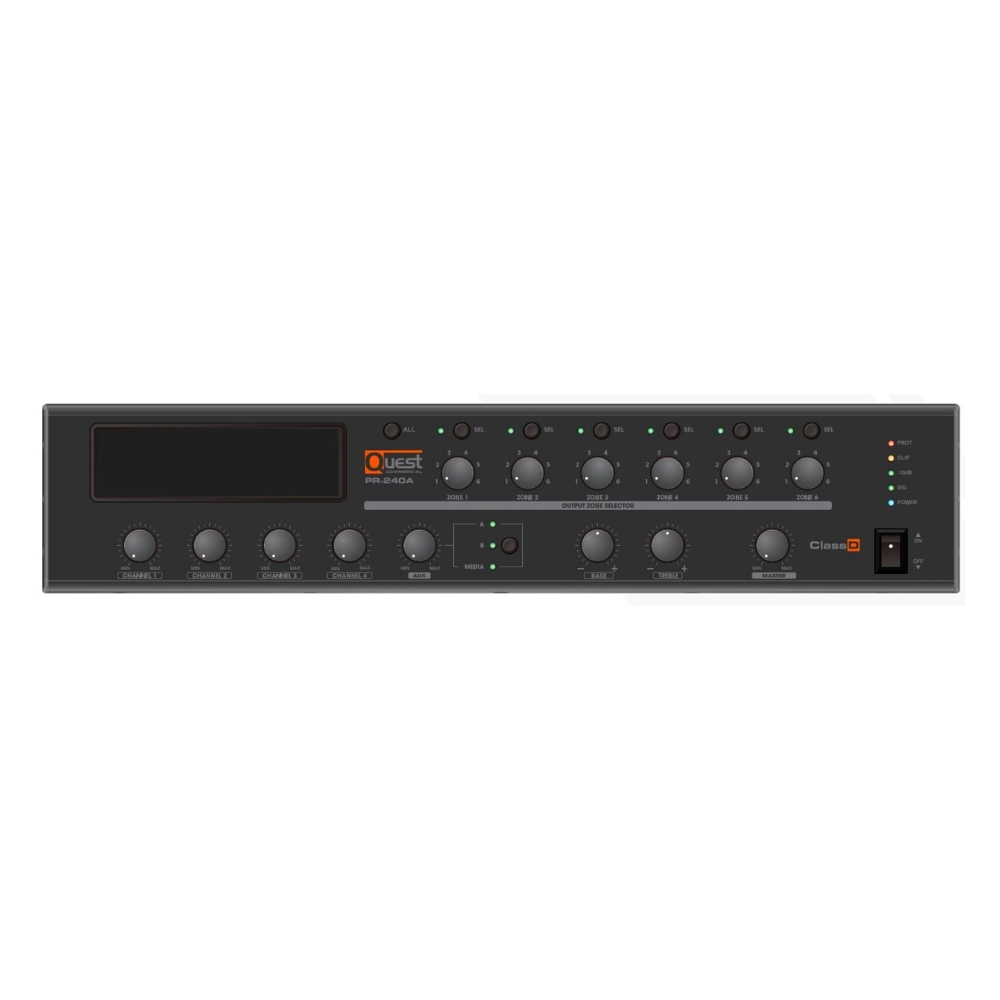

The front panel of the mixer amplifier provides convenient control and monitoring options. It includes clear and intuitive controls for adjusting volume, tone, and input levels, as well as LED indicators for power status and signal presence. The unit is rack-mountable, making it easy to integrate into existing audio setups or installations.
Whether you're setting up a sound system for a conference room, restaurant, retail store, or any other commercial space, the Quest PR-130A 130W Commercial Mixer Amplifier offers a powerful and flexible solution for your audio needs. Its robust construction, versatile features, and high-quality sound output make it an ideal choice for professional audio installations.
KEY SPECIFICATIONS
• 70V/100V/4Ω, 130 or 240 Watts
• 2U Rack-mountable (rack ears included)
• CH 1-4 Balanced Mic/Line inputs on Phoenix Terminals with selectable Phantom Power
• 2 AUX Inputs on RCA connectors.
• (1) TELE-PAGING input, and (1) MOH/LINE OUT on 3-prong Phoenix terminals with level controls.
• 6-zones with individual level control.
• Optional RM6 - 6-zone paging microphone station
• Power, Signal, -20dB, Clip and Protect
Indicators
• Output Current Limiting, Thermal Protection &
DC Offset protection
Commercial audio solutions for every application
●6 Inputs (4 mic/line assignable, and 2 line only)
● 6 output Zones with 6-step level control per zone
● Paging per zone or ALL zones
● Built-in Message Recorder/Player
● Bass & Treble adjustment
● Telephone Paging Input
● Music-on-hold output
● Priority/Ducking for Input 1-4
● LINK out and REC Out for integration and expansion
● Includes rack ears
Specifications
130W
Total Rated Power Output 240W
Speaker Output 4Ω/70V/100V
Input Connectors CH1-4 : Mic/Line on balanced 3-Conductor Phoenix Connector with Phantom Power
AUX : 2 Line input on stereo RCA
Speaker Output Connectors 6 Zone outputs for Hi-z (70/100V) only, or single output for 4Ω/70V/100V
Frequency Response 80Hz - 18kHz (±3dB)
Tone Control 100Hz - 10KHz ±12dB ±3dB
S/N Ratio < 90 dB
T.H.D (1 kHz) < 0.5 %
Crosstalk at all control maximum -70dB at 1kHz
Phantom Power +48 VDC
Protection Over current / Over temperature / Under voltage / DC fault
Power Supply 120V AC, 50-60Hz
Carton Dimensions 20.7" x 16.5" x 7.6" (525 x 420 x 193mm)
Weight (Net) 22.05 lbs. (10 kg)
UPC Code 694970007079
