Quest PR-240BT 240W Commercial Mixer Amplifier 4Ω or 70V/100V with Built-in Bluetooth, FM Tuner and Media Player

Quest PR-240BT 240W Commercial Mixer Amplifier 4Ω or 70V/100V with Built-in Bluetooth, FM Tuner and Media Player

Commercial Mixer-Amplifier
All-in-one mixer amplifiers for use in all types of commercial applications; restaurants, schools,
courtrooms, health clubs, retail stores, coffee shops, medical/dental offices, warehouses, and more.

The Quest PR-240BT 240W Commercial Mixer Amplifier is a high-performance audio device designed for commercial applications that demand exceptional sound quality, versatility, and convenience. This mixer amplifier combines the functionality of a mixer and an amplifier, providing a comprehensive audio solution for various settings such as restaurants, retail spaces, conference rooms, and more.

With a power output of 240W, the PR-240BT delivers powerful and clear sound reproduction, ensuring that your audio is heard with outstanding fidelity and ample volume. It supports both 4Ω speakers and 70V/100V speaker systems, allowing you to connect a wide range of speakers based on your specific requirements.

One of the standout features of the PR-240BT is its built-in Bluetooth capability. This allows for wireless audio streaming from compatible devices such as smartphones, tablets, and laptops. With Bluetooth connectivity, you can easily play music or other audio content without the need for additional cables or adapters, providing seamless convenience and flexibility in your audio setup.

Additionally, this mixer amplifier includes a built-in FM tuner and a media player. The FM tuner allows you to tune in to your favorite radio stations, while the media player lets you play audio files from USB drives or SD cards. These features provide additional options for audio playback, making it effortless to provide background music or make announcements during your commercial activities.

The mixer section of the PR-240BT enables you to connect various audio sources, including microphones, instruments, media players, and more. It features multiple input channels with individual volume control, allowing you to mix different audio signals and adjust their levels to achieve the desired sound balance. The mixer also offers tone control options, including bass and treble adjustments, allowing you to tailor the audio output to your preferences.

The PR-240BT incorporates built-in protection mechanisms to ensure the safety of your speakers and the amplifier itself. These protective features guard against issues such as overloading, short circuits, and excessive heat, ensuring the longevity and reliability of the device.

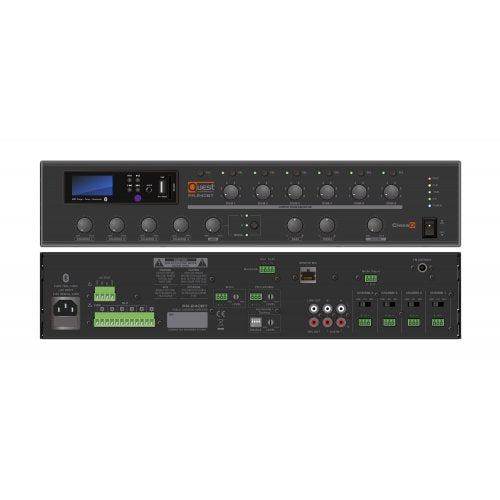

The front panel of the mixer amplifier features intuitive controls for adjusting volume, tone, and input levels. It also includes an LCD display for easy navigation of the media player and FM tuner functions. The unit is rack-mountable, making it convenient to integrate into existing audio setups or installations.

The Quest PR-240BT 240W Commercial Mixer Amplifier with Built-in Bluetooth, FM Tuner, and Media Player offers a comprehensive audio solution with exceptional features and convenience. Its sturdy construction, versatile functionality, and high-quality sound output make it an ideal choice for commercial audio installations that require wireless audio streaming, radio functionality, media playback capabilities, and superior sound performance.

KEY SPECIFICATIONS
• 70V/100V/4Ω, 130 or 240 Watts
• 2U Rack-mountable (rack ears included)
• CH 1-4 Balanced Mic/Line inputs on Phoenix Terminals with selectable Phantom Power
• 2 AUX Inputs on RCA connectors.
• (1) TELE-PAGING input, and (1) MOH/LINE OUT on 3-prongs Phoenix terminals with level controls.
• 6-zones with individual level control.
• Built-in media player with Bluetooth, USB/SD, MP3 player, FM & Recording
• Optional RM6 - 6-zones paging microphone station
• Power, Signal, -20dB, Clip and Protect Indicators
• Output Current Limiting, Thermal Protection & DC Offset protection

Specifications
PR-240BT
Total Rated Power Output 240W
Speaker Output 4Ω/70V/100V
Input Connectors CH1-4 : Mic/Line on balanced 3-Conductor Phoenix Connector with Phantom Power
AUX : 2 Line input on stereo RCA
Speaker Output Connectors 6 Zone outputs for Hi-z (70/100V) only, or single output for 4Ω/70V/100V
Frequency Response 80Hz - 18kHz (±3dB)
Tone Control 100Hz - 10KHz ±12dB ±3dB
S/N Ratio < 90 dB
T.H.D (1 kHz) < 0.5 %
Crosstalk at all control maximum -70dB at 1kHz
Phantom Power +48 VDC
Protection Over current / Over temperature / Under voltage / DC fault
Power Supply 120V AC, 50-60Hz
Carton Dimensions 20.7" x 16.5" x 7.6" (525 x 420 x 193mm)
Weight (Net) 24.25 lbs. (11 kg)
UPC Code 694970007109

● 6 Inputs (4 mic/line asignable, and 2 line only)

● 6 output Zones with 6-step level control per zone

● Paging per zone or ALL zones

● Built-in Message Recorder/Player

● Bass & Treble adjustment

● Telephone Paging Input

● Music-on-hold output

● Priority/Ducking for Input 1-4

● LINK out and REC Out for integration and expansion

● Includes rack ears
