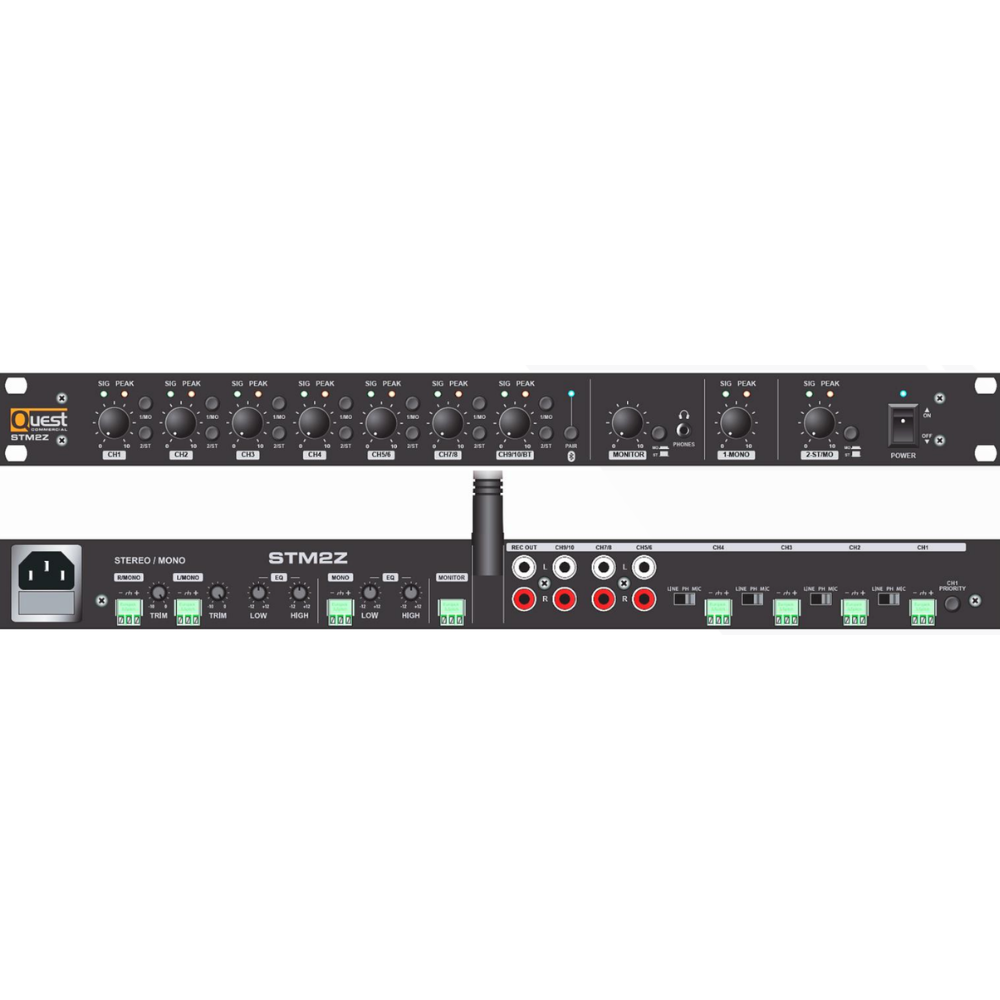

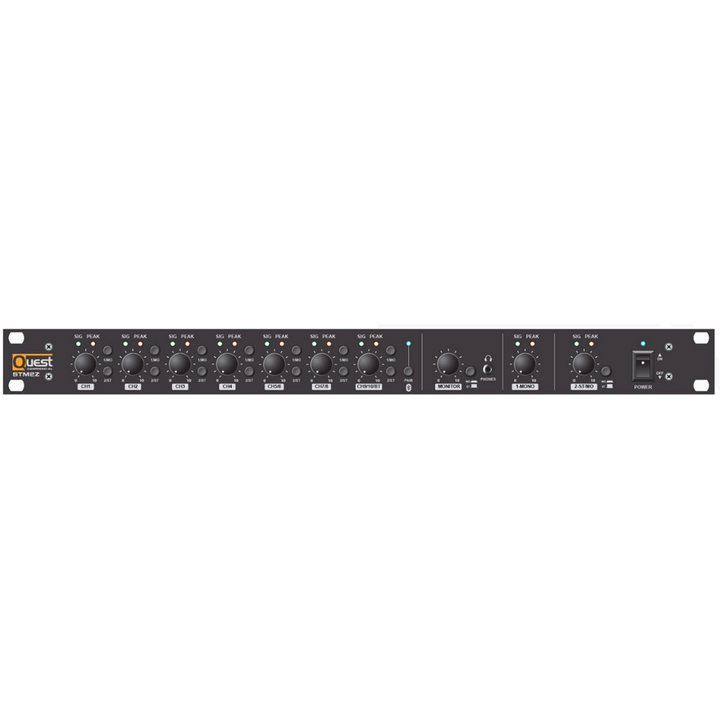

Quest STM2Z+ Rackmount 2-Zone Strip Mixer w/ Bluetooth

STM2Z
Rackmount 2-Zone Strip Mixer with Bluetooth
The STM2Z is a 2-zone Bluetooth-enabled installation mixer that can be configured in Stereo with discrete Mono outputs. Some typical applications for the STM2Z would include boardrooms, restaurants, schools, courtrooms, health clubs, retail stores, coffee shops, medical/dental offices, warehouses, and more.

• Designed for the most common commercial installation requirements.
• Ideal for background music, microphones, and paging with the ability to connect up to 10 external sources.

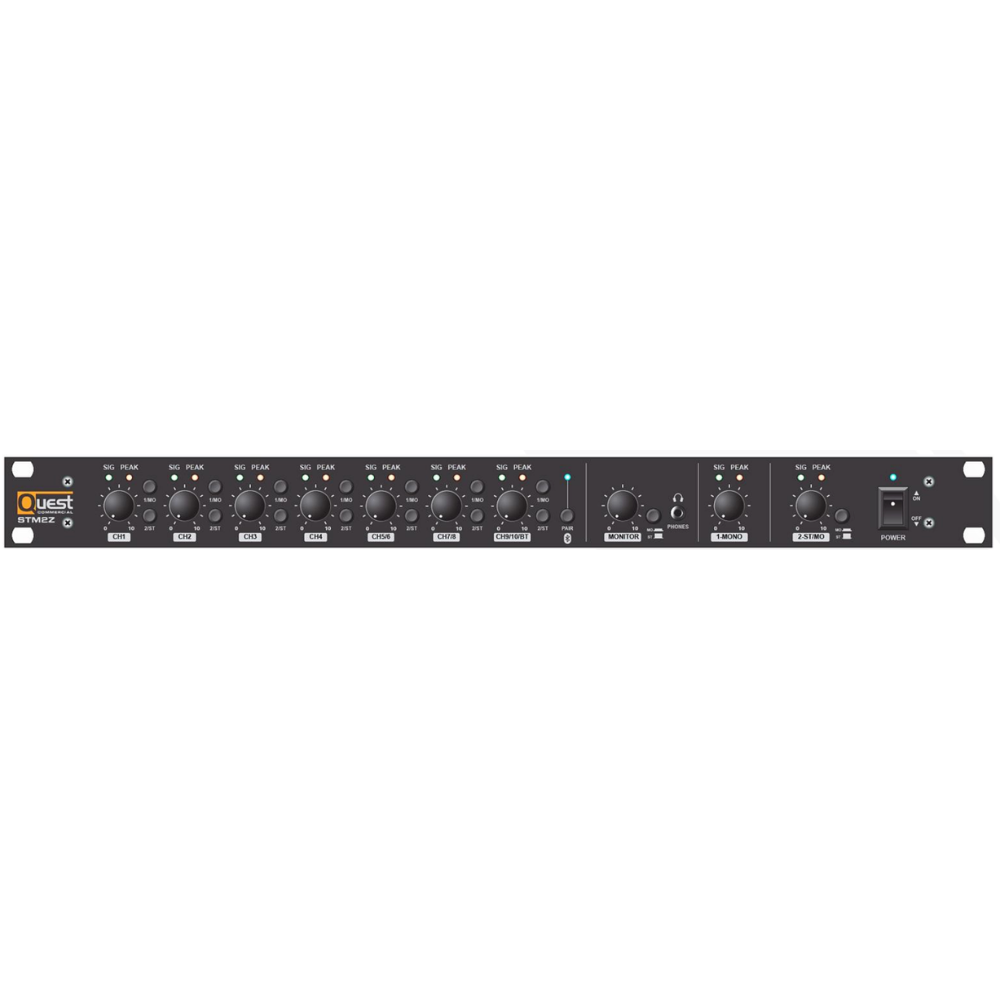

• Front panel controls to easily manage source and master volumes for both the stereo and mono outputs.

KEY SPECIFICATIONS
• 4 balanced mic/line each with switchable phantom power
• Paging Priority on channel 1.
• 3 Stereo line inputs including Bluetooth

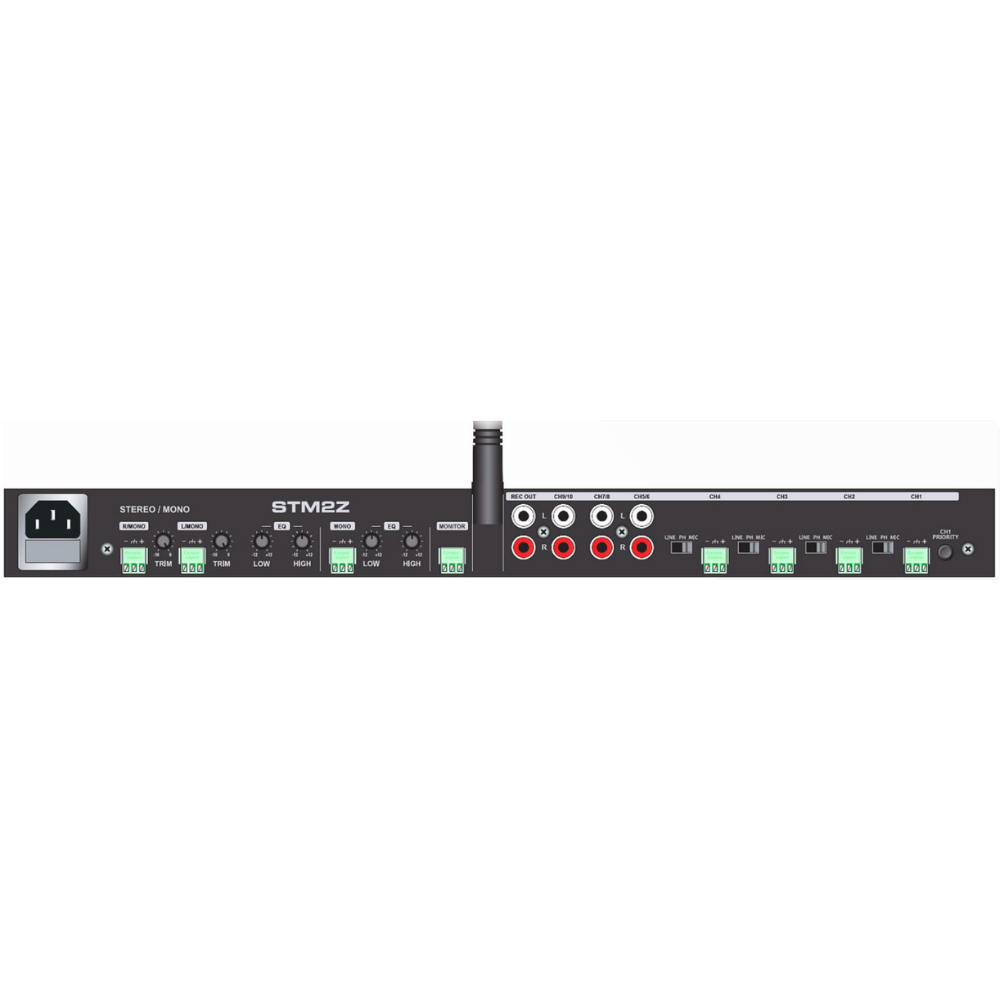

• Stereo and Mono outputs with independent rear panel EQ controls
• Dedicated Monitor control with balanced out and Record Out
• Stereo outputs with additional Trim control for a total of 3 discrete Mono zones
• Euro/Phoenix connectors for quick trouble-free hookup
• 1U, rack-mounted, universal PSU w/removable IEC cord

Specifications

• Inputs
  • Mic 1~4
    • Type: Balanced
    • Connector: 3-pin terminal block
    • Sensitivity: -56dB
    • Other
      • Phantom power (15Vdc)
      • Priority on Mic1
  • Line 1~4
    • Type: Balanced
    • Connector: 3-pin terminal block
    • Sensitivity: -18dB
    • Other: Priority on Line 1
  • CH5/6 ~ CH9/10
    • Type Unbalanced stereo
    • Connector Female RCA
    • Sensitivity -22dB
• Outputs
  • Stereo
    • Type: Balanced
    • Connector: 3-pin terminal block
    • Other: 2 band EQ
  • Mono
    • Type: Balanced
    • Connector: 3-pin terminal block
    • Other: 2 band EQ
  • Monitor
    • Type: Balanced
    • Connector: 3-pin terminal block
  • Rec
    • Type Unbalanced
    • Connector: Female RCA
• Frequency response: 20Hz~20KHz
• Signal to Noise ratio: >90dB
• Total Harmonic Distortion + Noise: <0.05%
• Cross talk: >70dB
• Indicators
  • ​Power
  • Input Signal, PEAK
  • Output Signal, PEAK
• Power supply type: Switching mode, 100VAC ~ 240VAC
• Power consumption: 12 W
• Dimensions: 1RU - 19” x 1.75” x 5.5” (483 x 44 x 139 mm)
• Weight: 5.73 lb. (2.6 kg)
