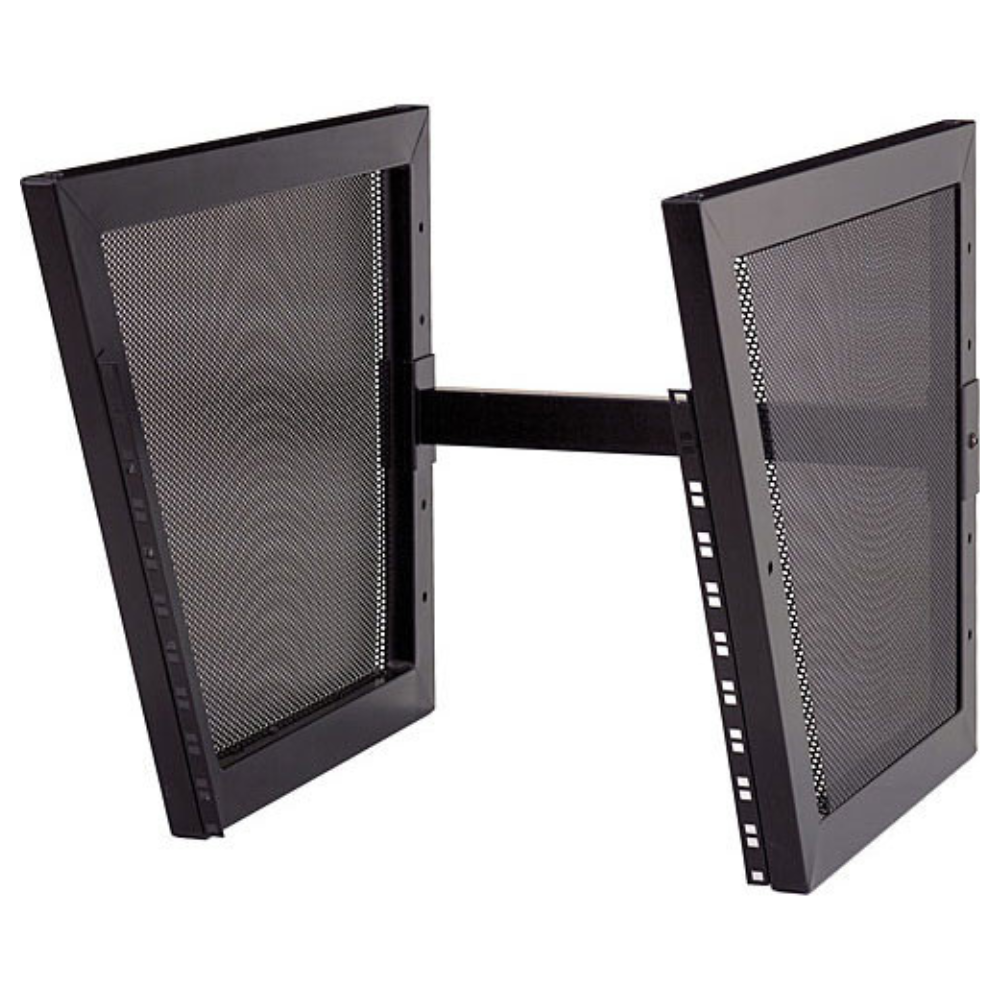

Overview of Quiklok RS-512-AM 10-Space Slant Rack Top Unit
The RS-512 AM Slanted Add-On Rack Stand (American 10-32 Hardware) from Quik Lok is a rack stand designed to sit atop another Quik Lok rack stand as a combination solution. The front face of the rack is angled to provide an ergonomic view and easier access to the front panels of your equipment. The rack face slants inward from top to bottom, making it ideal for looking upward at the front panels of your rack equipment.
This rack features 10U of rack space and a weight capacity of 200 lbs. It is an American-style model and includes 10-32 rack rails. The stand is compatible with the following Quik Lok rack base units:
-RS-507
-RS-510
-RS-513
-RS-514
Slanted RackThe rack's slanted face makes it easier to view and access the front panels of your equipment.U.S. StandardsThis model features 10-32 rack rails.CompatibilityThis stand is compatible with the following Quik Lok rack base units: RS-507, RS-510, RS-513, and RS-514.
SPECS
Construction Steel
Finish Black
Shelf None
Cabinet 10U
Mobility None
Dimensions 24.6 x 21.3 x 19.7 (bottom dimensions)
24.6 x 21.3 x 29.5 (top dimensions)
Load Capacity 200 lbs (90.5kg)
Weight Not specified by manufacturer
Music City Canada is an authorized reseller for Quiklok products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
