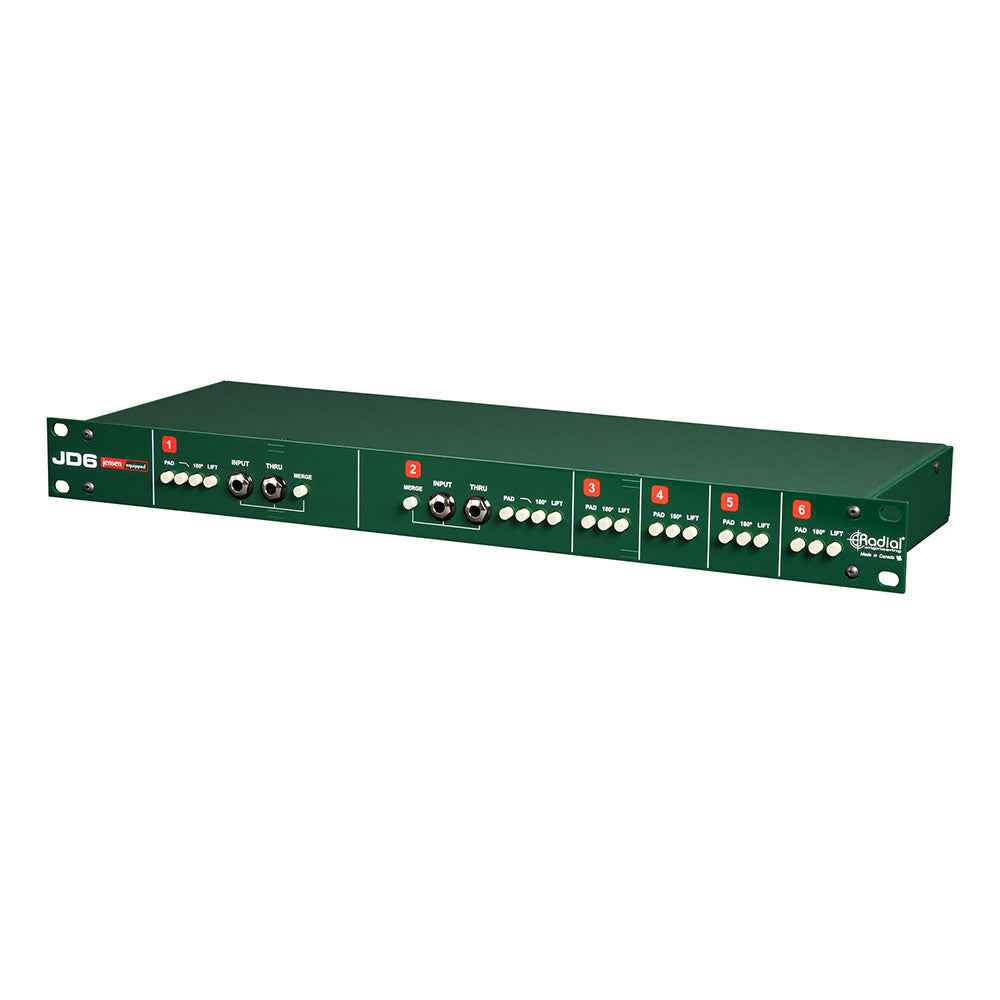

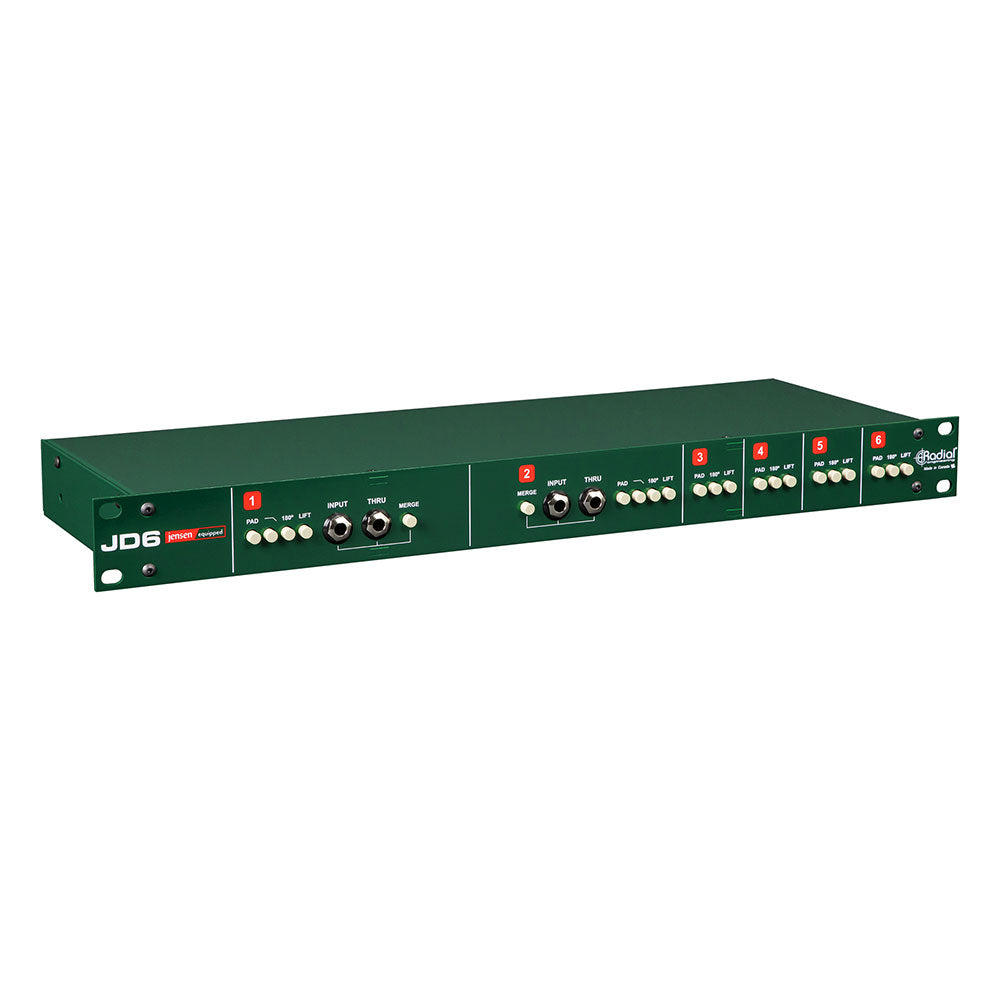

Radial JD 6 - Six-Channel Passive Direct Box with Jensen Transformers in Rackmount Chassis

The JD6 is essentially equivalent to six passive direct boxes in one. The rugged, rack-mounted unit can hold its own in studio or live situations, with a variety of connectivity options to suit your specific needs. All six channels are equipped with Jensen transformers for exceptional signal transfer, and its ability to handle high-input devices makes it as useful for synths and keyboards as with stringed instruments.

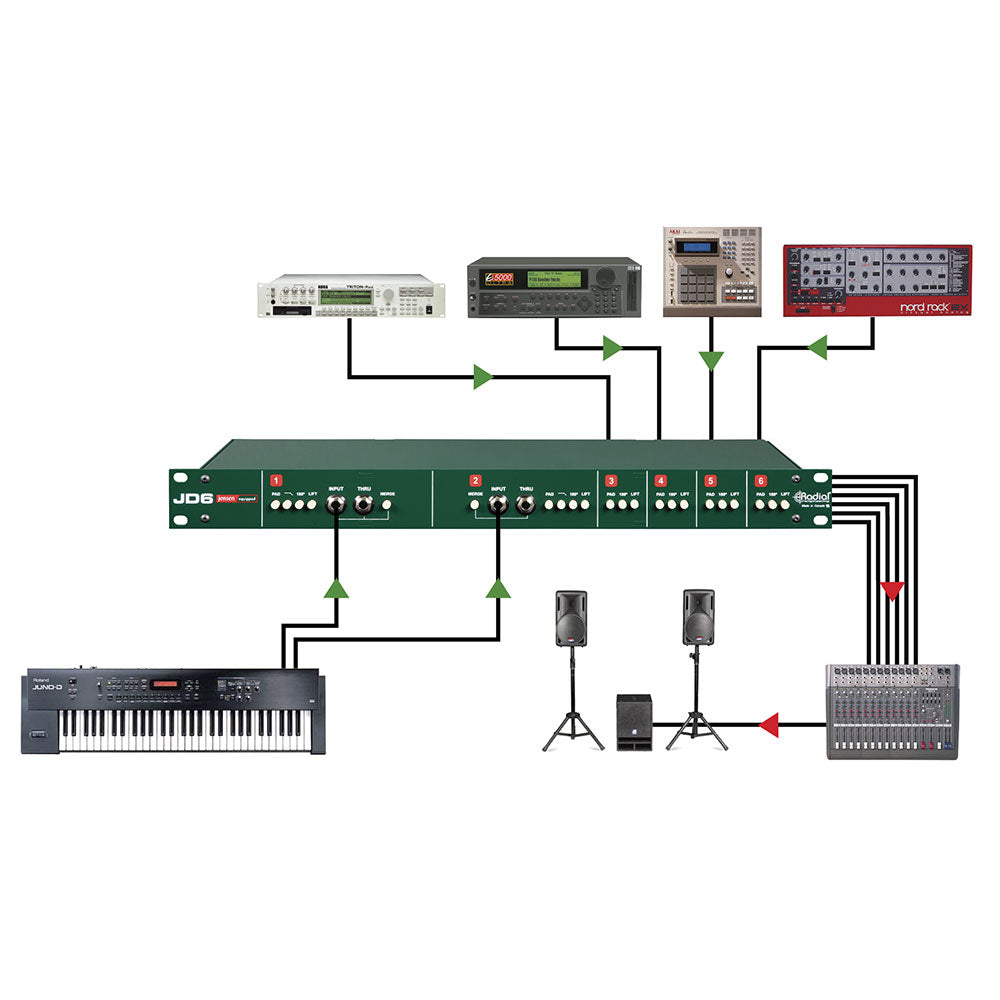

The JD6 on Stage

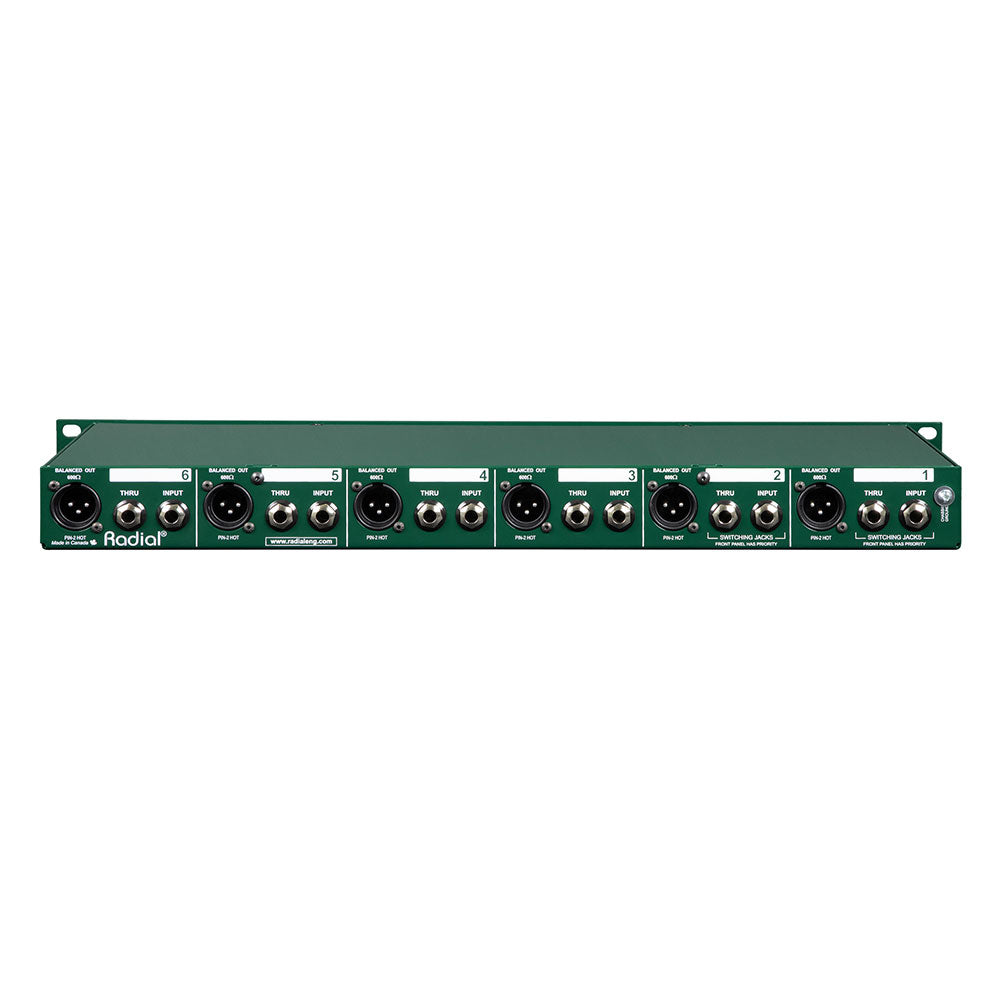

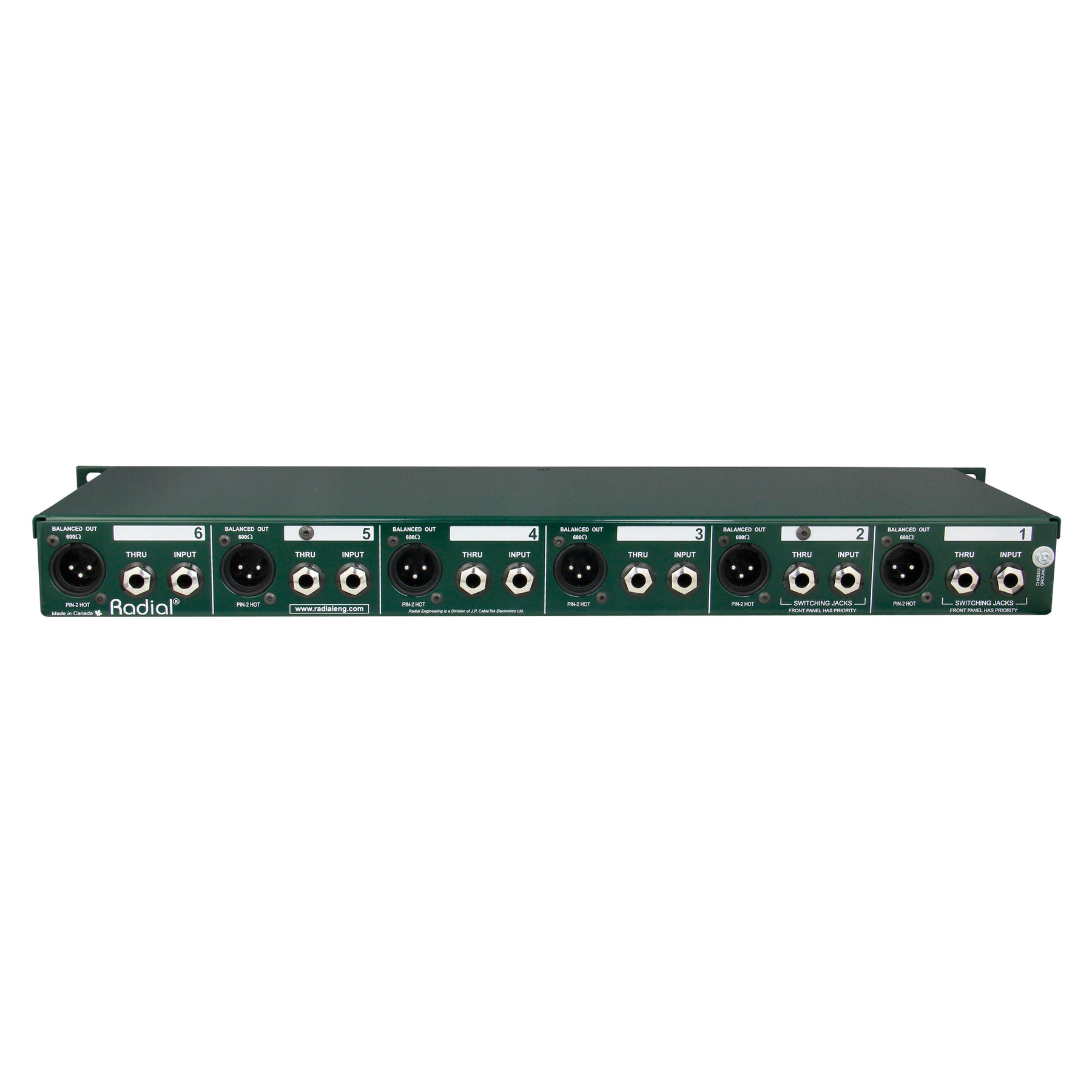

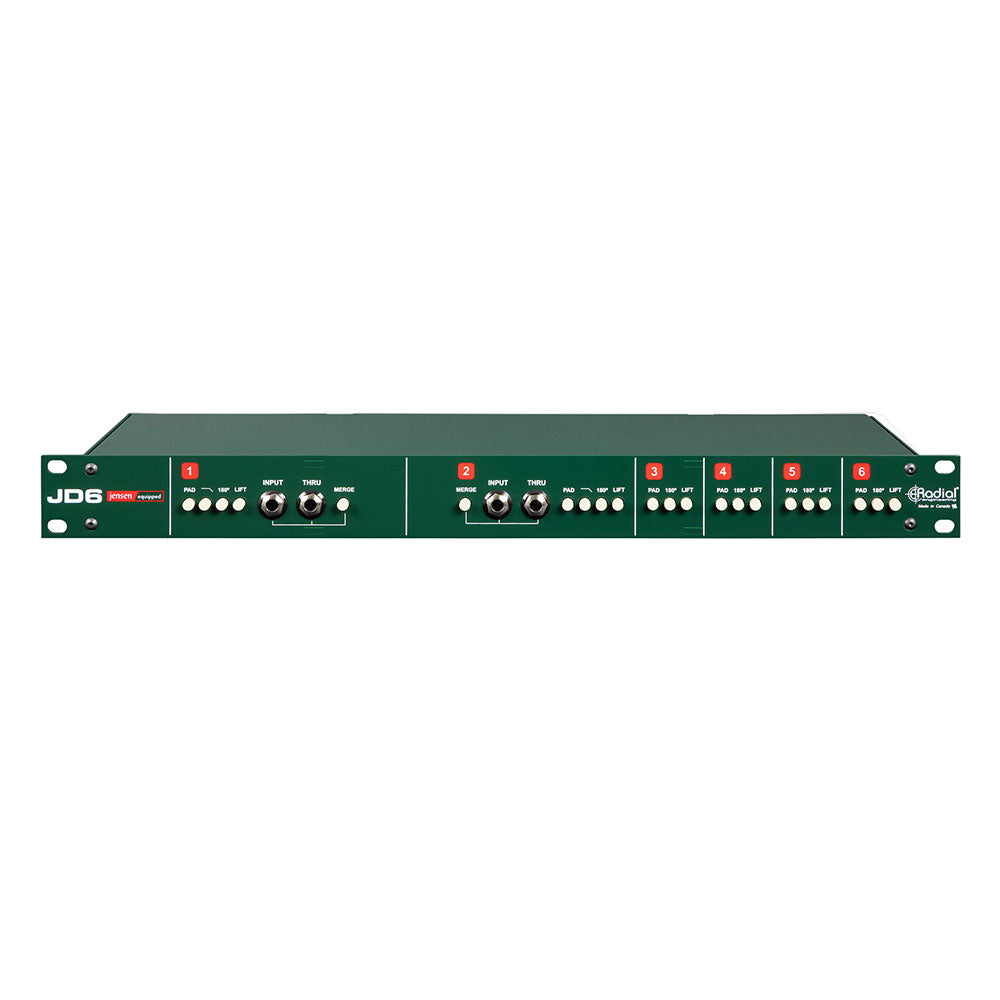

Use channels 1 and 2 to patch in a stereo master keyboard via the front panel and connect your rackmount synths and modules using the rear panel connectors.

Using the JD6 in the Studio
The JD6 is great to patch in all kinds of instruments… not just keys! It features the same fabulous audio signal path as the world renowned Radial JDI, only six times better!

Specifications
Audio circuit type: Passive, transformer based
Transformer: Jensen JT-DBE, 12:1 ratio
Number of channels: 6
Frequency response: 20Hz ~ 20KHz (± 0.2dB)
Dynamic range: 135dB
Total harmonic distortion: 0.05% from 20Hz ~ 20kHz @-10dB
Phase Deviation: 0.3° @ 100Hz; 3° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +21dB @ 20Hz

Features
Input pad, Mono Sum, 180° polarity reverse, Ground lift, LPF
Input Connectors: 1/4"
Output Connectors: 1/4", XLR
GeneralConstruction: 14-gauge steel chassis & outer shell
Size (L x W x D): 19" x 6.25" x 1.75" (48.3cm x 15.875cm x 4.45cm)
Weight: 3.6 kg (8 lbs)
Shipping size (L x W x D): 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm)
Shipping weight: 3.7 kg (8.15 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
