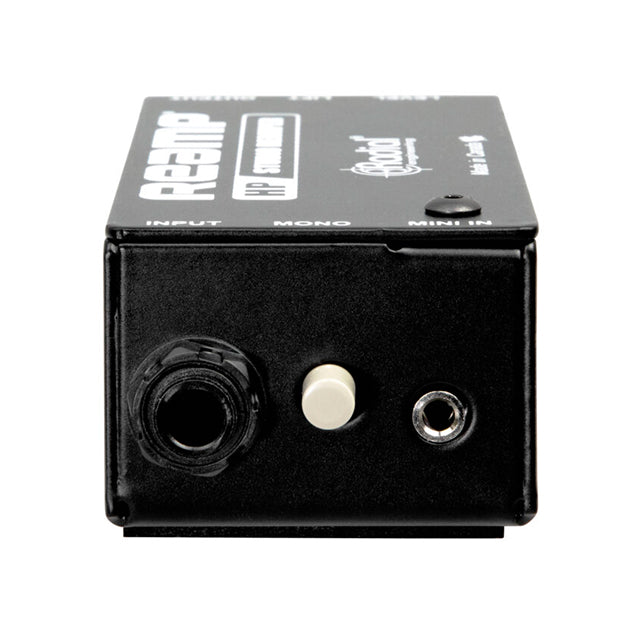

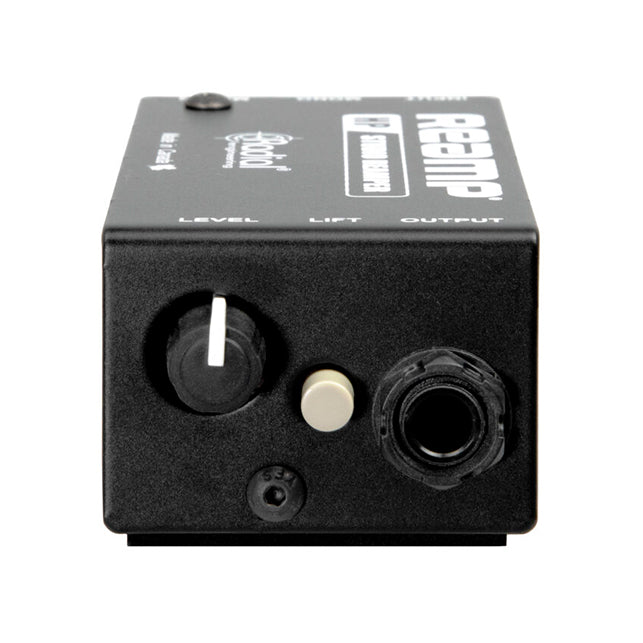

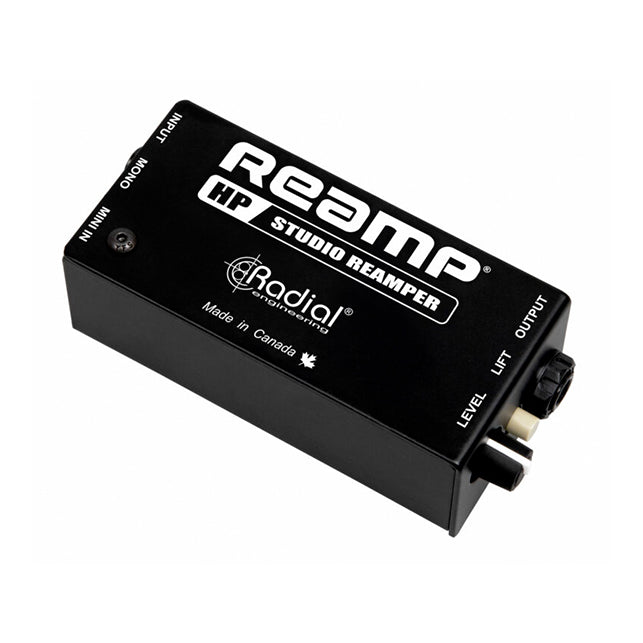

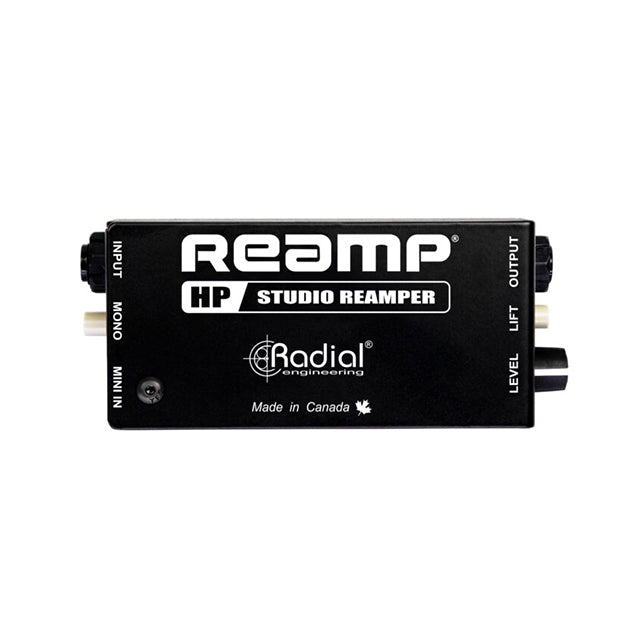

Overview of Radial Reamp HP Reamper for computer/interface headphone outputs
The Reamp HP takes the signal from a headphone output jack on an audio interface or a mobile device and converts it to feed mono guitar amps and effects pedals for Reamping.
Specifications
Audio circuit type: Passive, transformer isolated
Frequency response: 20Hz ~ 20KHz (+/- 0.5dB)
Dynamic range: >96dB
Total harmonic distortion: 0.0015% @1kHz
Input Impedance: 11.8kΩ
Output Impedance: 1.5kΩ
Equivalent Input Noise: -105dBu
Noise: -125dBu
Maximum Input: >+20dBu
Features
Mono Sum, Ground lift, Level Control
Input Connectors: ¼" TRS unbalanced stereo, 3.5mm TRS unbalanced stereo
Output Connectors: ¼" TS
General
Construction: 16 gauge steel chassis and outer shellSize (L x W x D): 4.6" x 1.50" x 1.89" (117mm x 48mm x 38mm)
Weight: 0.58 lbs (256g)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
Music City Canada is an authorized reseller for Radial products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
