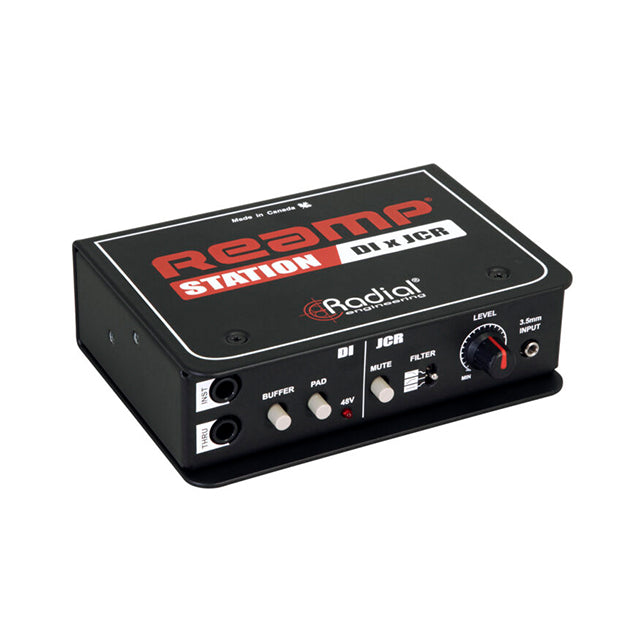

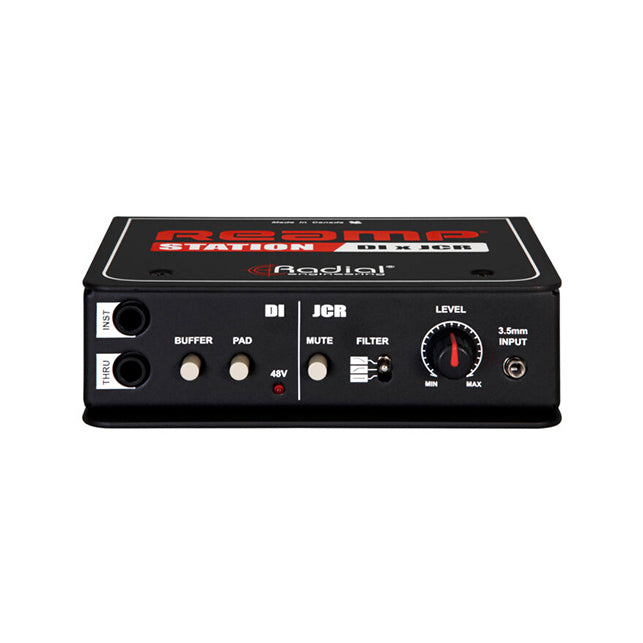

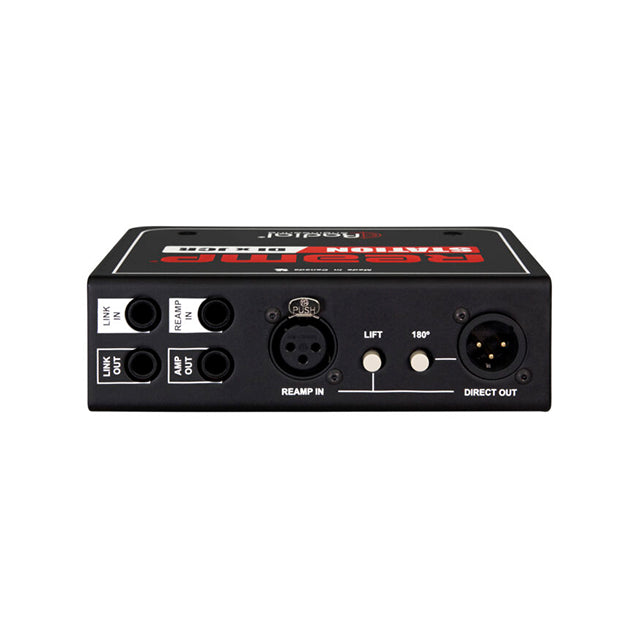

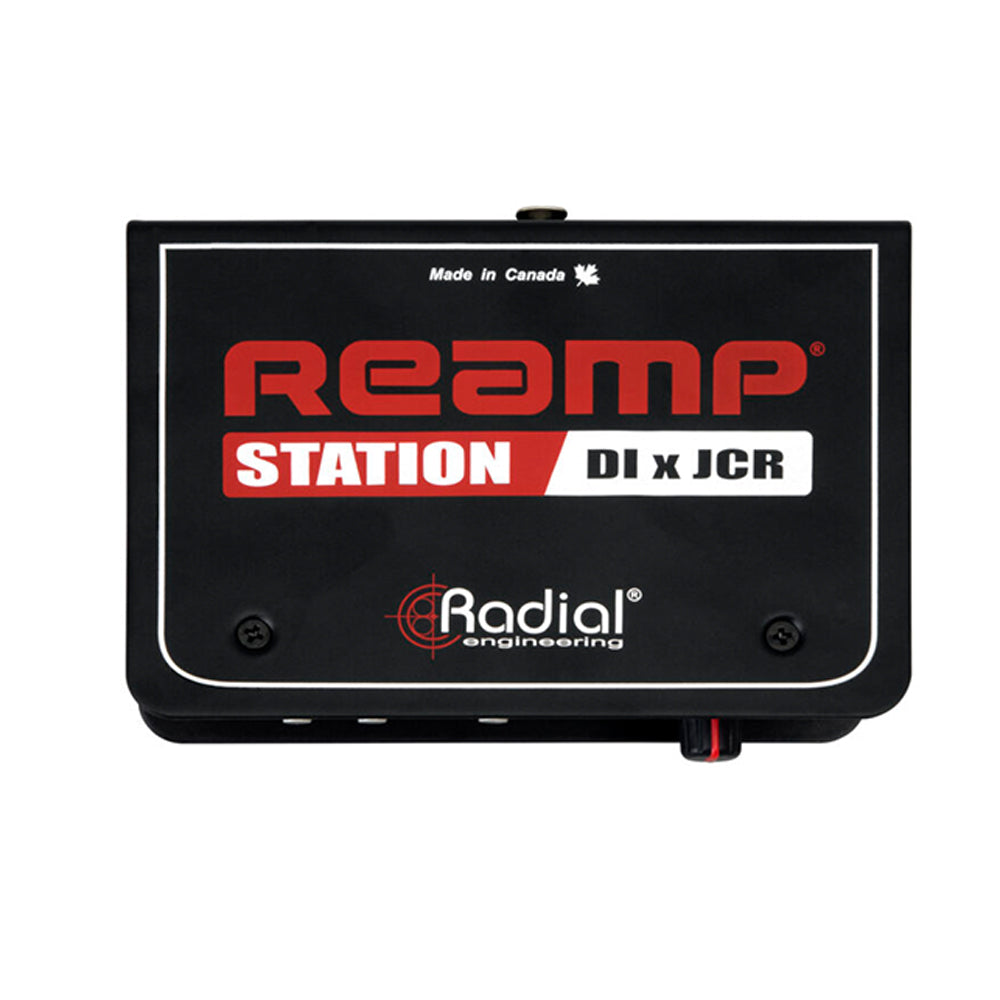

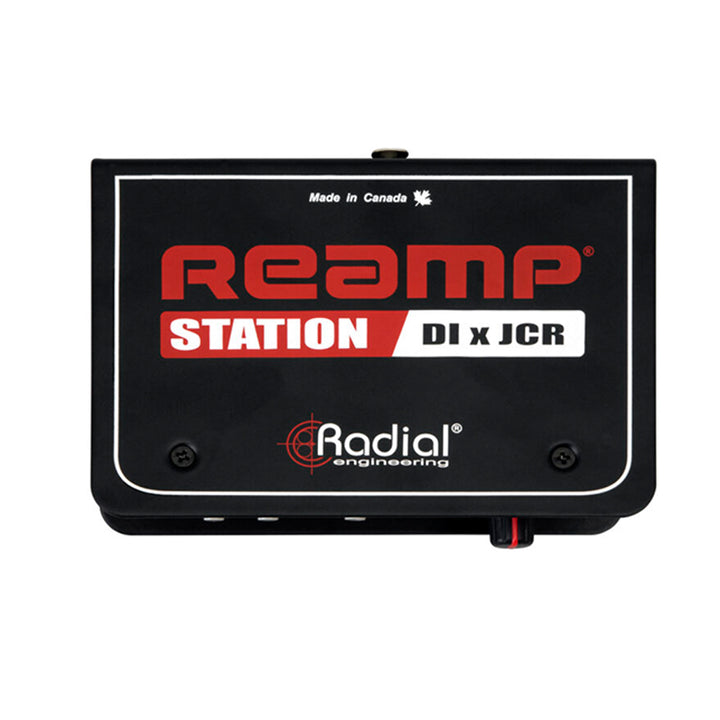

Overview of Radial Reamp Station Combination Active Direct Box and Reamp JCR
The Reamp Station combines two studio essentials in one device: an active DI box, and the JCR high-performance Reamper. Users can now seamlessly switch from recording a performance to Reamping and exploring new creative sounds.
Direct Box
Audio Circuit Type: Proprietary Active Circuit
Frequency Response: 5Hz to 20kHz (+/-0.5dB)
Total Harmonic Distortion: 0.004% @ 1kHz, 0dBu
THD + Noise: 0.004% @ 1kHz, 0dBu
Intermodulation Distortion: 0.005% @ -10dBV
Signal to Noise Ratio: 94dB
Dynamic Range: 100dB
Input Impedance: 220k Ω
Output Impedance: 185 Ω
JCR Reamper
Audio Circuit Type: Passive, transformer based
Frequency Response: 0Hz to 20kHz (+/-0.5dB)
Total Harmonic Distortion: 0.002% @ 1kHz, +4dBu
THD + Noise: 0.005% @ 1kHz, +4dBu
Intermodulation Distortion: 0.001% @ 0dBV
Signal to Noise Ratio: 88dB
Dynamic Range: 100dB
Input Impedance: 1.4k Ω
Output Impedance: 5.1k Ω
Features:
Input connections: 1/4”, XLR, 3.5mm
LED Indicators: 48V phantom (Direct box only)
Output Connectors: 1/4”, XLR
Mounting Options: SA series rack mount kit available
General
Power: 48V phantom power (Direct box features only)
Construction: 14-gauge Steel Chassis & Outer Shell
Finish: Durable Powder Coat
Conditions: For use in dry locations only
Warranty: Radial 3-year, transferable
