RDL SF-NP40D Dante to 40W Stereo Power Amplifier

The SF-NP40D is an audio power amplifier that converts two Dante network audio channels to two 4 Ohm or 8 Ohms amplified outputs. Each output provides 20 watts into 8 ohms for a network digital audio level of 0 dBFS. Special software is not required to configure the module.

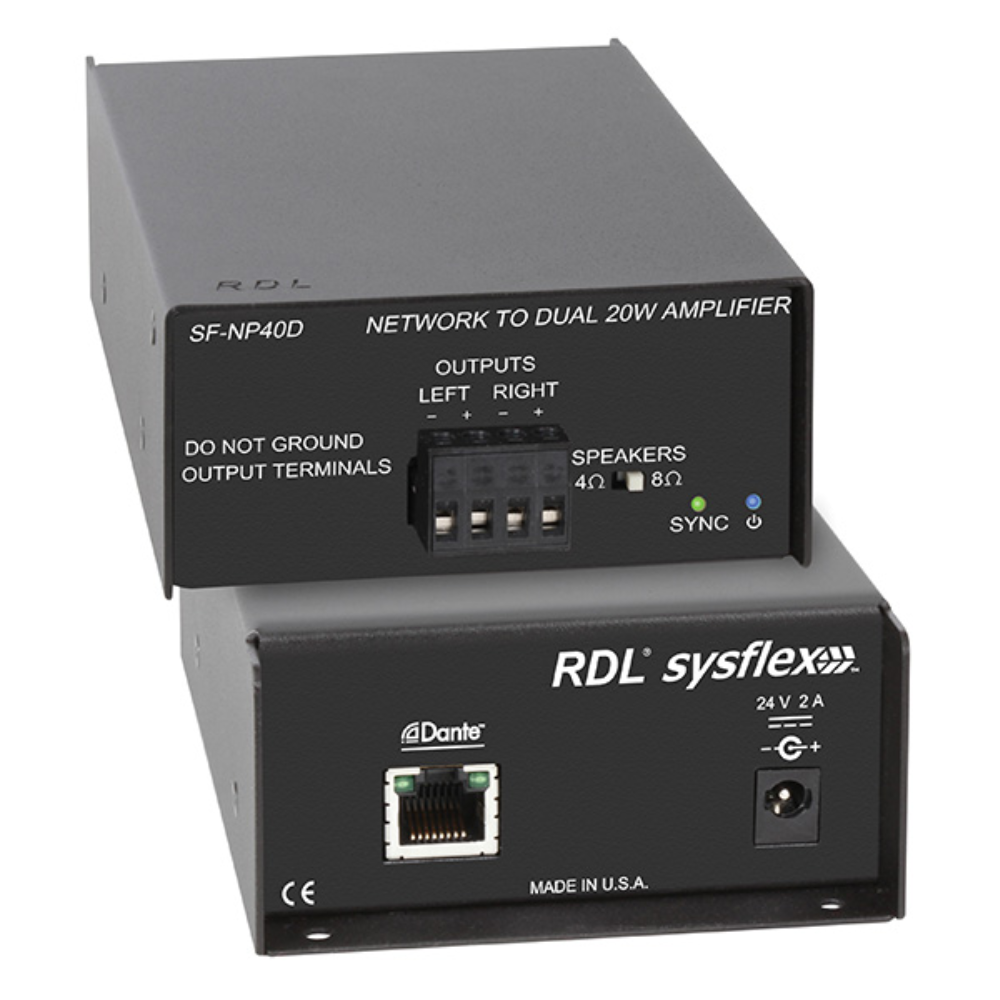

A front-panel blue LED illuminates when the SF-NP40D is powered from its included external 24 Vdc power supply. The module is equipped with both thermal and output short-circuit protection. The high-efficiency Class D output stages produce minimal heat for all levels of expected voice or music modulation. Valid synchronization to the Dante network is indicated by a green LED visible from the front of the unit.

The SF-NP40D is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX® product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX® products adds enormous flexibility in the design and installation of professional A/V systems.

Features:

• Converts Two Dante Network Audio Signals to two 20 W Outputs into 8 Ohms
• Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• 0 dBFS Input for 20 W per channel into 8 Ohms or 15 W per channel into 4 Ohms
• Special Software Not Required for Module Setup
• LED Indicator for Network Sync
• High-Efficiency Class D Operation
• Thermal and Short-Circuit Protection
• Included Power Supply 100 to 240 VAC, 50/60 Hz, 1.5A Input; 24 Vdc Output
• SF-NP40D includes North American Cord; SF-NP40DE excludes Power Cord
