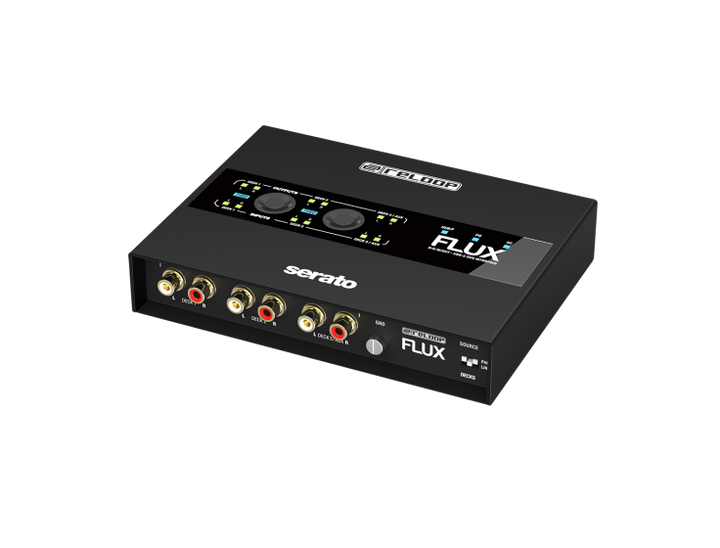

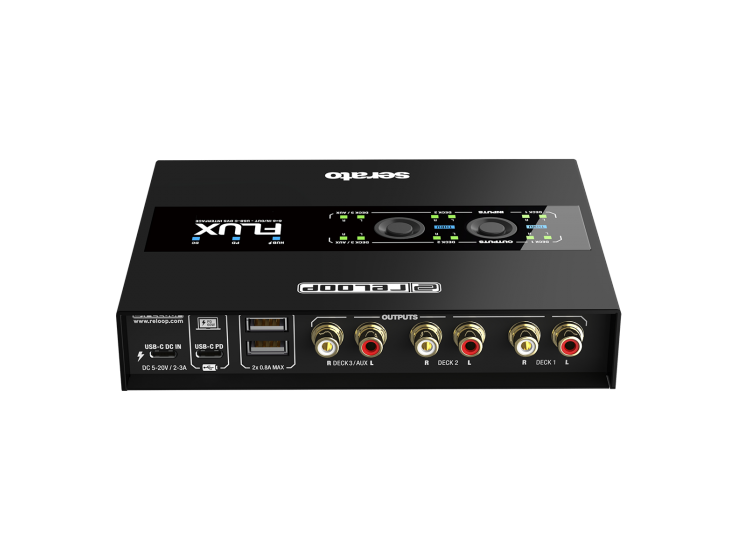

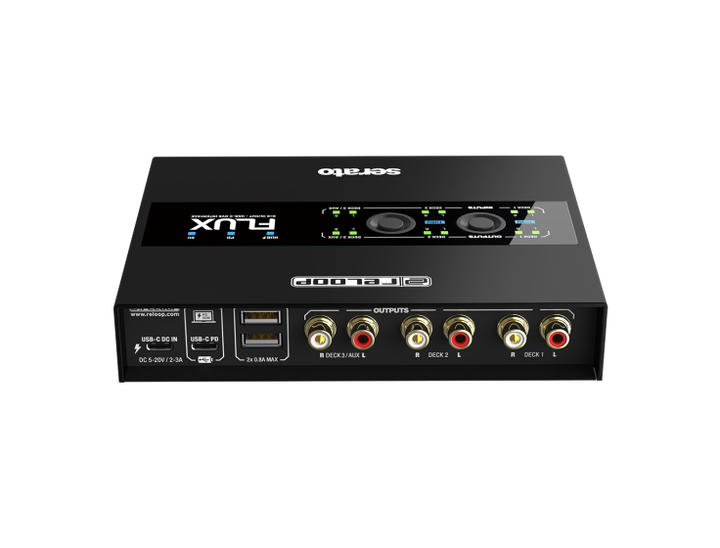

Reloop FLUX 3-channel (6x6 in/out) USB-C DVS interface for Serato DJ Pro

FEATURES

• 3-channel (6x6 in/out) USB-C DVS interface for Serato DJ Pro

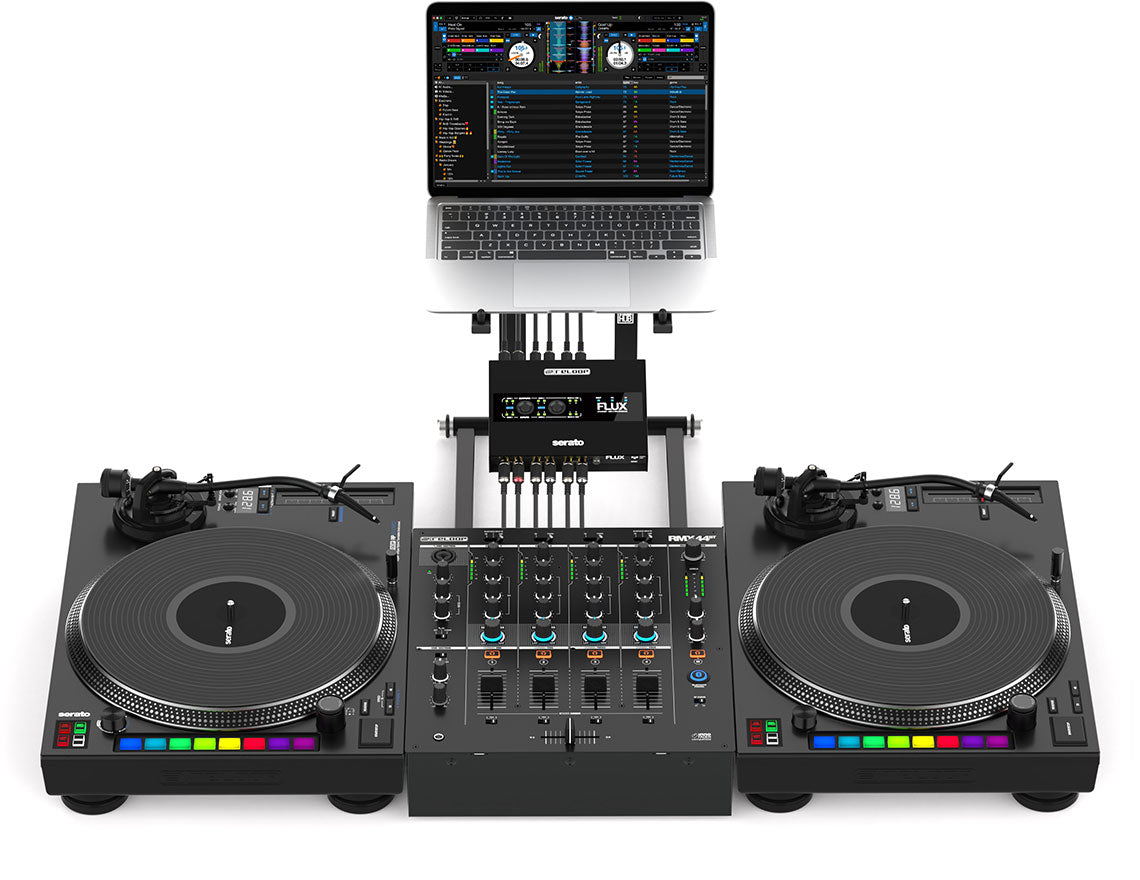

• Turn any mixer into a professional digital vinyl system
• Unlocks full version of Serato DJ Pro and Serato DVS
• Studio-grade 24-bit sound card with crystal-clear audio and ultra-low latency response
• Supports up to 96kHz with high-quality D/A converters for superior audio processing
• Also functions as a stand-alone studio interface for recording and playback audio

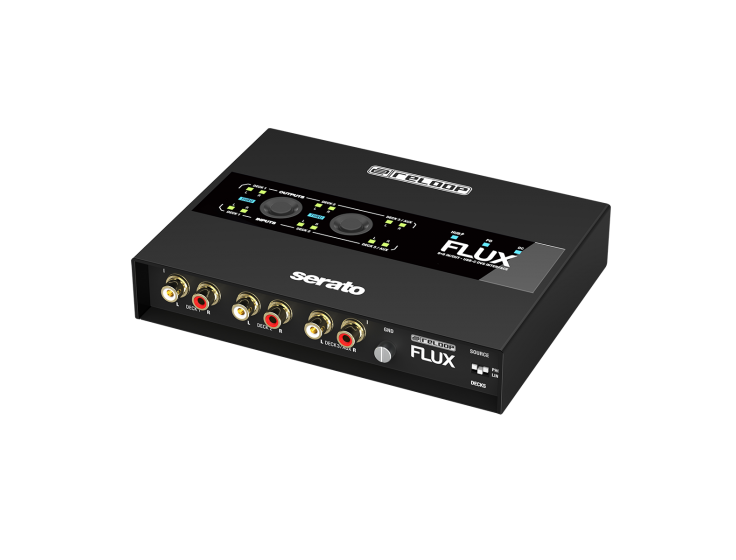

• 3x inputs for turntables, CD players or AUX-In for live feed signal, switchable in any combination via dedicated dip switches
• Dedicated GND terminal for grounding turntables
• Gold-plated, corrosion-resistant audio connections

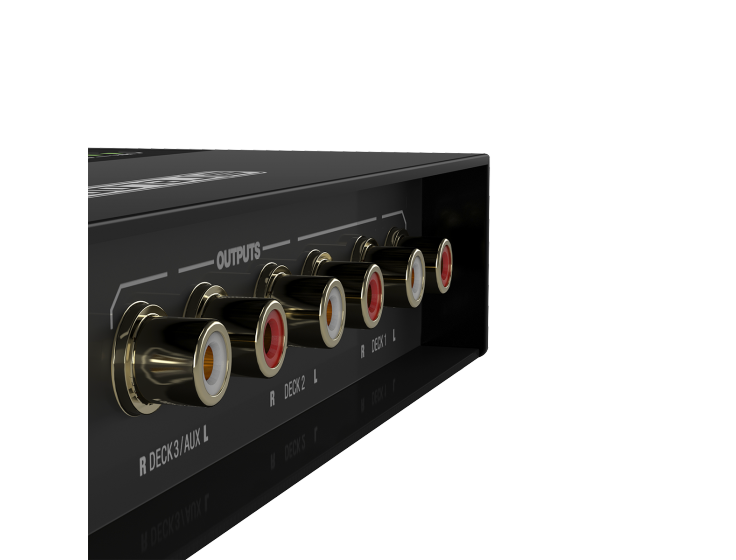

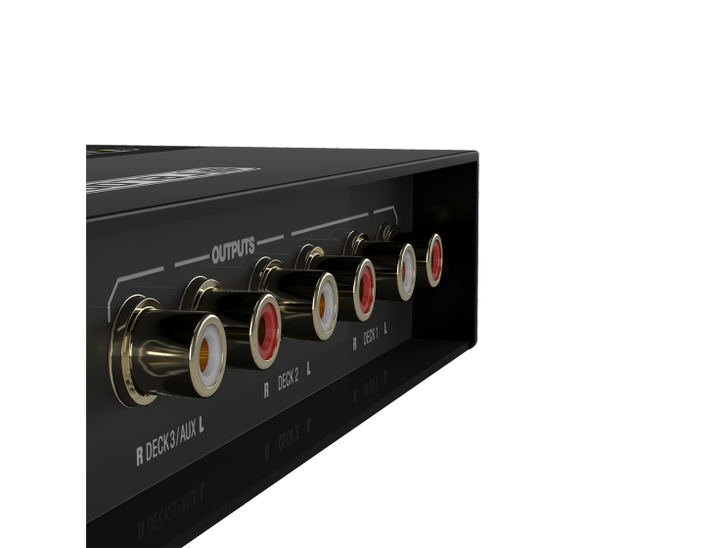

• 3x line outputs, including AUX-Out, assignable to the Sampler
• Easy, accessible direct thru buttons for analogue deck playback
• All terminals are visible from the top of the unit for easy installation in dark surroundings
• Bus-powered cable connection for power and audio

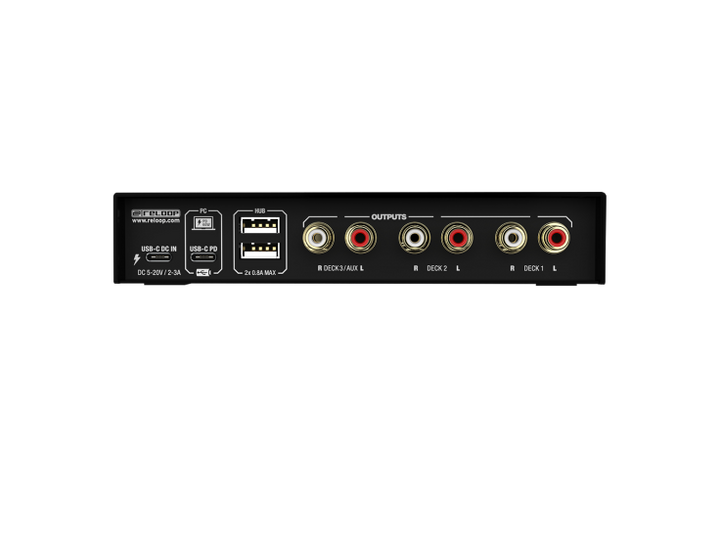

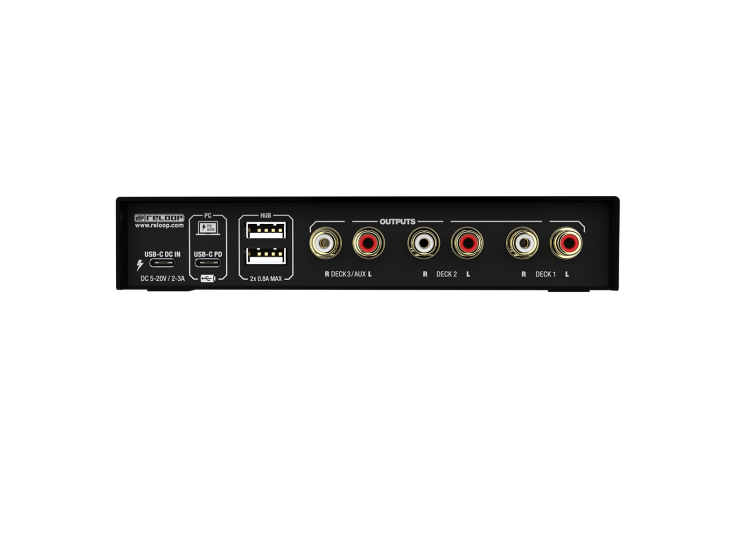

• Optional USB-C DC in port for external power supply
• Power delivery support for USB-C devices (max 60W)

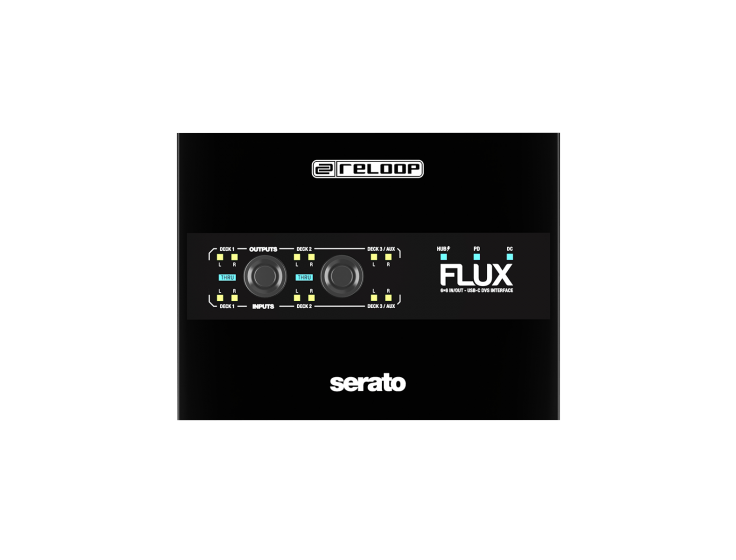

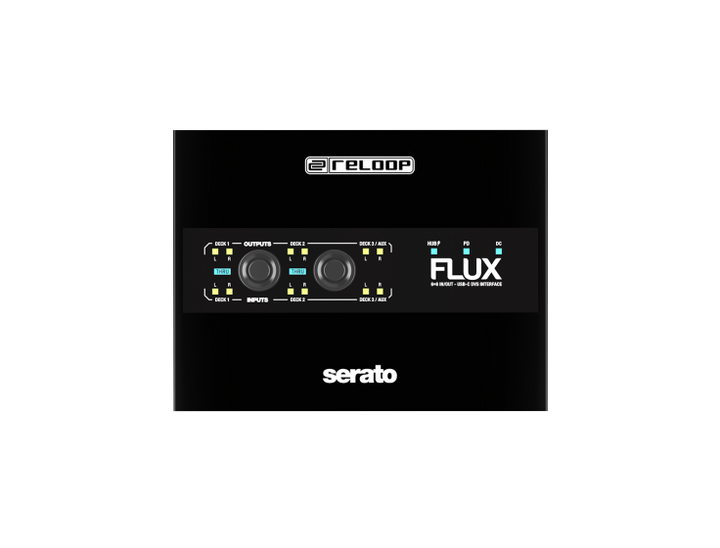

• Signal-flow LEDs for all inputs and outputs (L/R) and thru indication for clear visibility
• Power LEDs on the top panel for connection status (Hub, PD, DC)
• 2-port USB-A hub for connecting further accessories
• Rugged, heavy-duty metal housing with a scratch-resistant black finish for durability on the road and reliability in the club
• Highly robust, extended edge design to protect connection terminals
• Supports the use of Serato NoiseMap™ control vinyl (not included) or custom control signal WAV file for use via CDs or USB drive (download available) with no additional license purchase needed
• Including: 2x RCA audio cables, 1x USB-A to USB-C, 1x USB-C to USB-C, user manual

TECHNICAL DATAPower:

• USB bus powered: Yes
• Recommended power: 2 A or higher / minimum power: 400 mA
• Maximum USB-PD throughput: 60 W
• Maximum USB Hub power output: 2 x 0.8 A = 8 W
• Supported external USB (type A or C) power supply: 5 V/1 A - 20 V/3 A
• Power supply priority: FLUX self-power -> USB Hub -> PD (to PC)

Audio:

• S/N Ratio (output reference level 1 kHz, +4 dB):

- Deck In (LINE signal input: 0 dBV): More than 83 dB- Deck In (PHONO signal input: -32 dBV): More than 73 dBTHD + N:-LINE signal input: -4 dBV @1K / Less than 0.03% (1 kHz,+0 dB)-PHONO signal input: -36 dBV @1K / Less than 0.05% (1 kHz,+0 dB, Inverse RIAA)Maximum Gain:- Deck In (LINE): +4 dB ± 2 dB- Deck In (PHONO): +36 dB ± 2 dBMaximum Input (1 kHz, THD=1%):- Deck In (LINE): More than +7 dBV- Deck In (PHONO): More than -25 dBVMaximum Output (1 kHz, THD=1%):- Deck Output: More than +11 dBVUSB:

• USB audio interface with 24 bit/44.1 kHz, 48 kHz, 96 kHz
• USB 2.0 high-speed (480 Mbit/s)
• Class-compliant on macOS
• USB Power Delivery Protocol 3.0
