RF Venue DFIN-IPXD9 Diversity Fin IPX Antenna & DISTRO9 HDR 9-Channel UHF Distribution System Bundle (Black, 470 to 928 MHz)

Features

• Improves Wireless Mic System Performance
• All-Weather Diversity Fin IPX Antenna
• DISTRO9 HDR 9-Way Antenna Splitter
• Distributes Power to 8 Receivers
• Includes Two 25' Coaxial Antenna Cables
• Includes 20 1.5' Coaxial Cables
• Includes DC Octopus Cable
• Reduces IMD and Crosstalk
• Compatible with All Manufacturers

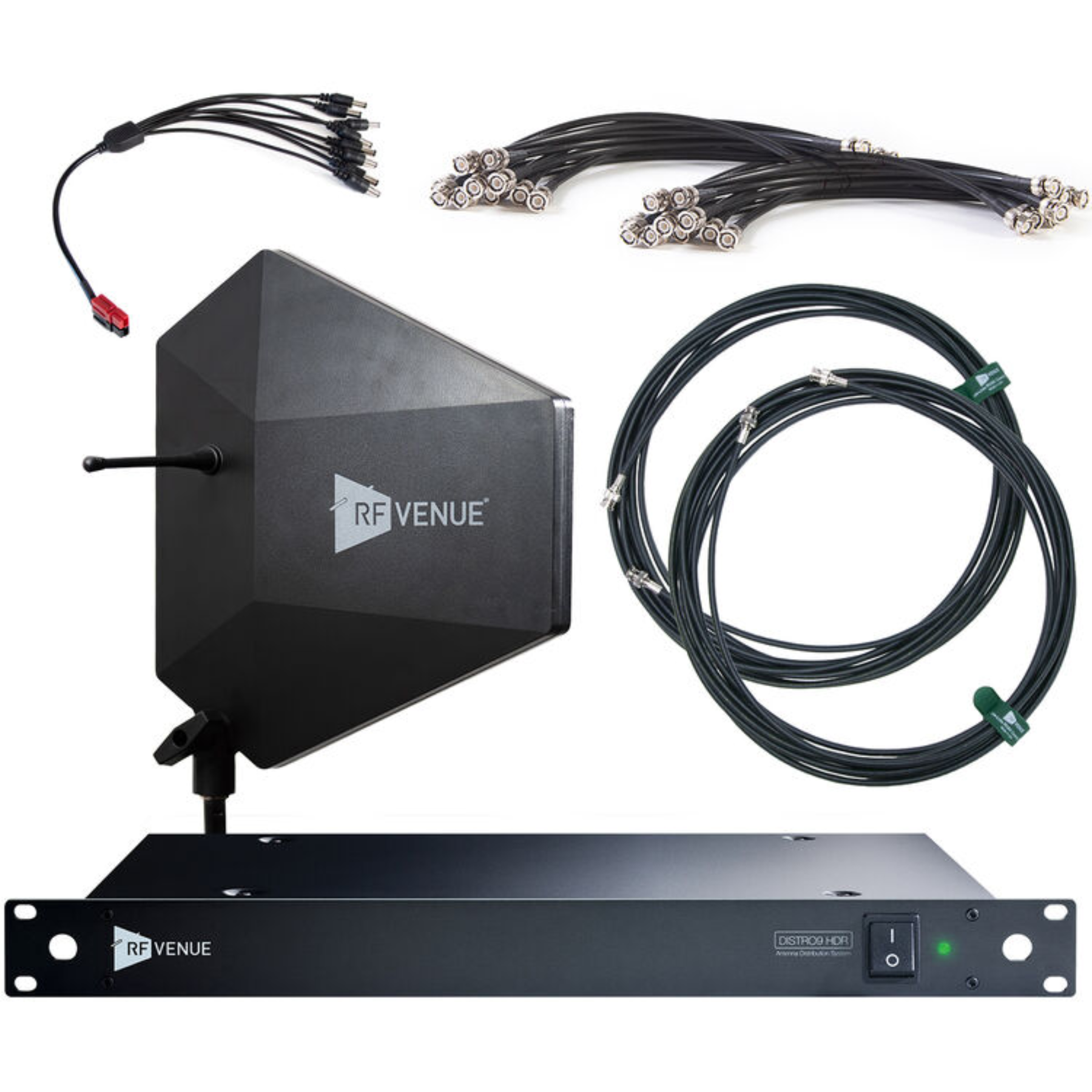

Improve the performance of your wireless microphone system with the Diversity Fin IPX Antenna and DISTRO9 HDR 9-Channel UHF Distribution System Bundle from RF Venue. This turnkey package includes the black, all-weather Diversity Fin IPX Antenna and the DISTRO9 HDR Active Antenna Splitter. Also included are two 25' low-loss coaxial antenna cables, as well as two 10-packs of 1.5' low-loss BNC cables to distribute the RF signal from the splitter to up to 9 receivers. The included DC Octopus cable distributes 12 VDC power to eight receivers, eliminating wall warts and the need for dedicated rack power distribution.

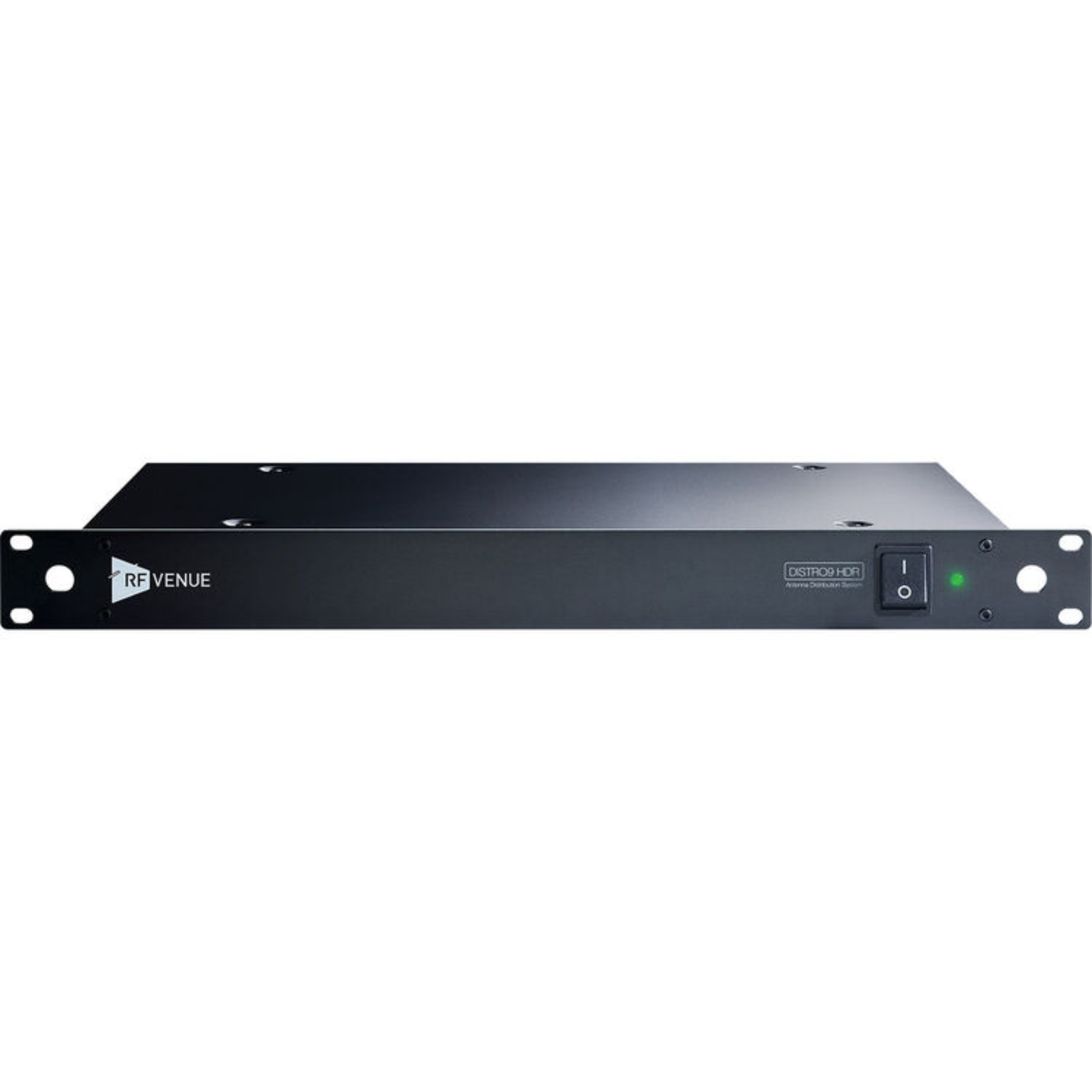

RF Venue DISTRO9 HDR Multi-Zone Antenna Distribution System

The DISTRO9 HDR Multi-Zone Antenna Distribution System from RF Venue delivers up to 9 low-noise channels of diversity wireless and eliminates the need for internal splitters, replacing them with state-of-the-art divide-by-three circuitry. It provides nine RF channels of wireless with clean output, low-noise amplification, and a gain structure for high dynamic range across the VHF, T-Band, and UHF spectrum.

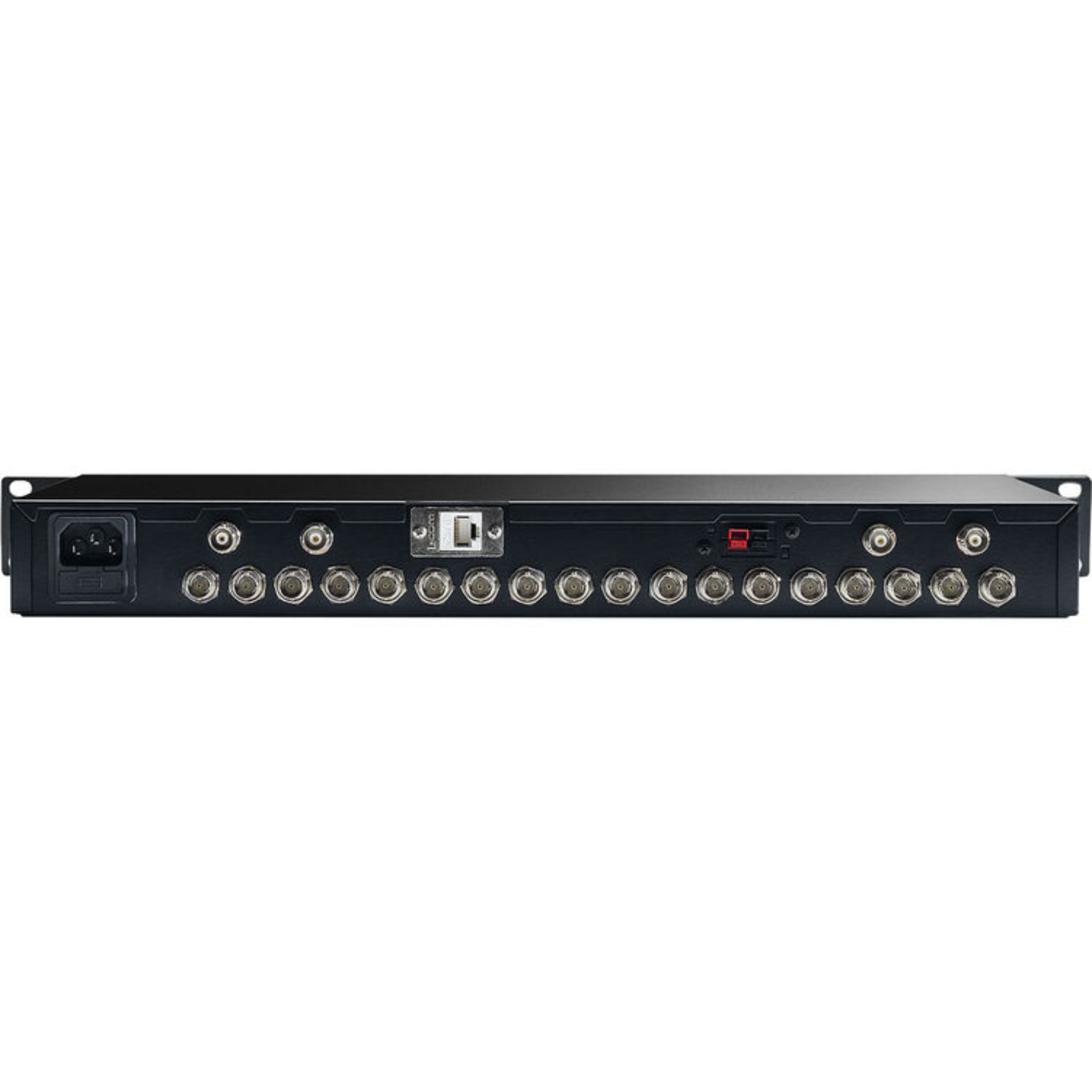

Any DISTRO9 HDR RF output can be cascaded to a second DISTRO9 HDR, eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in 2 RU space. There are two zone antenna inputs on the DISTRO9 HDR that provide coverage for large areas or multiple rooms, each with DC power for in-line amplifiers or active antennas.

In addition, it can provide DC power to wireless microphone receivers with an optional DC cable kit (sold separately) and can be powered from a DC battery source for location sound cart applications.

Furthermore, an internal I/O section provides a range of future module add-on capabilities, ranging from remote web-based spectrum monitoring to bandpass filtering, and more. The DISTRO9 HDR Multi-Zone Antenna Distribution System is highly configurable to meet the current and future needs of various professional wireless microphone systems.

• Two input zones, each with 2x (diversity) RF inputs, provide maximum flexibility for covering large areas or multiple rooms, with DC power available for in-line amplifiers or active antennas.
• The DISTRO9's unity gain RF outputs can be cascaded to a second unit, eliminating the need for dedicated cascade ports and providing up to 17 wireless microphone channels in a 2 RU space.
• Featuring gain flatness across VHF, T-Band, and UHF, the DISTRO9 HDR is built for the rapidly changing RF spectrum landscape. An internal I/O section provides a range of future module add-on capabilities, including network spectrum analysis, filtering, and more.

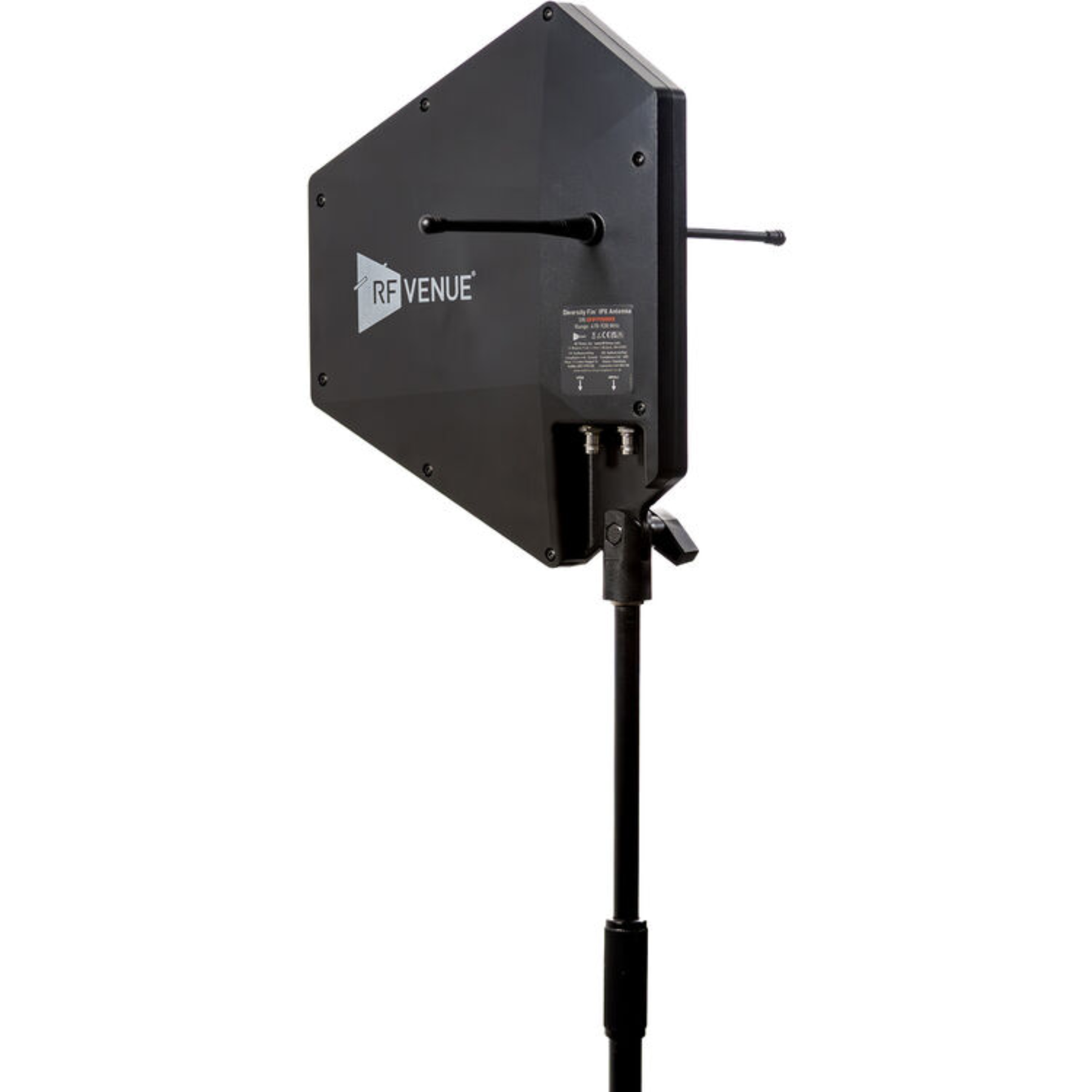

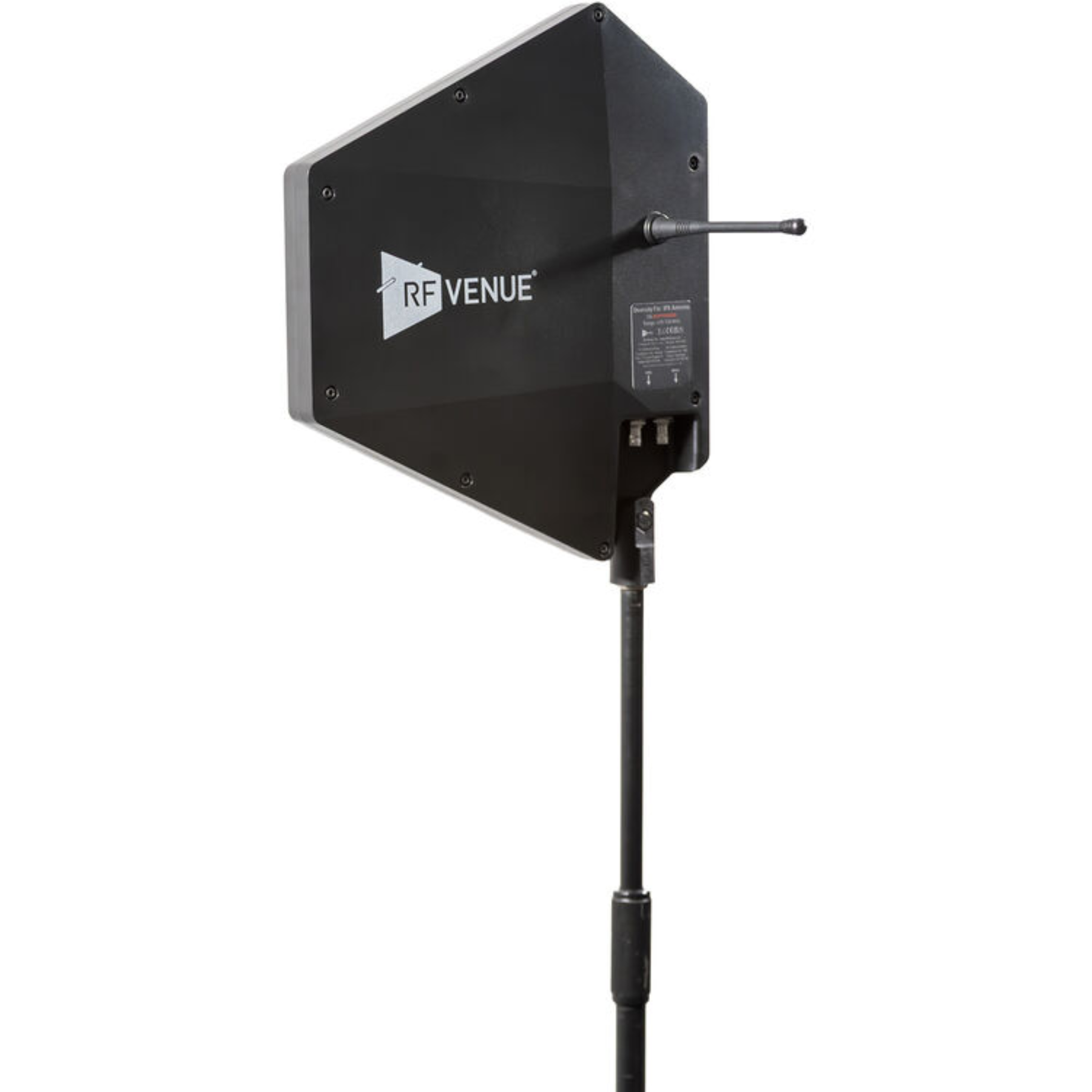

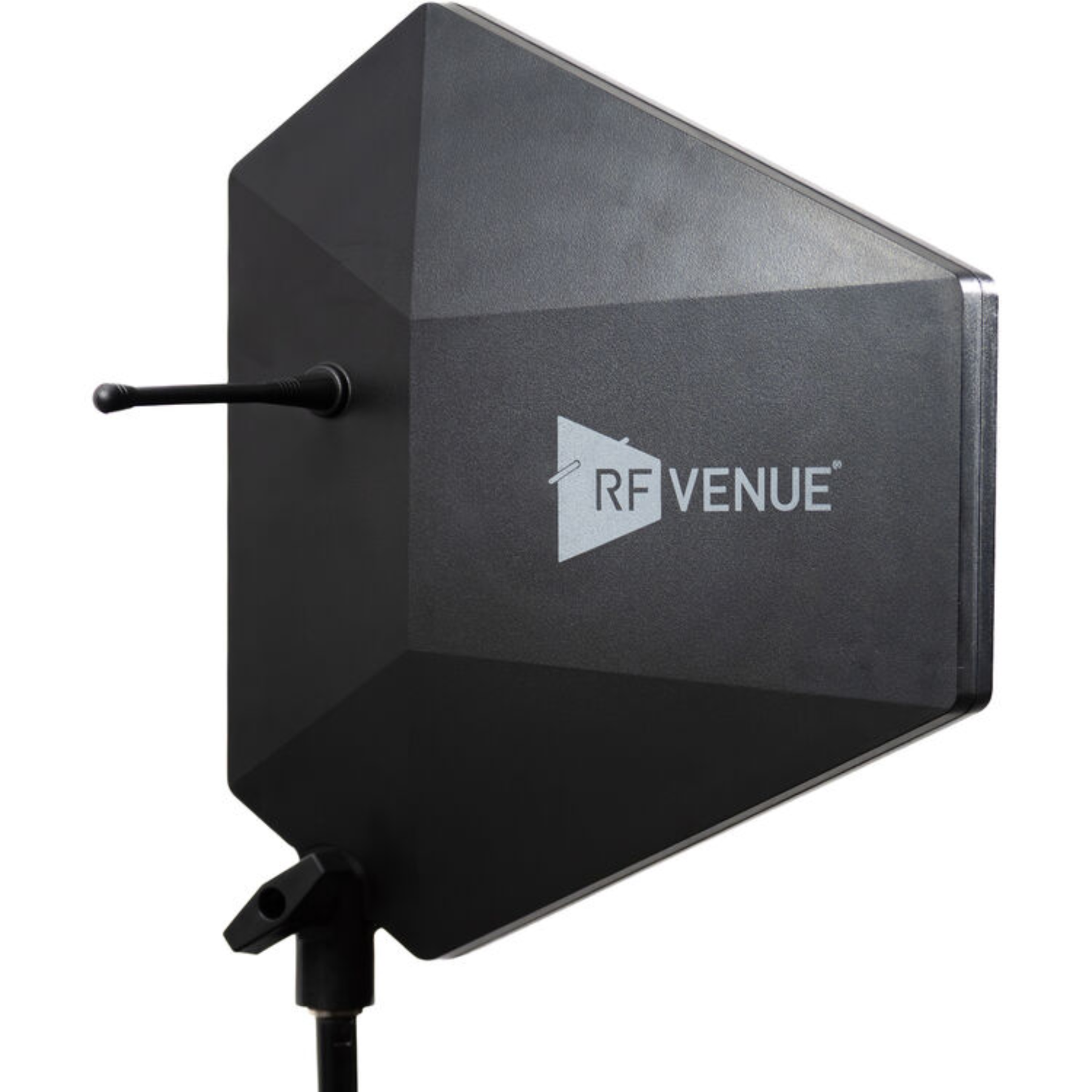

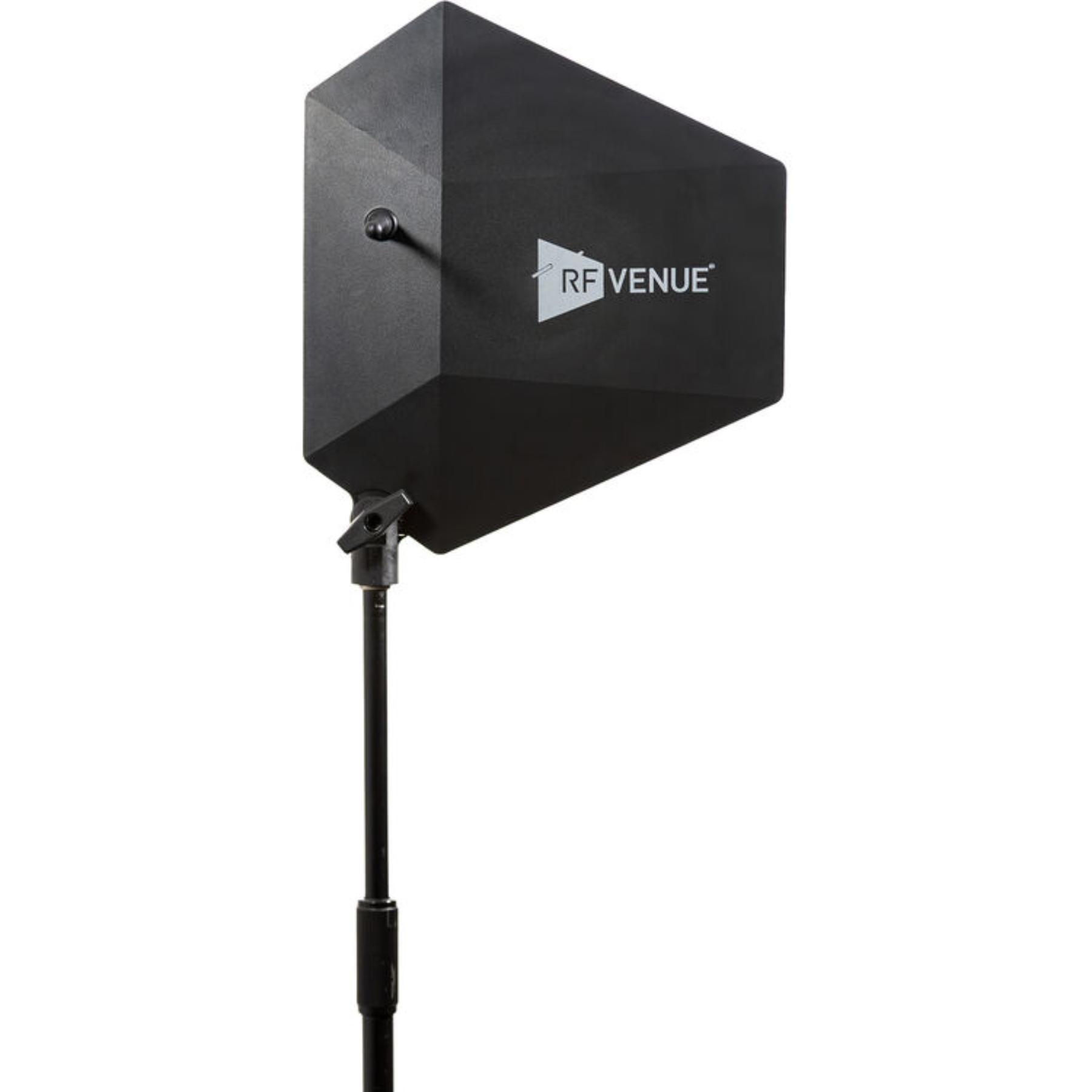

RF Venue Diversity Fin IPX Antenna (Black, 470 to 928 MHz)

The RF Venue Diversity Fin IPX Antenna is the rugged, weather-resistant evolution of RF Venue’s industry-standard flagship. Delivering the same trusted performance as the original Diversity Fin, the IPX version is engineered to withstand the demands of touring, rental inventories, and permanent outdoor installations while maintaining consistently reliable wireless microphone signal performance.

Designed to eliminate multi-path interference and signal dropouts, the Diversity Fin IPX combines a log-periodic dipole array (LPDA) and a dipole antenna within a single IP-rated, ruggedized housing. This cross-linear polarization design captures both vertical and horizontal signals, ensuring dependable RF performance regardless of how a performer holds a transmitter or how challenging the RF environment may be.

All-Weather Reliability
Rated IP44, the Diversity Fin IPX features a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust. Built for outdoor stages and unpredictable environments, it provides dependable operation in real-world conditions.

Patented Cross-Polarized Design
By integrating two antenna elements into one enclosure, the IPX replaces traditional dual shark fin paddle antennas with a single high-performance unit. This reduces setup time, lowers cost, and minimizes the risk of configuration errors while maintaining true diversity reception.

Superior Signal Integrity
Specifically engineered to combat multi-path interference, the Diversity Fin IPX delivers a more stable RF environment for wireless microphones. Its dual-element design ensures consistent signal capture, even in complex or reflective spaces.

Built for the Road
A highly ruggedized enclosure makes the IPX ideal for touring professionals who demand durability. Designed to handle the rigors of transport, setup, and extreme environments, it is built to perform show after show.

One Antenna System for Diversity Wireless
Because the Diversity Fin IPX houses two antenna elements in a single unit, only one mount and one location are required to achieve diversity reception. This simplifies stage plots and provides a more cost-effective alternative to purchasing two separate high-quality paddle antennas.

Versatile Mounting and Broad Compatibility
The IPX includes a standard 5/8"-27 threaded microphone stand connector with EU adapter for flexible deployment. Operating across the 470 to 928 MHz range, it is compatible with nearly all modern wireless microphone systems.

RF Venue DC Octopus 8-Connector Power Distribution Cable

The DC Octopus 8-Connector Power Distribution Cable from RF Venue includes the Anderson PowerPole connector and is compatible with the DISTRO9 HDR.

RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 25')

This black, 25' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost-effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility.

RF Venue RG8X Low-Loss Coaxial Antenna Cable (Black, 1.5', 10-Pack)

This black, 1.5' RG8X Low-Loss Coaxial Antenna Cable from RF Venue is a 50-ohm cable that features BNC connectors and offers a cost-effective, reliable interconnect. The cable is constructed with a double-shielded braid over foil to provide the right balance between loss and flexibility. This package includes ten cables.
