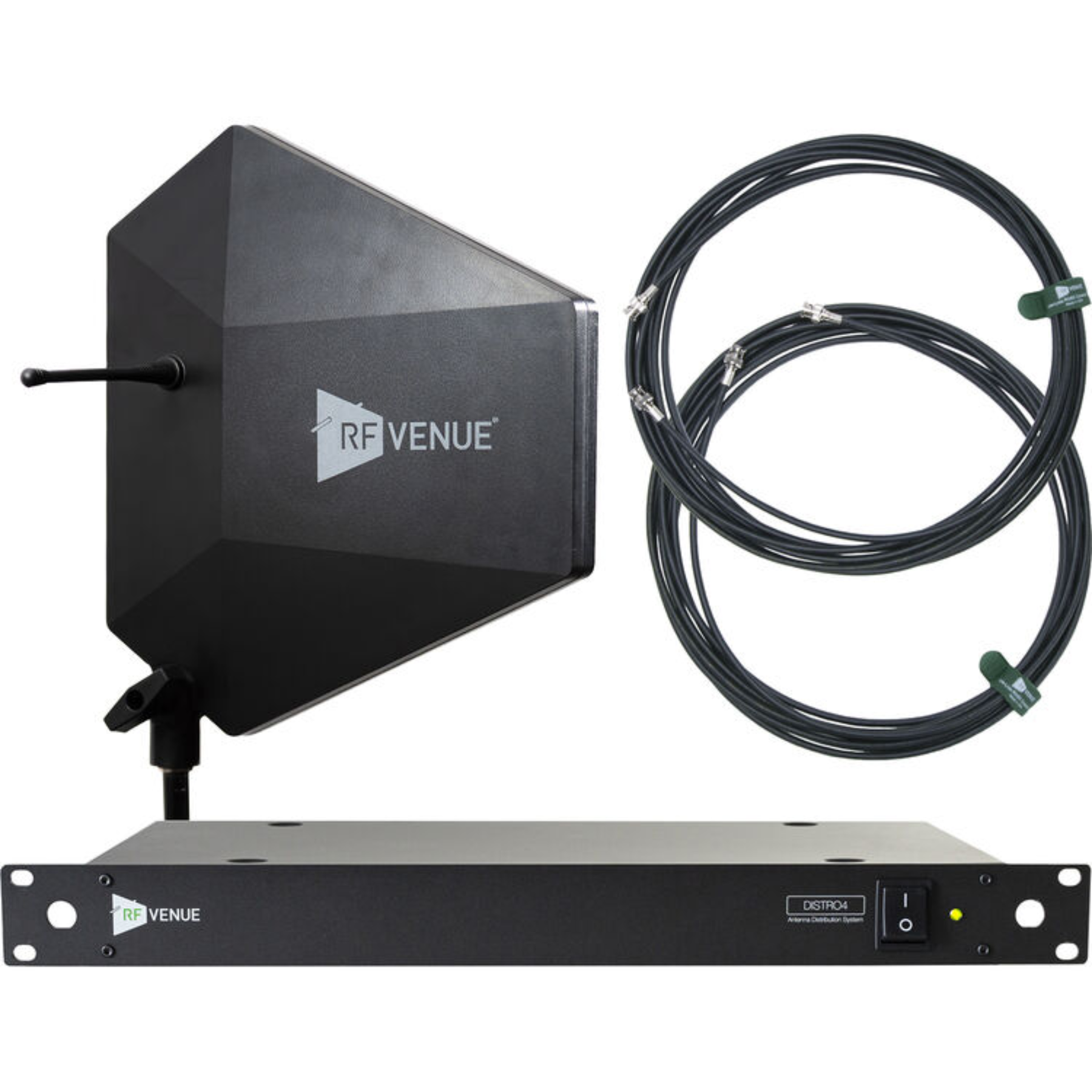

RF Venue DFIN-IPXDISTRO4 Diversity Fin IPX Antenna & DISTRO4 4-Channel UHF Distribution System Bundle (Black, 470 to 928 MHz)

Improve the reception and reduce dropouts in your wireless audio system with the Diversity Fin IPX Antenna and DISTRO4 4-Channel UHF Distribution System Bundle from RF Venue. This turnkey package conveniently bundles the black, all-weather Diversity Fin IPX antenna with a rackmount 4-channel splitter capable of splitting the RF signals from the antenna's diversity connections, amplifying them, and sending them to multiple receivers. In addition to the comprehensive set of cables included with the DISTRO4, a pair of 25' coaxial BNC connecting cables are also provided.

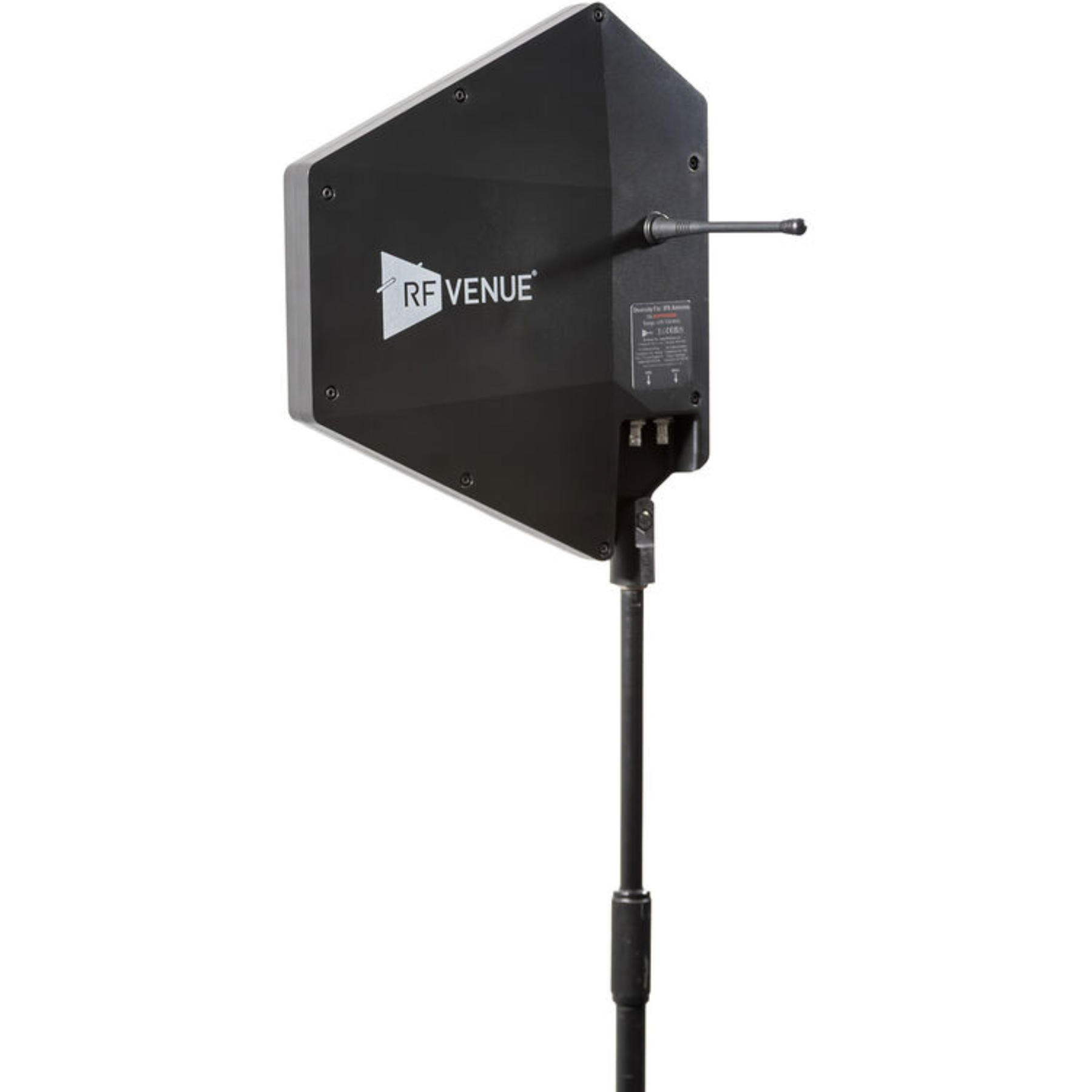

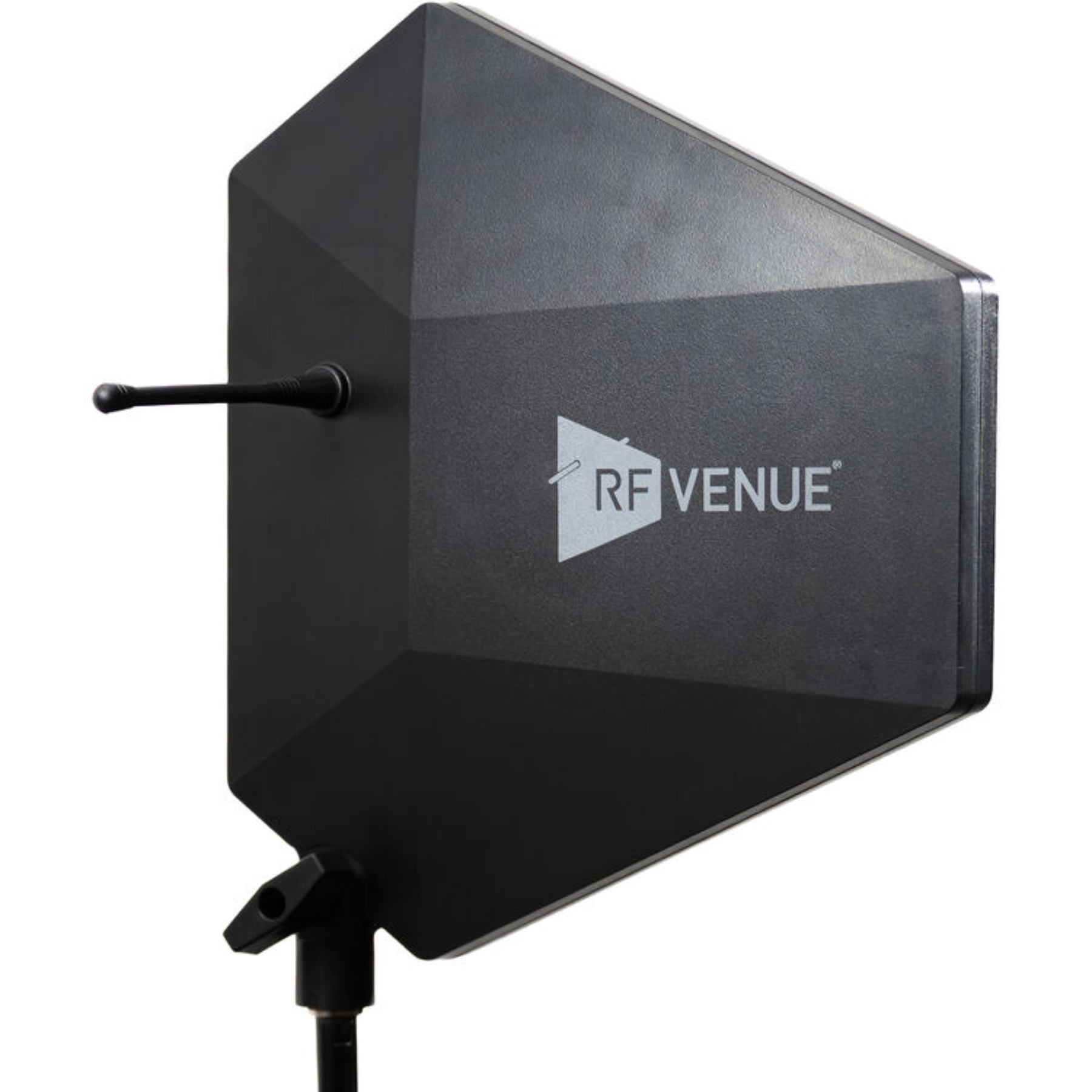

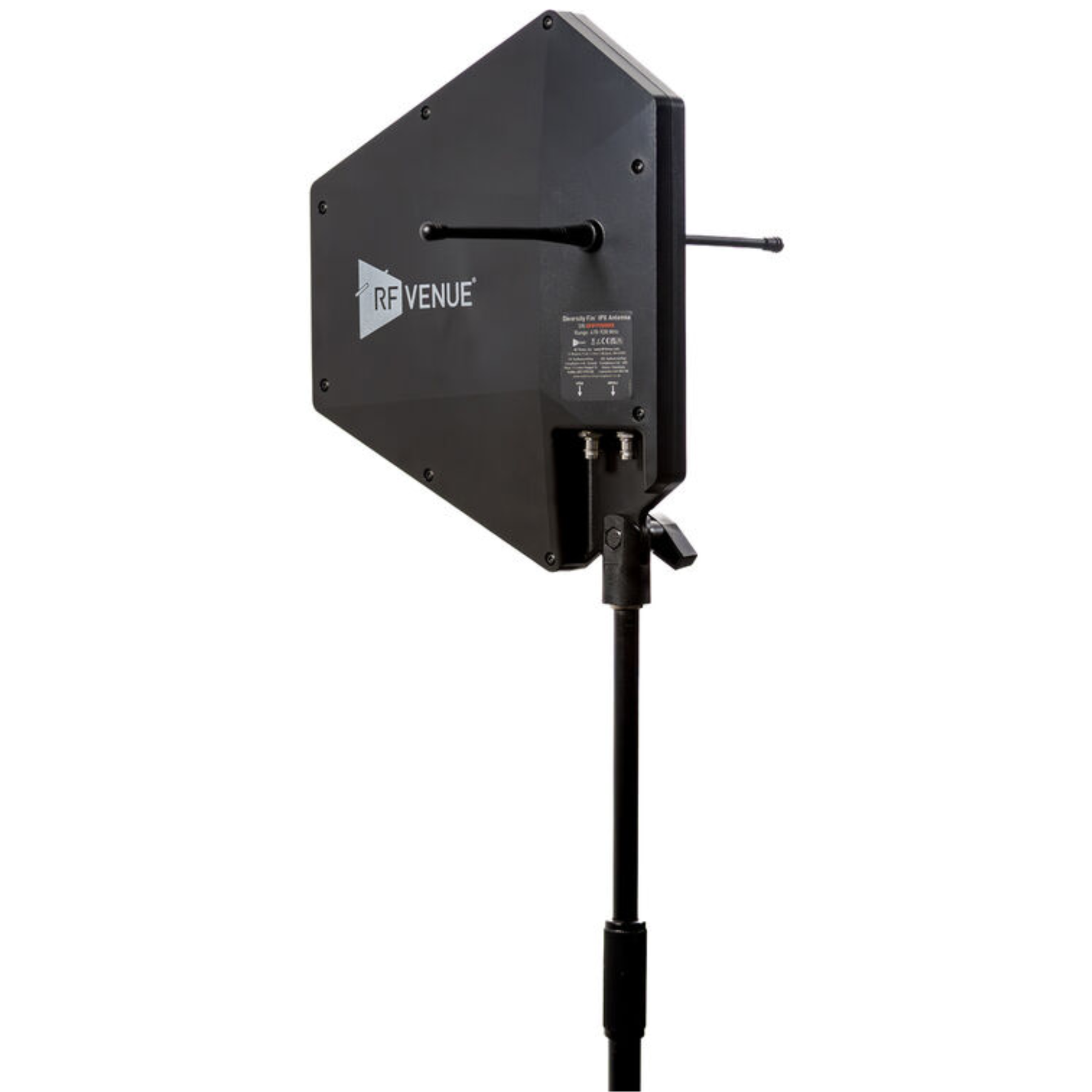

RF Venue Diversity Fin IPX Antenna (Black, 470 to 928 MHz)

The RF Venue Diversity Fin IPX Antenna is the rugged, weather-resistant evolution of RF Venue's industry-standard flagship. Delivering the same trusted performance as the original Diversity Fin, the IPX version is engineered to withstand the demands of touring, rental inventories, and permanent outdoor installations while maintaining consistently reliable wireless microphone signal performance.

Designed to eliminate multi-path interference and signal dropouts, the Diversity Fin IPX combines a log-periodic dipole array (LPDA) and a dipole antenna within a single IP-rated, ruggedized housing. This cross-linear polarization design captures both vertical and horizontal signals, ensuring dependable RF performance regardless of how a performer holds a transmitter or how challenging the RF environment may be.

All-Weather Reliability
Rated IP44, the Diversity Fin IPX features a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust. Built for outdoor stages and unpredictable environments, it provides dependable operation in real-world conditions.

Patented Cross-Polarized Design
By integrating two antenna elements into one enclosure, the IPX replaces traditional dual shark fin paddle antennas with a single high-performance unit. This reduces setup time, lowers cost, and minimizes the risk of configuration errors while maintaining true diversity reception.

Superior Signal Integrity
Specifically engineered to combat multi-path interference, the Diversity Fin IPX delivers a more stable RF environment for wireless microphones. Its dual-element design ensures consistent signal capture, even in complex or reflective spaces.

Built for the Road
A highly ruggedized enclosure makes the IPX ideal for touring professionals who demand durability. Designed to handle the rigors of transport, setup, and extreme environments, it is built to perform show after show.

One Antenna System for Diversity Wireless
Because the Diversity Fin IPX houses two antenna elements in a single unit, only one mount and one location are required to achieve diversity reception. This simplifies stage plots and provides a more cost-effective alternative to purchasing two separate high-quality paddle antennas.

Versatile Mounting and Broad Compatibility
The IPX includes a standard 5/8"-27 threaded microphone stand connector with EU adapter for flexible deployment. Operating across the 470 to 928 MHz range, it is compatible with nearly all modern wireless microphone systems.

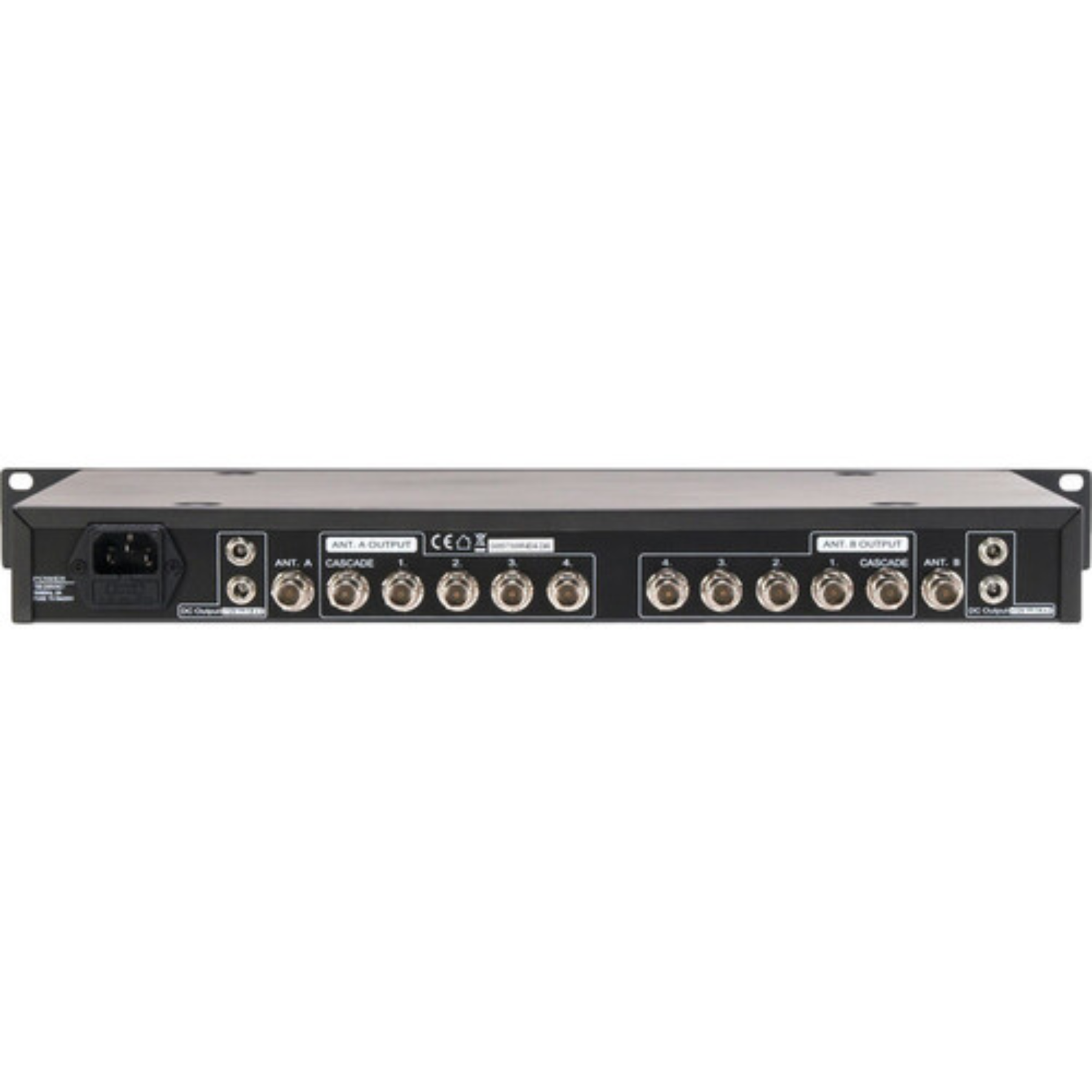

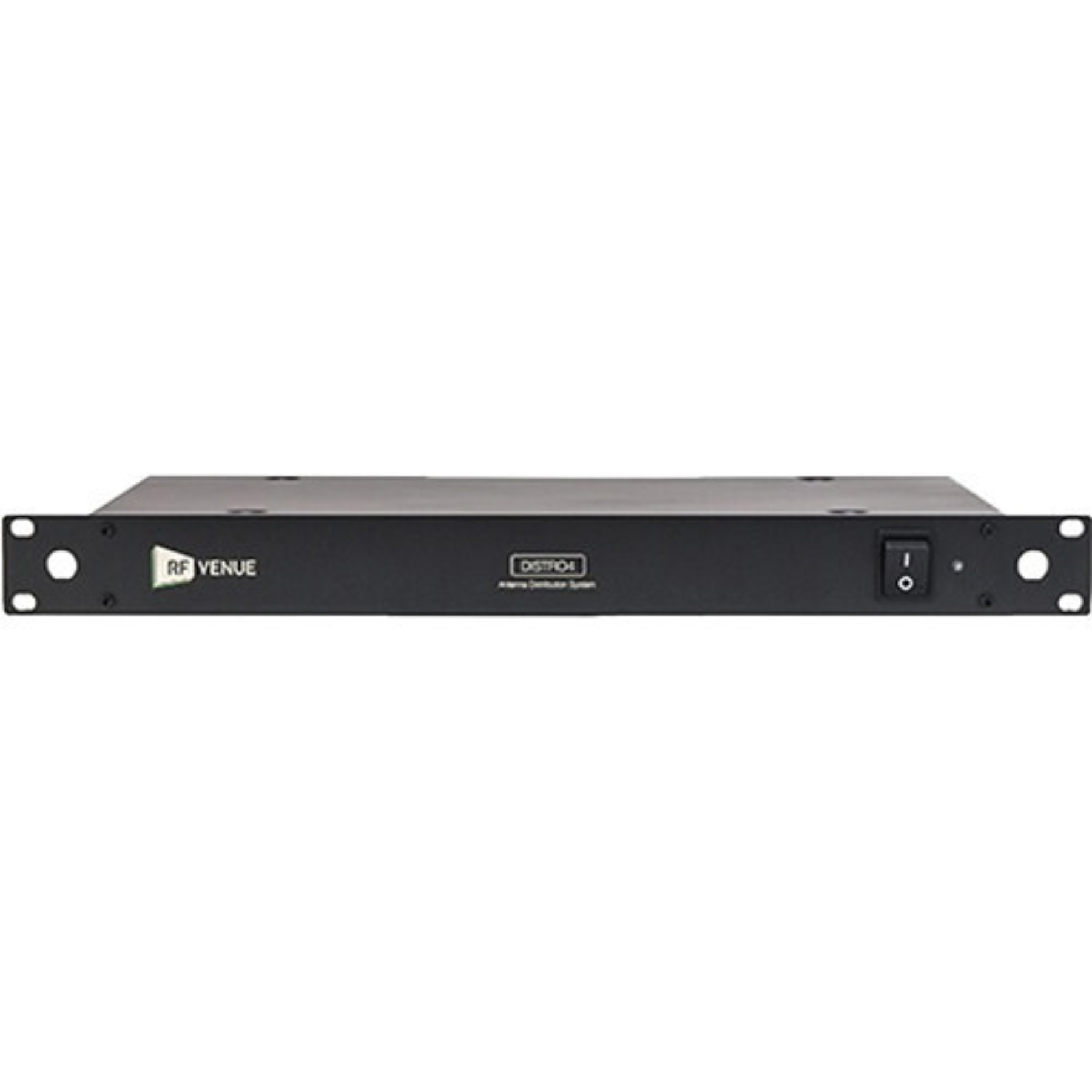

RF Venue DISTRO4 4-Channel UHF Antenna Distribution System (470 to 952 MHz)

The DISTRO4 4-Channel UHF Antenna Distribution System from RF Venue is an active antenna splitter designed to split the RF signal from two remotely mounted antennas and distribute it to up to 5 wireless receivers (antennas and receivers available separately). The all-metal, 1-RU rackmount splitter includes 10 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide four wireless receivers with power. The unit's cascade port can be used to connect a fifth receiver (with an external power supply) or additional DISTRO4 units connected to additional receivers.

Features

• Reduce IMD and crosstalk while decluttering your rack with regulated 12 VDC power to your receivers
• Routes antenna signals from a pair of diversity antennas to several receivers in a multichannel system
• Compensates for signal strength lost in the splitting process with high-quality amplifiers
• Provides DC powering for up to 4 receivers
• Internal switch applies DC power over coaxial cable to antenna connections
• Features BNC outputs for 4 receivers, plus cascade BNC for a fifth receiver (with external power supply) or additional DISTO4 units and receivers
• Wide UHF bandwidth from 470 to 952 MHz
• Works with any UHF wireless system that supports remote antenna mounting
• 1 RU full-rack width to install near receivers
• 2000mA internal power supply (no wall wart)
