Overview of Rode Microphones NT5 Compact 1/2'' Cardioid Condenser Microphone

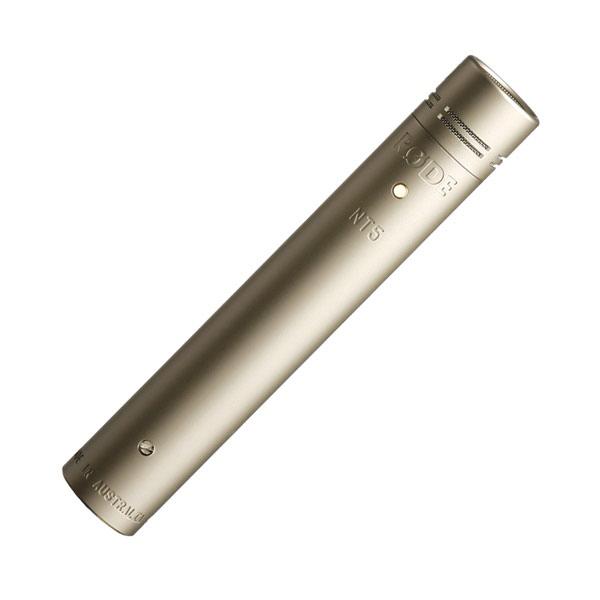

The NT5 is RØDE's premier small-diaphragm cardioid condenser microphone, sometimes referred to as a 'pencil mic'.
Intended for recording acoustic instruments, drum overheads, cymbals and live performances, the compact externally polarized mic employs a 1/2" capsule, an active J-FET impedance converter with bipolar output buffer.
Its tight cardioid pickup pattern also makes it ideal for use as an indoor dialogue microphone for filmmaking on a mic stand or boom.
Expanding the NT5's versatility, an interchangeable omnidirectional capsule (NT45-O) is available.
Finished in durable satin nickel, the NT5 available as a single microphone or as an acoustically matched pair.
The NT5 is designed and made in Australia, and covered by RØDE's industry leading 10 year warranty.
Features:
- Externally biased condenser
- Gold sputtered 1/2” capsule
- Heavy-duty satin-nickel plated body
- Dual power operation
- Surface mount circuitry
- Low noise
- Full frequency response
- Available as Certified Match Pair
- 10 year extended warranty when you register your microphone
Specifications:
- Active Electronics: JFET impedance converter with bipolar output buffer
- Capsule: 0.50"
- Polar Pattern: Cardioid
- Address Type: End
- Frequency Range: 20Hz - 20kHz
- Output Impedance: 100Ω
- Maximum SPL: 143dBSPL
- Maximum Output Level: 13.9mV (@ 1kHz, 1% THD into 1KΩ load)
- Sensitivity: -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
- Equivalent Noise Level (A-weighted): 16dBA:
- Power Options: P24, P48
- Weight: 101.00g
- Dimensions: 118.00mmH x 20.00mmW x 20.00mmD
- Output: XLR
- Warranty: 1 year with free extension to 10 years following registration
Music City Canada is an authorized reseller for Rode Microphones products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
