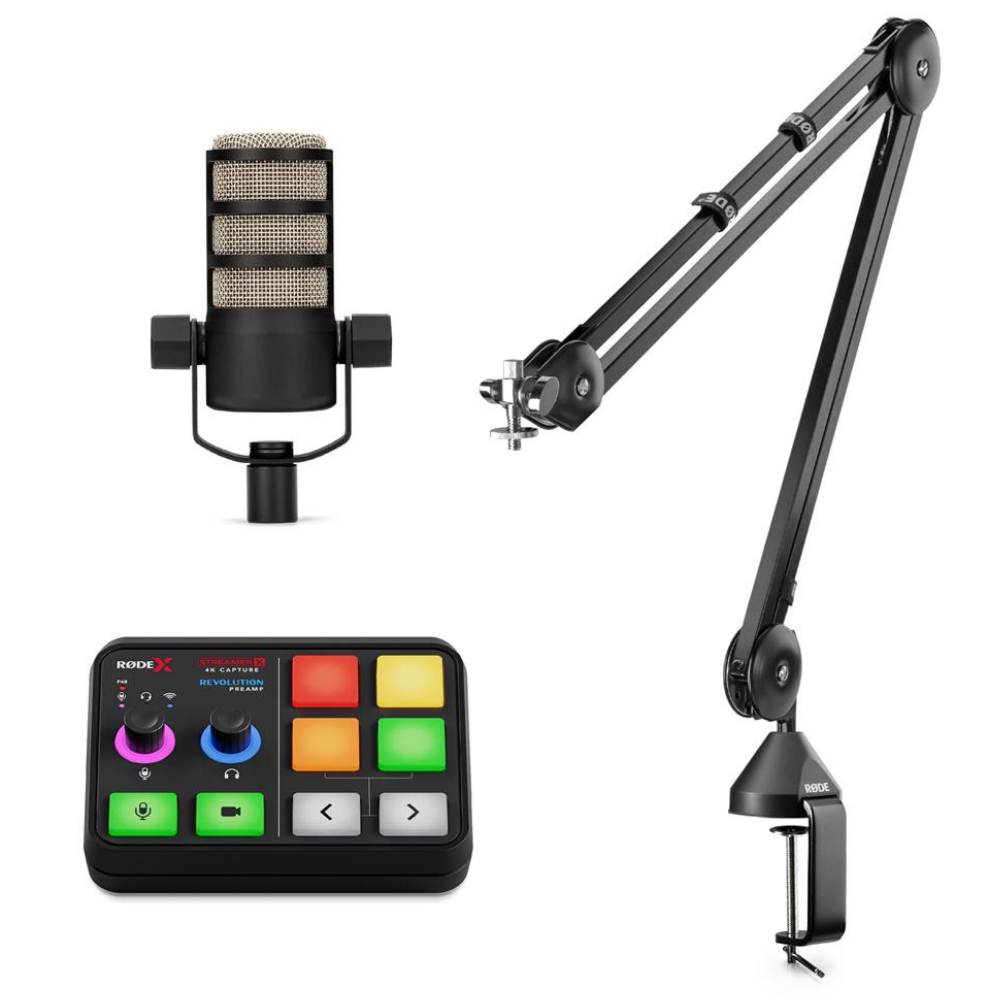

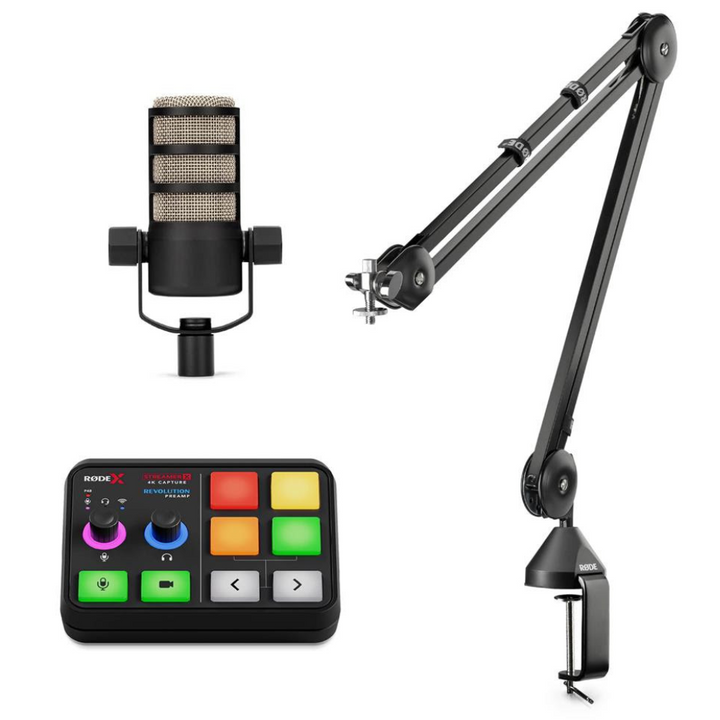

Rode ROD-STREAMERX-BUNDLE Streamer X - Video Capture Card, Audio Interface, and Control Surface

Overview of Rode ROD-STREAMERX-BUNDLE Streamer X - Video Capture Card, Audio Interface, and Control Surface

Description

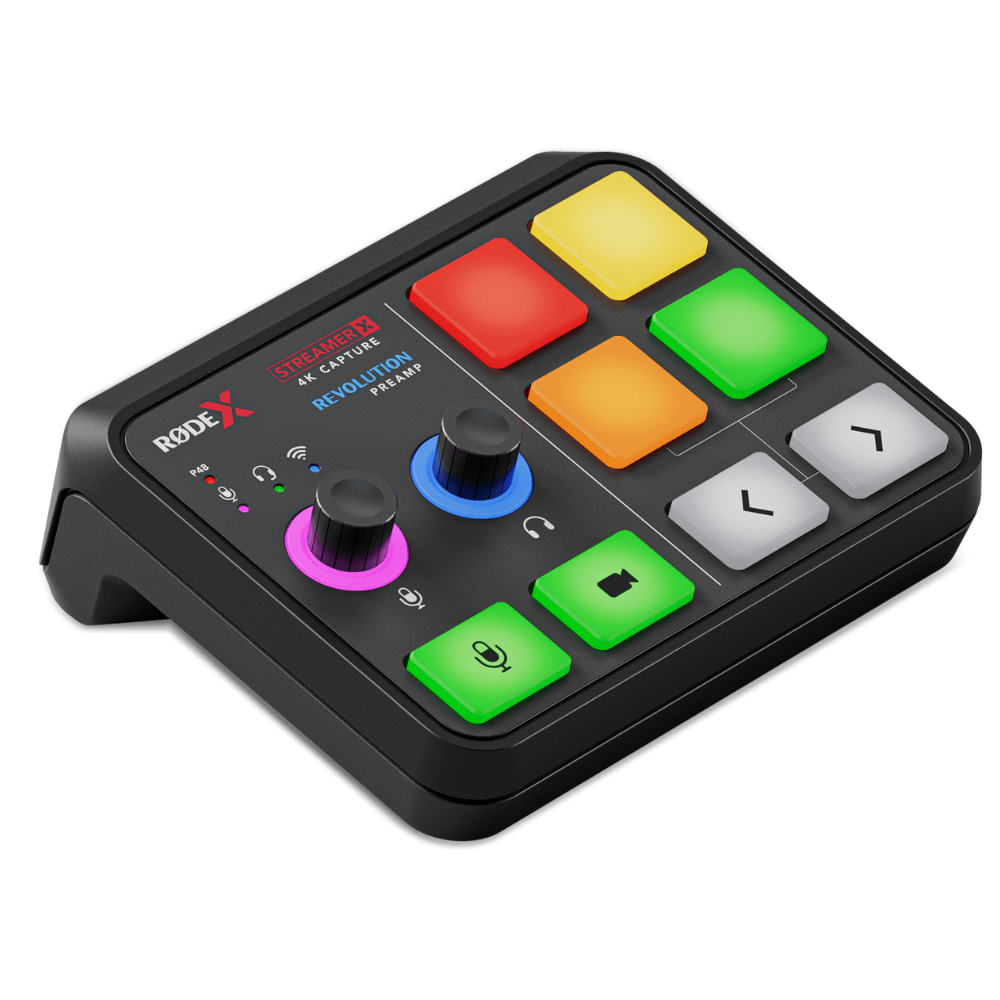

The Streamer X is a professional video capture card, audio interface, and control surface integrated into one compact device that makes creating incredible content incredibly easy. It features studio-grade audio inputs for XLR microphones and instruments, headsets, and RØDE wireless microphones, with an ultra-low-noise, high-gain Revolution Preamp™ and powerful APHEX® audio processing delivering pristine sound quality. HDMI connections offer up to 4K30 streaming and 4K60 pass-through for incredible video quality in a wide range of applications, from streaming and gaming to podcasting and content creation, to business presentations. Dual USB-C connections seamlessly accommodate dual PC setups, and four fully customizable SMART pads allow for on-the-fly triggering of sound or voice FX and other actions on a computer. The ultimate all-in-one streaming solution.

Key Features:

• Professional audio interface, video capture card, and control surface integrated into one compact, easy-to-use device
• Up to 4K30 video capture and 4K60 pass-through via HDMI
• Variable Refresh Rate (VRR) support
• Neutrik® combo jack for connecting XLR microphones or instruments, with an ultra-low-noise, high-gain Revolution Preamp™ for pristine audio quality
• 3.5mm TRRS input for connecting headsets and 1/4-inch headphone output for zero-latency monitoring
• Integrated wireless receiver for connecting RØDE Series IV wireless microphones, including the WIRELESS GO 11 and WIRELESS ME
• Internal DSP for advanced audio processing powered by APHEX®
• Four fully customizable SMART pads for triggering sounds, voice effects, and MIDI commands
• Dual USB-C interfaces for connecting to two computers or consoles
• Easy configuration and control via RODE CENTRAL desktop companion app
• Compatible with free UNIFY streaming software for advanced audio routing, mixing, and configuration
• Designed and made in RØDE’s precision manufacturing facilities in Sydney, Australia

UPGRADE YOUR STREAM WITH PRISTINE AUDIO AND FLAWLESS VIDEO

Don't compromise your audio or your video. With up to 4K30 video capture and 4K60 HDR, zero-latency pass-through, the Streamer X delivers incredible video quality for you and your audience. It also features our ultra-low-noise, high-gain Revolution Preamp™ for capturing pristine, studio-grade audio – no need for boosters or lifters – and with its advanced audio processing on-board, you can give your voice that rich, broadcast sheen.

PROFESSIONAL MICROPHONE, HEADSET, AND WIRELESS CONNECTIVITY

With the Streamer X, you can connect a wide array of audio devices to stream with, including an XLR microphone, instrument, headset microphone or even a RØDE Series IV wireless transmitter like the WIRELESS GO 11 or WIRELESS ME . You can adjust your input and output levels and switch input sources with ease thanks to the hands-on control interface, or you can even use all inputs at the same time via the included UNIFY software.

Versatile Video Streaming and Recording

Whatever content you are creating, whatever your setup, Streamer X will take it up a level. Whether you need to capture crisp gameplay from a PC or console, connect a DSLR for capturing incredible IRL streams, meetings, or presentations, or create a compact set-up that can be taken anywhere, Streamer X is the perfect solution.

FLEXIBLE CONTROL ON THE FLY

The Streamer X gives you flexible, on-the-fly control of your video and audio. It features dedicated controls for mic and headphones levels, and large audio and video mute buttons. It also features four fully customisable SMART pads, with up to 64 accessible via bank switching. These can be configured to trigger audio playback, add voice FX, and even send MIDI messages to your computer, allowing you to trigger any keyboard shortcut with a single press of a pad – super useful for everything from changing slides on a presentation to switching scenes in your streaming software.

SIMPLE, SLEEK, AND EVERYTHING YOU NEED

Replace a complicated, multi-device set-up with a single compact device that delivers better quality with far less complexity. Out of the box, you can connect XLR microphones, headsets, instruments, and even RØDE wireless systems, as well as cameras, computers, and consoles to get your stream running in minutes. With an intuitive design that offers full control whilst taking up very little precious desk space, the Streamer X represents a new way to stream with incredible audio and video.

RØDE CENTRAL

RØDE Central is a companion app for the Streamer X, giving you access to the on-board audio processing, SMART pad customization, mixer configuration, firmware updates, and other advanced device settings.

UNIFY

The Streamer X integrates seamlessly with UNIFY, the ultimate virtual mixing solution for livestreaming that offers everything from audio processing to advanced mixing and routing.

Streamer X User Guide

Discover all you need to know about your Streamer X audio interface and video capture card here. This comprehensive user guide covers everything you need to know about getting set up, capturing and passing through video, mixing and processing your audio, and using the control surface.

Specifications

ACOUSTIC, VIDEO & ELECTRICAL
DIGITAL
MECHANICAL

Video Input Connectors
1x HDMI Type A 2.0
Video Passthrough Output
1x HDMI Type A 2.0
Max Input Resolutions (HDMI In)
4Kp60 HDR
1440p144 HDR
1080p240 HDR
Variable Refresh Rate Support (VRR)
Yes
Max Capture Resolutions
4Kp30
1440p60
1080p120
1080p60 HDR
Audio Input Connectors
1x XLR Combo Jack (Mic/Instrument)
1x Wireless Receiver
1x Input HDMI
Audio Output Connectors
1x 3.5 TRRS Headset Jack (I/O)
1x ¼" Headphone Jack
Input Dynamic Range
113dB
Preamp Noise
-131.5dBV (A-weighted)
Frequency Range
Microphone Inputs: 20Hz-20kHz
Headphone Output: 20Hz-20kHz
Microphone Input Impedance (Ω)
4KΩ
Instrument Input Impedance (Ω)
1MΩ
Preamplifier Gain Range
0-76dB
Phantom Power
Yes
Direct Monitor
Yes
Headphone Output Power
125mW per channel
Internal Storage (GB)
2GB (SMART Pads)
Power Requirements
Via USB: 5V @ 3A
