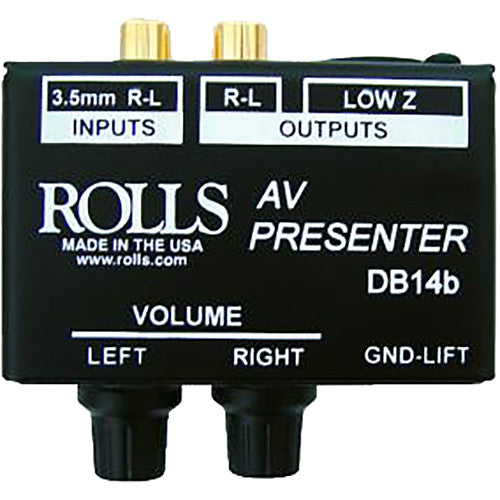

Overview of Rolls DB14B AV Presenter Stereo Patch DI
The DB14 is a special purpose direct box for applications where a stereo source signal can be separated, and then individual volume controls can be used for the level of each track. Useful in such situations as rehearsing a choir to the background music track. It has stereo RCA inputs, two volume controls, RCA and LXR outputs and requires no power.
Features:
- Splits Stereo RCA and stereo 1/8" (3.5mm) signals
- Individual Right and Left level controls
- Transformer balanced XLR mono output.
- Hum elimination/ground lift switch
Specifications:
- Max Input Level: +20 dB
- Max Output Level: +20dB RCA, 0 dB XLR
- Frequency Response: (Low Z) 50 Hz to 16 kHz
- Weight: 1 lb (.45 kg)
