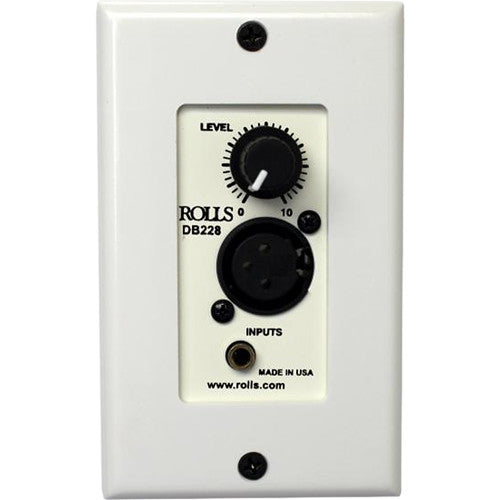

Overview of Rolls DB228 Wall Plate Direct Box
The DB228 Wall Direct Interface is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, phone, etc., may be easily connected to a professional audio system. In addition it will mix a microphone with a line level signal and send it out via a plugable barrier strip connector.
Features:
- Level Control adjusts both inputs
- 3.5mm R and L mix to Mono
- Output is a screw terminal plugable strip
- Mounting for standard electrical wall box (not included)
- Trim is for standard Decor'a wall plate (not included)
- Will pass phantom power
- Decora plastic cover in image is not included.
Specifications:
- XLR Input Impedance : 600 Ohms
- 3.5mm Input Impedance : 20K Ohms
- Frequency Response: 50 - 20K Hz +/- 3 dB
- Weight: .25 lbs.
- Dimensions: 1.5" w x 4.125" h x 1.5" d
- Decora plastic cover in image is not included.
