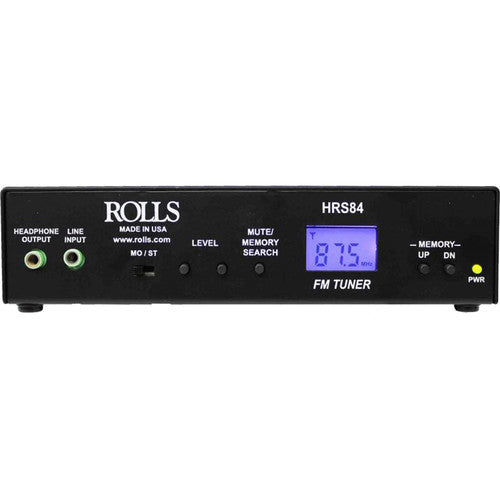

Overview of Rolls HRS84 Digital FM Tuner w/ XLR Connection
The HRS84 is a digital FM tuner. It features professional line level XLR outputs. A dedicated headphone output on the front of the unit. Operates in Mono or Stereo. Up to two HRS84's can be rack mounted in a single standard 1U rack space, the Rolls URT5 (Universal Rack Tray), or the RMS270 Rack Module System.
Features:
- Tuning Range: 87.5 - 108 MHz
- Output Level control
- XLR and RCA Outputs
- FM stereo or mono operation
Specifications:
- 30 dB quieting sensitivity: 28 dB
- Image Rejection 105.9 MHz: 20 - 26 dB
- 3dB Limiting Sensitivity: 28 - 35 dB
- THD 1 mV Input: 0.5 - 2 %
- Auto Tuning Sensitivity 97.9 MHz: 25 - 30 dB
- Current: 100 mA
- Supply Voltage: 12-15 VDC
- Dimensions: 6.75"w x 3"d x 1.6"h
- Weight: 1.1 lbs
Music City Canada is an authorized reseller for Rolls products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
