Rolls MP13 Mini Single CH Mic Preamp
MP13
Regular price
$219.00
Sale price$189.00
Save $30.00
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- Rolls
- Shipping Calculated at checkout, most in stock products ship same day

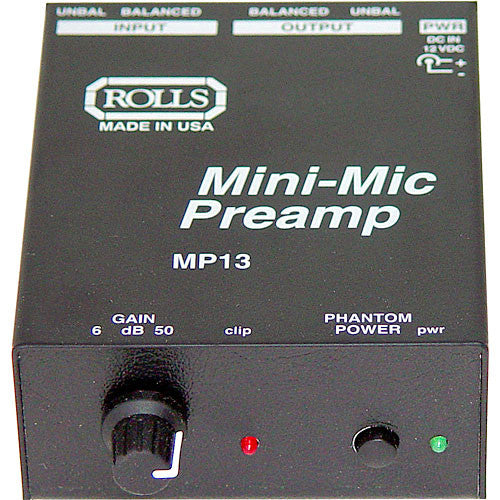

The MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4" Outputs, XLR and 1/8" Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.
Features:
- Small size
- Works with dynamic, Phantom and Heaset mics
- XLR and 3.5mm inputs
- XLR and 1/4" outs
- Works with 9 to 15 Vdc
Specifications:
- Input Impedance: 10K Ohms balanced/unbalanced
- Max Input Level: +4dBV XLR balanced, +10dBV unbalanced
- Max Gain: XLR 60dB, 1/4" 54dB
- Phase Shift: <10 deg. 20 Hz - 20 kHz
- EIN: -108dB max.
- THD: <.01%
- IMD (SMPTE): < .01%
- CMRR: >80 dB
- Phantom Power: +24 Volts, 6 mA
- Power: 12-15VDC
- Size: 3.4" X 4.2" X 1.4"
- Weight: 1 lbs (.45 kg)
