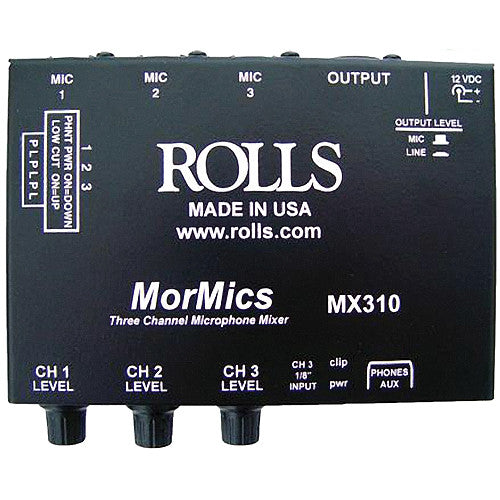

Overview of Rolls MX310 MorMic 3 CH Mic Mixer
The MX310 MorMics - three channel microphone mixer. Although having many uses, this little mixer was originally designed for people that need to plug 2 or 3 more mics into a mic input. The MX310 is a 3 channel microphone mixer with balanced XLR inputs, phantom power, and XLR Mic/Line output. It has a stereo 1/8" (3.5mm) Auxiliary input for connection to any stereo line-level source such as an AM/FM tuner, CD player etc. A 3.5mm stereo output jack is provided for connection to a computer, ear buds, or other monitoring.
Specifications:
- Input Impedance: 600 Ohms
- Output Impedance: 600 Ohms Mic - 200 Ohms line
- THD Noise: .05% Typical
- Frequency Response: 20 Hz - 20 kHz ( 0 / -3 dB)
- Voltage Gain: 50 dB line/10 dB Mic
- Low Cut: -3 dB @ 100 Hz
- Current Draw: 20 mA
- Phantom Power: 15 VDC
- Maximum Supply Voltage: 16 VDC
- Size: 5.25" x 3.75" x 1.5"
- Weight: 1 lbs.
