Overview of Rolls MX51s Mini Mix II 2 1/4'' & 3 RCA Mixer

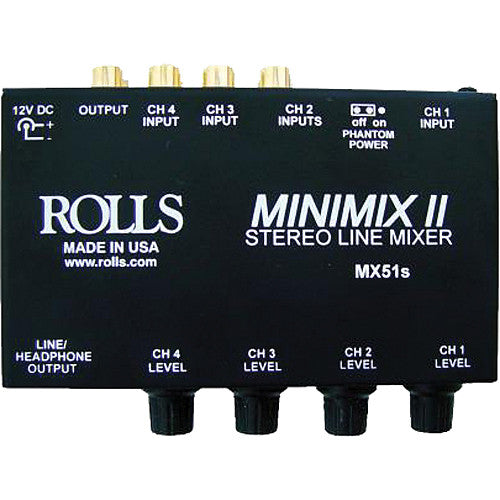

The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8" input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8" jacks. The MX51s is powered by an included ROLLS PS27 adapter.
Features:
- For mixing a microphone XLR input with up to three RCA input signals
- XLR phantom power available.
- Four channels total
- Line / Headphone output level
- ROLLS PS27 AC adapter included
- Stereo RCA Line-Level Output
Specifications:
- Power: ROLLS PS27s adapter
- CH 1 Gain: 32 dB XLR jack (highest gain)
- Phantom Power: for CH 1 microphone XLR
- Ch2 Gain: 26 dB 1/8" and RCA
- Ch 3 and 4 Gain: 26 dB each RCA
- Output: 1/8" stereo and stereo RCA
- S/N Ratio: >90 dB
- THD: <.008%
- IMD(SMPTE): <.008%
- Input Impedance: 10K Ohms unbalanced each jack
- Size: 3" x 5" x 1.25" (8 x 13 x 3.2 cm)
- Weight: 1 lbs. (.45 Kg)
Music City Canada is an authorized reseller for Rolls products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
