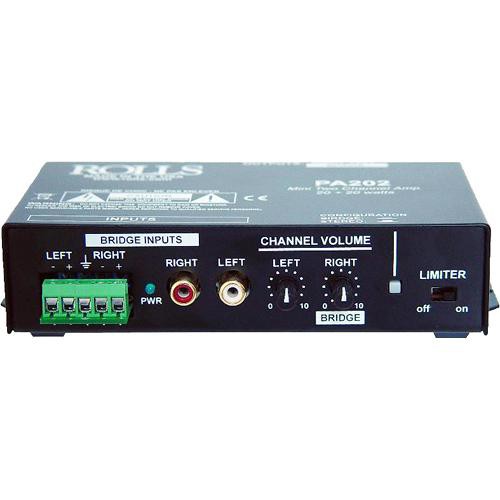

Rolls PA202 20 + 20 Watt Mini Amp

Small general purpose audio power amplifier for projector, ceiling mount, or rack monitoring. Great for boardroom and classroom applications. Ideal for small space installations where a larger amplifier won′t fit. Works with 4 or 8 ohm loads. Has bridge switch for higher power mono and a limiter. Included 24 VDC inline IEC power supply.

Features:

• Small size with mounting tabs
• Balanced and Unbalanced Inputs
• Pheonix type input and output
• Low cost, helps win your bid
• Optical Limiter for maximum clean power output
• Bridge switch for 40W mono operation
• Included 24 VDC inline IEC power supply.

Specifications:

• Input Connectors: Screw Term & Dual RCA
• Outputs Connectors: Screw Terminals
• Max Gain: 34 dB/Channel
• Voltage Gain: 32 dB
• Bandwidth: 20 - 25KHz
• Input Sensitivity: 28 mV
• Included 24 VDC inline IEC power supply.
• Line Input Impedance: 47K Ohms
• Power Output: 20 watts X 2 @ 4 Ohms, 40 watts bridge @ 8 Ohms
• Maximum Supply Voltage: 30 VDC
• THD: .05% typical
• EIN: 3 mV
• Efficiency: 85%
• Cooling: Conection Cooling (No Fans)
• Standby and Idle Current Draw: .005/.01 Amps
• Signal to Noise: >100 dB
• Size: 4.25 x 1.5 x 2.375 (W x H x D)
• Weight: 1 lb.
