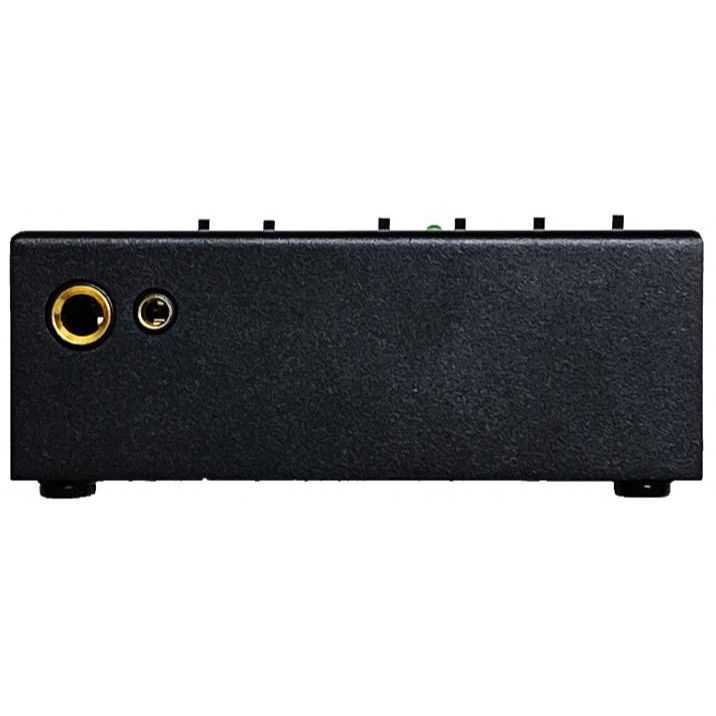

Rolls PM61 Personal Monitor Amp with EQ

Meet the PM61, the ultimate solution for seamless audio mixing and precise monitoring with a four band EQ. This versatile device enables you to effortlessly blend a microphone XLR signal with a stereo or mono 1/4” input, delivering crystal-clear audio directly to your headphones.

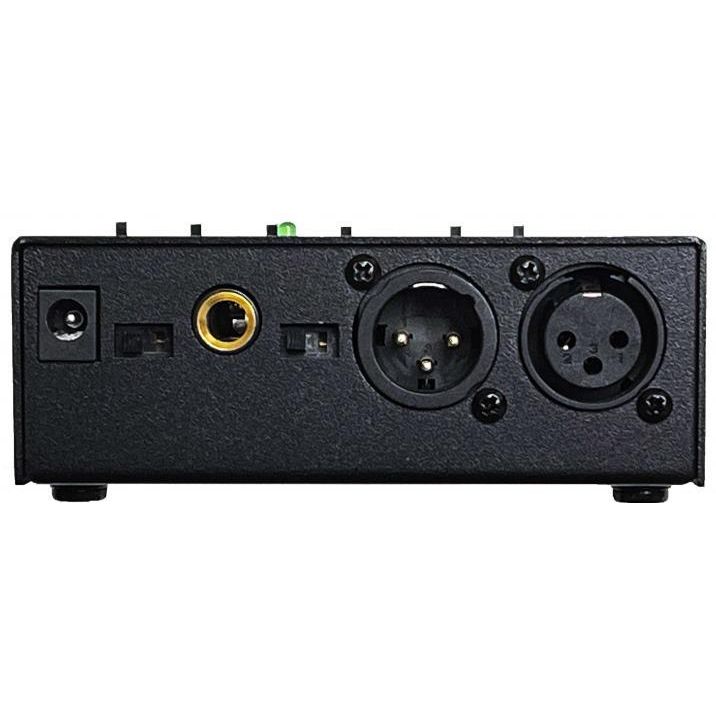

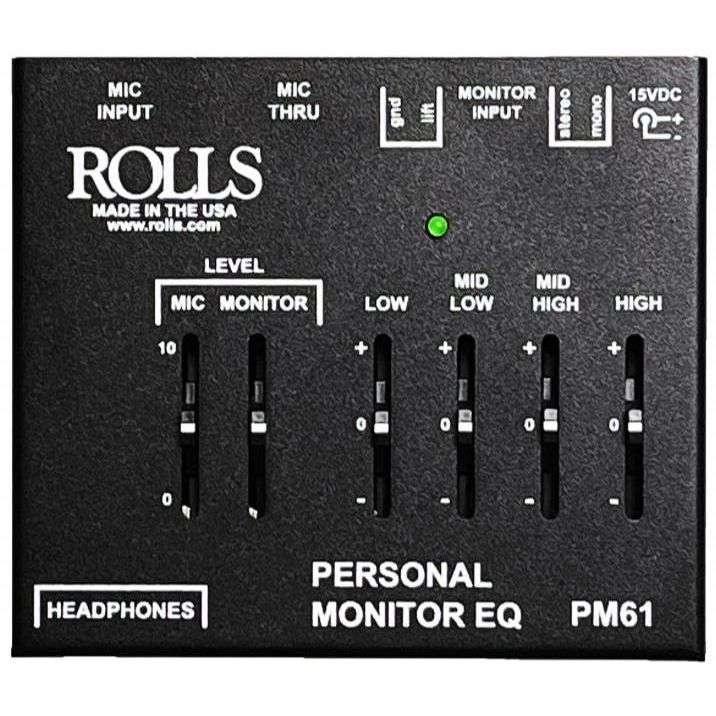

The PM61 is equipped with essential features such as a monitor level control, mic/XLR level control, mic/line pass-through XLR jack, two headphone output jacks, and a stereo or mono TRS/TS 1/4" monitor input jack. These capabilities make it an indispensable tool for a diverse range of users—from drummers syncing with a click track to choir singers monitoring their performances, podcasters refining their recordings, and much more.

Whether you′re a musician, podcaster, or recording professional, the PM61 is designed to enhance your workflow with unmatched precision.

Discover the PM61—your go-to companion for professional-grade audio mixing and monitoring with EQ.

Applications

• Studio
• Live
• Broadcast
• Anywhere you need to mix a mic with a stereo or mono signal.

Specifications

• Gain
  • 10 dB 1/4”
  • 48 dB XLR “MIC”
• Input Impedance
  • 600 Ohms XLR
  • 22K 1/4”
• Output Impedance: 10 Ohms
• Frequency Response: 3Hz to 100kHz
• THD: .05% @ 1KHz
• S/N Ratio: 90 dB
• PWR: 9-15 VDC
• Indicator: 1 Power LED
• Size: 4" x 3.5” x 1.5"
• Weight: 0.8 lbs

What's in the Box

• 1x PM61
• 1x 15V power supply (PN PS27s)
• 1x Owners manual
