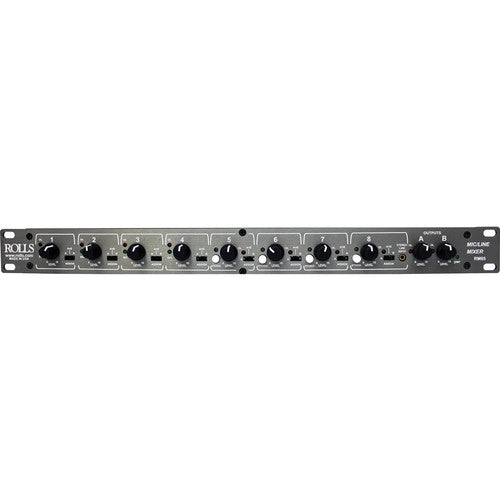

Overview of Rolls RM85 2 Zone 8 CH Mic/Line Mixer
The RM85 is a 8 channel two zone mixer. Channels 1-4 will accommodate XLR microphone or XLR line level inputs. Channels 5-8 are 1/4" inputs. All 8 channels can be sent to the two XLR outputs in three configurations; A, B or both A+B. The separate A and B outputs are XLR and either can be selected to be Line or Microphone level output. Channel 8 also has a stereo 3.5mm (1/8") input on the front of the RM85.
Features:
- Four XLR balanced inputs with +48 V phantom power
- Four stereo Source inputs, including a front panel 3.5mm input
- Master Output Level control for each channel
- Low noise, efficient operation
- All in a single rack space
Specifications:
- Input Impedance: Mic: 600 Ohms XLR balanced Line: 22K Ohms RCA
- Max Input Level: Mic: -14 dBV Mic level Line: +24 dBV
- Total input Connectors: 4: XLR, 4: Stereo 1/4", 1: 3.5mm
- Phantom Power: +48 VDC
- RCA Output Level: +17 dBV max (impedance 1K Ohm)
- Max Gain: Mic: 70 dB Source: 30 dB
- Noise Floor: - 80 dB, THD: <.025%
- S/N Ratio: 96 dB
- Voltage Gain: 32 dB
- Nominal Supply Voltage: 15 VDC
- Bandwidth: 20Hz - 25 kHz
- Size: 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm)
- Weight: 7 lbs. (2.3 kg)
- Power supply: Rolls PS27s power supply 15 VDC 500 mA TIP
