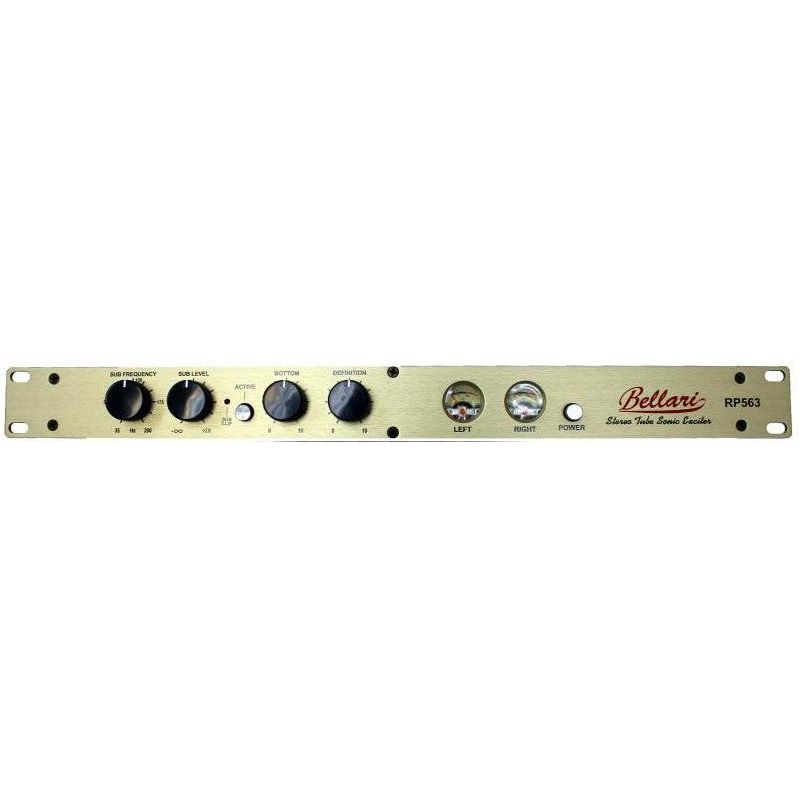

Rolls RP563 Stereo Tube Sonic Exciter
RP563
Payment plans from Affirm, learn more
- Rolls
- Shipping Calculated at checkout, most in stock products ship same day
The Rolls RP563 - Stereo Tube Sonic Exciter is a 19" 1U rackmountable signal processor designed for studio and live reinforcement applications. The unit provides two channels of class-A vacuum tube gain circuitry and can correct phase and harmonic differences in an audio signal, generating a warmer and more present sound.

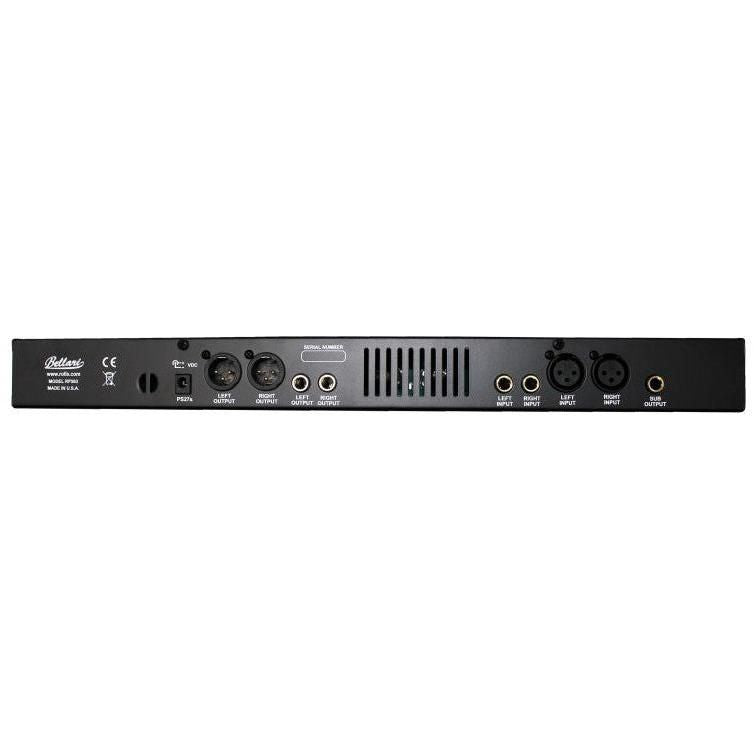

The device features both 1/4" unbalanced and balanced XLR inputs, an adjustable 18 dB/octave subwoofer filter with adjustable frequency, level control, bottom and definition controls, and left and right analog metering. In addition to its stereo XLR and 1/4" output connectors, it also features a 1/4" sub output for sending the filtered and unprocessed sub frequencies to an external sub-processing channel strip or amplifier.
In the Box
- Rolls RP563 - Stereo Tube Sonic Exciter
- External Power Supply
- Limited 1-Year Warranty
Specifications
| Input | 2 x 1/4" TS 2 x XLR-3F |
| Output | 2 x 1/4" TS 2 x XLR-3M 1 x 1/4" TS sub |
| Input Impedance | Balanced: 10 kOhms Unbalanced: 10 kOhms |
| Frequency Response | 20 Hz to 40 kHz |
| THD + N | <0.7% typical |
| Noise Floor | -90 dB |
| Indicators | Power LED Active LED 2 x analog VU meters Sub Clip LED |
| Power | 100 to 240 VAC for included power adapter |
| Dimensions | 19 x 6 x 1.75" (482 x 162 x 89 mm) |
| Weight | 6 lb (2.7 kg) |
