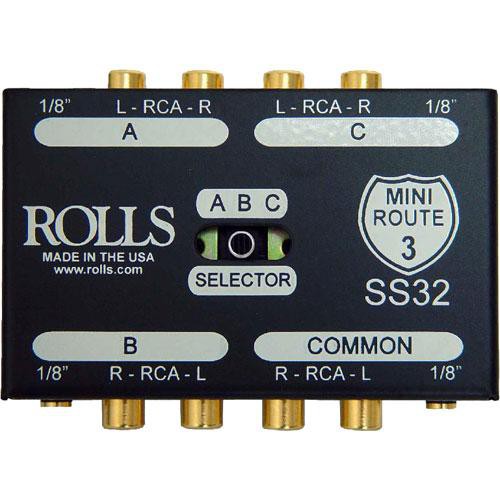

Overview of Rolls SS32 3 Way Stereo Switch
The SS32 is a passive stereo or mono signal switching device designed to route a single signal to three outputs one at a time, or three input signals to a single output. All Contacts are make before break.
Features:
- 1/8" stereo and stereo RCA's all channels
- Small size 3.75" X 2.25" X 1.25"
- Passive, no power needed
- All Connections are direct, no added impedance
Specifications:
- Connectors: 4 ea; 1/8" Tip-Ring-Sleeve jacks
- Connectors: 4 ea; RCA stereo jacks
- Switch: Triple throw / double pole selector switch
- Contacts: Make before Break
- Size: 3.75" W x 1.25" H x 2.25" D
- Weight: 1 lbs.
Music City Canada is an authorized reseller for Rolls products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
