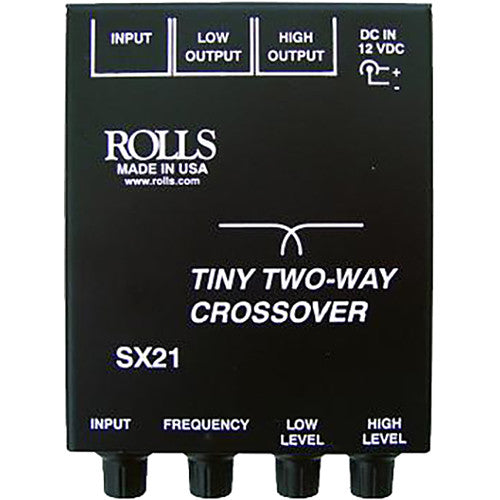

Rolls SX21 Tiny 2 Way Crossover

Rolls SX21 Tiny 2 Way Crossover

SKU: SX21 | UPC: 675889000214

Your Price: $169.00


This product is NOT IN STOCK! For real-time availability, click here to chat with us!

Music City Canada is an Authorized Dealer for Rolls Products.


Overview of Rolls SX21 Tiny 2 Way Crossover

The SX21 is a 24dB/Octave two-way frequency divider intended for small sound reinforcement applications. It has Input, Low and High Output jacks, and Input, Crossover Frequency, Low and High Output controls. It is powered by an included 12 to 16 volt DC adapter.

Features:

  • 24 dB/Octave rolloff
  • Mono 2-Way crossover
  • 50Hz - 2.5kHz range
  • 1/4" unbalanced Input and Outputs
  • External power supply for low noise operation

Specifications:

  • Input Impedance: 10K Ohms
  • Output Impedance: 1K Ohms
  • Headroom: +10 dBV
  • Power Requrements: 12 - 16 VDC 150 mA (Rolls part number PS27)
  • Size: 4.25" x 3.625" x 1.5"
  • Weight: 1 lb

Music City Canada is an authorized reseller for Rolls products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
