Overview of RTI KX4 Touch Screen Controller
RTI's NEW KX4 Touch Screen Controllers. Ideal for single-room commercial applications such as meeting rooms, classrooms, and lecture halls, the KX4 combines an in-wall touch panel and hard button input with a built-in control processor. The result is an enhanced automation solution that combines control simplicity with power in a single cost-effective unit.
Specifications:

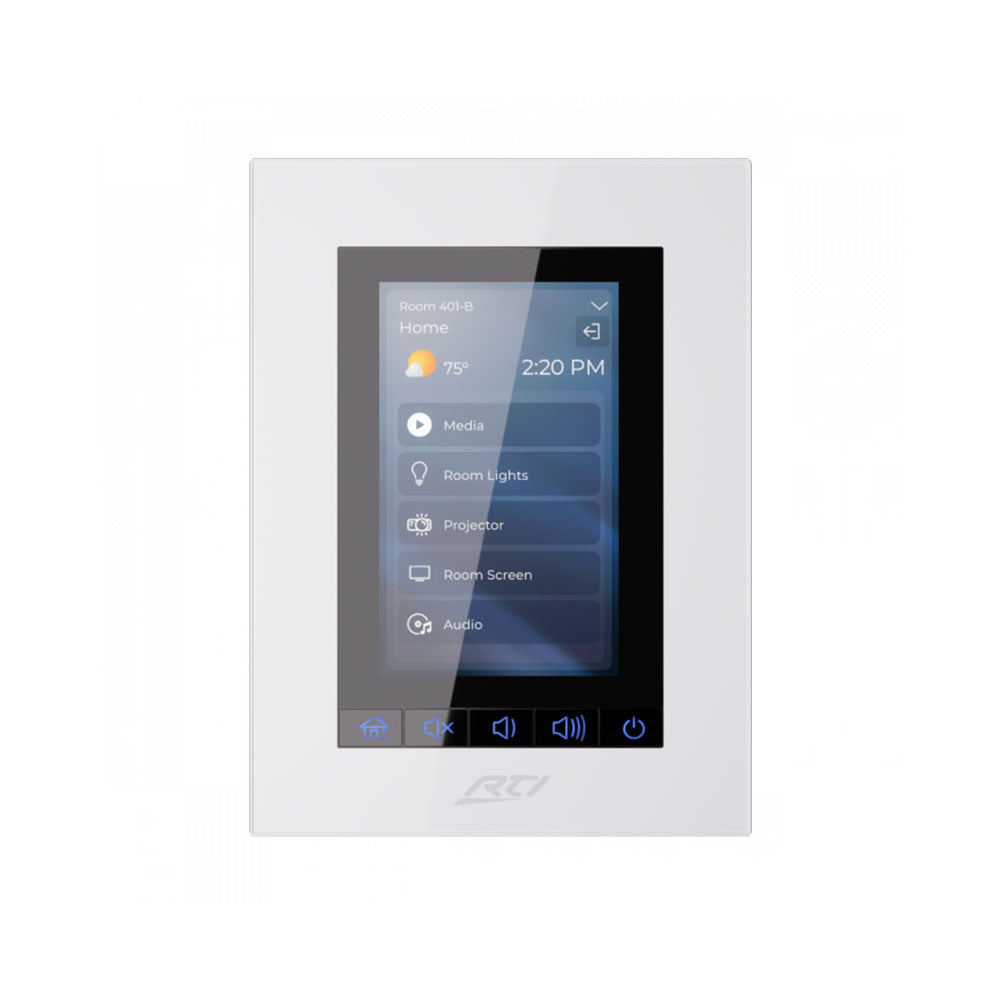

- KX4 boasts a 4” high-resolution capacitive touch display with five configurable hard-buttons.
- Complete with built-in control processor features advanced capabilities including support for two-way drivers, RTiPanel App, and expansion capabilities.

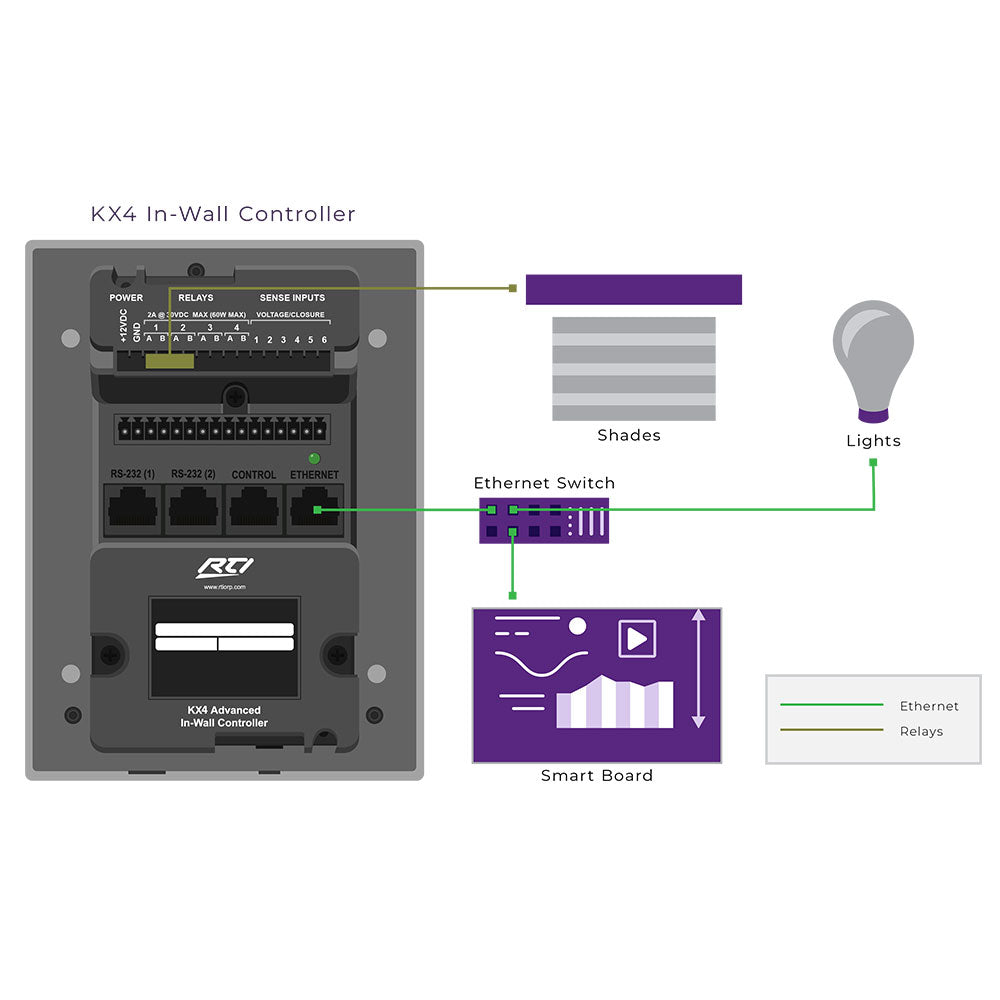

- Back panel connections enable direct control of devices via IR, IP, and two RS-232, six voltage sense ports with sense-event capabilities.
- Integrated 10/100 Base-T Ethernet (with PoE) for access to network security cameras, programming updates, and more.
- A proximity sensor wakes up the unit as a user approaches and an ambient light sensor adjusts the touch panel’s backlighting.
- They are powered using a power supply, CB8 connecting block or PoE (Power over Ethernet).
- Stylish low-profile faceplate available in white or black (ships with white).
Music City Canada is an authorized reseller for RTI products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
